Installing Air Seps

Discussion in 'Post Yacht' started by My Affair, Apr 3, 2021.

You need to be registered and signed in to view this content.
  1. My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    I’m installing Air Seps in my 1988 46’ Post. The fuel fill line need to be re-routed a bit for clearance for the air sep...and yea it’s tight on other side..but works.

    my thought is to cut the copper, add a piece of Trident Fuel Fill Hose to bridge the few 4-6 inches I need to reroute, double clamp, tie wrap as necessary and be done.

    I would consider having someone come and braise in a piece of copper and two sleeves, but in review it appears the outcome isn’t much different and the safety factor ends up the same as the copper now has fuel hose sleeves on both ends.

    any thoughts or things I’m missing?
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,845
    Location:
    Satsuma, FL
    Stay with the hose plan. Solder or brazing may bite you in the future.
  3. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    133
    Location:
    Post 46 Long Island NY
    Hose. Been there done it
  4. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    89
    Location:
    Jersey Shore
    At least you had copper pipe. Our 1980 had sat for a bit before our purchase and the very first fuel up was a challenge. Post used galvanized pipe and black iron 90's, which were perforated.
  5. OutPost

    OutPost Member

    Joined:
    Jul 26, 2016
    Messages:
    73
    Location:
    Long Island, New York
    Still have all the original galvanized pipe (and fuel tanks) in my 76. On the list but seems like a massive job.
  6. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    89
    Location:
    Jersey Shore
    My pipes were galvanized, the elbows were black pipe and rusted through.
    I eliminated them. Put the fills in the cockpit directly over the tank ports. Made it easy to fill, no spills and easy to stick the tanks for fuel levels.
    RT46 likes this.
  7. OutPost

    OutPost Member

    Joined:
    Jul 26, 2016
    Messages:
    73
    Location:
    Long Island, New York
    Have any pictures?
  8. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    89
    Location:
    Jersey Shore
    Not that I can find and we don't have the boat anymore. I removed the tank fills from the gunnels and used them.
  9. My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT

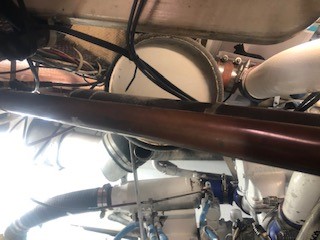

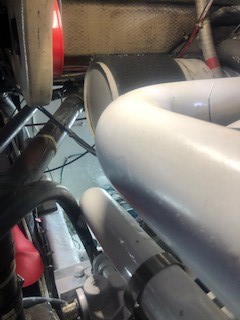

    Here are some photos- hose is the simple solution

    Attached Files:

    • 1.jpg
      File size:
      24.6 KB
      Views:
      242
    • 2.jpg
      File size:
      38.3 KB
      Views:
      223
  10. OutPost

    OutPost Member

    Joined:
    Jul 26, 2016
    Messages:
    73
    Location:
    Long Island, New York
    I feel like I would have to cut out the galvanized pipe and my post is a gasser - can that even be done without risking a fire / explosion .. I feel kind of stuck with what I’ve got. Maybe there’s a solution I’m not thinking about.
  11. My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    on my 1975, when the tanks were replaced, we used all hose from the fill to the tanks.
  12. RT46

    RT46 Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    1,042
    Location:
    Long Island, NY
    The airseps fit in my 46 post without mods to the fuel fill.
    I have alot of copper in the boat, everything from domestic water, to gen exhaust, to fuel fill
  13. My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    RT46, by chance do you have pictures of the Port side Air Sep installed? Thank you
