Inland Waterway Cruising; Boats, Barges, etc.

Discussion in 'General Yachting Discussion' started by brian eiland, Apr 1, 2011.

  1. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,483
    Location:
    Germany
    That looks like a fake Sub. It seems to be a typical english Narrow Boat converted by somebody with a good sense of humour into something that looks pretty funny.

    We had some of those funny chaps in Hamburg too. One morning a big Submarine appeared on the Alster (Lake within the city of Hamburg). As powered boats are not allowed on this lake (except tourist boats), the police showed up and tried to arrest the Submarine Commander. Thats what they found:

    A man powered piece of plywood :D. And totally legal ! Nice joke, I must say.

    Attached Files:

  2. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    I was looking thru google images for something and this popped up. I just had to save for one of these subject threads. I didn't look at it that closely, but I was sure is was fake or the like....ha...ha
  3. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    British canals vs French canals

    ...from another forum, an experienced 'canal boater' wrote to me

  4. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,384
    Location:
    My Office
    Hi,

    Rt click on the picture or plan and it will give you options as to what to do, they all appear to be images so its easy on that site.
  5. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    Yes K1W1, I know that trick, but at the time I was trying to do this I was running into problems on that site as well as on the Yachtworld site. When you rt-clicked it did not allow you to copy the image. I think things have cleared up sense this occurrence.
  6. ddw1668

    ddw1668 Senior Member

    Joined:
    Jan 18, 2007
    Messages:
    134
    Location:
    Murrells Inlet, SC
    All this talk about SUBS reminded me that I took this picture back in January. The Admiral of the Fleet commented as follows: "Is the basin deep enough for subs?" The Captain of the Fleet had no comment.........All of you sub drivers now know where to get them hauled tho......:D

    Attached Files:

  7. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    Redesigning the Pilgrim 40 trawler



    The canal vessel mentioned in the 2 quotes above might be a really good candidate for construction along the lines of what I discuss for this Pilgrim 40 vessel, over HERE
    Redesigning the Pilgrim 40 Trawler / Canal Boat - Trawler Forum
  8. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    Solar-Electric powered Canal Boat

    Found a reference to this vessel on another forum, and thought it should be referenced here,...link:

    http://www.mogcanalboat.com/


    Tour on youtube:
  9. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,483
    Location:
    Germany
    Solar-Electric powered leisure boats for canals, inland waterways and slow current rivers are becoming more and more fashionable in Europe too. But the MOG Solar Powered Motor Yacht is a different approach from what we see here on our canals.

    A simple boat, no advanced and expensive gimmics, no big emphasis on seaworthiness, a boat for calm and protected waters with no or at least minimal current. The propulsion is simple, inexpensive and easily removable (Outboards, normal batteries and low voltage). The interior ambiance is probably spartanic on purpose, with the charter market and low purchase price in mind. The exterior is not but form follows function. If this boat would meet at least the CE criteria C (protected waters) and sell for a competitive price in Europe, it would have its market share, especially in the Netherlands, Belgium and France. The charter boats for inland waterways in these countries are mainly in the size of up to 12 meters and with an airdraft of up to 2,6 meters. The only real difference with the European canal boats is the hull material. Bcause of the hard surface canal and river banks and the many locks and opening bridges with waiting zones, steel and not FRP is the favorite material for those boats.

    Due to the still limited capacity of todays batteries for propulsion purposes, SOLAR cells are not sufficient for the sole operation with solar power and battery buffer. One would always need a range extender and / or a propulsion "booster". Taking the speed limits of 6 to 8 Kts of most canals and navigable rivers in account, an electrical propulsion of 10 KW is sufficient to maintain 6 Kts in calm waters with no current with a 12 meter normal shaped boat (not a rectangular house boat :)). But this is not enough for going a river with a decent current upbound and even 2 KW (effective not nominasl) of solar power will not be enough for full day of going on pure electric. So, a booster and backup propulsion will be needed. As soon as air conditioning, electric cooking and household AC equipment comes into play, the power balance is beyond any practical calculation.

    The above mentioned boat would very usable for enviromental protected areas and lakes and for short time charters. But for traveling over longer distances and time with some onboard comfort, one would need a different approach.

    IMHO, a diesel hybrid propulsion would be the solution. One or two modern diesel engines (size depends on the speed wanted in pure diesel mode) with a small electric motor/alternator integrated in the propusion train, a decent LiPo batterie block of higher voltage (at least 48 Volt) and ideal sinus inverter/charger bank converting 48 Volt DC into household AC and vica versa. The Solar cells obiously switched into a 48 Volt array also. Combinded with a shorepower input, this system would be sufficient for longer travel on canals and quiet rivers.

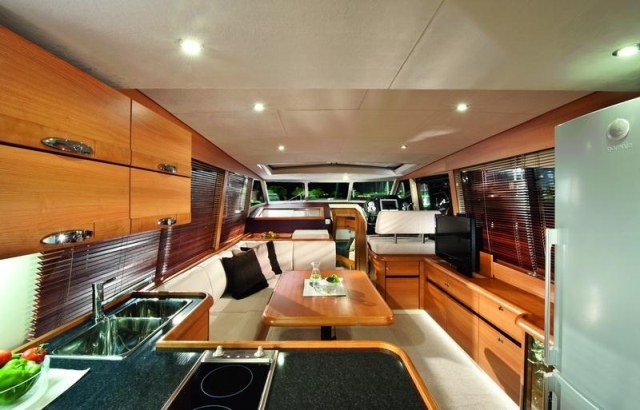

    But one of those boats is already avialabe on the European, Down Under and US market as a production boat of pretty good quality and with a comfortable interior and living space for 4 adults.

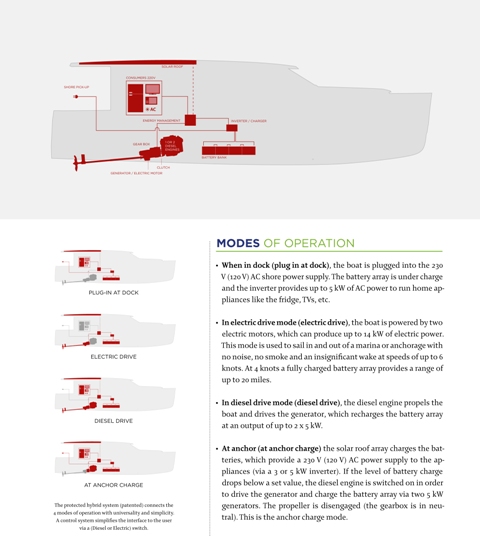

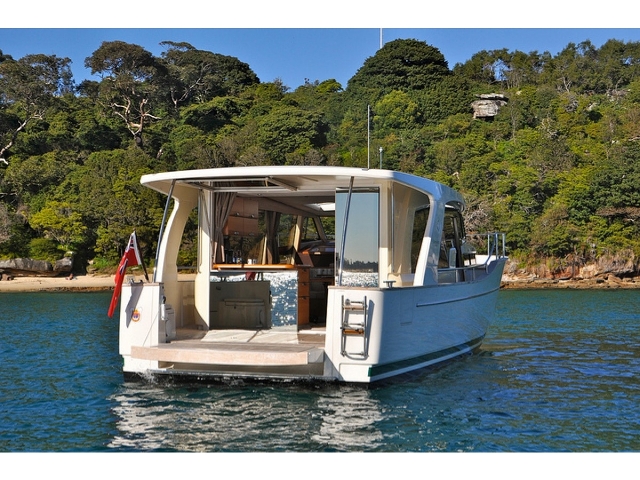

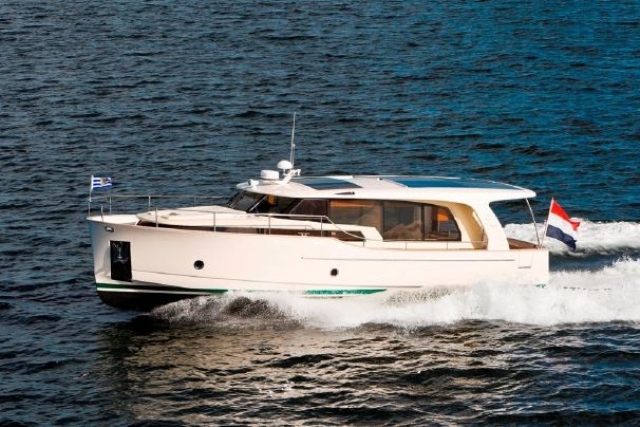

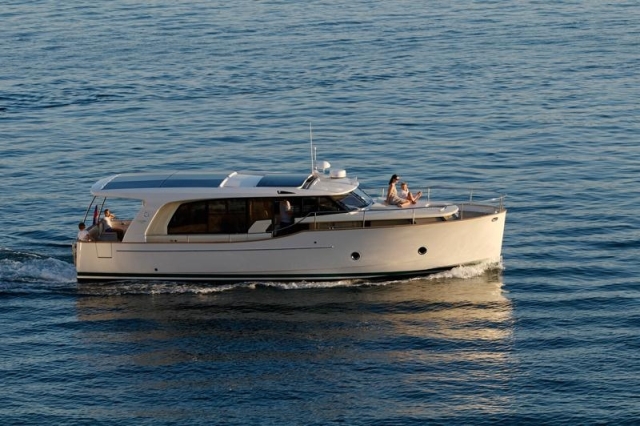

    The Greenline 40 Hybrid. A 11,99 meter (40 ft) semi displacement boat with diesel-hybrid propulsion and Volvo Penta D3 engines from 2 x 110 HP up 2 x 220 HP, 2 x 10 KW electric motors with integrated 7 KW alternators and 420 Ah 48 Volt LiPo Battery for electric propulsion and hotel load, a 1.4 KW 48 Volt Solar array on the coach roof and a beefy inverter/charger bank with shore power connector made by Victron.

    It has a 20 NM range at displacement speed on electric propulsion only, recharges the battery either via shorepower, solar cells or via the alternators in the electric motors. With the 2 x 220 HP engines it reaches 20 Kts, when on plane. A pretty versatile vessel.


    With the addition of a little 5 KW diesel generator mounted under the aft cockpit floor, it could go a complete day long in an additional diesel-solar-electric mode at about 6 Kts with some 2 to 2,5 Liters per hour. I like that little boat very much

    But

    This boat with all the above mentioned options would go for more than half a million Euros without VAT.
    One could by a LOT of diesel for the additional charge of this hybrid propulsion package :). But the boat has its market share and is selling.

    So Brians MOG boat might by the better choice, if money is a factor.

    Just my 2 (Euro( cents
  10. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    This was another economically canal boat concept,...simply plywood construction,...and not bad looking.
    http://markvdesigns.tripod.com/boatbuilding/id12.html

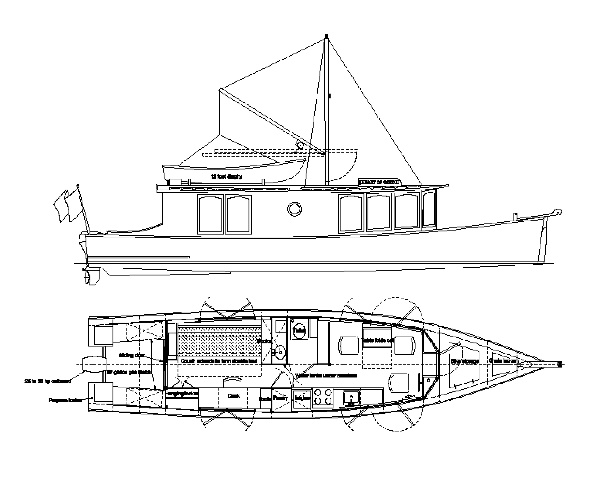

    39' Sharpie Houseboat.jpg

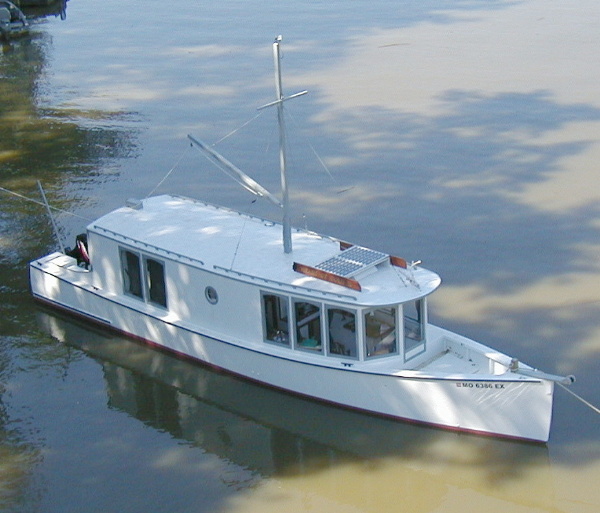

    Sharpie houseboat.jpg



    Last edited: Jun 20, 2016
  11. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
  12. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,587
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    It reminds me of the " Tiny House" trend.
    I think they're neat but I am spoiled now.
  13. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand

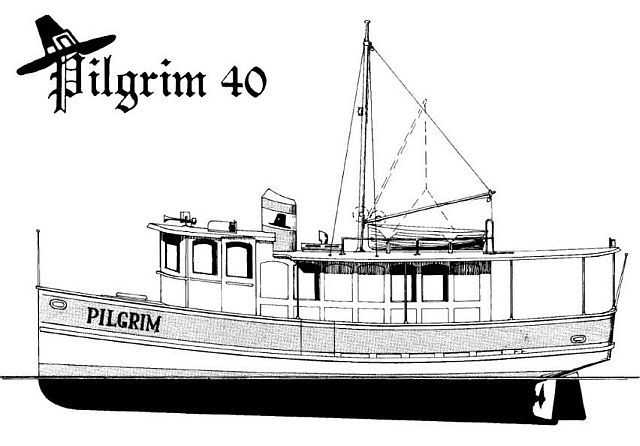

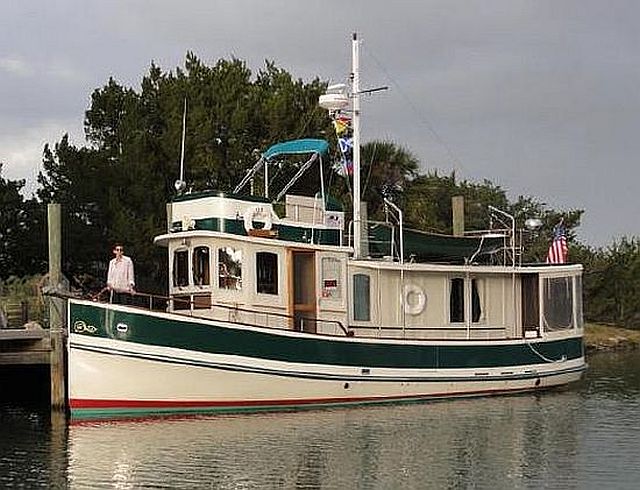

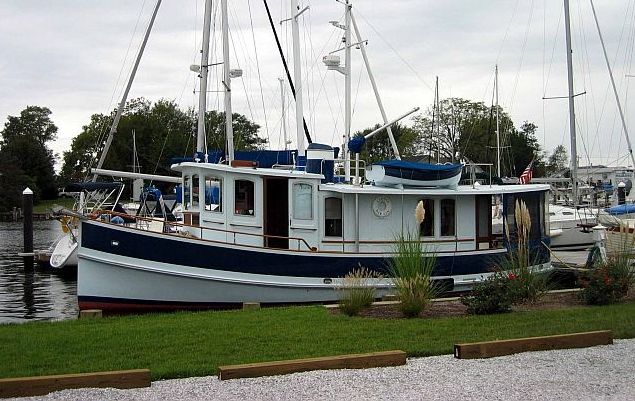

    I've got to ask, does this vessel also remind you of tiny house trend? profile, no flybridge, 640.jpg Little Darling, Pilgrim 40.jpg Pilgrim 40,  Wayside.jpg

    I really like the nostalgic look of this vessel, and the very practical live-aboard capabilities for a relatively small vessel,....so much so that I have spent a considerable time imagining how one might redesign it ever so slightly to make any improvements owners (or potential owners might wish), and to bring the construction cost into a manageable level.
  14. JWY

    JWY Senior Member

    Joined:
    Feb 22, 2004
    Messages:
    1,376
    Location:
    Ft. Lauderdale
    Some Pilgrims were built in Canada, some in Mexico, although under different ownership. There's an obvious difference in standards between our neighbors to the north and south so check carefully. There's a Pilgrim Owners Group.

    Judy
  15. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    Don't really understand your posting? Are you simply commenting on quality of construction, or also the boat's concept/design.

    All of the 40's were built in Canada. There was a new larger version, (Pilgrim 43) that a few (4) were built in Mexico. I'm not really a fan of that design even while it has a larger accommodation.

    History of Pilgrim

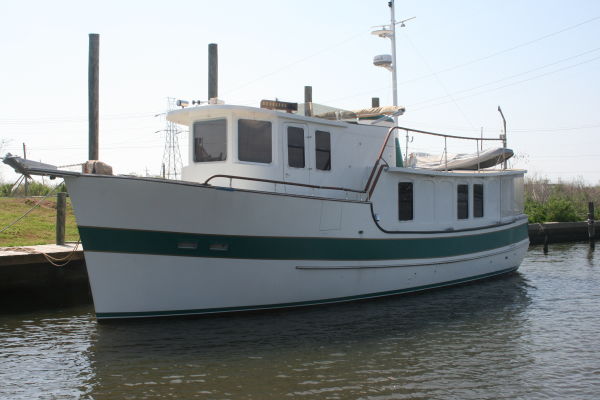

    pilgrim 43.jpg
  16. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    a MKll version?

    from another forum

    PS The Pilgrim on Yacht world right now is a "Pilgrims Progress 40". It is not the same manufacturer as the original Pilgrim, as well of being built out of aluminum instead. Interesting, I had not seen that vessel before. It sure appears to be a 'redesign' of the original Pilgrim 40, but without the nostalgic looks of the original. Can't say that I am attracted to it, ....certainly not Great Gatsby looking.
    [​IMG]
  17. diverrob

    diverrob New Member

    Joined:
    Oct 12, 2017
    Messages:
    1
    Location:
    Victoria BC Canada
    Sorry for hijacking this post but I have a question for owners of the 40' Pilgrim. I am currently looking at purchasing one and as they were designed to operate in canals and inland waterways I need to know that they are equally capable of handling the West Coast inside passages (Victoria BC to Prince Rupert) that I will frequent. If anyone has any experience I would love to hear from you, thanks

    Rob
  18. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,878
    Location:
    St Augustine, Fl and Thailand
    I think you will likely have better luck contacting owners of these vessels on their Pilgrim Owners site, since many of them don't spend a great deal of time on the internet. I think you will find several links to those owners in that subject thread of mine,...
    http://www.trawlerforum.com/forums/s3/redesigning-pilgrim-40-trawler-canal-boat-11212.html

    I have been away from the subject for a few years, so I can't recall exact links, etc.

    BTW, there were several of these vessels equipped with roll stabilizers, and there is also some consideration of an inertia type stabilizer installation. I also believe my 'hard chine steel hull alternative' might have had a positive influence in near-shore capability.
  19. REAL MOUNTIE

    REAL MOUNTIE New Member

    Joined:
    Sep 16, 2014
    Messages:
    8
    Location:
    Willsboro, New-York
  20. REAL MOUNTIE

    REAL MOUNTIE New Member

    Joined:
    Sep 16, 2014
    Messages:
    8

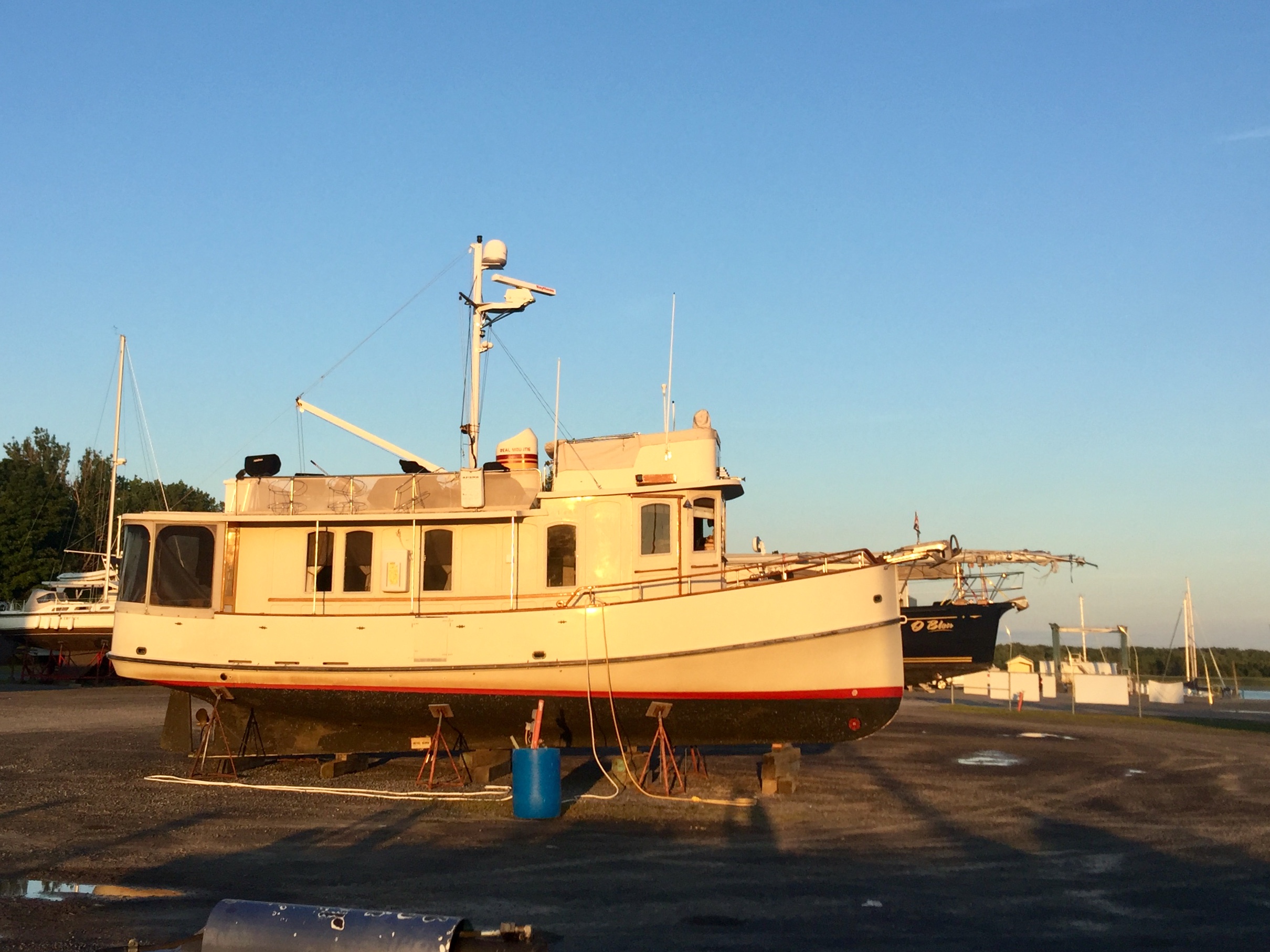

    Location:
    Willsboro, New-York
    Hello Brian! Hoping you and your family are well! Due to the pandemic I did not have a chance to go to my Pilgrim 40. I will go in the spring for shure. I am planning to cruise on the St-Lawrence rive this coming season. Really love that vessel after over 3000 nautical miles and 10 years cruising! IMG_E5700.JPG
