How do you replace a cylinder when running..?

Discussion in 'Technical Discussion' started by vlafrank, Apr 30, 2010.

You need to be registered and signed in to view this content.
  1. vlafrank

    vlafrank Senior Member

    Joined:
    Mar 17, 2010
    Messages:
    120
    Location:
    Silver Spring, MD
    I dimly remember an ad in a yachting magazine a while after the Sarah Beth was launched and commissioned. Apparently Burger put Deutz engines in the vessel as original equipment, and somewhere off the west African coast, one of the cylinders in one of the engines "went south" and was replaced at sea by the simple (?) expedient of somehow unhooking the piston's con rod from the crankshaft, sliding in a new cylinder "kit," reconnecting the con rod to the crankshaft and re-starting the engine. The Deutz ad made the process sound so simple that any reasonably ambitious sea scout could do it with his trusty Swiss army knife.

    I really would like to know how simple such a procedure really is.
  2. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,320
    Location:
    9114 S. Central Ave

    It's a piece of cake.

    If you like hot oily sweaty bloody knuckles rolling around in the trough cursing the naval architect who designed the piping flavored cake.

    Seriously though, it is a common enough procedure. That is why the engine room bulkheads on a ship are adorned with a spare cylinder and head plus a valve or two and an overhead crane is standard equipment.

    There are no cell phone engineers out there.

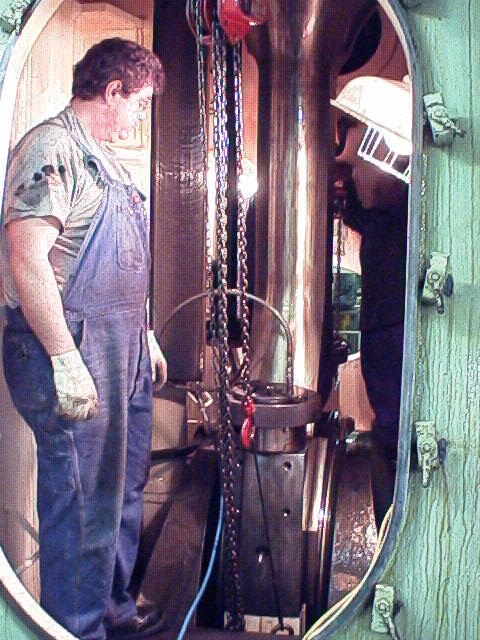

    Here's a picture of the process of removing a connecting rod out the side of the engine. This was a large engine but even smaller engines, especially those used as main propulsion on some tugboats and as generator engines on large ships carry a "power pack" that includes head, cylinder, piston, and rod and are designed to be changed out rapidly.
