How bad is it to remove flybridge for shipping

Discussion in 'General Yachting Discussion' started by rer143, Mar 2, 2013.

You need to be registered and signed in to view this content.
  1. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh
    I have been shopping around for a 2006-2008 391 Meridian for a month or so now, and there are not any good options near me that would allow for reasonable water transport. I found one that is located in Clinton, CT and I would be shipping to Pittsburgh, PA, requiring land transport. I am looking for guidance on:
    1) any risks associated with going the land transportation route, which would involve removal of the fly bridge. This would be required to get to the legal height limitations of loaded at 13' 6". Removal of the venturi and spoiler only gets me to 13' 9", then it still needs to load to a trailer, thus the need to remove flybridge.
    2) any suggestions on a marina/technician in the area to do the flybridge removal.
    3) All advice welcome.

    Thanks!
  2. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,360
    Location:
    out on the dock
    Any good yard should be able to do it. The first time "learning curve" is the wild card. Perhaps best to find a Meridian Yachts dealer to prep the boat. Certainly they have done this job before. Next will be choosing who to put it back together when she gets home.

    Why not run your new boat home?
  3. viking 58

    viking 58 YF Historian

    Joined:
    Feb 7, 2005
    Messages:
    274
    Location:
    Grosse Pointe Park, MI

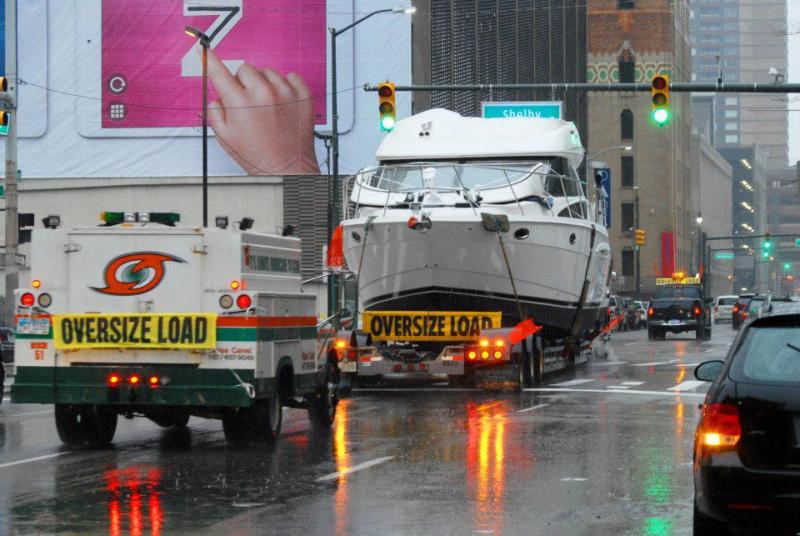

    Attached Files:

    • 39.jpg
      File size:
      72.9 KB
      Views:
      6,567
  4. RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,532
    Location:
    Newport Beach CA
    Use the same person to remove it and put it back on. The best scenario is to send someone from your eventual destination/home port. I've done this many times. Trust me, pay the travel cost for the tech. It is the smartest money you'll ever spend.
  5. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh

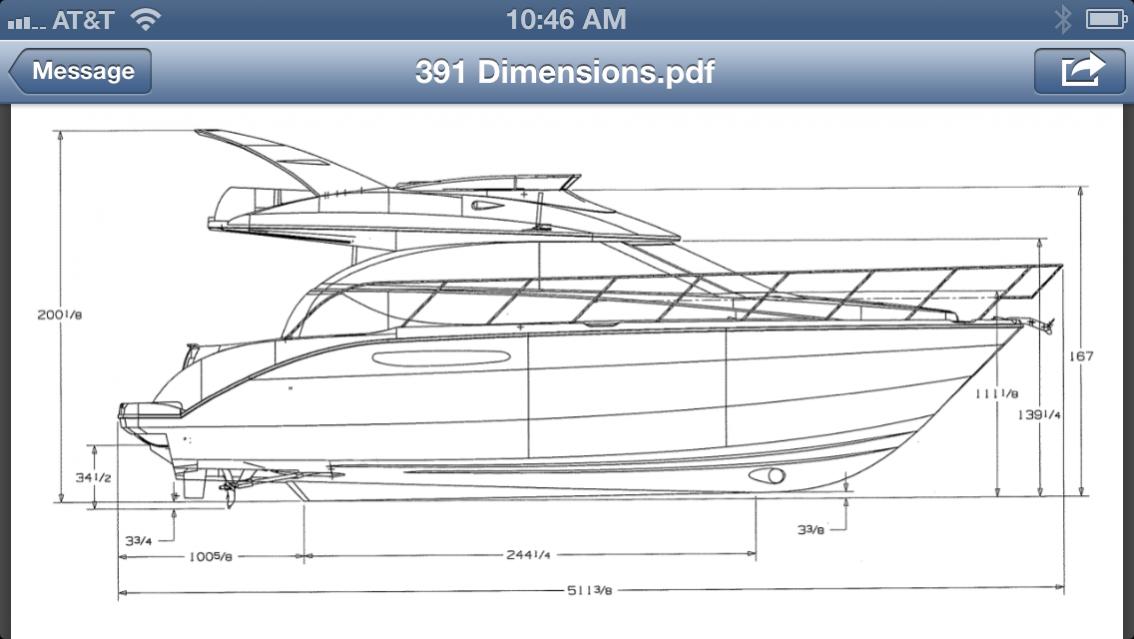

    Boat dimensions

    Below are boat dimensions that show the parts components that I would need to remove. It looks like I would have to remove all parts above 139 1/4 " to get down to legal height. The picture of the 39 going down the road doesn't seem to have the fly bridge removed. Maybe it was only for local travel.

    Attached Files:

  6. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh
    rer143: As much as I would love to run it home, I would have to take it all the way down the east coast and around florida, and up the mississippi river and up the ohio river. As fun as it does sound, I don't have a month and a half to take off for the trip, nor the money for fuel.
  7. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    O K, I'm a dummy but have to ask; What's wrong with a trip by water to the north and west?
  8. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh
    rer143: I am not aware of a water route that I could navigate by going north then West. The only water way that leads into Pittsburgh is heading North up the Ohio River. Are you aware of a different route that would be under 1500 miles or so?
    Last edited: Mar 2, 2013
  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    I have never been up that way (on inland water ways). I had just assumed there were canals in western New York or from Lake Erie that joined the Ohio river.
    Another assumption I've always had (but without thought) was Pittsburgh did join The lake system easily.

    I had always envied the interior folks for their ability to move from lake to lake to river to river so easily. Mostly from assumptions with out really checking into it.
    I'll have to google-earth it when I get in tonight.
  10. GFC

    GFC Senior Member

    Joined:
    May 21, 2008
    Messages:
    221
    Location:
    Tri Cities, WA
    I've been through what you're looking and I think I can offer some tips on making the whole job easier. I bought my 550 in the Detroit area and shipped it to Portland, OR.

    First of all, you're going to be involved with lots of people in this effort. The shipping company, the load driver(s), the people who do the tear down, the people at the receiving marina who reinstall the flybridge, etc. You will feel like you're herding cats while you're trying to keep them all on the same page and headed in the same direction.

    One of the smartest moves I made in the whole process was to make arrangements with the marina that was going to reinstall the flybridge to have their lead tech fly back to Detroit to supervise the disassembly. The selling broker was a bit of a schlock outfit and probably would have just gone into the flybridge and just cut all the wires. The tech from the reassembly marina marked each wire on both sides of where he was going to cut it before cutting them. The tech knew he was going to have to put it back together so he made sure he did a good job of disassembling everything.

    [​IMG]

    [​IMG]

    [​IMG]

    Your flybridge might be able to be shipped on the front of the boat once the boat is lifted onto the trailer. Mine couldn't because the total load was too long, so they had to make a cradle for the bridge and it came on its own trailer pulled by a second truck.
    [​IMG]

    When you communicate with the actual trucker (not the load broker) make sure he knows when to arrive at the yard where it's being picked up from. There is a hefty charge for any day of standby time. My trucker's standby charge was $300/day.

    When talking with your load broker, make sure he knows the actual weight of the boat being shipped, not the dry weight. I had given mine the dry weight but found out later the actual weight was several thousands pounds heavier. That put the load from one weight category to a higher category and required additional permits and more cost.

    Make it clear to the trucker and the load broker that you will not tolerate any additional "surprise" charges when the boat arrives at its destination. They tried to hook me for over $10K in additional charges but I refused and refused to allow them to unload the boat (making the trucker just sit in Portland) until everyone agreed there were to be no additional charges. Additional charges are a fairly common practice in that industry because they figure the boat buyer is anxious to get the boat in the water and will pay whatever it takes.

    Also make sure your insurance coverage starts the minute the papers are signed. You don't want any questions to come up about who pays for damage to the boat while it's being transported.

    If you can arrange to do it, be there at the shipping yard when the boat is hauled out of the water and while it's being loaded on the trailer. You may need to make last minute decisions about things that come up and it's faster if you're there to do that.

    All things considered the whole process went fairly smoothly, but it took a lot more of my time than I figured. I spent about an hour a day on the phone for about 3 weeks prior to the transport, then another couple of hours at the end over the additional charges they were going to try to collect.

    If you have any specific questions, fire away.
  11. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh
    Great information, this is very helpful. What kind of cost was it to have the receiving marina lead technician fly out and supervise the disassembly?
  12. Old Phart

    Old Phart Senior Member

    Joined:
    Mar 14, 2011
    Messages:
    1,332
    Location:
    I dunno
    Have you given any thought to contacting a boat transportation company, regarding the height of your particle boat model, as in the Detroit pic?

    Have you given any thought to shipping it from Philadelphia, Pa to Pittsburgh, Pa?

    Perhaps this link will help get you started.

    PA Boat Mover Affordable Boat Hauler Pennsylvania

    Don't forget to let Google be your friend.
  13. Good Spirit

    Good Spirit Member

    Joined:
    Nov 4, 2012
    Messages:
    117
    Location:
    Northern harbour lake of the woods Ontario Canada
    I recently shipped a 3608 carver from Wisconsin to Canada. Found it was far cheaper and considerably less headache to ship it oversize. It requires a route survey plus pilot and pole vehicles but in the long run is was far cheaper than full disassembly of the fly bridge and reassembly at my home harbour. Certainly worth investigating. Also I can recommend a great trucking company. Send me a private note and I can pass on the info
  14. JWY

    JWY Senior Member

    Joined:
    Feb 22, 2004
    Messages:
    1,507
    Location:
    Ft. Lauderdale
    I have helped clients truck boats cross country many times and all have been accomplished successfully. I agree with all of the suggestions offered so far. One additional is to make sure you get the boat shrink wrapped.

    Judy
  15. GFC

    GFC Senior Member

    Joined:
    May 21, 2008
    Messages:
    221
    Location:
    Tri Cities, WA
    I don't recall the cost, but it included his wages, airfare, a modest priced hotel, rental car and meals.

    Whatever the cost came out to be, I figured I'd spend it on the front end by paying him to do the job and that would be cheaper than paying him on the back end for his time trying to figure out what wire connected to what wire if the selling brokerage had just gone in and cut wires without marking them.

    The boat was in a large boathouse so he was able to do the tear down work inside, out of the weather. Here's a shot of his access to the area beneath the 'eyebrow'....
    [​IMG]

    and a shot looking one direction from where the boat was inside the boathouse...
    [​IMG]

    The 'eyebrow' beneath the flybridge/helm area was large enough for him to crawl into and move around while he worked. He had enough space under there that he could almost sit up while working on marking and cutting wires.
  16. rer143

    rer143 New Member

    Joined:
    Mar 2, 2013
    Messages:
    6
    Location:
    Pittsburgh
    Thanks!

    Thanks everyone for the information. After talking to about 4 yacht shipping companies, I finally talked to one (Lighthouse Transportation) that knew what they were talking about. Apparently a standard load height needs to be under 13'6", but my boat needs to load at 15'4". There will be additional load escorts / pole escorts required, and they'll be taking the "scenic route", but I do not need to remove the fly bridge like I was originally thinking.

    Now for the boat negotiations....hope all goes well!!
  17. Ormond Bert54

    Ormond Bert54 Senior Member

    Joined:
    Mar 29, 2009
    Messages:
    470
    Location:
    Ormond Beach, FL
    I was going through all of that with my boat a few years ago and I'm very happy to have that all behind me. Best wishes for the best possible outcome. Very anxious times I'm sure.
