Helipads on Smallish Yachts

Discussion in 'Yacht Designers Discussion' started by ahh, Aug 9, 2005.

You need to be registered and signed in to view this content.
  1. ahh

    ahh New Member

    Joined:
    Aug 9, 2005
    Messages:
    4
    Location:
    Australia
    I represent an owner who is in the process of designing a smallish yacht with the capability of being able to land (on the flybridge deck) a Eurocopter EC130 on a 135-140' yacht. Not for transportation, just on-off load.
    I am after anyone comments and thought (and links too) as to what to be aware of design wise.
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,161
    Location:
    Sweden
    Hi,

    There are of course many safety considerations but here are some thoughts.

    Landing on the flybridge deck on a small yacht might not be a good idea, but it depends on the overall design.

    Make the landing deck so it can be approached from behind when the yacht is underway. This will make the yacht more stable through the stabilizers and going towards the wind is also what the heli-pilot would like.

    Have the deck covering the deck below so nothing like ropes and furniture will fly overboard by the helis turbulence.

    Instead of fancy side rails that are removed or folded prior to landing I would make solid and foldable bulwarks that will extend the decks surface.

    On some yachts they have developed systems that catches the heli when landed which seems to be a good idea.

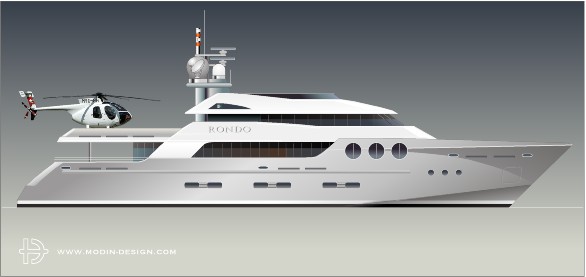

    I have made an example for you;

    Attached Files:

    Last edited: Aug 10, 2005
  3. superyachtie

    superyachtie New Member

    Joined:
    Aug 8, 2005
    Messages:
    118
    Location:
    London & Southampton

    Attached Files:

  4. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,166
    Location:
    Phoenix
    While it may not be so stylish, I would think that moving the mast ahead (further from the stern) is not a bad idea either?

    Kelly Cook
  5. ianu

    ianu New Member

    Joined:
    Jul 29, 2016
    Messages:
    1
    Location:
    Canada

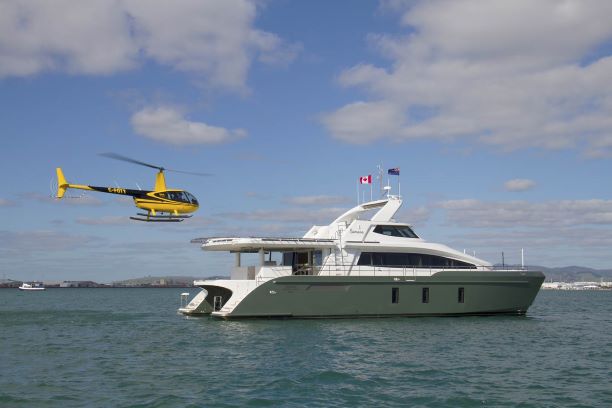

    The yacht Samara has a hydraulic moving helipad and radar arch to it can accommodate a decent size helicopter without wasting space on the rotor clearance area. The helipad moves aft, arch moves forward and railings move down for helicopter operations.[​IMG]

    Attached Files:
