Helicopters / Seaplanes on Yachts

Discussion in 'General Yachting Discussion' started by mp-willow, Mar 16, 2006.

  1. mp-willow

    mp-willow Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    120
    Location:
    Maine, York County
    I thought that would be the case.

    I must be the only person interested in Large Yachts that also want a chopper like these. :cool:
  2. mp-willow

    mp-willow Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    120
    Location:
    Maine, York County
    S-55 on Yacht?

    A question for you all. Anyone know if any S-55s are still flying? I think it would be nice to have one land on a Yacht. Ok that just might be a pipe dream, but then it is my pipe dream.:D
  3. Codger

    Codger YF Wisdom Dept.

    Joined:
    May 29, 2005
    Messages:
    924
    Location:
    Western Canada
    S55A is a critter close to my heart :)
    Only ones that I've seen in the past 5 years with a current C of A were in Honduras and Venezuela. A few others, but I'd question the validity of the paperwork if it was even being kept legal.... That being said, it was a great machine in it's day but compared to most current builds it only has one strong point, great reliability, and easy to maintain. Sad that most of the ones in museums are no longer capable of throwing their wings around and beating gravity in to submission.
  4. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,297
    Location:
    Sweden
    The S55 was my dream as a kid. I got a metal toy version from my relatives in California in the late 50:s, which i was "flying" until our army got the Boeing Vertol/Kawasaki 107 in 1963. This has been my favorite since and it will continue to be in service a couple of years more!

    Last week the army got the first Agusta 109 E, the updated version of the 70:s model. But it can not really replace the 10 tonnes Vertol 107, for this we have got the NH 90, built by Agusta, Eurocopter and Fokker.
  5. YachtForum

    YachtForum Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    1,316
    Location:
    South Florida
    .... :D

    Spoken like a true rotor-head!
  6. mp-willow

    mp-willow Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    120
    Location:
    Maine, York County
    Thanks all. I do love this machine and have tried to reserch the posibility of getting one that is airworthy. That has been and I think will be a very tough act, but along with some of you scale modals are very nice. I have thought of this sitting on a nice yacht, or in a Korean war replica MASH camp.

    It did great work, but gets little glory ;)

    Any other thoughts? I love helicoptors, and Yachts, a great combination.
  7. kc135delta

    kc135delta Member

    Joined:
    Apr 23, 2006
    Messages:
    34
    Location:
    Olathe Kansas
    If you are serious in doing this, send me a pm I can hook you up with pretty much anything you can think of aircraft wise, but I'll put money on the fact that you won't be using an S-55 with it's combo of price/metal fautige/ maintence/crew/ and overall size. on a yacht anyways. You won't be able to get a CH-53 because it would have to be licensed as experimental and only the nessicary crew required to operate it are allowed on board. I would go with an As355 and just sling load cargo. But that's me.

    Also you must keep in mind that these helicopters with 4 blade rotor heads don't fold up, so you will need a full beam hangar, or an aircraft carrier.
  8. Innomare

    Innomare Senior Member

    Joined:
    Dec 5, 2004
    Messages:
    233
    Location:
    The Netherlands
    On naval ships, there are dedicated fuel tanks for the aviation fuel. When the helicopters go into the garage, their fuel tanks are emptied first.

    Yachts are not designed to be taken under fire, but still, I wouldn't feel comfortable with hundreds of litres of kerosene in the room next doors. In any case, the space needs a lot of extra provisions (extra air changes, explosion proof electrical appliances, etc.).

    But why would you want to keep the heli on board and not in a heliport on shore nearby? It's better for the helicopter, and surely better and safer for your yacht and its interior space. And as long as you have a landing pad on board, it's just as convenient.


    Bruno
  9. Codger

    Codger YF Wisdom Dept.

    Joined:
    May 29, 2005
    Messages:
    924
    Location:
    Western Canada
    Pilots

    mp-willow
    If you are looking to get some first hand info from some of the best over water pilots in the world, go to Louisiana, NOW. PHI pilots are on strike and have the time to talk, if you buy the beer.
    They are also quite a bit more open to offers than usual ;)
    Just got back from there and some of the times and ratings that those pilots have accumulated just can't be duplicated anywhere else in North America. Crew with serious time on S76,412,430,AS350 and on and on.
    Yes, I did talk with one who'd logged time in an S55A :)
  10. kc135delta

    kc135delta Member

    Joined:
    Apr 23, 2006
    Messages:
    34
    Location:
    Olathe Kansas
    PHI pilots arn't any better than pilots who fly ENG, they often have larger ego's and consider themselves better but the truth is 98% fly to oil platforms over the calm Gulf of Mexico in twin engine helio's which is easier than flying over land as you have no ground clutter.

    The only ratings are PPL/CFI/IFR/CTP so I don't know how they "can't be duplicated"??? PHI also dosn't fly anything over 12,500 pounds with the exception of the S-92, and those pilots are contracted out becuase it costs alot to keep them current on an S-92.
  11. mp-willow

    mp-willow Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    120
    Location:
    Maine, York County
    Always ready Hangered Hilo!

    Thanks all! I am not ready to get too serious yet, but I am very greatful for all your help and all this discussion.

    As for the hilo on hanger, I was thinking of being able to only bunker feul for about a tank or so. Yes I understand the loss of space, and the expence for the hanger, but it will be used to travel on and off Yacht as it is traveling the oceans. I am also thinking of having a deadicated crew for it. Two pilots, and the cheif of the boat to keep it very clean. As this Yacht will also be a strong player for corporite interests and fundraising.

    You mentioned the larger 4 blade rotors do not fold? But navy birds do? at full beam of 16 m it will be close for some of the diamitors, but I think it could work. I like flying to much to not have the heli with me, and well some places you need it to get from hear to there, better then always looking for a car.

    It was mentioned thatwith a pad all is well. Yes, but I would need to be clsoe to my ride, or know a pilot who is rated, and insured to land on MY Yacht. As insurance is not cheap I am finding it would be better to have my pilot and helicopter with the Yacht.;)

    Last Bit:
    Why is the S-92 so costly to stay rated on? Any one have thoughts on it?
  12. old.one

    old.one New Member

    Joined:
    Nov 23, 2005
    Messages:
    23
    Location:
    Landlocked in Southern California.
    Eurocopter EC-155B
    The EC 155 first flew in 1997. It was certified by the French Civil Aviation Authority (DGAC) and the German Government Agencies (LBA) in 1999 and for single-pilot IFR (instrument flight rules) operations in January 2000.
    The EC 155B is the latest evolution of the Dauphin family. Combining the large experience of the Dauphin fleet and the new technology assets steaming from Eurocopter's Research and Developpment such as Avionique Nouvelle, 5 bladed Spheriflex main rotor head together with a new Fenestron tail rotor and a variable main rotor speed for low noise signature. The two Turbomeca Arriel 2C1 engines will power the EC 155 giving the helicopter a high level of performance.
    Compliant with the latest JAR-OPS 3 requirements the EC 155B shall also cruise at speeds in excess of 140 kts. The EC 155B will transport comfortably 12 passengers in a new spacious and unobstructed cabin providing exceptional visibility and accessibility. Baggage will not be left aside as the EC 155B features the largest cargo compartments in its class.

    Specifications:
    Maximum weight: 4,800 kg / 10,582 lb
    Capacity: 1 or 2 pilots + 12 pass.
    Maximum useful load (including mission fuel): 2,272 kg / 5,009 lb
    Sling load capacity: 1,600 kg / 3,527 lb
    Power plant: 2 TURBOMECA ARRIEL 2C1
    Take-off power (A.E.O.): 635 kW / 851 shp
    Maximum continuous power (A.E.O.): 597 kW / 800 shp
    Fast cruise speed (at maximum weight): 266 km/h - 143 kts
    Maximum range with standard tank(s): 831 km - 449 n.m.

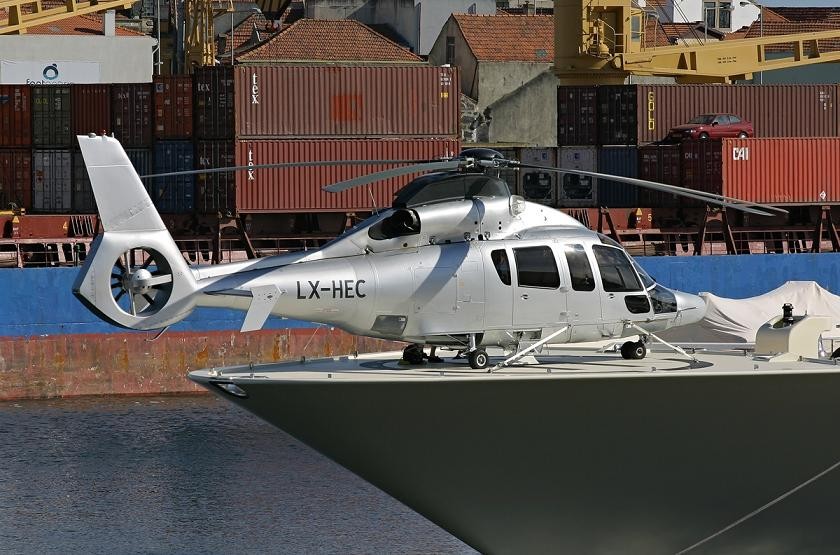

    I haven't seen this one mentioned, but it is already being used on a yacht
    (as the pic shows). It can be used with just one pilot, and the blades will
    fold for storage.

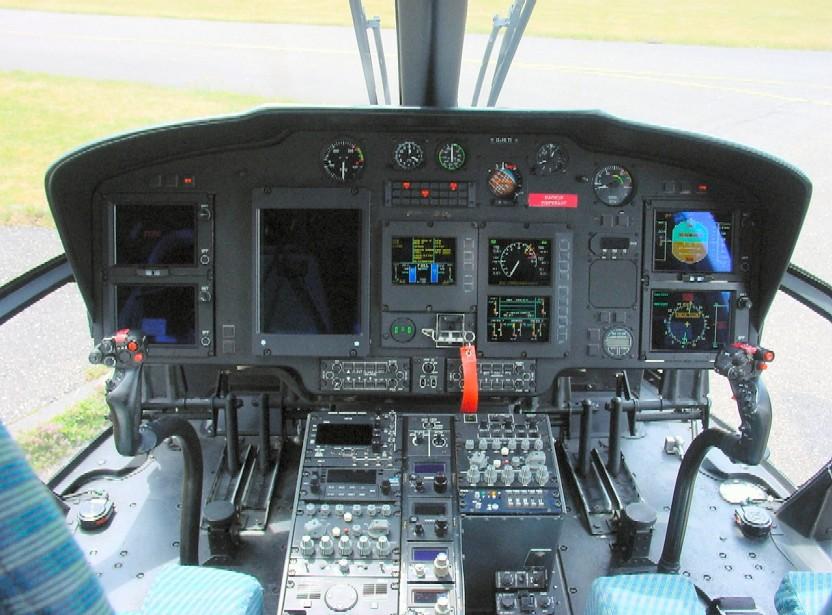

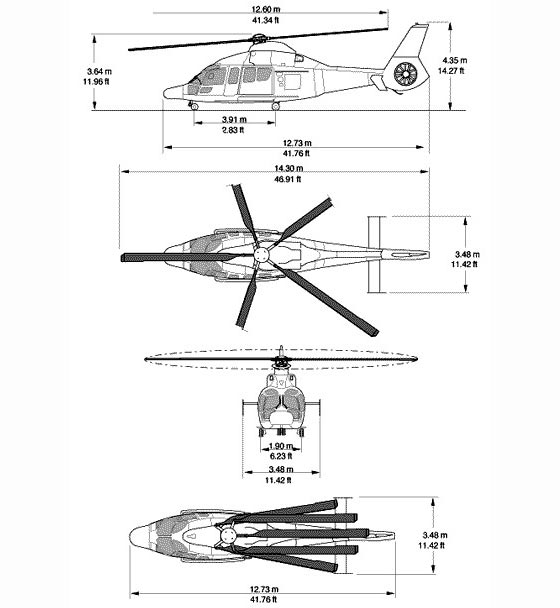

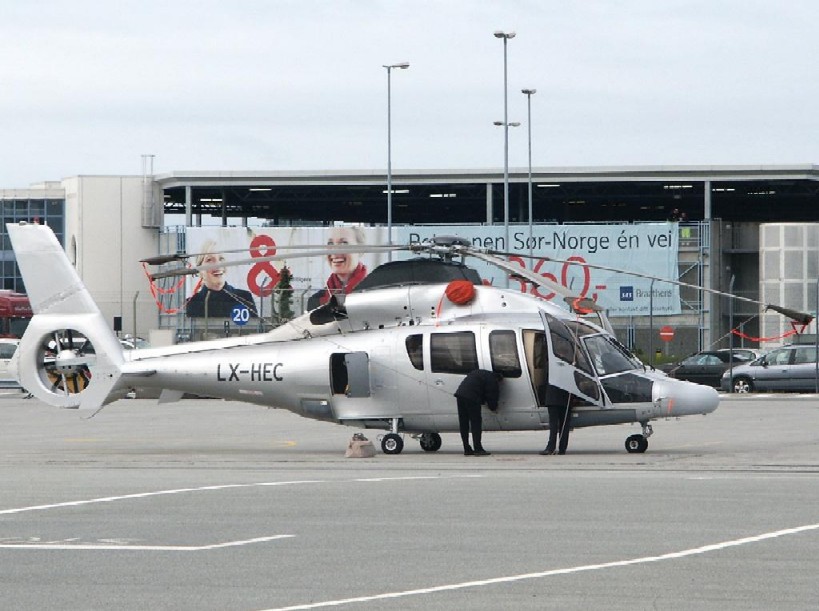

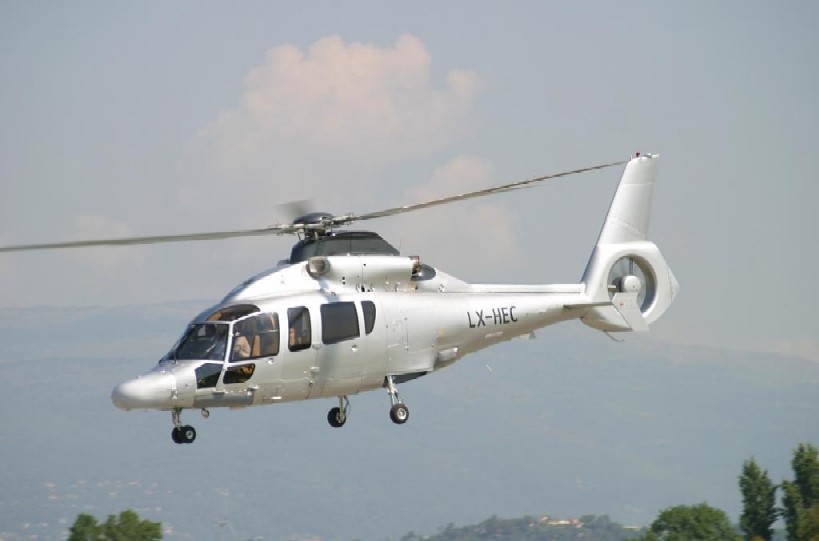

    I attach some pics to show:

    Attached Files:

  13. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Is it just me or are the wheels on that bird really teeny tiny?
  14. old.one

    old.one New Member

    Joined:
    Nov 23, 2005
    Messages:
    23
    Location:
    Landlocked in Southern California.
    Yes, they might be small - but I don't think there is much call for taxi on this yacht! By the way I think that they offer skids as an option.
    This Old One.

    Attached Files:

  15. Go5go

    Go5go New Member

    Joined:
    Feb 1, 2006
    Messages:
    17
    Location:
    Plantation, FL USA
    Yeah they do look tiny. not any smaller than other choppers though..
  16. old.one

    old.one New Member

    Joined:
    Nov 23, 2005
    Messages:
    23
    Location:
    Landlocked in Southern California.
    Absolutly correct Pete, they are all about the same size.;)

    We have heard of Sikorsky's role in offshore platform shuttle service.
    I have collected a group of four contenders that could be considered for the task of "Ship-to-Shore" transportation. Some of these 'birds' have been used many times in this capacity.

    I offer these four examples of the class of 'choppers that are capable:

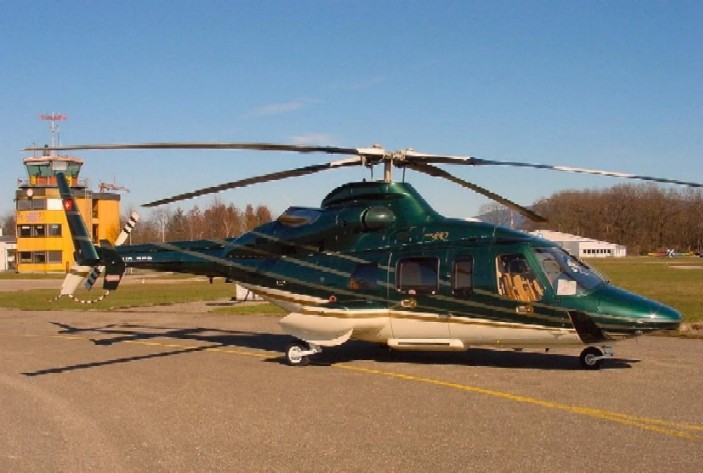

    #1: Bell 430 (my concern is the low tail rotor, slightly smaller payload).

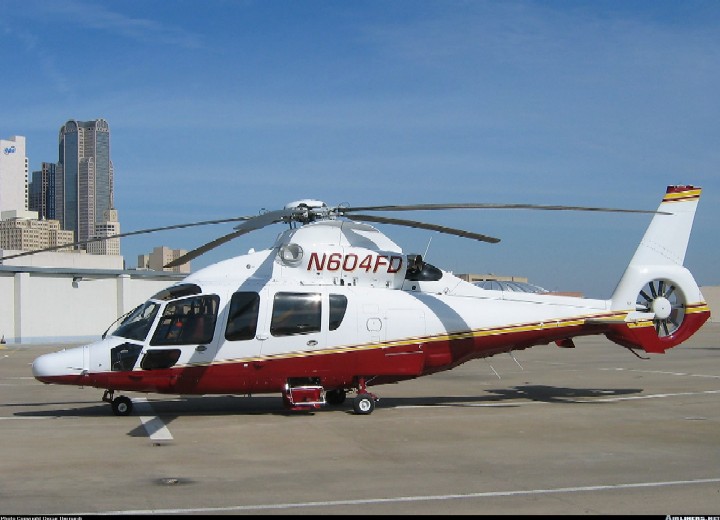

    #2: Eurocopter EC155B (my favorite, as previously stated).

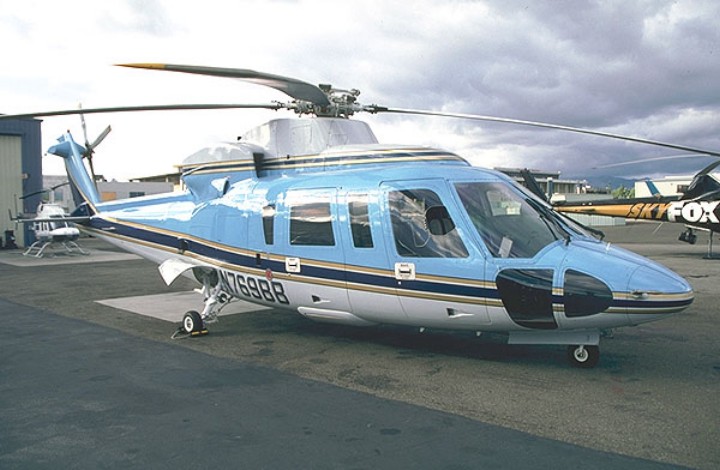

    #3: Sikorsky S76C (a proven warrior in this task).

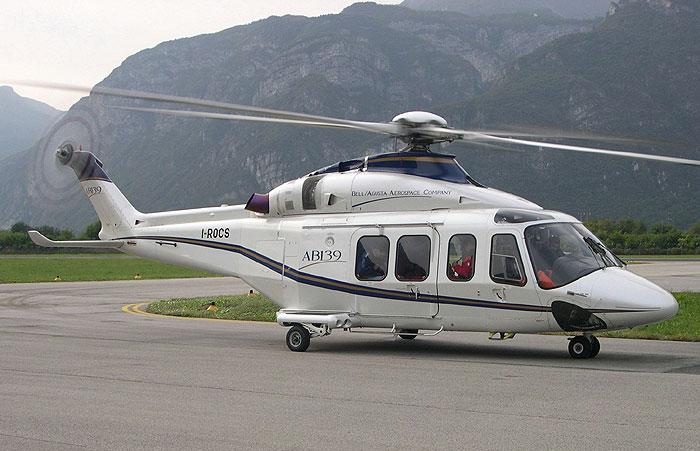

    #4: Bell-Agusta AB139 (a newcomer in this class, and she has class).

    PS: You may notice that all of the wheels appear to be about the same size.:rolleyes:
    This Old One;)

    Attached Files:

  17. Neil Rooney

    Neil Rooney Senior Member

    Joined:
    Sep 28, 2006
    Messages:
    174
    Location:
    On D Road
    Does anyone remember NADINE with a seawind with a turbine engine and a Jet Ranger on board!

    Seawind Website
  18. mp-willow

    mp-willow Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    120
    Location:
    Maine, York County
    Ba 139?

    Thanks for the post. The 155B is nice, did not think the blades folded.

    I agree the 139 has some great lines, I have not looked to see how it compairs with thee others.

    I liked that silver one on the Yacht, but the bow paad I am now shure about. Is that on an Abramov Yacht?:rolleyes:
  19. kc135delta

    kc135delta Member

    Joined:
    Apr 23, 2006
    Messages:
    34
    Location:
    Olathe Kansas
    The blades on Navy helicopters are different, and require alot of man power to change their position. Not realistic for corprate applications allthough some have tried.

    The S-76C++ new or S-76A are the best buy in their class depending on your budget. They are also single pilot IFR certified so you only have to hire one pilot.

    It is expensive to remain current in a 90 becuase parts are hard to come by and sucks fuel like your throwing it out the window. I recommed a 50' beam for helicopter operations as a minumum.

    and you'll want to carry about 2,000 gallons of JetA becuase you arn't suppost to leave the fuel in the heli while it's stored in the hangar.

    I can help you with helipad/heli hangar design, just hit me up with a pm or have me explain it here out loud.
  20. kc135delta

    kc135delta Member

    Joined:
    Apr 23, 2006
    Messages:
    34
    Location:
    Olathe Kansas
    don't forget to make sure the heli you use is twin engine, if you don't. You might regret it.
