Have yacht designers ever been on a boat?

Discussion in 'Yacht Designers Discussion' started by Pascal, Oct 10, 2012.

You need to be registered and signed in to view this content.
  1. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    I think some Yacht Designers have been on a boat. But not many, if any, have worked on a yacht. Same goes with the Yacht Brokers and the Yacht Builders.

    So most of the evolution comes from Owners, Captains and Project Managers. But when yachts are built on speculation anything is possible...

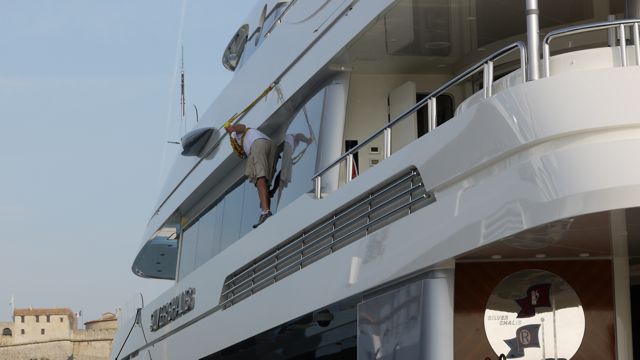

    Just think of the daily maintenance, like cleaning windows hanging in a harness or like this, balancing with a lifeline...

    Attached Files:

  2. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,443
    Location:
    Caribbean
    Yep, you just think the boats are being built without the crew in mind that have to clean them...especially over the sides. Some may have little ledges like "Silver Shalis" pictured above but many have nothing to but your foot on so you have to strap on a full harness and dangle while you clean.
  3. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    305
    Location:
    Sarasota FL
    Cleat placement can be critical...

    [​IMG]
  4. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    Here is another one....

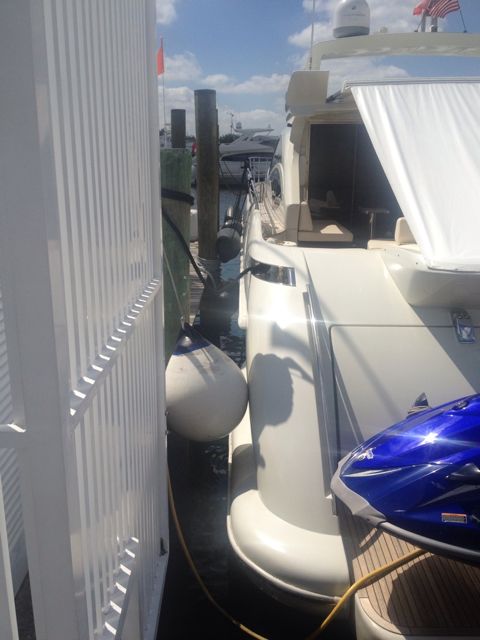

    The first pic: 68S... Another Mutt with the transom no step bulge. Again, no way to board from the side, no gate, no step, nothing

    It s definitely a Euro thing and I understand med mooring is common in Europe with passerelles being standards. But if these builders want to sell boats here, they could take into account our side docks, fixed or floating

    This morning I was talking to the captain of a new 70+ Fairline. Beautiful boat but no side boarding either! Rail goes all the way to stern. He said he recently had to carry some guests on board...

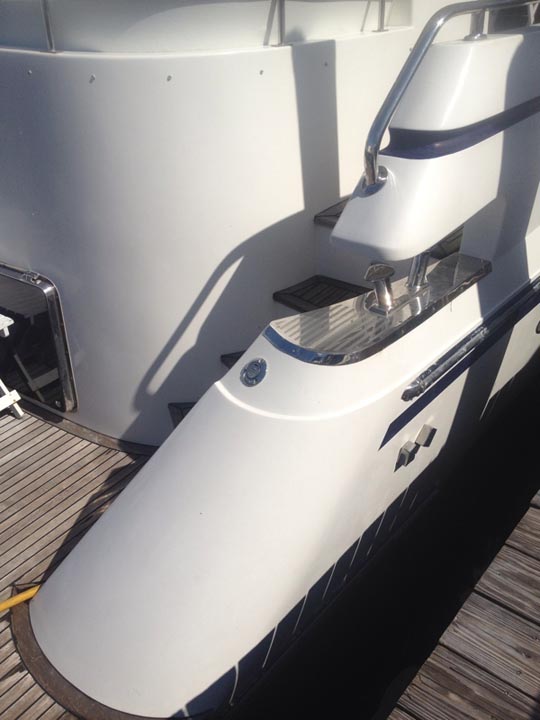

    The 2nd pic: On the other hand, here is how boarding is handled on a Bill Dixon designed Johnson 70... There is boarding gate further up but in case the finger pier doesn't reach, a step is built in at the stern:

    So, in almost every case, either the platform or the step is never more than 18" from the dock or less if using a simple portable step. It's not rocket science!!
  5. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,672
    Location:
    Guernsey/Antigua

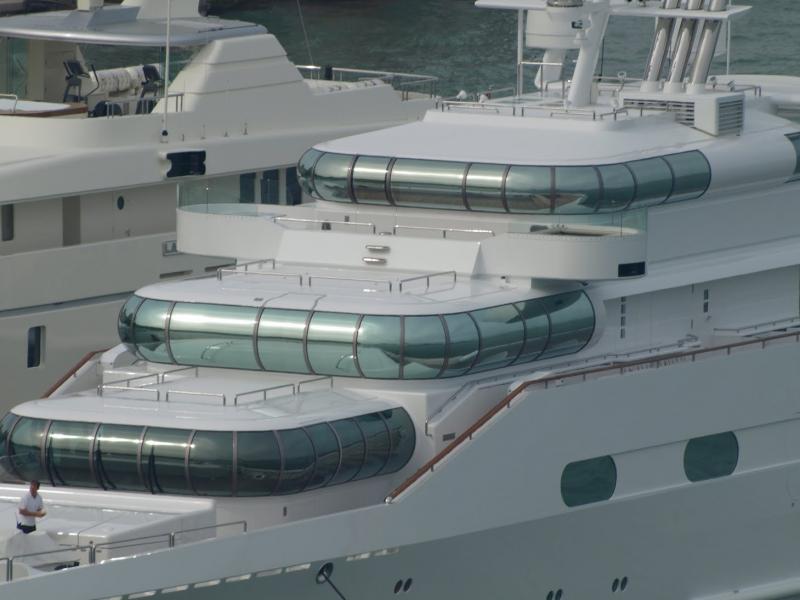

    Oh boy, you can say that again.

    Attached Files:

  6. PropBet

    PropBet Senior Member

    Joined:
    Apr 21, 2007
    Messages:
    1,221
    Location:
    Is Everything!
    I'd have to dig up old pictures, but our old boat (Italian builder) was loaded with these gems.
  7. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,092
    Location:
    Cold Spring Harbor, NY
    Hope they have some kind of mechanical lock devices on the pistons like a car lift has....
  8. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,636
    Location:
    South Florida
    Pascal,

    I've downloaded and attached your pics to YF's server. Remember, we don't allow hot-links because the host can replace files or remove them completely, leaving your post without an image... or worse, something less benign inserted in its place.

    Thanks!

    Carl
  9. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    Sorry Carl... Any work around to be able to post images from an iOS device? I know some forum software have "an app for that" :). I find myself using my phone a lot more than my laptop these days...
  10. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,636
    Location:
    South Florida
    Sorry to be a PITA Pascal! I heard rumor that iOS6 makes provisions for attaching images, but I haven't upgraded or bought the i5 yet, so I can't confirm.
  11. Awesom-O

    Awesom-O New Member

    Joined:
    Oct 10, 2012
    Messages:
    6
    Location:
    boston
    I can't stop laughing, Carl. You made my day!
    There is no excuse for the shipyard who is capable of building such a big boy but came up with this.
  12. Kafue

    Kafue Senior Member

    Joined:
    Nov 29, 2006
    Messages:
    1,151
    Location:
    Gold Coast Australia
    Engine rooms etc.
    With few exceptions, my Hatteras being one, the layout in the engine rooms have been very badly thought out. Just doing basic maintenance is a neck breaker. The UNIESSE 48 I had was a perfect example. To get to the outside of either engine was a contortionists job, then to actually do any work whilst there was another deal. Replacing simple things like fan belts on some boats was impossible unless you were docked and the engine was cool.
    Eg. Read Capt J's post yesterday where there was no room in the ER for Racor filters on a $2mill boat. How does that pass the QC department? Then there was an OA I had, if you plugged in the shore power to the port side, then the stbd power socket was LIVE with no breaker! except for the one on the pontoon. Lethal.

    When I was in Fort Lauderdale getting a survey done on one of my purchases, I met a dwarf (is that a bad word these days?) who worked for the yard. He was always busy because there were so many areas in the boats that needed work done where a normal sized person would never fit.
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,422
    Location:
    Satsuma, FL
    My bean pole step-son is doing very well. Where I can not reach, he can. I sub him out to other shops. Ah to be young, strong (smart?) and flexible again......
  14. SHAZAM

    SHAZAM Senior Member

    Joined:
    Jan 26, 2008
    Messages:
    605
    Location:
    The Ghetto

    I think I know that guy.
  15. Kafue

    Kafue Senior Member

    Joined:
    Nov 29, 2006
    Messages:
    1,151
    Location:
    Gold Coast Australia
    Mexican, with a good sense of humour, popular with his co-workers.
  16. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,672
    Location:
    Guernsey/Antigua
    I can relate to this. When I first started on a new 65m HDW yacht as a skinny teenager, I learned a lot about hydraulics the hard way.

    The 2 stage sliding davits that launched the tenders amidships had a hydraulic union half way up the hollow boxsection carcass. As the second stage of the ram brought the boat back in, the hoses used to kink at the joint. After a while they started to leak all over the deckheads with oil.

    Without taking half the boat apart to fix the problem, there was only one way to get to them. Insert a long, thin tool.... that'll be me then. :)
    Last edited: Oct 12, 2012
  17. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    Here is another one.... How do you board this boat if you are alongside and can't use the passerelle? No side gates!

    On a positive note Sunseeker was smart enough to install the cable master one step up from the platform...

    (First iOS 6 upload, iPhone 4S)

    Attached Files:

  18. Yachtjocky

    Yachtjocky Senior Member

    Joined:
    Oct 17, 2010
    Messages:
    366
    Location:
    Fort Lauderdale
    Access

    How many times have we all been to a boat yard with a captain , crew, brokers and surveyors plus clients and then trying to get on and offostly at the bow with rails angled way out and the only help is some old step ladder. Travel lifts capable of lifting thousands of pounds but no one allowed onboard during the lift.

    Mind you jumping on and off the boats 20 years was alot easier
  19. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,422
    Location:
    Satsuma, FL
    In the last popular magazine, another boat test. Azimut 64 with the same short comings. Can't get on/off the boat. Of course, the author talks about the boat fitting like a glove, he makes no comment how he got on or off.
  20. SHAZAM

    SHAZAM Senior Member

    Joined:
    Jan 26, 2008
    Messages:
    605
    Location:
    The Ghetto
    I've seen two large boats dropped while being lifted (strangely enough both were large azimuts) and I can tell you, I'd rather be on the ground watching rather than being on board during those lifts
