Have yacht designers ever been on a boat?

Discussion in 'Yacht Designers Discussion' started by Pascal, Oct 10, 2012.

You need to be registered and signed in to view this content.
  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    Ease of boarding came up in the MAN Thead so I figured I d post this in a new thread and make it about those flaws which drive most knowledgeable owners and captains crazy... Please feel free to contribute your own horror stories and pictures

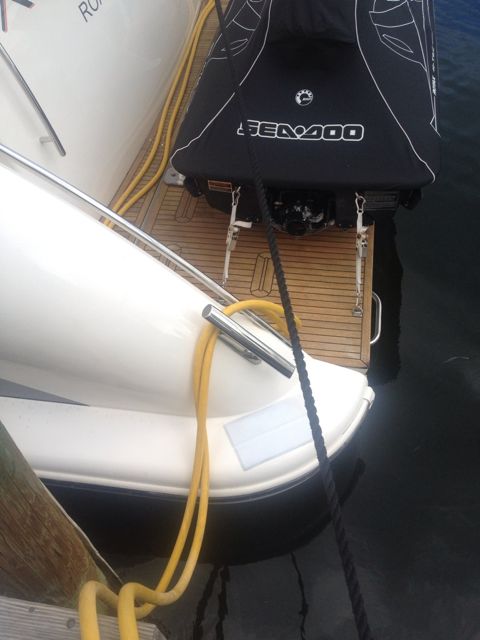

    This is how Azimut expects folks to board their new 70 footer: by stepping on a slippery and angled surface! It s so bad that someone decided to glue some kind of non skid pads...

    This appears to be an standard features on Mutts as there are 3 more on the same pier with same stupid tapered stern and slippery gelcoat border

    Attached Files:

  2. carelm

    carelm Senior Member

    Joined:
    Feb 5, 2011
    Messages:
    412
    Location:
    fairfax va
    They make up for it by having guests being totally overdressed for the task at hand, ie, boarding a boat. J-Lo being a prime example. Has she ever heard of sneakers or some other non-lethal type of shoe?

    Attached Files:

  3. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    There is also this beauty...

    It has a 6 foot section of hull totally unprotected (rub rails are just so unsightly...) and no boarding gate in the railing so you have to climb over... Then if you look carefully you ll see that if you need to set a spring line far aft the line will be rubbing on the gel coat due to cleat placement...

    And hard to see in this picture but the forward section of the railing extends outward beyond the railing. I guess the designers have never needed to pivot off a piling!

    Nice job FairlIne!

    Attached Files:

  4. Laurence

    Laurence Senior Member

    Joined:
    Aug 30, 2006
    Messages:
    250
    Location:
    Chattanooga TN
    Anytime J-Lo wants to come on my Chris Craft with short skirt and high heels, I'm all for it!

    Attached Files:

  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,443
    Location:
    Caribbean
    wow... :D
  6. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,443
    Location:
    Caribbean
    We'll it could get scuffed depending on how long the boat's tied there that way. I often see them putting a soft 'sheath' (not sure what the correct name is) around the mooring line or fender line that will rest on the yacht's painted finished surface. Maybe if they did that, it might not have been that big of a deal.
  7. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    Isn't it a lot easier to put the cleats and chocks in the right place?
  8. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,636
    Location:
    South Florida
    Such a good thread! And it may never end. Keep 'em coming!

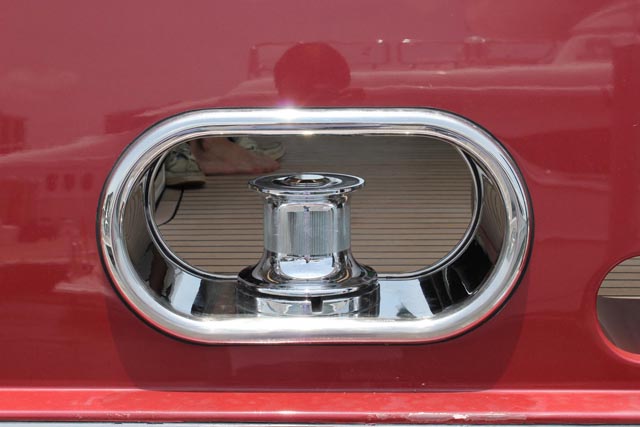

    Here's one of MANY additions I could make. The picture speaks for itself...

    Attached Files:

  9. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,443
    Location:
    Caribbean
    Point taken but I was just suggesting what I see being done in the cases where improvisation is needed.
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,422
    Location:
    Satsuma, FL
    Naw!!
    Tar & feather the dummies who designed it that way. There are a whole bunch of companies out there trying to sell their goods. The poor designs should be pointed out on these threads.
    After an owner puts out big bux, they should not have to cover the designers flaws (or theirs for not recognizing a blunder in thought).

    Lets plunder the blunders!!!
  11. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,422
    Location:
    Satsuma, FL
    I kind of like the non-skid step idea. And other same model owners did the same. Think support group for dummies.
    Ya think, some owners would of thought about this before the purchase?

    Geee, How do I get on & off my new boat???? It was easy at the boat show...

    Straw heads...
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,422
    Location:
    Satsuma, FL
    Oh, the J-lo pic, notice nobody is looking?? Bunch of Unix's? Still would have raspberry her on my 35 year old boat with heels. But then, probably it's her boat,,, Oh, straw head puchaser,,,...
  13. Old Phart

    Old Phart Senior Member

    Joined:
    Mar 14, 2011
    Messages:
    1,350
    Location:
    I dunno
    Improvise this, while enjoying Montezuma's Revenge - tic toc tic toc

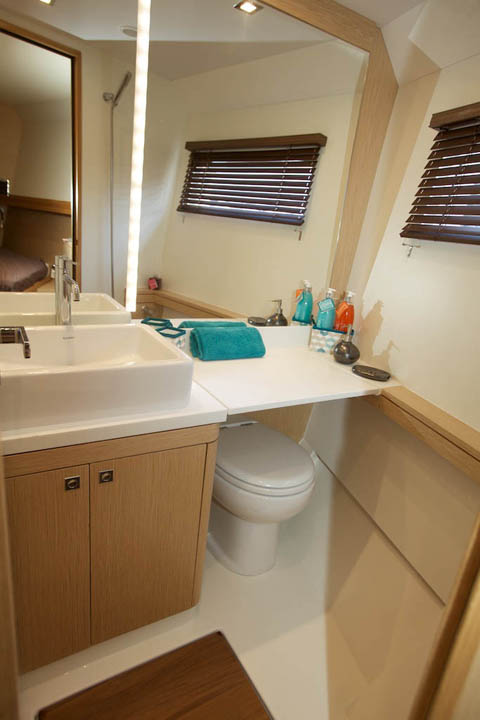

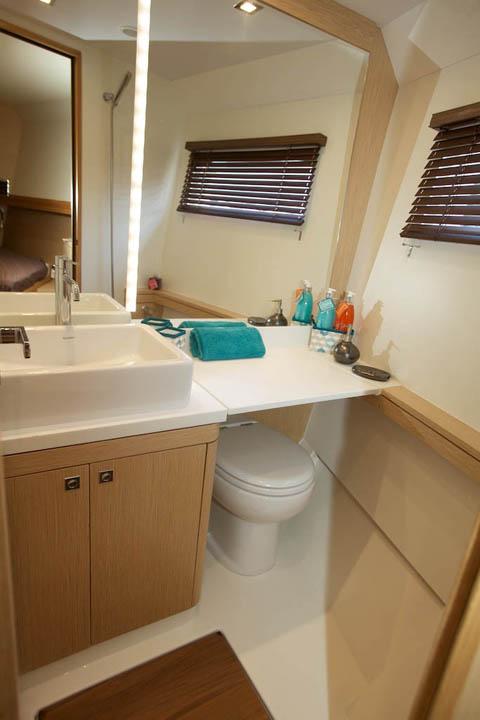

    Here's one that begs the question, "What were they thinking?"
    Head Placement.jpg
  14. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,672
    Location:
    Guernsey/Antigua
    I saw that too. What is the one thing that gets used more times a day in a bathroom? Stupid.

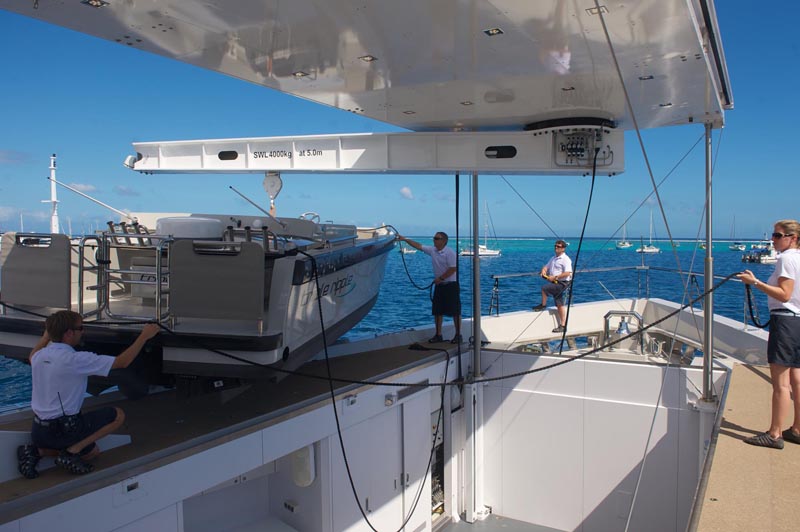

    The foredeck crane for the tender on Big Fish it still one of the most ridiculous things I've ever seen on a boat.

    Attached Files:

  15. Talon

    Talon Senior Member

    Joined:
    Mar 5, 2006
    Messages:
    154
    Location:
    Devon UK
    If the hydraulics fail on that, crunch and splosh!!
  16. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,320
    Location:
    9114 S. Central Ave
    Have you seen how they wash windows?
  17. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,139
    Location:
    Miami, FL
    That setup is pretty ingenious actually, except that those hydraulic rams should have been another foot longer for the tender to clear the deck

    Here are two examples of poorly desigbed lazarettes:

    65' or so Grand Alaskan I looked at a few years ago: lazarette can be accessed from the ER thru a water tight door as well as from the deck thru a hatch. Problem was that you could not open the hatch from the deck so if you loose a rudder you can't get in the laz without flooding the ER!

    - 60ish marquis with crew quarters. Nice water tight door between ER and crew but on each side are two large opening hatches which are just a wooden panel with cabinet latch! No point in the water tight main door!
  18. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,443
    Location:
    Caribbean
    Looks familiar, that's on the Le Trawler by Garcia Yachting in the review we recently did. I wondered the same thing when I was reading the review.
  19. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,350
    Location:
    Fort Lauderdale
    The 1990's+ 76' Lazzara's only had a door on the swim platform for engine room access. Very unsafe to enter while running at cruise, door was less than 1' above the waterline, so if you had a flooded engine room you would sink the vessel by opening the door in an attempt to locate the source of the flooding.
  20. discokachina

    discokachina Senior Member

    Joined:
    Mar 21, 2010
    Messages:
    1,301
    Location:
    Ft. Lauderdale

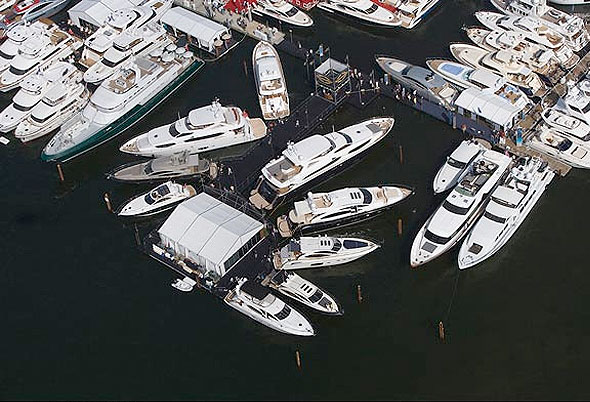

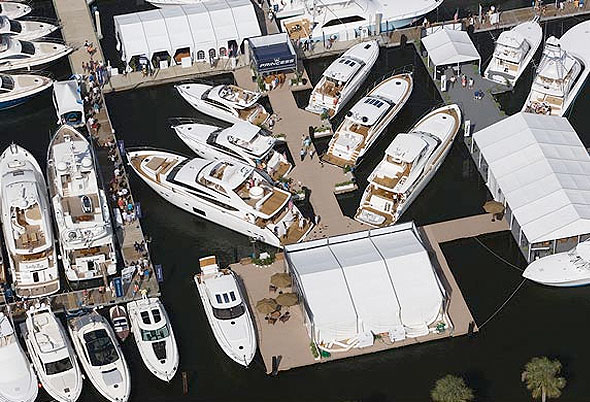

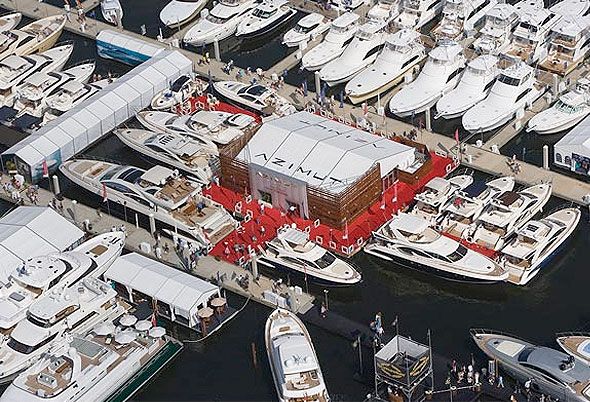

    Actually I think builders like Azimut, Princess, and Sunseeker expect folks to board their boats stern to Med style like you see here in pics of their displays at last year's FLIBS from the Showmanagement website




    Since their vessels are displayed this way at shows in the water and on land it probably never occurs to the uninitiated to think of boarding any other way until they are faced with the situation for the first time after purchase.


    Lazzara's display is setup in the same fashion.
