have a try with freehand ;)

Discussion in 'Yacht Designers Discussion' started by brunick, Aug 2, 2006.

  1. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth

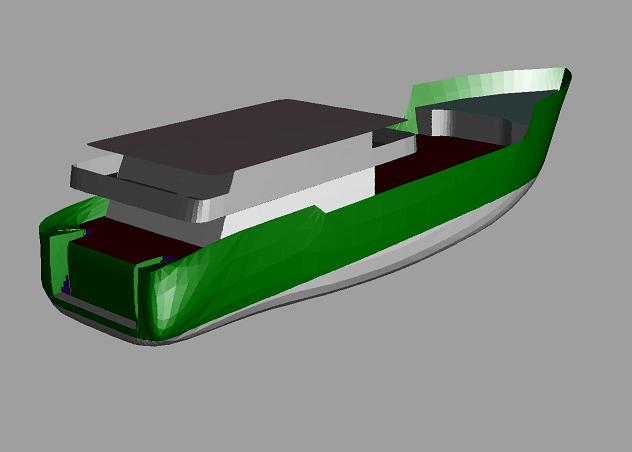

    i just found an old design with freeship - it was planned as a 54m trawler with aft tender storage.
    the crew was supposed to be in the bow and there should be a heliport too.
    some side-terraces should let the guest access to the water.
    i gave it up after some bug destroyed my 20% finished yacht - unsaved....

    Attached Files:

  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    It reminds me of Agnellis F100..! One of the first of this kind of Expedition styled yachts.
  3. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Wow! Huge improvement on your cat Jannick. <where is our ThumbsUp smilie>

    Kelly
  4. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    3,049
    Location:
    Montreal, Qc, Canada
    Low bridge? :D
  5. OutMyWindow

    OutMyWindow Senior Member

    Joined:
    Jul 5, 2006
    Messages:
    906
    Location:
    ...............
  6. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth
    maybe i should send them my design
    their yachts are very nice but i think a bit too industrial
    they need a modern design *hrhrhr*
  7. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth
    hey ho, lets say, NOW i'm tired *g*

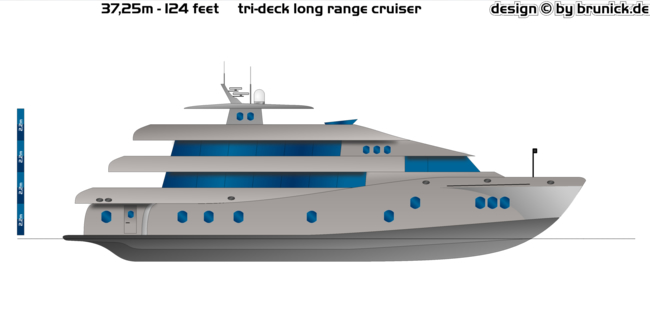

    i got some more try with freehand, this is what happened ;)

    in the aft it got a swimming-platform, where the guest can come out because its around the aft i will upload some plans tomorrow

    but now the yacht *g*

    Attached Files:

  8. cjg1941

    cjg1941 New Member

    Joined:
    Feb 22, 2008
    Messages:
    1
    Location:
    san diego
    create plan lines?

    Hi Brunick
    wondereing how you can generate hull plans for that model, or for any.

    thanks,cjg
  9. HONGKONG

    HONGKONG Senior Member

    Joined:
    Jan 7, 2006
    Messages:
    74
    Location:
    NASSAU and now Miami
    Looks like a hell of a first step from the helm to the cabin!
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Yes, it is about one feet...
  11. Jacoben

    Jacoben New Member

    Joined:
    Sep 17, 2005
    Messages:
    7
    Location:
    Gkss
    Hello my name is Jacob and im really interested in yacht design. so farm my drawings ha just been on pappers with a papper and pencil.
    i wonder how you guys do it and specally you Modin, do you first make a skiss on papper the scan in too the computer or do you freehand on a drawingboard directly in the computer???
  12. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Hi Jacob and welcome to the YachtForums!

    I think it helps if you are able to use a pencil and paper to start with, but the way I design with Freehand is almost the same thing.

    In another thread I showed how I usually work if it is just a styling concept;
    http://www.yachtforums.com/forums/6763-post80.html

    I start with a waterline and add lines that I can move around before I am making the filled patterns. I often keep a lot of the half finished drawings around the one I am working with, until I decide which one looks best for the next step. So it goes pretty fast.

    It is a little different when I design our production boats, as smaller boats must have every inch in the right place in all dimensions. So there I make a sort of x-ray pictures so I know it will be possible to build, before I put the final touches to the renderings.

    I always have a grid on the screen with measurements and also read the figures in the info bar as I draw.

    Big yachts are easier to start with, but of course with many more hours when you come down to the general arrangement and interior design.

    Good luck and please post your ideas when you have something to show!
