Hatteras 53 MY refit update and video

Discussion in 'Hatteras Yacht' started by Pascal, May 10, 2020.

You need to be registered and signed in to view this content.
  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,515
    Location:
    Miami, FL
    I haven’t posted any update on my project in a while so here it goes. Since it s been a while I ve included a summary of the work done to date...

    Here is a walk thru video showing the new layout of my 53 MY. It is far from finished... it s been an ongoing project for the last 4 years and I probably have another 2 or 3 years of work as I am doing most of the work myself.



    I have never liked the galley down. We love cooking and being down in a cave isn’t fun. I also noticed that many new boats in that size range have the galley aft, right by the aft deck. Down side is loosing some salon space but we still have seating for 5 if needed. I also redesigned the helm and saved almost a foot of space.

    Downstairs I combined both staterooms and heads to create a large master suite. Had enough room for a 5’ jacuzzi tub and a pump closet

    Forward I gutted the entire room and built a full size centerline bed. I am in the middle of building a new forward head where the dinette used to be. Much bigger than the old one and have room under the counter top for vented washer dryer combo

    The old galley is currently used as a workshop and will eventually be a small office with pull out couch. There is enough room for a third stateroom but we don’t need it

    Mechanically in addition to the Cummins C series repower (with new nibral props, one piece shafts and new exhaust) I have re wired the whole boat converting the house DC to 24 v. Some of the 1970 wiring I ripped out was downright scary ... not a single wire has been kept. New electrical panel as well. The only component of the electrical system I kept was a 2002 Norpro 18kW generator. New larger trim tabs have been installed to provide more lift. The boat can cruise 17kts and tops at 20kts

    I redid the air con with a new dual chiller system from Flagship Marine. Also installed 4 rule 3700s with new bilge pump panel at the helm. Eventually there will be a 5th one. Every single unused thruhull has been glassed and the remaining thruhulls have all new fittings and sea cocks

    Finally the old Vosper Mini Fins have been replaced with new Trac stabs. Hydraulics not connected yet...

    Still have a ton of work to do including wall panels, headliners, various interior trim, glass and at then painting the boat which still bears the scars of hurricane Irma....
    Bob Page likes this.
  2. ThirdHatt

    ThirdHatt Senior Member

    Joined:
    Feb 14, 2006
    Messages:
    68
    Location:
    Palm Beach Gardens, FL
    CONGRATS Pascal! I am very impressed with your redesign of the original layout. The new Master suite is brilliant, and the head and shower look excellent! I have not seen anyone come anywhere close to making that many significant changes to the interior of a 53 Classic before.

    Keep up the good work, and please keep us posted on the progress. Best of luck!
    Bob Page likes this.
  3. bruce.sands

    bruce.sands New Member

    Joined:
    May 10, 2020
    Messages:
    6
    Location:
    Copenhagen, Denmark
    You are going to have a very beautiful 53!
  4. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,596
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    You do nice work.
    Looking forward to more.
  5. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,515
    Location:
    Miami, FL
    Thanks guys. I ll confess some of the work is a bit crude like cabinetry glued and screwed but it’s all stuff you can’t see. I say that Boats are always a collection of compromises and when you redesign something this becomes very obvious. In my case the trade off for a nicer galley up and larger master suite is a smaller salon and a shared head for the two guests staterooms. I can live with that wspecially since we spend so much time on the aft deck.

    just like the 53 classic with side decks sacrifice interior space for wide side decks and better ventilation on the aft deck.

    personally it didn’t make much sense to spend all that money on a refit and keeping a 60s vintage layout

    it s far from being nice but another 3 years and it should be.... right now it s a sleeper. You wonder if she even runs but she’s as fast than most old hatts on the water :)
    Bob Page likes this.
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,714
    Location:
    Satsuma, FL
    Looks like nice heads. Where is da boot washer?
  7. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,997
    Location:
    Dana Point, Ca
    I got to appreciate your energy and vision, nice work and nice performance, you are quite the busy boat owner :)
  8. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,515
    Location:
    Miami, FL
    Da Boot washer? I don’t speak red neck! If you mean washer dryer it will be vented combo under the forward head counter
  9. echo charlie

    echo charlie Member

    Joined:
    May 29, 2019
    Messages:
    41
    Location:
    Elizabeth City , NC
    You used 450hp Cummins for your repower and get a 17KT cruise. What HP would you guess it would take to get a 20KT cruise? Great work on your 53 !
  10. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,515
    Location:
    Miami, FL
    I m not sure... I guess 500hp. The large fins probably cost 3/4 kt

    i really think the larger trim tabs and weight reduction help get boat on plane and lift the stern to a better running angle. I ll have to get some drone or tender video of the boat getting on plane but it doesn’t feel like the stern dig in as much as I ve see with other hatts. Since my boat had naturals I don’t have any reference point as she couldn’t get on plane before.

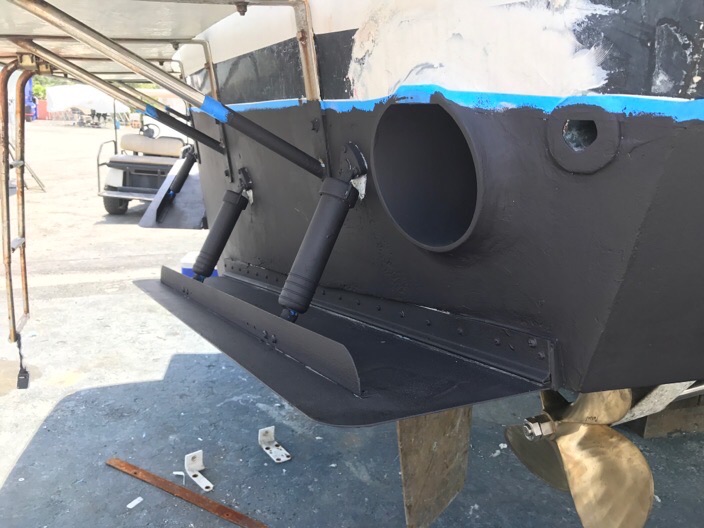

    I forgot the size of the original trim tabs. The new ones are 54x12. I also glasses the original cavity under the hull where the old trim tabs where and mounted them conventionally on the transom edge.

  11. echo charlie

    echo charlie Member

    Joined:
    May 29, 2019
    Messages:
    41
    Location:
    Elizabeth City , NC
    Thanks! Great info. Look forward to the video .
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,714
    Location:
    Satsuma, FL
    Bidet..
  13. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,515
    Location:
    Miami, FL
    Lol. Nope ...
  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,891
    Location:
    Fort Lauderdale
    550 HP or larger trim tabs.
  15. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,714
    Location:
    Satsuma, FL
    For the money and expected cruising speed for the bux, Pascal did great.
    If you need 20 kts and continued operation there. the Cunnins 8.3 would be great. Different tunes up to 600 hp.
    However, IMO 16-17 kts is probably the best speed for that hull. You would get minimal returns on just pouring fuel in to find 20kts in any engine.

    Open a new thread; Give us some ideas at what your really looking at / for..
    Bob Page likes this.
  16. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,195
    Location:
    Cherry Hill, NJ
    Come on man! You're practically done!:D

    Looks good. Why are boats so much work?! Keep it going. You will get it done and it will feel great.
  17. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,891
    Location:
    Fort Lauderdale
    While I agree with this, I ran a 58' Yachtfish for a lot of years. It cruised at 14-15 knots. At WOT it did 21 knots and the ride was much much better at 21 knots. Cruising at 20-21 knots would be much more stable in a beam or following sea IMO.
  18. echo charlie

    echo charlie Member

    Joined:
    May 29, 2019
    Messages:
    41
    Location:
    Elizabeth City , NC
    How does the saying go , how much is enough ,just a little bit MORE ! Besides it is easy to divide by 20.
  19. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,714
    Location:
    Satsuma, FL
    We turn for 10. Even easier.
  20. echo charlie

    echo charlie Member

    Joined:
    May 29, 2019
    Messages:
    41
    Location:
    Elizabeth City , NC
    Touche'
