Hampton 60

Discussion in 'Yacht Renderings & Plans' started by orion, Aug 10, 2006.

  1. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

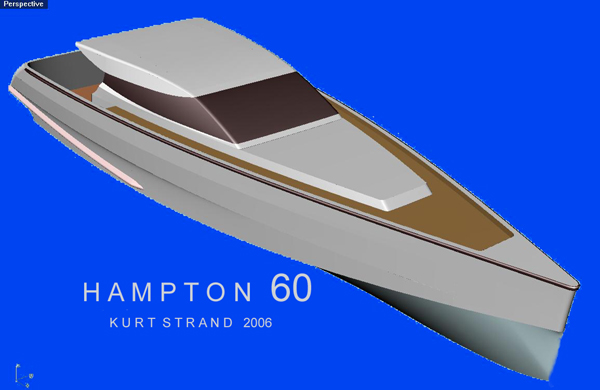

    New design in progress of a 60ft Hi-tech Down East Styled Commuter Yacht
    Opinions please ?

    Attached Files:

  2. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

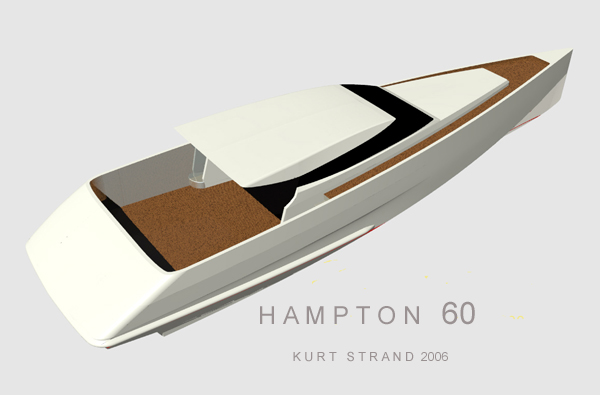

    Side/aft view

    Attached Files:

  3. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,574
    Location:
    South Florida
    Love It!
  4. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    3,065
    Location:
    Montreal, Qc, Canada
    Looks good... modern without ripping off Wally.
  5. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Thanks, Im glad you like it .There be soon a flip out swimplatform, sunbed in aft with a tender garage under, integrated retractable gangway, sky roof , water jets....
  6. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Great looking design. However I would hardly characterize it as a "Down East Styled Commuter"!

    Kelly Cook
  7. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Its almost 2010, new times new designs ;)
  8. Billy1119

    Billy1119 Senior Member

    Joined:
    Jan 23, 2006
    Messages:
    120
    Location:
    Tampa, FL
    I definitely see potential. I prefer these lines to those of the Wally 70, while still maintaining the wicked looking hull.
  9. brandonw

    brandonw Senior Member

    Joined:
    Jan 15, 2006
    Messages:
    491
    Location:
    Tampa, FL
    Keep the antennas and sat domes off and it will look great!
  10. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Hampton 60 design in progress...
    Opinions please

    Attached Files:

  11. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    The long skylights work very well for the forward cabin. But not for the hardtop, I would loose those. Replace with a retractable panel if they really want that.

    Kelly
  12. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    I agree with you, it looks cleaner without. The idéa was to get more light in
    maybe chromatic glasstop will look better.
  13. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    If you want to play with glass panel shapes for the hardtop then chevrons or triangle themes might be fun. The 2 rectangular panels look like an afterthought.

    Kelly
  14. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,574
    Location:
    South Florida
    I'm going to take the high road on this. I actually like the separated glass panels. I've been onboard express yachts with full sliding roof panels, such as the Warren 87' Express. No matter how well the glass is tinted, there is no escaping the sun and the inherent reflection problems. With a solid divider between the panels, at least you have some escape. And as a design exercise, I think the rectangular shapes lend themselves to the angular lines of the boat.

    Either way, I like the entire concept you've put forward Orion. I could see this being accepted in the mainstream as well. Undoubtedly, it’s a much easier sell then Ms. Sweden... but few boats summon such sweet splendor.

    Keep up the good work! :)
  15. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Thanks Carl!
  16. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    There are some similarity yes but
    I agree with Kerry, these roof windows looks not good on my design. On the Fjord boats more boxy shape it looks ok.
    Instead there will be one larger retractable sunroof that when closed is fully intergrated into rooflines. Maybe also pop-up radar and sat. antennas?? Have you seen that before?
    Last edited: Aug 13, 2006
  17. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

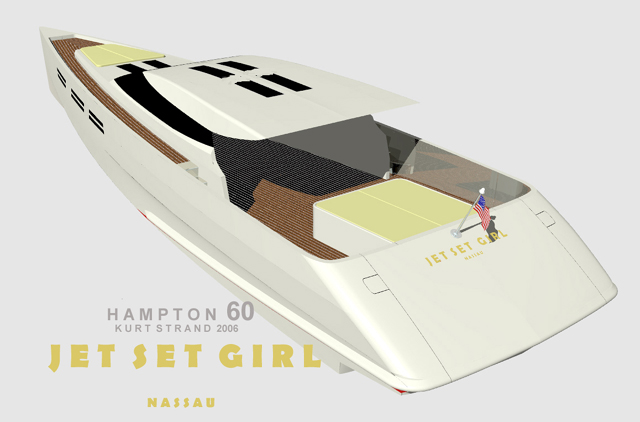

    Jet Set Girl

    Portholes
    Please make comments

    Attached Files:

  18. Billy1119

    Billy1119 Senior Member

    Joined:
    Jan 23, 2006
    Messages:
    120
    Location:
    Tampa, FL
    Hmm... I don't know about the portholes like that. I think it would likely look better with separate, but still elongated portholes (I realize they are likely separate and just made to look like a single window). And maybe a larger window (vertically) for the main salon or whatever the main room is on the lower deck. Similar to that of the Azimuts, without looking like a knockoff, you know? I think those windows not only look nice on the outside, but are awesome from the inside.

    Also, I like the skylights the way they are on the hardtop. I think you will want some way to get a breeze going through the cabin there though.
  19. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Those "portholes" aren't bad. But I would not make them such an extreme long span. Instead break up the same overall length into at least 4 sets of portholes. At the same time you could also play with making the set(s) near the bow single height instead of double. That is eliminate the bottom porthole, not make the one porthole taller.

    Kelly
  20. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Maybe like this so there be a 2 x 3 ===theme both on top and sides ?

    Attached Files:
