Half of my AC panel is out

Discussion in 'Luhrs Yacht' started by Rscriv, Apr 8, 2021.

  1. Rscriv

    Rscriv New Member

    Joined:
    Feb 10, 2020
    Messages:
    31
    Location:
    Stony Brook NY

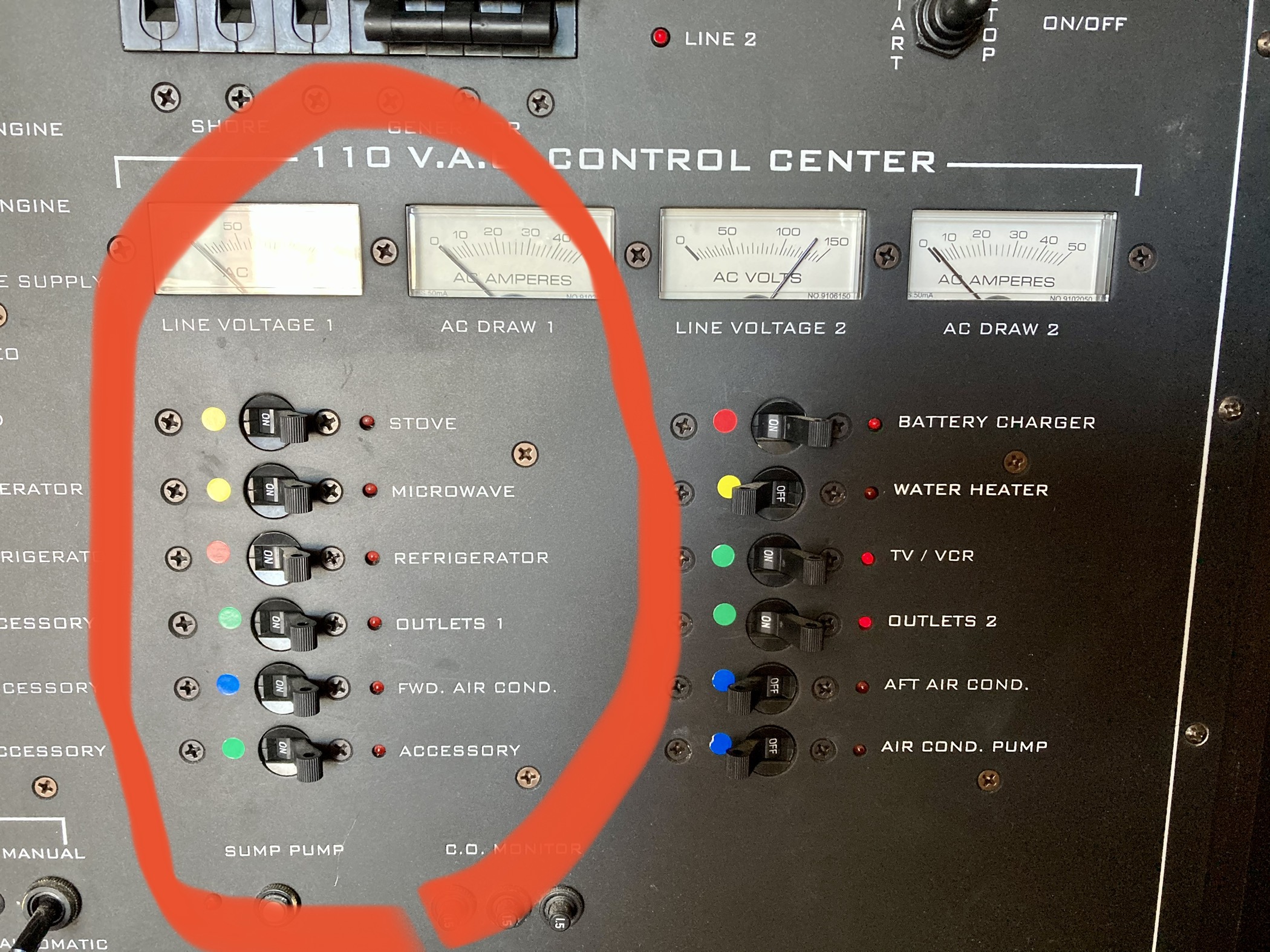

    Hi everyone, just put my ‘04 38 Luhrs Convertable in and when on shore power the left half of my AC panel has no power. If I run the genny, it has power. Thoughts? TY!

  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,759
    Location:
    Fort Lauderdale
    One leg on your shorepower cord isn't getting voltage on one of the legs would be my thought. 2 of the legs are 120V, third is a neutral. 2 hot legs of 120v, make 240v.
    Last edited: Apr 8, 2021
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL
    If using a 120/240 Vac shore power service, one of the legs is open from a open breaker, or open in the wire lead.
    You may have hidden service entrance breakers also; Usually hiding in or around the hull near your service entrances connects are mounted.
    I recall on some boats this size, there is a parallel breaker on the panel to join both sides to single 120Vac lead.
  4. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,759
    Location:
    Fort Lauderdale
    On that boat, Luhrs uses a 240v-50 amp cord, and simply splits the leg to 120v on one side of the panel (left), and 120v on the other side (right) of the panel, they don't use both legs together or 240v systems at all on that size boat.
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL
    If a single 120Vac lead was used.
    If a 120/240V cord is used, then no parallel breaker.
  6. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,759
    Location:
    Fort Lauderdale
    Just the three pole connected together breaker as seen at the very top of the photo.
  7. Rscriv

    Rscriv New Member

    Joined:
    Feb 10, 2020
    Messages:
    31
    Location:
    Stony Brook NY
    Yes! Seems to be a power cord issue. Playing around with the plug ends, starting to come back. Thanks everyone for your advice!
  8. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,759
    Location:
    Fort Lauderdale
    Get a multi-meter. Unplug the cord on the boat side. You should get 220-240V between the 2 L shaped circuits, and 120v between each L circuit and the flat blade circuit. If it's the cord and the cord is the age of the boat, just buy a new cord, they have a lifespan.
  9. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,313
    Location:
    Miami, FL
    Replace the cord once you re sure it is the problem or at the very least the connector causing the issue. This this must be arcing inside and about to cause a fire.
    Also if any evidence of arcing can be seen on the terminals of the inlet on the boat, replace the inlet. Number one cause of boat fires
    Capt Ralph likes this.
  10. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,146
    Location:
    Cherry Hill, NJ
    Hot legs, split legs, poles ....ugh ! :rolleyes:
    What was the O.P topic again ?!

    Yup get a new cord as suggested .
  11. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,228
    Location:
    Long Island, NY
    Before spending the money on a new cord try a different pedestal. Power cords are pretty resilient. Where you plug into gets pretty abused. Would hate you to spend several hundred dollars only to find that the receptacle was bad. How many people have you seen plug in and not give their plug the clockwise turn that locks it. Then the plug wobbles back and forth in the receptacle with every gust of wind loosening the receptacle.
  12. Worthy vessel

    Worthy vessel Member

    Joined:
    Feb 16, 2019
    Messages:
    65
    Location:
    Sarasota
    Question
    If a boat has a 50 amp power cord but 110v appliances, can I plug that 50 amp cord into a single 30 amp shore power with an adaptor?
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL
    In an emergency, maybe.
    Depends on a few other questions first;
    Do you have 50A service 240 or 120Vac service entrance?
    Any 240 equipment like A/Cs, water heater?
    Why do you ask?

    Do we need to open a new thread on this topic?
  14. Worthy vessel

    Worthy vessel Member

    Joined:
    Feb 16, 2019
    Messages:
    65
    Location:
    Sarasota
    I have only one 30 amp shore power available at the dock and would like to buy a boat with 50 amp power cord.
    Looking at Tiara 4400 Sovran 2005- I think it has all 120 v appliances
  15. Worthy vessel

    Worthy vessel Member

    Joined:
    Feb 16, 2019
    Messages:
    65
    Location:
    Sarasota
    It is OK if I can not run everything at once
  16. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL

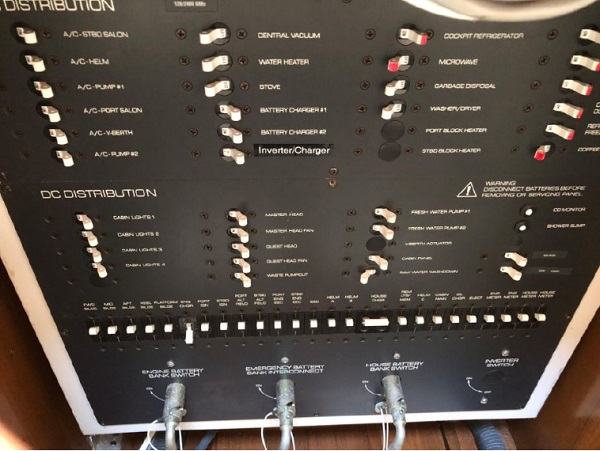

    Man, That's a lot of stuff on that panel.
    I can not imagine a later model boat with the old 120v-50A service.
    I can not imagine that much A/C equipment running on a single 120V-50A line.
    I'm sure it would have 120/240v-50A service.
    Somewhere out of the picture must be A-B Buss switches and volt meters.

    So, make a pigtail joining the red and black wires together, supplied by a single 30A service.
    Still, In an emergency, maybe.

    Myself, Less one hell of an emergency, I would not even try.

  17. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL
    Is this a private dock with only one 30A service?
  18. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,242
    Location:
    Sardinia
    I can't see any problem in that.
    It's dead obvious that you'll never be able to draw more than 30A, which depending on your needs of running concurrently several AC equipment might be a problem or not.
    But the worst that can happen is that the shore power breaker will trip off whenever you should draw more than 30A.

    Just check with the marina that there is a 30A breaker inside the pedestal, which should be normal practice, but you never know.
    Missing that, you would risk to overheat and short circuit the dock wiring... :confused:
  19. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,577
    Location:
    Satsuma, FL
    I'm guessing you have never witnessed 30A connects frying and the dock breaker not tripping or tripping after the damage has been done..
  20. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,759
    Location:
    Fort Lauderdale
    You can run some 120V stuff as long as you monitor load. However, you will only have power on one side of your panel or the other, not the entire panel.......so you may have power to battery chargers, but no air conditioning or vice versa.
