Generator not powering cabin equipment.

Discussion in 'Sea Ray Yacht' started by NBiancardo, May 26, 2015.

You need to be registered and signed in to view this content.
  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,120
    Location:
    Miami, FL
    I agree, call the people who rebuilt it.

    Where is the fuse? Fuses are usually for the motor end of the generator not the AC output. I doubt that s your issue.

    Small push to reset breakers are usually to protect the DC side of the motor. AC breakers are normally dual pole. It s been year since i ve used a gas gen though... but check around the control box, sometimes they re on the side
  2. dick b

    dick b New Member

    Joined:
    May 16, 2019
    Messages:
    4
    Location:
    florida
    The generator was tested prior to delivery. That is why I think it must be a fuse or breaker or something like that. The breaker is a simple red push to reset that seems ok. Does the fuse on the Control box of the generator interrupt the 110 output or just the generators gas engine?
  3. dick b

    dick b New Member

    Joined:
    May 16, 2019
    Messages:
    4
    Location:
    florida
    Sorry, I asked the question while you were answering me about the fuse.
  4. dick b

    dick b New Member

    Joined:
    May 16, 2019
    Messages:
    4
    Location:
    florida

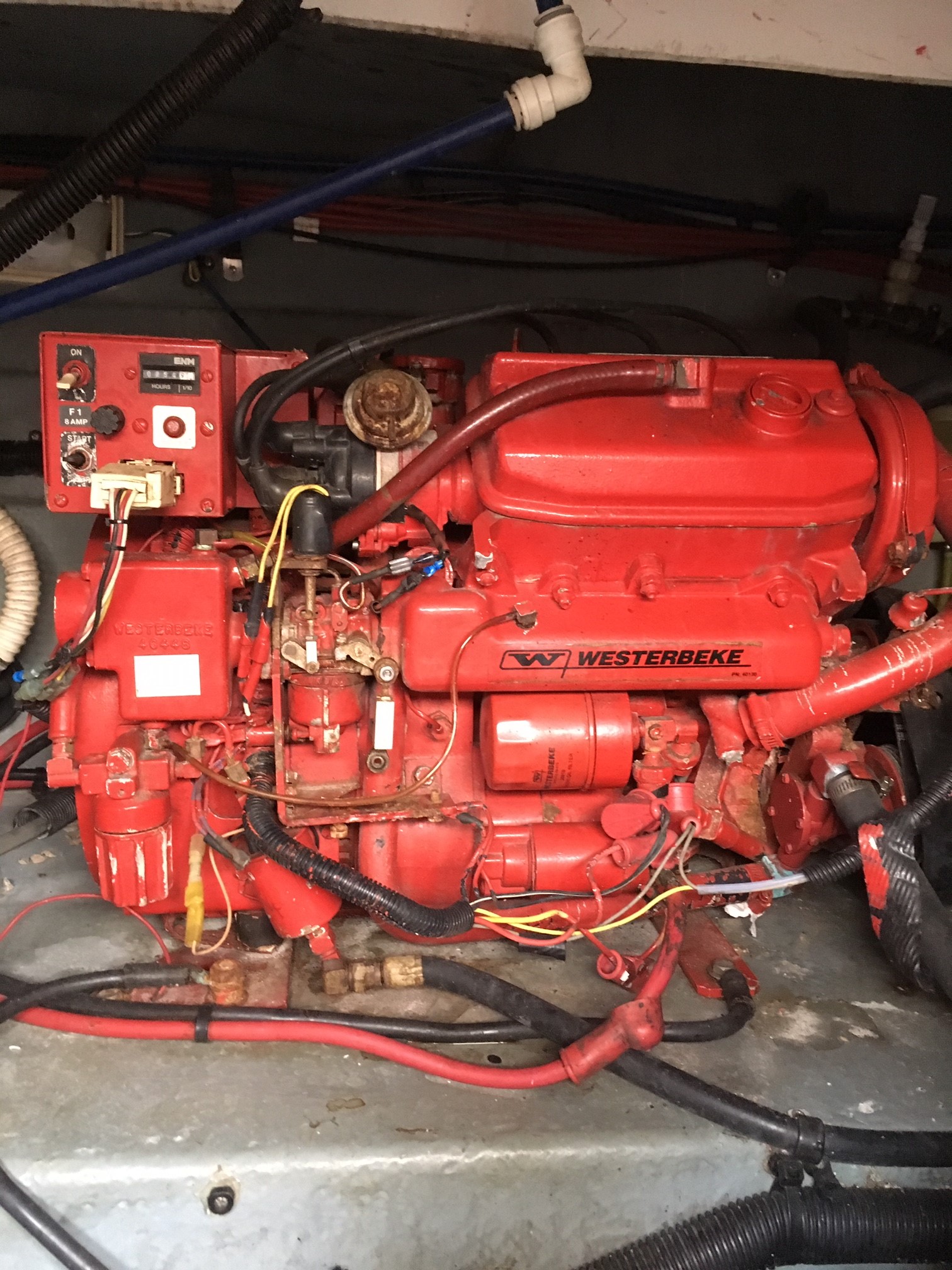

    All good input and I'll keep looking but so far I have not found any other breaker or switch. This picture was taken prior to the rebuild but the configuration is the same.

    Attached Files:

  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,420
    Location:
    Satsuma, FL
    Your breaker in the picture is for the motor.
    Who wired the gen set back up? There are many different strapings at these connects. Don't assume they are the same as when it left the boat. The builder may have changed the strapping for their own style of testing.
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,420
    Location:
    Satsuma, FL
    And, Yes, some older gen sets have ACv fuses inside the box.
    You should also have a service breaker in the E R.
