Fuel tank removal

Discussion in 'Ocean Yacht' started by George mayer, Nov 5, 2016.

You need to be registered and signed in to view this content.
  1. George mayer

    George mayer New Member

    Joined:
    Nov 5, 2016
    Messages:
    5
    Location:
    Florida keys
    How do I remove the starboard Fuel tank on 1988 Oceanyacht
  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,338
    Location:
    Fort Lauderdale
    What size Ocean Yacht????
  3. Help

    Help New Member

    Joined:
    Jun 5, 2016
    Messages:
    5
    Location:
    West coast
    On a 48, it has to be cut in half. Just finishing up the removal and replacement of both tanks on a 1986, 48 super sport.
    Last edited: Nov 6, 2016
  4. justold

    justold Member

    Joined:
    Feb 23, 2009
    Messages:
    48
    Location:
    new jersey , fla
    That sounds good , how do you install the new one ?
  5. Help

    Help New Member

    Joined:
    Jun 5, 2016
    Messages:
    5
    Location:
    West coast
    The port tank is fabbed and installed as one tank. The starboard tank is two tanks with added volume to match the original tank. I have photos for reference if you need them. The issue on the starboard side is the main elect panel and cabinet. It was far easier and less expensive to split the tanks.
  6. George mayer

    George mayer New Member

    Joined:
    Nov 5, 2016
    Messages:
    5
    Location:
    Florida keys
    48 ft sport fish
  7. George mayer

    George mayer New Member

    Joined:
    Nov 5, 2016
    Messages:
    5
    Location:
    Florida keys
    Can u send me the photos thanks
  8. Help

    Help New Member

    Joined:
    Jun 5, 2016
    Messages:
    5
    Location:
    West coast

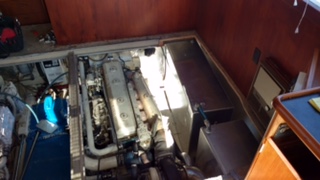

    Here are a couple of over view photos, the entire floor and sub structure has been removed to facilitate the tank removal and installation.

    Attached Files:

  9. George mayer

    George mayer New Member

    Joined:
    Nov 5, 2016
    Messages:
    5
    Location:
    Florida keys
    When you remove the starboard tank where did you cut it to get it out
  10. Help

    Help New Member

    Joined:
    Jun 5, 2016
    Messages:
    5
    Location:
    West coast
    Basically it was cut into quarters, with the top removed the interior was cleaned to minimize a mess when the lower portion was cut in half. As you can see the new tanks were sized so they could be installed and placed after they were fabricated.
  11. George mayer

    George mayer New Member

    Joined:
    Nov 5, 2016
    Messages:
    5
    Location:
    Florida keys
    How did you remove the floor boards over the tank
  12. ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ
    Take out the couch and take up the carpet. You will see.

    ou need a good yard to do this. Find one.
  13. justold

    justold Member

    Joined:
    Feb 23, 2009
    Messages:
    48
    Location:
    new jersey , fla
    Jers
    Jersey Cape Marine in Lower Bank ,N.J. has done several of these . Nice people to deal with .
  14. Lance Kassab

    Lance Kassab New Member

    Joined:
    Mar 1, 2018
    Messages:
    3
    Location:
    Houston

    I have a 1988 48 ocean that needs a new tank as well. How much does something like that cost?

    Thanks
  15. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    704
    Location:
    Florida
    Just thinking, if one has failed at minimum have the other the tank inspected.
  16. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,338
    Location:
    Fort Lauderdale
    Generally on Oceans (as they're saddle tanks under the engine room vents) when one tank fails, the other is only a year behind it. Change them both at the same time.
  17. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    744
    Location:
    Cherry Hill, NJ
    Where is the leak ? Top or bottom of the tank?
  18. Lance Kassab

    Lance Kassab New Member

    Joined:
    Mar 1, 2018
    Messages:
    3
    Location:
    Houston
    on the bottom of the starboard side.
  19. Lance Kassab

    Lance Kassab New Member

    Joined:
    Mar 1, 2018
    Messages:
    3
    Location:
    Houston

    Do you have the specs for the two tanks on the starboard side? I need to replace the tank on my 48 ocean as well.

    Thanks
  20. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    744
    Location:
    Cherry Hill, NJ
    Top , I might offer some suggestions ...

    Bottom , you have to replace it , IMO. Sorry.
