Fresh Water system Pressure 43 Post

Discussion in 'Post Yacht' started by Greg Page, Aug 12, 2022.

You need to be registered and signed in to view this content.
  1. Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY

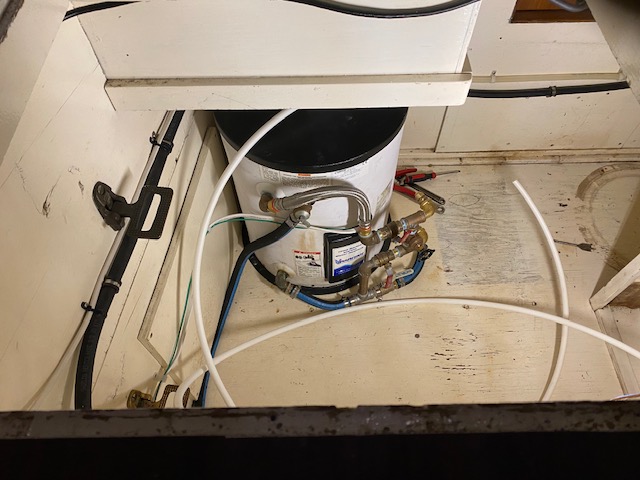

    Looks similar to my set up but mine is horizontal. My hot water heater is under the galley setee where some boats had the washer/dryer. I moved it to centerline to trim the boat better which added some elbows, and 5 more feet of Pex. Now the shower temp fluctuates quite a bit during pump cycles
  2. Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    387
    Location:
    Annapolis MD
    My water heater is stbd forward end of engine room. Shower is stbd ahead of guest stateroom. Lines are all copper except for maybe foot of flex. Takes the long way around to shower. Water from the heater crosses the boat to port side to go to galley. Branches off from galley and crosses back stbd to get to the head sink and shower.

    Will see if I note any change in temp while on trip.
    Stainless45 likes this.
  3. Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    387
    Location:
    Annapolis MD
    In reply to last question. Using the shower there is a much nicer water fan and no pulsing or temperature variations.
