FBY; 58ft - an example of concept yacht hull lines

Discussion in 'Yacht Renderings & Plans' started by yades, May 25, 2007.

You need to be registered and signed in to view this content.
  1. yades

    yades New Member

    Joined:
    May 21, 2007
    Messages:
    7
    Location:
    ITALY
    Hi all,

    I'd like to share with the community a good example of a recent hull sailing yacht which I developed in almost all parts represented, including lines plan in the three basic views, hydrostatic calculation and Polar Diagram for performance prediction. I have also added some basic hull renderings obtained via use of Maxsurf and Rhino.

    Other technical infos including ratios, technical parameters for general discussion, STIX number for stability appraisal, resistance calc's, etc..... could be posted on this forum should it be of any further interest to someone. I personally believed the core business of a Yacht Designer is still the set up and calculations of a yacht's lines plan and in that respect I dont see much of this "stuff" around on any YD Forum, including attached calculations and relevant technical comments whatsoever. :rolleyes: (......what is perhaps most exciting is that we can still as individuals make these valuable technical contributions.......(Renato "Sonny" Levi - Dhows to Deltas)........ :D

    Any comments are welcomed
  2. yades

    yades New Member

    Joined:
    May 21, 2007
    Messages:
    7
    Location:
    ITALY

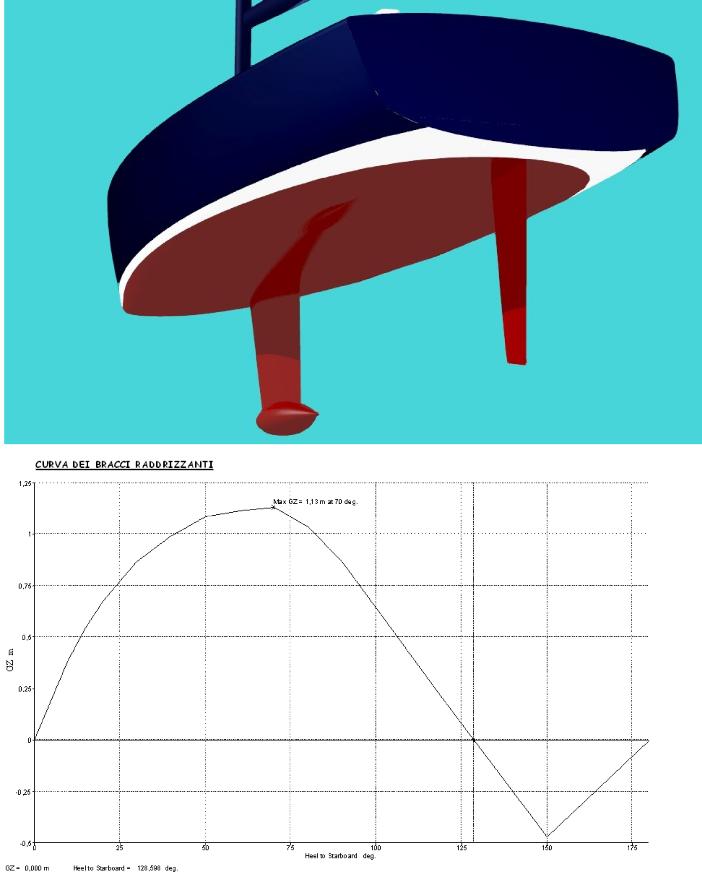

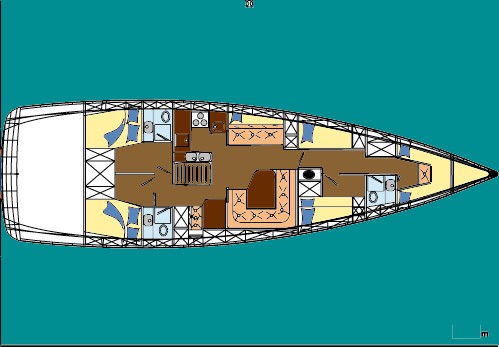

    Here is the first set of pictures

    Attached Files:

  3. yades

    yades New Member

    Joined:
    May 21, 2007
    Messages:
    7
    Location:
    ITALY

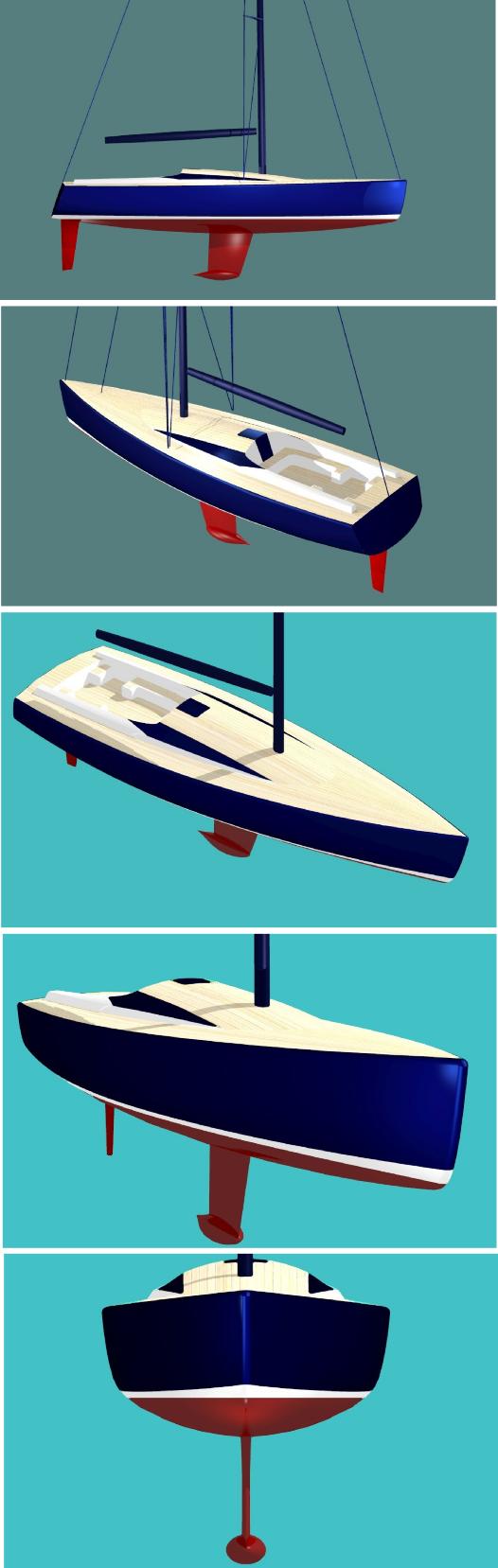

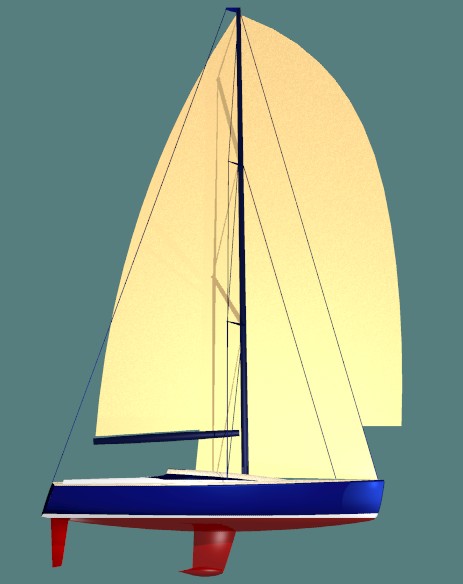

    Here is the second set of drawings

    Attached Files:

  4. yades

    yades New Member

    Joined:
    May 21, 2007
    Messages:
    7
    Location:
    ITALY

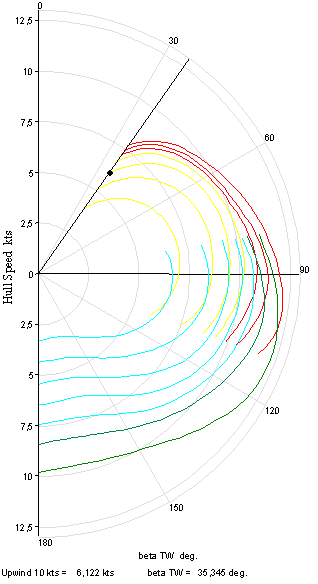

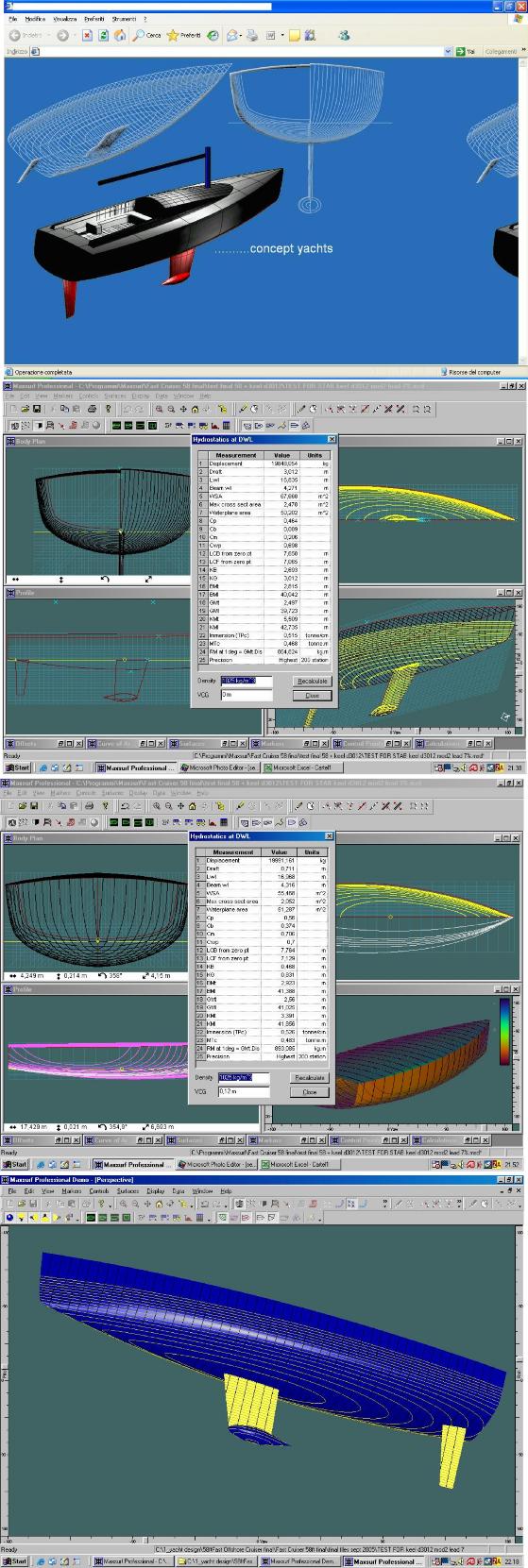

    Here is the third and last set of drawings

    Any comments are welcomed. Any further technical info will be posted if requested.

    Attached Files:
