Exercise de style

Discussion in 'Yacht Renderings & Plans' started by SVDesign, Jul 7, 2008.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Heading to a different way

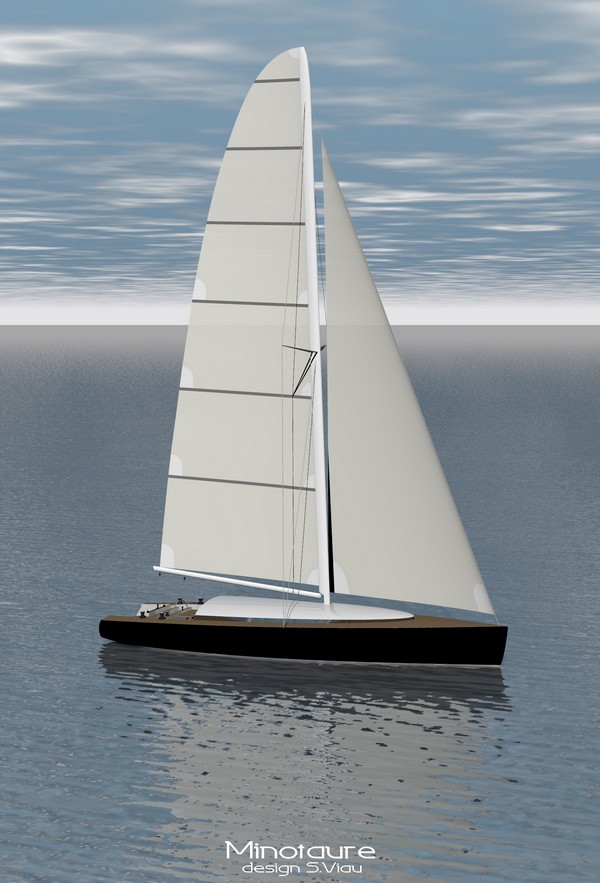

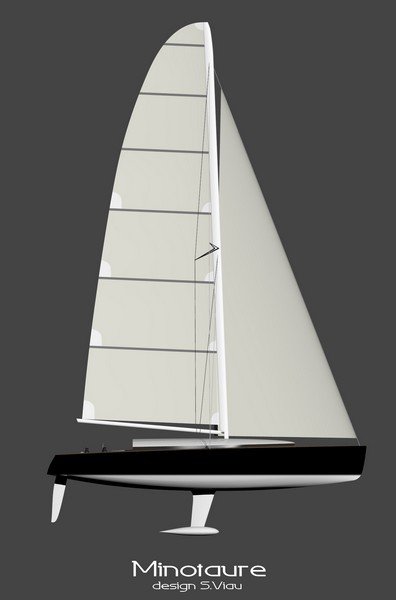

    This is Minotaure, son of Pasiphae : 15.00m - high standard sailing boat.
    More details to come, but the spirit is there.

    Attached Files:

  2. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Press article - SVDesign

    I got interesting article about my work in The Yacht Report, April 2009.
    It was a full page into Fleet News "Out of the Ordinary", with very encouraging comments. :)
  3. BjornS

    BjornS New Member

    Joined:
    Jul 7, 2007
    Messages:
    49
    Location:
    Los Angeles
    Excellent Sylvain. Good press and industry recognition is the key. Congrats.
    :cool:
    Bjorn
  4. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Complement

    Attached Files:

  5. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Newcomer - Vif Argent

    Hi everybody.

    I did not post recently, very busy on other affairs, but I had the time to elaborate something new again, a mix between glider and foiler.

    I hope you will like Vif Argent

    :)

    Attached Files:

  6. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Here is the principle behind Vif Argent, with complete adjustable system for the gliders.

    Attached Files:

  7. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    9,888
    Location:
    Long Island, NY
    Cool design, but only useful as a commuter ferry (no sun-deck area). You also failed to look at it from a boatwasher's or especially a line handler's point of view.
  8. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France

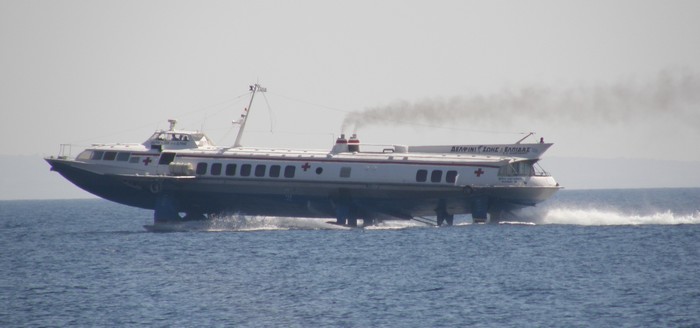

    It is more of less the same story with this kind of ship.

    Attached Files:

  9. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    9,888
    Location:
    Long Island, NY
    Exactly, commuter ferry. You'll notice however the flat roofs, decks and the catwalk around the sides. Also, your bubble jet-fighter style glass helm enclosure will cook the crew. Better to have that in a passenger area where they can move about.
  10. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    There is no complete catwalk all around the last ship - only above fwd foil, for docking, and aft.
    I put a side door on Vif Argent, giving access to the rear arm, widen to allow crew to walk in when the ship is in low position and to go to the side hull for docking purposes.
    Washing can be a problem - I agree.
    I will thinking to a different design for bridge, with more shadow ;)
  11. 'RoundTheHorn

    'RoundTheHorn Senior Member

    Joined:
    Oct 6, 2004
    Messages:
    275
    Location:
    Salish Sea
    Boat or car?

    Looks like a big version of the Aptera automobile! :D

    Attached Files:

  12. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Two other renders of the thing.

    Attached Files:

  13. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    9,888
    Location:
    Long Island, NY
  14. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Hello !
    I was slightly away from the forum since last September, but I'm now back to affairs ;)

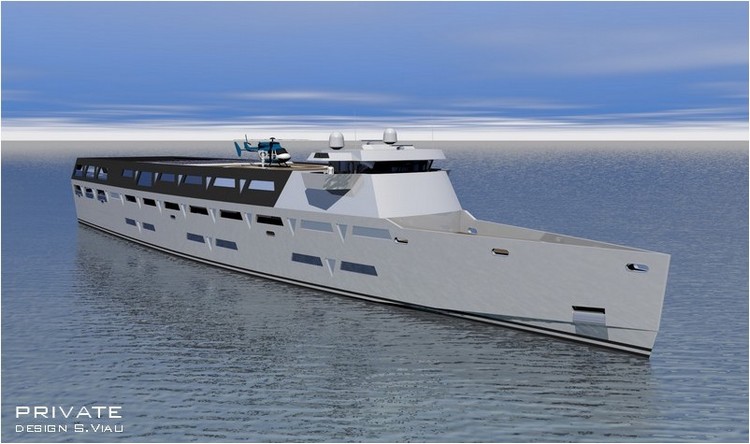

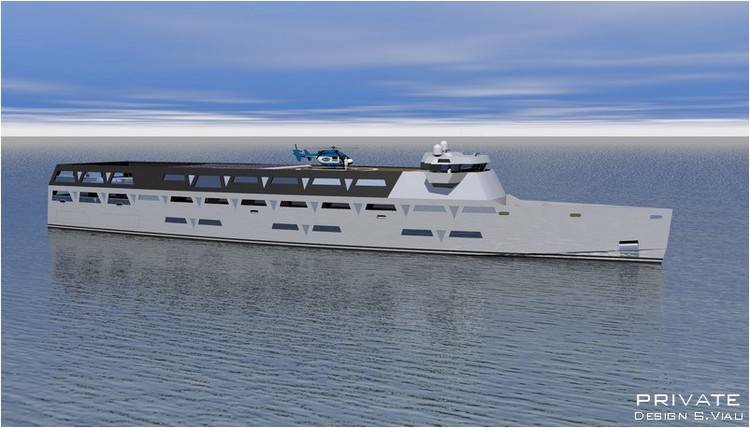

    Here is the latest concept : PRIVATE
    Length : 89.00m

    She can be used as private yacht, but also as a kind of mini-cruiser, with very high luxury standards on board. The look can appear very casual compared to what I sketched previously, but the volume available for accomodation is therefore considerable for 89m "only".

    As a yacht, I would accomodate owner suite on top deck, with a wide and protected sun deck aft. VIP cabins and lounges can be laid on main deck, and all crew cabin and facilities at lower deck and under.

    Wheelhouse is designed for a wide view angle, and fitted with a comfortable aviation control room for helicopter operations.

    Hot water production is optimized with solar panels on top.

    I'm preparing the lazarette arrangement, with something special in there.....

    Attached Files:

  15. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Quiet.....

    Attached Files:

  16. mwagner1

    mwagner1 Senior Member

    Joined:
    Sep 11, 2005
    Messages:
    216
    Location:
    Les Etats Unis
    "named from precious black stone coming out of volcanoes."

    All that black color.....better seriously beef up the insulation and A/C power to compensate for the serious heat gains in hot weather....otherwise, VERY interesting designs!!

    Cheers,
  17. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France

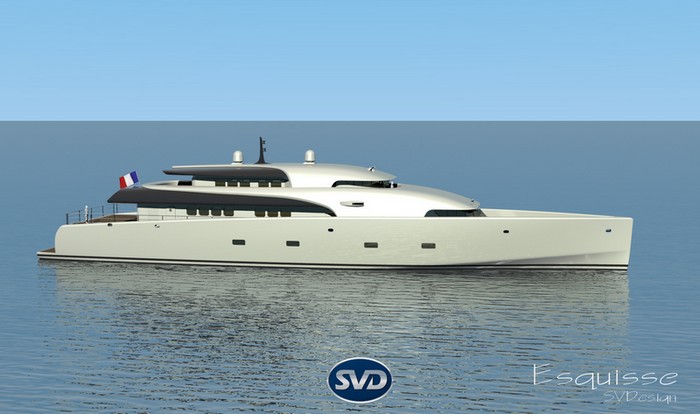

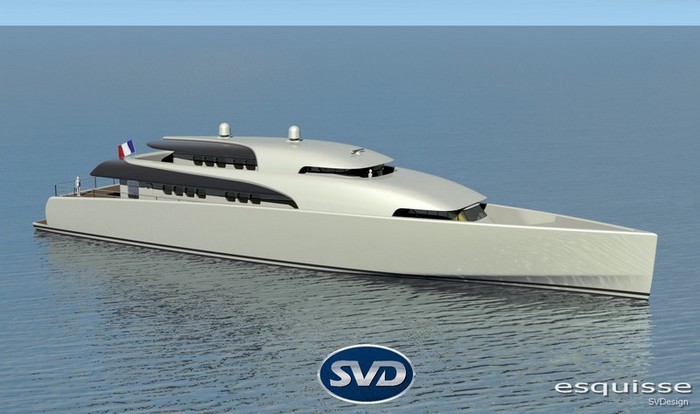

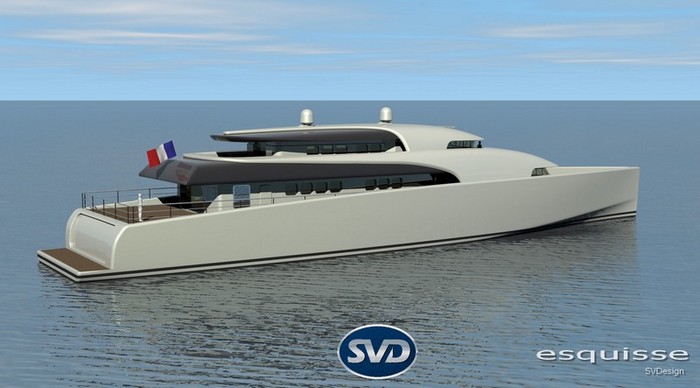

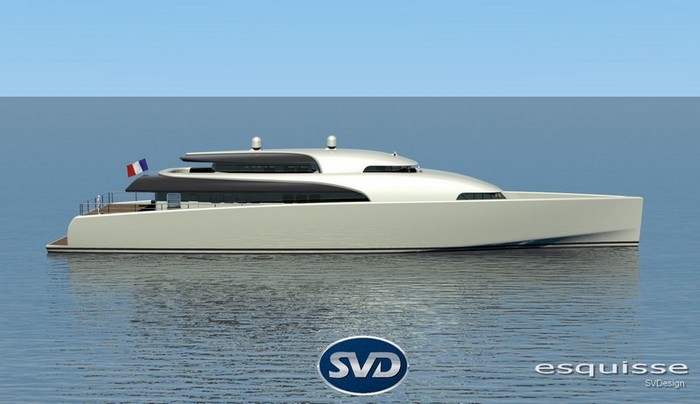

    new concept : Esquisse

    She is a more conventional design, 55m length : Esquisse.

    I'm pretty sure she will be much more appreciated that raw Private.
    I went as far a possible with my computer capabilities, and as a consequence the transom remains a bit 'simple' and small equipment is missing on decks (lights, antennas,...) but the line is there.

    I will try another set of colours this evening, much more "dark side", just for fun :p

    Attached Files:

  18. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Here are new renders, with small details added. I found a way to recover some memory with different meshing parameters and no loss of accuracy. I still have to work on the stern - I'm not really happy with it - something is missing...

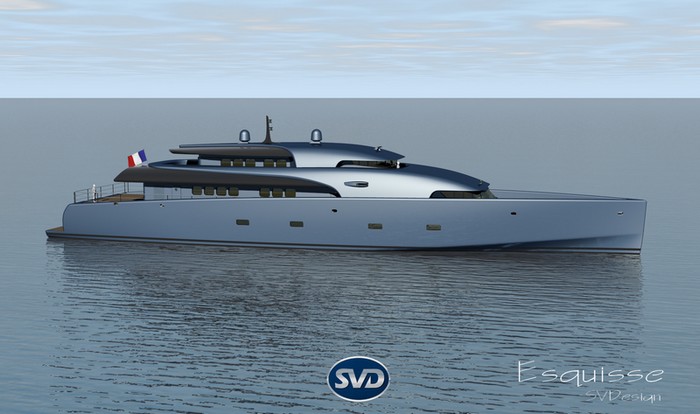

    I tried full blue, and silver/blue.

    Attached Files:

  19. Splash

    Splash New Member

    Joined:
    Aug 14, 2009
    Messages:
    7
    Location:
    Washington, US
    I like the blues. Takes it from military to stylishly cool.
  20. Designova

    Designova New Member

    Joined:
    Mar 27, 2009
    Messages:
    9
    Location:
    Raleigh, NC
    Looking good. To my mind, the two tone is best. Helps showcase the sibling forms of the superstructure. I personally would like to see her with a matte black or satin carbon hull, with a satin nickel or otherwise metallic superstructure paint- perhaps something like this color combo: LINK
