Exercise de style

Discussion in 'Yacht Renderings & Plans' started by SVDesign, Jul 7, 2008.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France

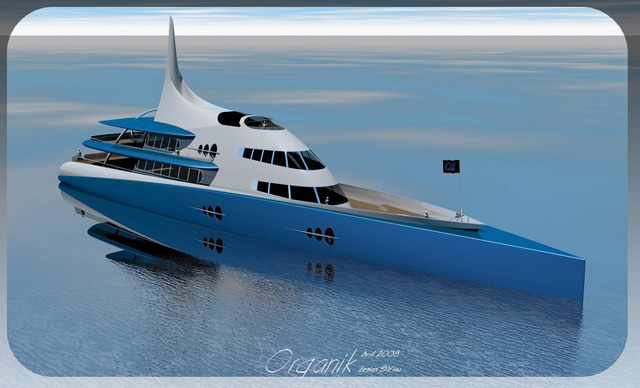

    [​IMG]

    Length : 80.00m
    Speed : 20+ kts
    Propulsion : hybrid + fuel cells

    Just an idée.......
    Last edited: Jul 7, 2008
  2. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France

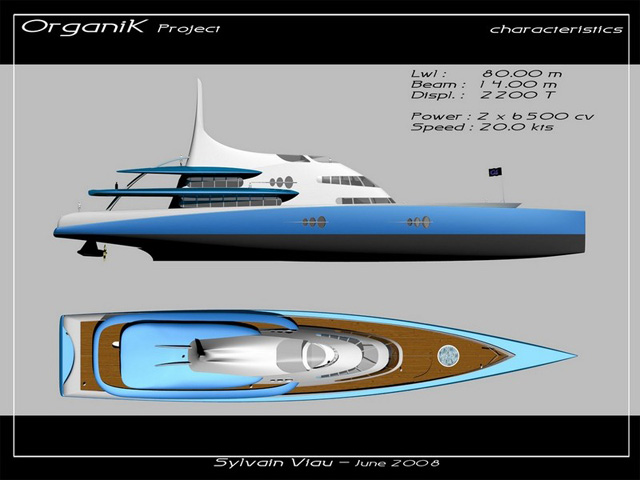

    More pics

    Attached Files:

  3. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    9,155
    Location:
    Long Island, NY
    A pretty interesting design, but what is that thing sticking up like a feather?
  4. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,654
    Location:
    Montreal, Qc, Canada
    Sylvain,

    In the future, please keep images to a maximum width of 640 pixels.

    Thanks!
  5. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    The fin on the top is dedicated to a purpose everybody seems to have forgotten when installing fuel cells and other hydrogen devices : safety !

    A continuous ventilation of technical rooms where fuel cells and/or H2 cylinders are stored is required, and the exhaust should be as far as possible from accomodation areas. Here is the shape, inspired from killer whale back fin.

    A second purpose is to shelter all antennas and radomes, if the fin is made of specific composite material as used for naval grey ships I'm familiar with. That's why you see no Satcom nor navigation radar antenna. Everything is integrated and we can keep this smooth design for top part of superstructure.



    Note for Kevin : Sure !
  6. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    A baby Sigma!!! I do kinda like the big, bold windows for the helm. And the style of the triple portholes on the hull. One set only though, two is overkill.

    wude Kelly
  7. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    I need my portholes for guest cabins : 4 in lower deck, with portholes for everybody. Maybe I will reduce the size, to look "lighter" on ship side.

    Anyhow, they moved slightly aft after consolidation of the GA, to cope with tender hatch located forward, with the tender I started to sketch also.

    [​IMG]

    [​IMG]
  8. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Another big toy

    This one should make you react, I think ;)

    More energy and punch than Organik, isn't it ?

    [​IMG]

    [​IMG]

    I'm still working on its development, and I may add some fittings here and there to achieve a functional design : doors, portholes, etc.....
  9. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    .... your NA is going to have a lot of fun calculating the balances on that one ....
  10. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    hum..... it will be probaby me.... :rolleyes:

    :D
  11. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,654
    Location:
    Montreal, Qc, Canada
    If I had to pick I'd choose Cyclop over Organic hands down. I tend to gravitate towards designs that are truly different and Cyclop is defiinitely different, by miles.

    Whichever crew member gets tasked with cleaning that bubble window is going to hate you though. ;)
  12. Codger

    Codger YF Wisdom Dept.

    Joined:
    May 29, 2005
    Messages:
    926
    Location:
    Western Canada
    A bit of whimsey in yacht design is a refreshing change. The storm shutters would have to be painted with an obvious image.:)
  13. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    9,155
    Location:
    Long Island, NY
    A short while ago there were some designs here by a tallented, but uninspired artist. These designs I don't like. They kind of look like something out of the Jetsons. BUT THESE HAVE INSPIRATION.:D Cudos. These are the types of minds that bring about projects like A . look forward to seeing more. Keep up the good work.
  14. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Comparison with its sister-in-law

    [​IMG]

    Conventional views

    [​IMG]

    On board...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  15. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Maritimus

    [​IMG]

    An interesting opening to retro design and Art Deco.

    From golden ages..... but modern technology everywhere !

    Diesels instead of steam engines, balcony instead of side guns, and much more to come.
    Length : 112 metres.

    :rolleyes:

    A lot of accessories are to be rendered : tenders, prop guards, hull portholes, flag masts, etc... Little by little.... :)
  16. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    More picts :

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  17. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,390
    Location:
    My Office
    Hi,

    I would like to point out to you and any other budding designers that having, filler and or paint between widely spaced ribs under the Anchor area is a mess waiting to appear.

    The Anchors just tear the heck out of these areas even on boats with conventional bows.

    I am presently dealing with a boat that is going to dig all the filler out and just paint between the Stainless Bars, if this doesn't improve things they will add extra bars between the existing ones which are currently 90 mm apart.
  18. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    Thanks for your advice

    I will make it plain stainless steel. This should solve this point ;)
  19. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    Err, so what will "ram speed" be?

    wude Kelly
  20. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    A little 20kts sounds reasonable, doesn't it ?

    I should also put a complete bow piece in stainless steel to avoid scratches on the paint because of ramming :rolleyes:

    I think replacing to old steam engines by fast diesel engines could give more than 20 kts with better arrangement inside than these huge machines.
    Funnels can be advantageously recycled into elevators, keeping the same old classic look but using smart technology where possible.

    Here is the old Jauréguiberry, from 1900, full throttle at 17kts with 15 000 hp. We should do better by now, especially about smoke.....
    [​IMG]

    [​IMG]
