    This is a 1981 56' Hatteras FBMY. Do a search on the Great Loop and you may find more pics from our trip that might help. We fretted about having it hinged (very expensive) and opted to have the guys in Albany Y.C. take it down while also changing our zinc anodes over to Mag. Wasn't till we got to Oswego and put it up that I realized that the job was no big deal. A tall guy in the middle or one on either side to hold it up while another puts in (or takes out) the bolts. Those shark fins really help line things up.
    The supports I made are 2"x 6" pressure treated lumber, a piece of PVC pipe cut in half and outdoor carpet wherever it touched fiberglass.
  2. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    Not sure how to PM you NYCAP123 but I’d love to chat with you. Is it okay to post my # for you to call me if you are willing?
  3. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    NEVER post your phone on any sight unless you want it to blow up. To PM simply click on my name and the start conversation screen will pop up. I'll send you one to start.
  4. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    See attached pic...

    Attached Files:

    Last edited by a moderator: Mar 28, 2020
  5. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
  6. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    I'll be at the boat soon for detail under the mast photos.
  7. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
  8. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Exact same setup. You probably have maybe an extra 40 lbs up there, but you'll be fine. It's a DIY job with 3 people. The arch will lay down on the side rails, supported as I put in my PM, and the Bimini will lay on the front rail. You won't have radar or satellite TV though unless you mount the satellite down on the side rail (which wouldn't be hard) , and you probably won't want to run in dense fog. Nice looking boat btw. Even before I became a captain that was my dream boat. It took me 25+ years for that dream to come true and get to learn every nook and cranny of one and cruise her.
  9. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,884
    Location:
    Fort Lauderdale
    I too did the entire great loop in a 1988 65' Hatteras MY stretched to 75'. Our arch was already hinged, I put rope around the helm chair base to hold it while my mates pulled the pins on each side. Then we lowered it. We then had to remove the mast head and rotate that on sawhorses 60 degrees because the radar was sticking up too much. All in all it was pretty easy. I have pictures but would have to search for them. Yeah 3 people can fold it up or down.
  10. d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    427
    Location:
    San Diego, CA.
    I agree it is do-able with the proper amount of muscle and planning. I've been involved in similar projects, and it seems that things aloft turn out to be heavier than anticipated, and strong guys aren't as strong as we think when our arms are fully extended over our heads. Use plenty of people, and use ropes to ease things down and keep the hinge point area from slipping or kicking up from being out of balance. Have 2x4's on hand as safety props if the unforeseen requires halting the drop. Then, take them back if you didn't need them ;)
  11. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    I'm talking from experience. Myself and the owner were in our 60's and we had one young guy. You're not deadlifting, just rotating it down, especially if it's got the fins. Of course "many hands make light work", but it's not a hard job with 3.
  12. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    Not by any means is this an age crack but sounds like sage advice from experienced captains which I have learned to listen to. My son and I are going up to the boat tomorrow to test lift and come up with a game plan for where to put it and what type of cradle we will use to support it. Thank you again.
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,884
    Location:
    Fort Lauderdale
    I used adjustable plastic saw horses. Rubber maid ones I think. they worked perfectly. Really it's just resting there. I lowered everything in Troy, raised it in Oswego, all flat calm water between...….
  14. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin

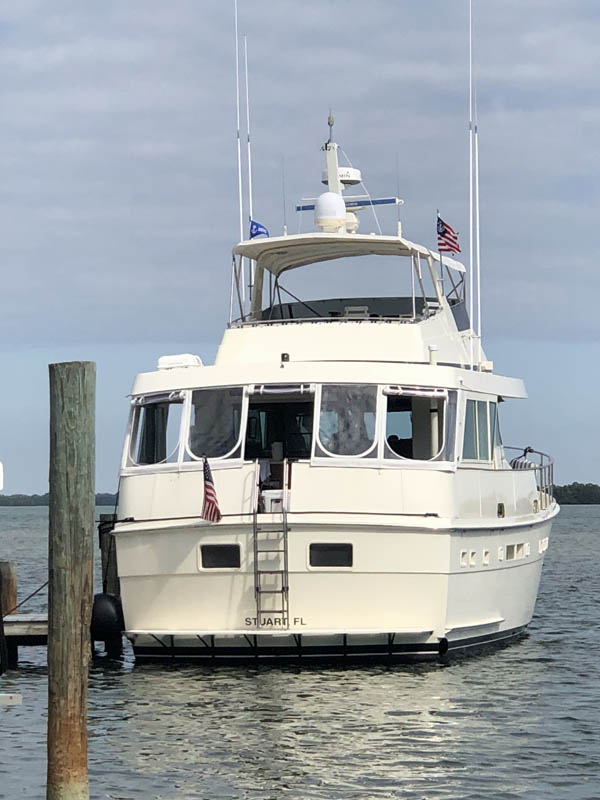

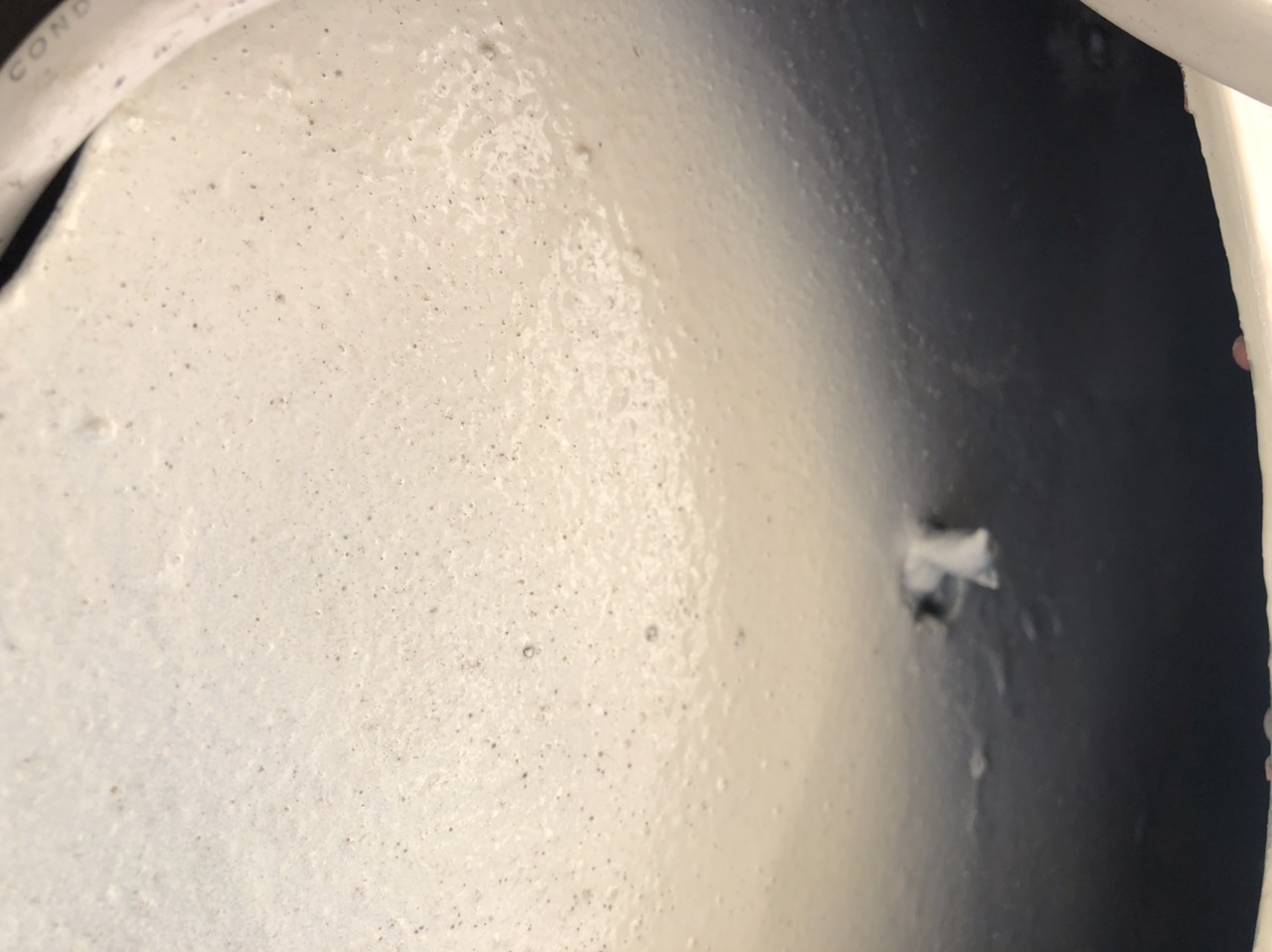

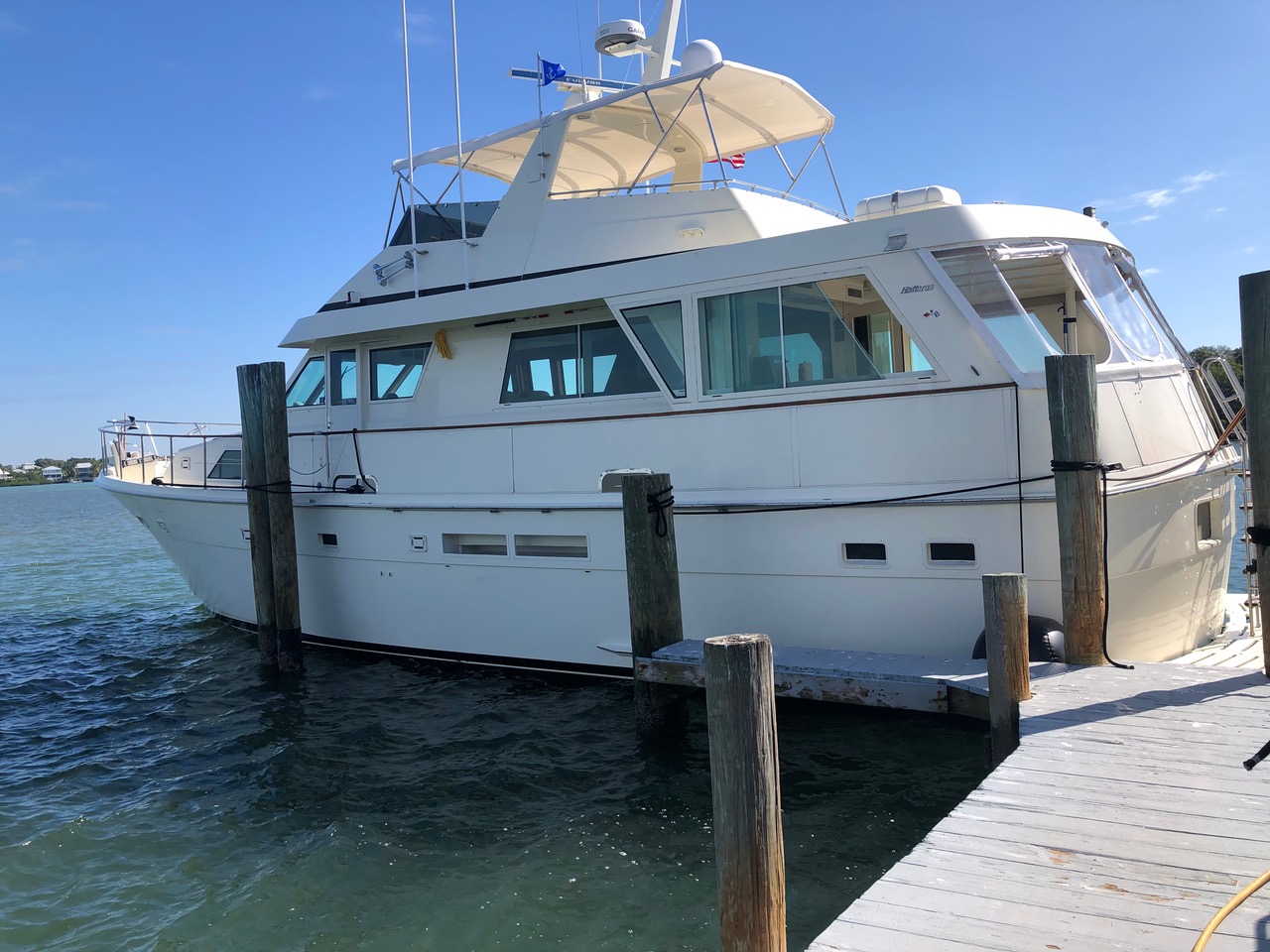

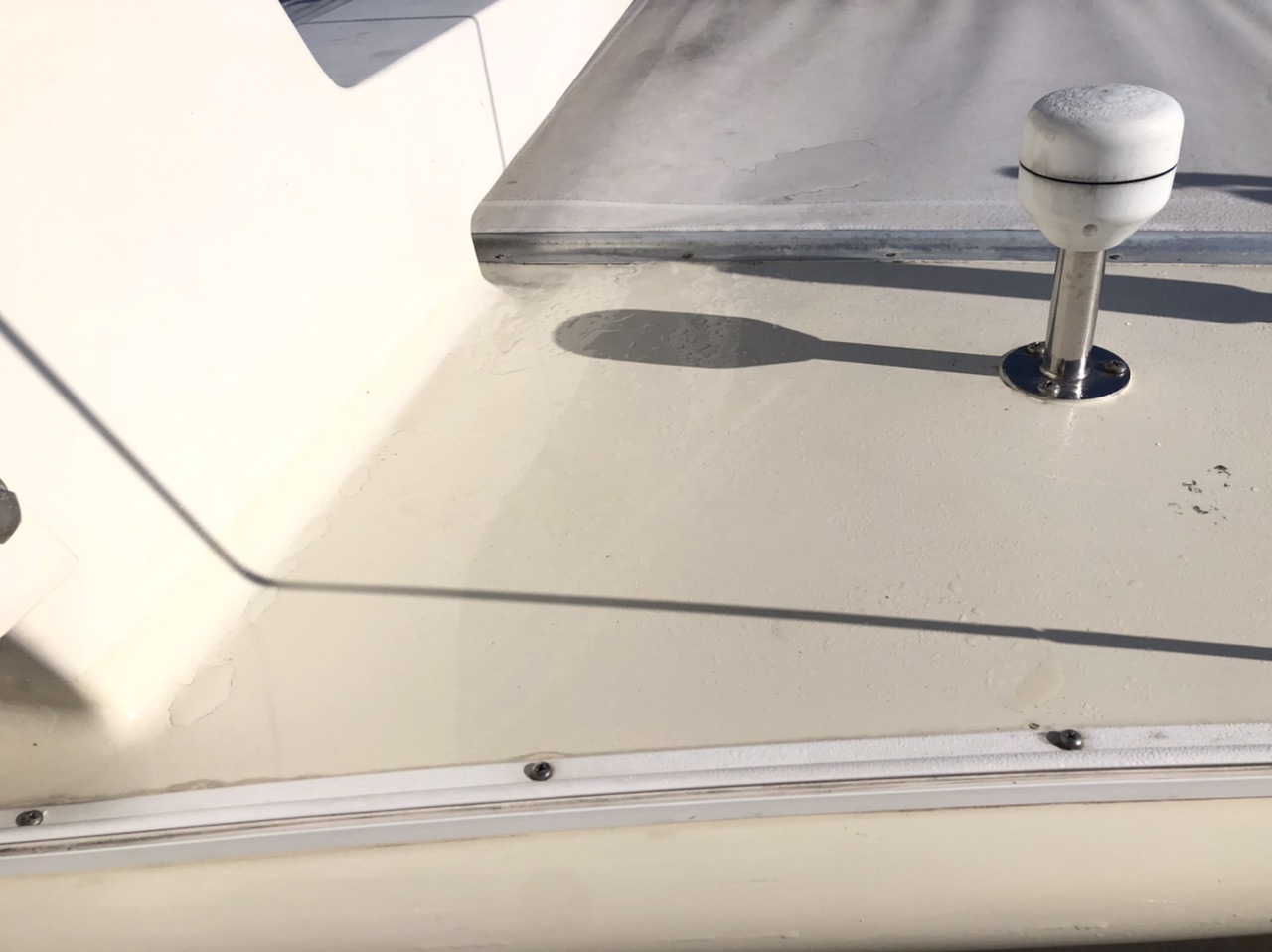

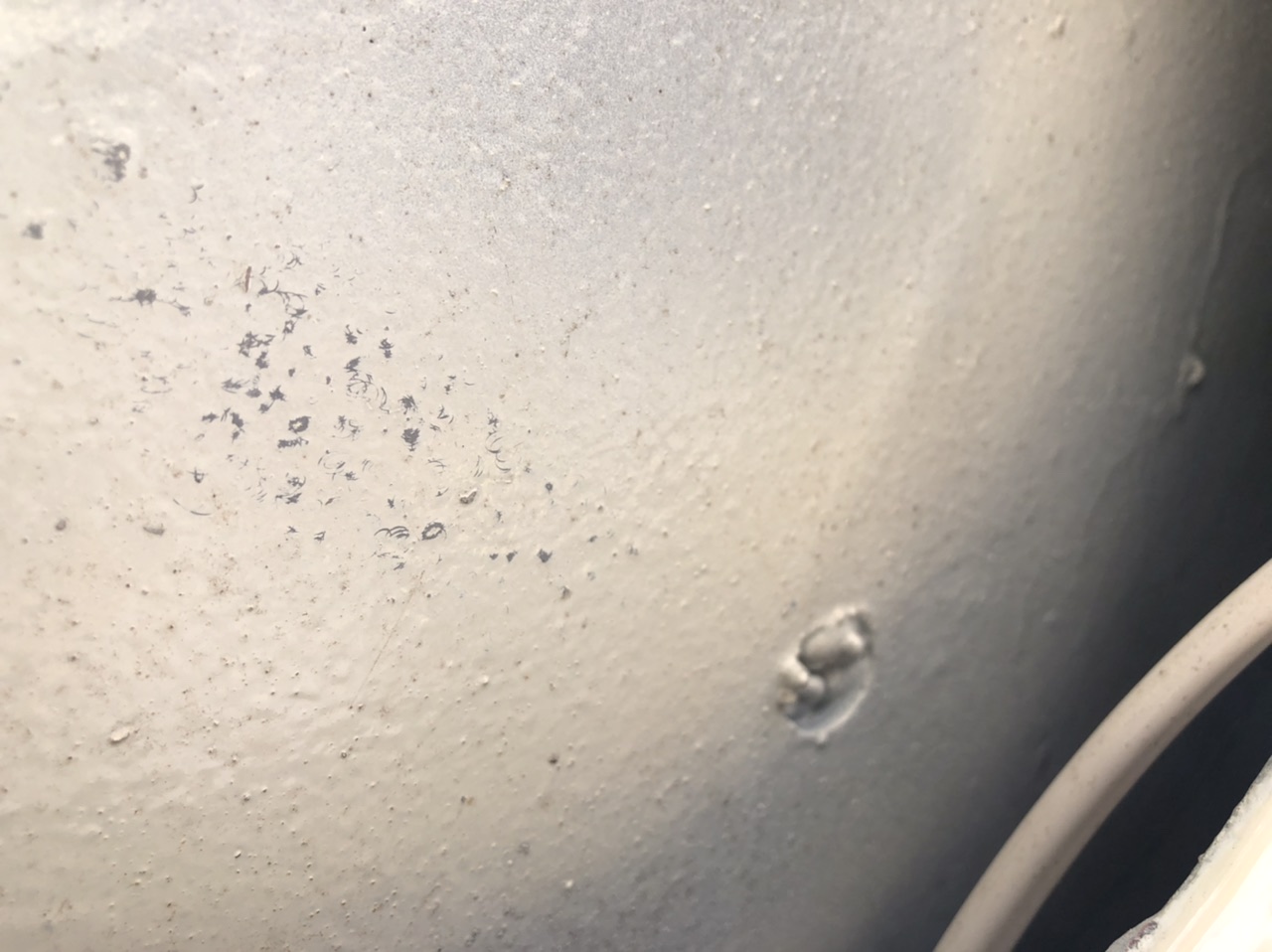

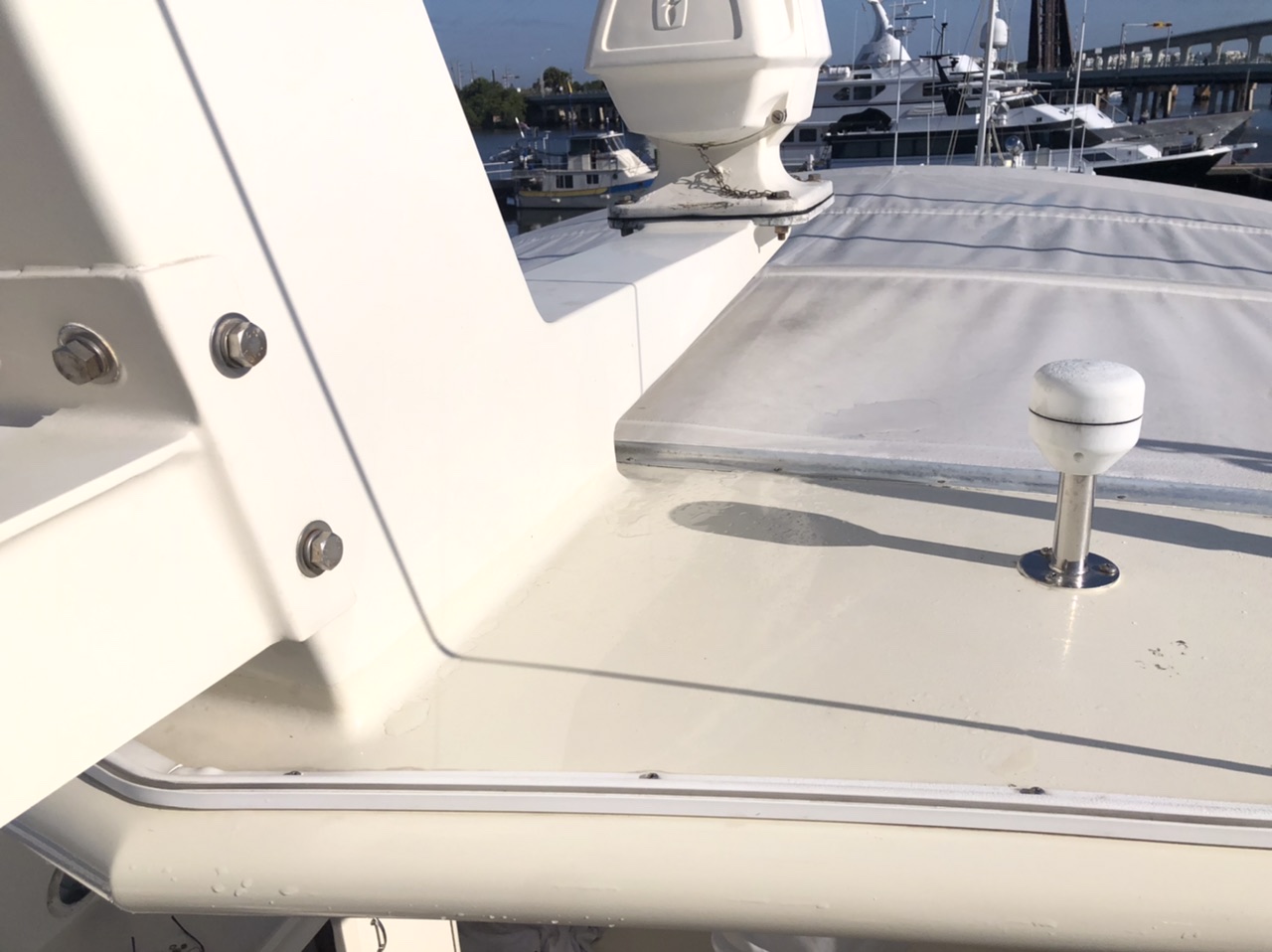

    Here are the pictures of my arch and mast. There are four holes where the bolts should be but as you can see it looks as if someone welded the mast on. Luckily it was easy to remove the aft platform that held the sat dome which is not in use. Next I will remove the forward platform that holds the old inop Furuno open array. Then once we get to Coeymans I’ll remove the current radar dome then unbolt the arch.

    Attached Files:

  15. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    6F808BE4-EBBD-4ADF-956D-CAD6CF904D29.jpeg 90DEBDF5-1414-4A71-A38B-F811AC20423E.jpeg

    Attached Files:

    Last edited by a moderator: Mar 30, 2020
  16. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    Last one.

    Attached Files:

  17. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,884
    Location:
    Fort Lauderdale
    Is the entire arch on hinges where it meets the boat? If so, it's relatively easy to lower the whole arch. But will most likely have to remove the part holding the radar on the masthead, this will now stick up too much with the arch lowered down, but can leave the masthead attached. It looks like there is a seam on this part, how it's secured is anyones guess though. On the 1988 65' Hatteras MY I ran, it was 18'6 to the top of the windscreen stainless pipe that went around at the top of the windscreen which was our highest point with the arch folded down and masthead removed.
  18. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    How long is that section the radar is on and how is it connected? I see a seam and looks sleeved. I'd love to hear it's slid on and siliconed or bolted underneath. Otherwise that could be an issue. You'd have to angle the arch down into the fantail somehow, in which case it's good that the arch isn't hinged.
    P.S. I don't think there was a lot of snow upstate which should leave the pool height lowered. That would be good news. Be sure to get the latest info once the Erie canal opens.
  19. David Helsom

    David Helsom Member

    Joined:
    Sep 23, 2019
    Messages:
    61
    Location:
    Racine Wisconsin
    By the way I’m not sure why the first picture posted off by 90°. If you’re talking about the dark line that is between the radar and the center section of the mast, that’s just a shadow. I removed the rear platform which held the sat dish unfortunately the rest of the mast is all one piece. The arch is not hinged. It looks like two bolts with nuts on the end holding it to the flybridge. I am encouraged that it looks to be fairly easy to remove. The plan is to disconnect all the wires, remove the nuts then lift the arch up and lay it down on the fantail or even on the settee. That will depend on how long the radar platform will stick up.
  20. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Yeah, you'll just have to angle it down. Should fit. So you probably won't need supports at all. Just lay some carpet down where the paint will touch the floor and tie it down good. A not hard job may have even gotten easier. I think you said you can unplug all the wires? If so be sure to attach string to them to make it easier to get them back where they go. If not you'll just have to snip them as you move the arch, and reconnect them is Oswego. Sounds like your only real concern is if the canal will be open. Good luck. Oh, are you changing your anodes to mags? Albany Y.C. can get you a diver if you need.
