Emergency help/info needed!

Discussion in 'Chris Craft Roamer Yacht' started by Capt.JDavis, Dec 23, 2016.

You need to be registered and signed in to view this content.
  1. Capt.JDavis

    Capt.JDavis New Member

    Joined:
    Nov 11, 2010
    Messages:
    18
    Location:
    Moss Landing, CA
    I am trying to find out what is the BOTTOM PLATE thickness of my Aluminum 1975 Roamer 60'...

    I've read somewhere that the side plates are 3/16" of 5086 Alum. and the bottom plate was 1/4" of the same on smaller model Roamers but I don't know if the same thickness were used for the Roamer 60' or not?

    Question was raised by USCG inspection.

    Any quick help is appreciated.

    [Email and Phone nr are deleted, use PM!]

    Thanks in advance and Merry Christmas all!
    Last edited by a moderator: Dec 23, 2016
  2. alloyed2sea

    alloyed2sea Moderator

    Joined:
    Jan 28, 2004
    Messages:
    850
    Location:
    Alex, VA
    not the liveliest internet boat club
  3. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,316
    Location:
    Easton, Md./Ft. Lauderdale
    A 1966 57' Roamer that I sold had 5/16" 5086 plating on hull sides and bottom. Confirmed with audio-gauge testing.
  4. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,151
    Location:
    Vancouver BC
    Was 4086 not the std for marine ala. then ?
  5. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,151
    Location:
    Vancouver BC
    Sorry, misspoke 5086 is excellent
  6. alloyed2sea

    alloyed2sea Moderator

    Joined:
    Jan 28, 2004
    Messages:
    850
    Location:
    Alex, VA

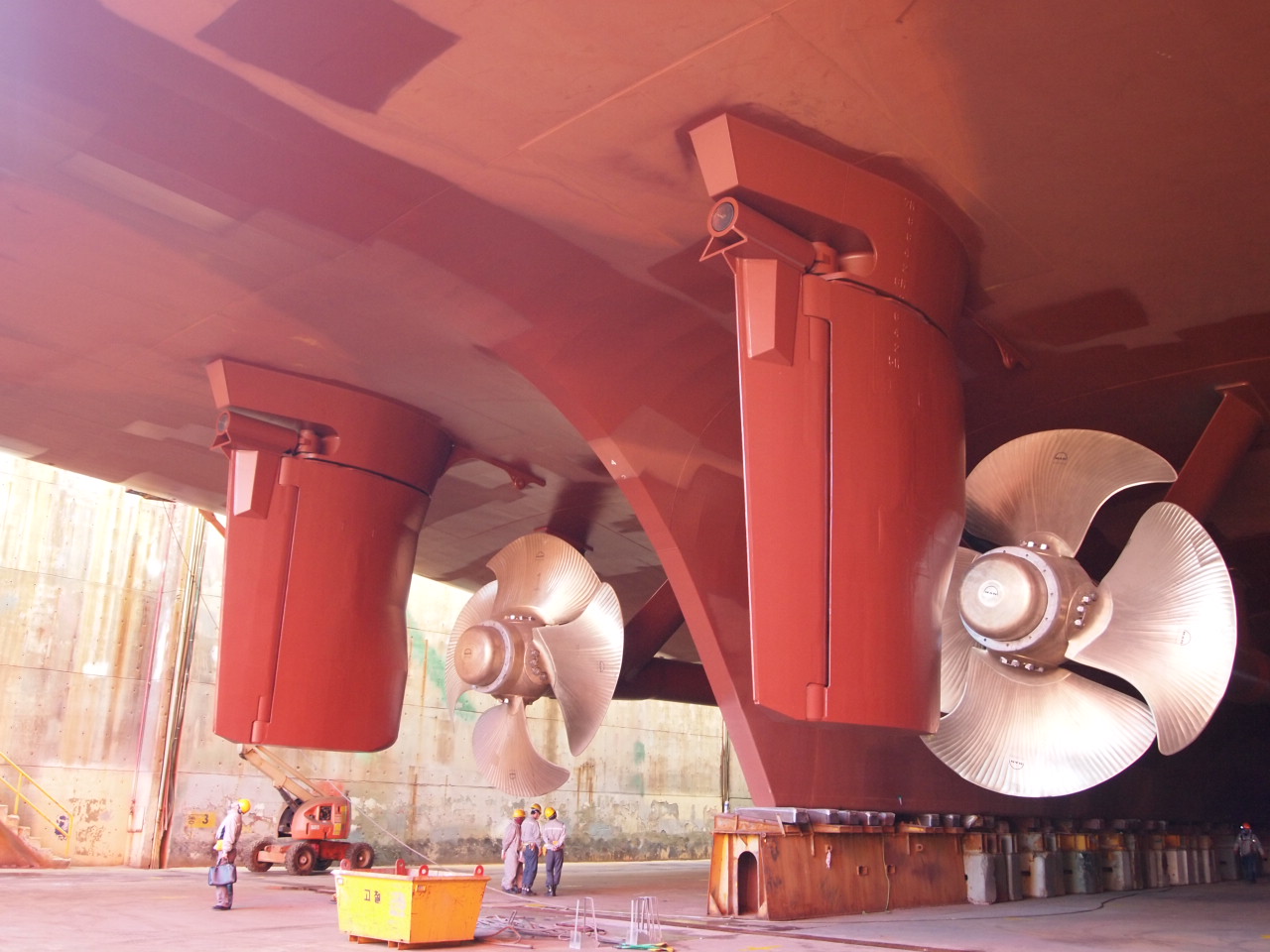

    And remember, the rudders are mild steel (not SS) very close to 5086 on the galvanic scale (reduces corrosion).
