Electronics Suite installation cost

Discussion in 'Electronics' started by petrel, Aug 26, 2020.

You need to be registered and signed in to view this content.
  1. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    I am hoping to have a complete electronics suite installed on my sportfisher while it is being restored. In short hand, two big displays, radar, big sounder w transducer, antennas, autopilot, stereo, etc. The cost of the equipment is easy to determine, but is there a basic rule of thumb to estimate the labor cost of installation? Perhaps a percentage of the cost of the electronics?
  2. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,479
    Location:
    Miami, FL
    Impossible to guesstimate. It depends on how easy it will be to run the wiring. How clear are the chases?

    If you want cut costs, remove the old stuff and old wiring yourself and consider running the wires yourself, having the installer only install and connect the equipment

    same with whatever will be needed to accommodate the new stuff? If any cabinetry or glass work is messed costs will go up significantly
  3. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    I am not real interested in doing the work myself, I just want to get a feel for what cost I should anticipate. All displays have been removed, but new holes would need to be cut and radio box insert fabricated.
  4. olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    6,696
    Location:
    Fort Lauderdale
    Also depends on whether you buy the equipment from the same person as the one doing the installing. If so, the installation fee may be less as they have profit on the equipment. Not always the case.
  5. motoryachtlover

    motoryachtlover Senior Member

    Joined:
    Jan 29, 2007
    Messages:
    382
    Location:
    smithfield, VA

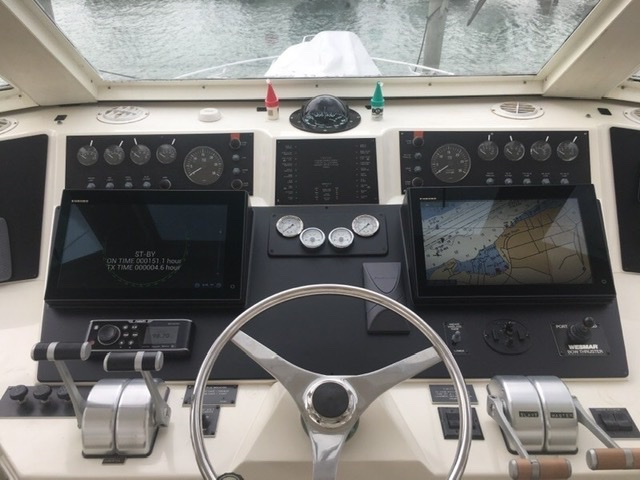

    Last year (I think) I had a professional install 2 Furuno TZT2s (15” screens), new VHF new depth finder, 2 engine room cameras, new radar, new stereo and I believe it was 37K labor and material, installed. I had him do the dash a second time and did some other wiring work while there.

    Attached Files:

  6. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Best thing you can do is have the installer (maybe 2) come to your boat to give you an estimate. Keep their location in mind as they'll probably start their clock when they leave their office.
  7. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,479
    Location:
    Miami, FL
    Today I talked to an electronic shop which has been servicing the ISIS system on the lazzara 84 I run. Isis is a computerized fiber optic monitoring system which monitors every function on the boat. It is getting increasingly difficult to keep the system running because of 10/15 years technology and the fact that the 85 year old owner of RGM industries which developed the ISIS system has had to shut down his company (thank you China) And only does limited support out of his home.

    So... while the system is till working ok I Planning ahead. Bottom line, relevant to this thread, was that they can quote is supplying and installing a new system (Maretron) they will not quote and prefer not to handle running the backbone needed to replace the fiber optics.

    running wires on a boat can take anywhere between a few hours to a few days. Open check book. Unquotable.
  8. DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    866
    Location:
    Ketchikan, Alaska
    As others have suggested, there is no real way to ballpark this. You’ll have to get them to come out and look and quote. Even then, be prepared for issues and extra costs. I did this on mine and the installation took quite awhile. I installed 4x Simrad NSS12 screens, transducers for sounder and structure scan, radar and auto pilot. If I had it to do all over again, I would not do the structure scan. I’ve never used it and it was expensive. No complaint against Simrad or the equipment, I just should have done more homework to realize I wouldn’t use it.

    I just finished putting a new stereo in the flybridge so I can have music or news while others are in the salon or for those long hours trolling.
  9. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    956
    Location:
    Vero Beach
    One method to facilitate the process is to create a DV voltage supply home run to a new sub panel at the helm specific to electronics. Give each device is own dedicated breaker. Often these units need to be power recycled for a variety of reasons, and having that control at your fingertips is more useful than you can predict. The physical installation of a like-kind package is really very simple and shouldn't be expensive. The costs are in wire runs from senders and antennas to the helm, and then time to set up, calibrate, sea trial.
  10. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    Thanks to everyone for the feedback. I've received a quote that included a labor charge equivalent to half the price of the electronics. I had no idea that a five figure electronics bill would have a five figure installation charge.
  11. DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    866
    Location:
    Ketchikan, Alaska
    I was surprised how involved my install was. Even though I went with all Simrad so it would be “plug n play”, there was still a lot to do. Mounting the transducers in the hull to make sure they were just right, new cables to bridge, lay-out and mount of screens and then lots of modules and cables in the console. Of course I’m a bit **** so I insisted on neat cable routing, labels on everything including individual cable floaters, etc. Probably added 25% to install effort.
    If someone gives you a cheap install quote you will have to watch them the whole way or I fear you may get a crappy job.
  12. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    That's why they get the big bucks.
  13. MYTraveler

    MYTraveler Member

    Joined:
    Dec 30, 2014
    Messages:
    63
    Location:
    PNW
    My boat has extensive electronics, and their installation was complicated by multiple helm stations. The cost of installation was about 65% of the cost of the electronics (NOT of the combined cost).
  14. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    Thanks to everyone for the replies. I definitely needed some perspective on that.
  15. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,010
    Location:
    Florida
    Make sure they are removing and replacing all old wires and cables. I pulled a small trash can full of old wiring from the flybridge console on a previous boat after a sloppy autopilot replacement. Amazing how many electronics have been replaced or relocated on some boats with old wiring cut and left in place.
  16. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    I'll be sure to specify that.

    I hope to get a couple quotes. Have an all Garmin quote now. Waiting on all Furuno. I am a Garmin fan, but the Furuno sounders really have my attention.
  17. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,010
    Location:
    Florida
    I added two Furuno Tzt2 units, one on the bridge and one as a backup to the pilothouse Nobeltec system. They are working well. Also used their 600-watt flush mount tilted transducer which compensates for deadrise on the hull. Good readings on the fathometer for cruising. They have a good selection of transducers to set up for fishing along with videos to view for operation and setup.
  18. Prospective

    Prospective Senior Member

    Joined:
    Sep 27, 2016
    Messages:
    215
    Location:
    New England
    On a full system replacement I think 1/2 of equipment cost is a ballpark. Of course, it's a gross generalization and can be much more expensive than that depending on access and a host of other issues. Another way to consider it is an hourly rate that will be in the neighborhood of $100/hr per person. That will include transit time, etc. Running cable is the biggest variable. If the work is only at the helm it's more predictable. But if it involves transducers or AP's that have long cable runs that takes more time. I had a new AP installed and cost was about 1/2 of equipment. Nice thing was installer gave me a firm estimate... ie.. if it takes less time then he'll charge less but if it takes more time he won't nickle and dime me. In the end he took extra time to sort some crap with my hydraulic fittings.

    And to add to what Oldboater mentioned, you might get a deal if you buy the equipment from them. The other upside is they may give you money back toward your old electronics since many of them sell this stuff on ebay.
  19. petrel

    petrel Member

    Joined:
    Aug 31, 2019
    Messages:
    96
    Location:
    Fredericksburg
    This is a complete tear out and new installation. All equipment purchased from the installer. I confirmed that all the old wiring will be removed.

    I may be able to sell the sideband, and sounder, but the mfds, radar, and gps were shot. Most of the work will be done on the bridge in an overhead box and the console. However, we will be doing a new transducer and an autopilot, so there is some leg work in the project too.
  20. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,010
    Location:
    Florida
    What brand equipment?
