Electronics mounting sheet material

Discussion in 'Electronics' started by Beau, Dec 21, 2020.

You need to be registered and signed in to view this content.
  1. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,411
    Location:
    Sardinia
    Good point, but wasn't the EGT reading even more effective (and faster) in spotting overload conditions?
  2. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    593
    Location:
    On the water
    No.
  3. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,411
    Location:
    Sardinia
    Well, no EGT increase=no overload, in my books.
  4. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    593
    Location:
    On the water
    It has more to do with not over fueling at speeds less than WOT. Most applicable to engines with a mechanical injection pump.
    With Arneson drives, it is possible to trim the drives down and have the rack in a position where the engine is making the RPM, but it is in overload. You are essentially allowing the propeller power absorption curve to rise above the power curve for that given RPM.
    Would this be manifested in a higher EGT? I cannot say because I never tried to run an engine in an overload situation like that. What I can say is that several gurus a lot smarter than you or me told me to set the drives to be able to achieve rated RPM at WOT. Which is why we installed the Aetna digital tachometers. A quick run up to put it in the corner confirms that I indeed have the drives set properly. When the boat is loaded differently I would re-check. As you must surely know, high speed planing deep-v hulls with surface piercing propellers are *very* sensitive to weight, LCG, and trim.
  5. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    593
    Location:
    On the water
    @Beau , my apologies for the derail thread hijack.
    @mapism if you would like to continue please start another thread.
  6. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,411
    Location:
    Sardinia
    Roger wilco.
  7. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,266
    Location:
    Beaufort, NC
    There's only so much to talk about when it comes to mounting material .... Merry Xmas, happy holidays. Stay safe!
  8. CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    139
    Location:
    Seattle

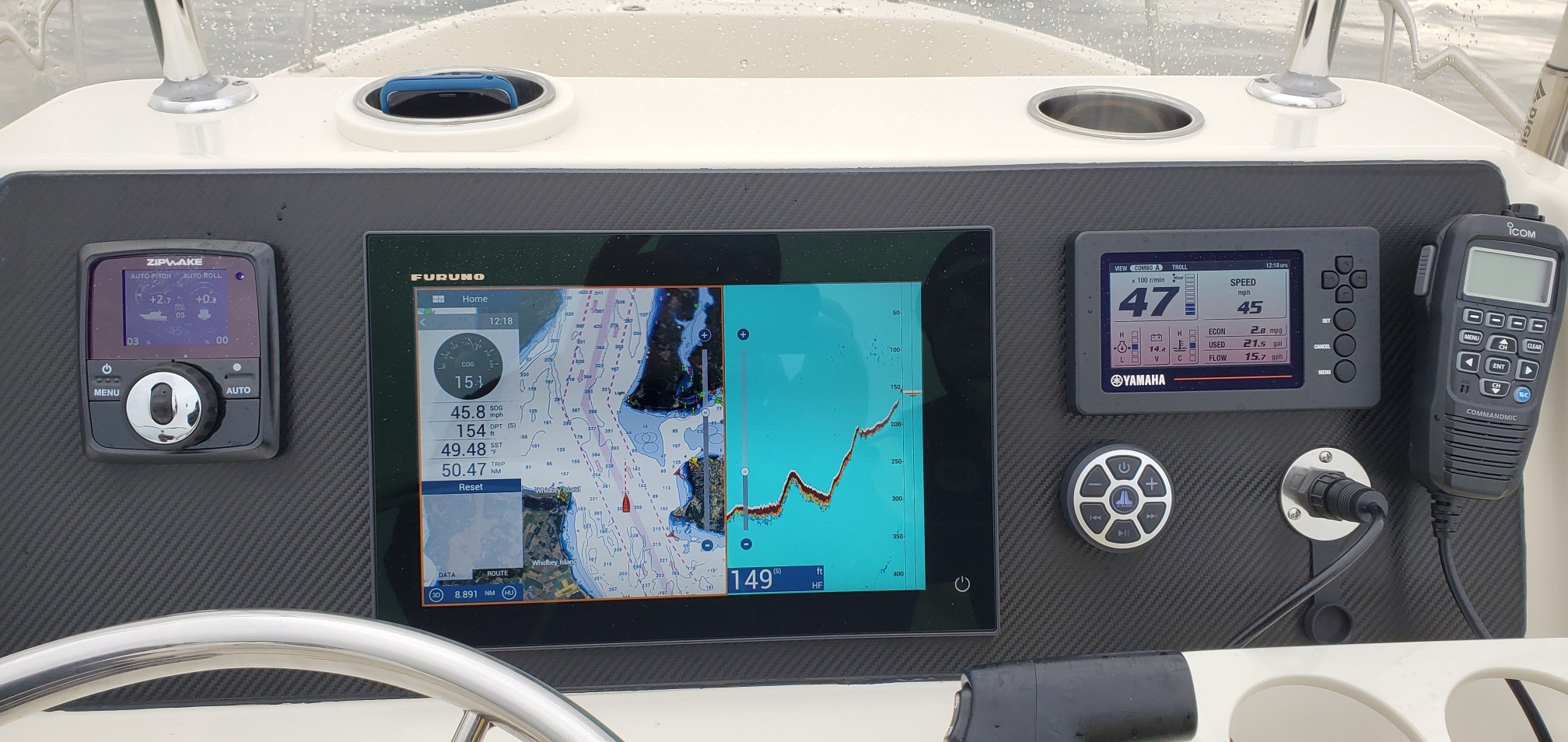

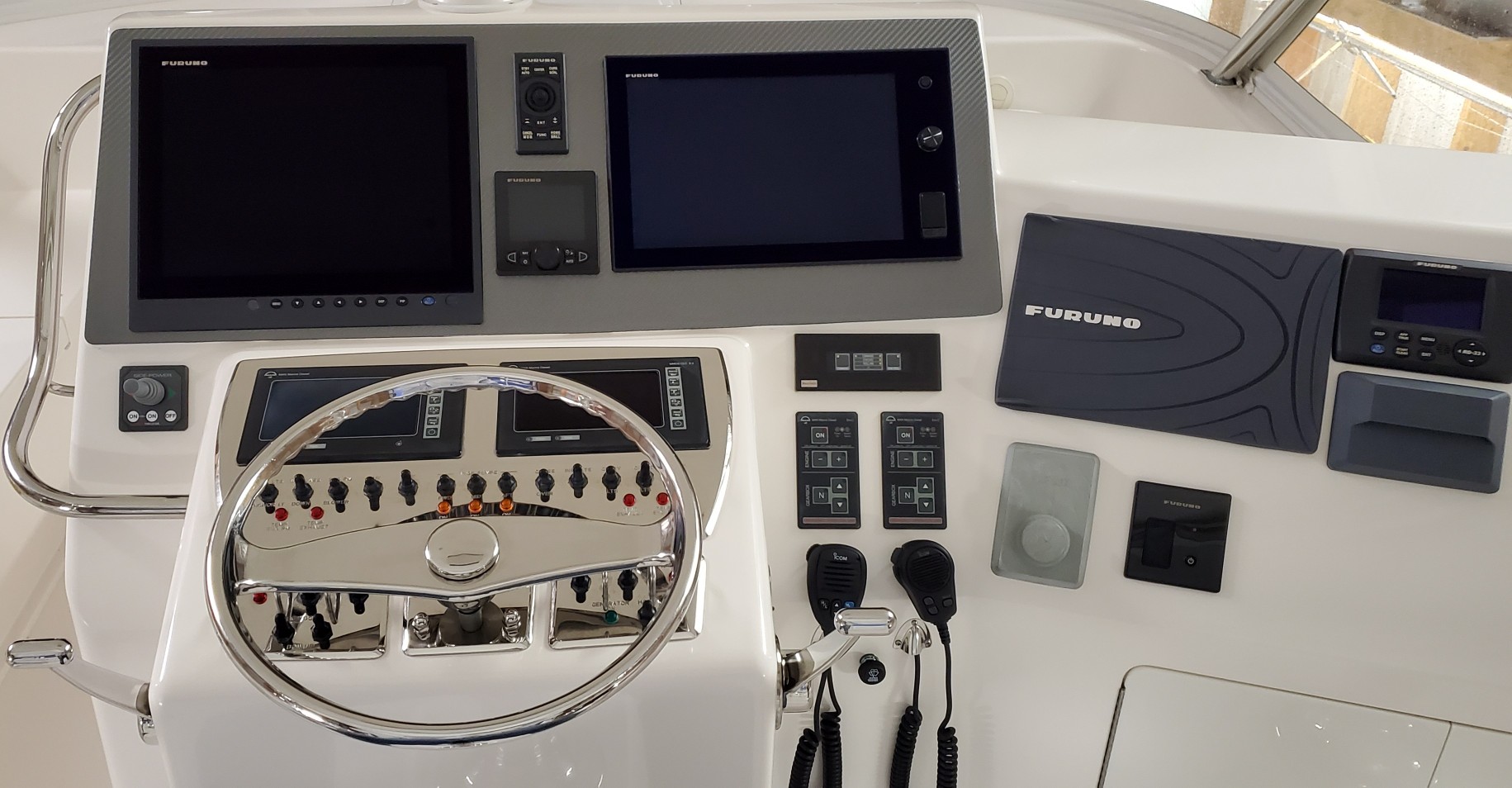

    Aluminum with studs tapped into the backside for securing to existing dash. Wrap with 3M Dinoc carbon fiber. Have done both my Cabo and Pursuit cc and very happy with results.

    Attached Files:

  9. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,266
    Location:
    Beaufort, NC
    Very excellent work! I am constrained, unless I change the entire helm, to match the existing (engraved) dash material.
    Stay safe.
  10. d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    427
    Location:
    San Diego, CA.
    Great idea, CaboFly! I've wrapped my car's outside rear view mirror with that exact 3M material.
    Beau, It's easy to change the appearance of many things with THIS stuff. It comes in all kinds of colors and patterns. Instead of matching a panel, wrap the existing panel to match the new panel, is what CaboFly is suggesting, I think.
    The car wrapping videos on YouTube are entertaining.
  11. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,266
    Location:
    Beaufort, NC
    Except that means removing and remounting all my gauges - that enlarges the project? ...and I like the look of the existing black matte finish. But it's a great look, indeed.
  12. d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    427
    Location:
    San Diego, CA.
    Well, you're in there anyway :)
    The wrap comes in matte black, so you can pretty much use any flat surface material.
    There could be a fade factor on the older panel, so "matching" may not be matching.
    C'mon, go with camo! :D
  13. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    593
    Location:
    On the water
    That 3M material looks great! Checking out the youtube videos now to see how much of a pain it could be to apply in a professional attractive manner
  14. d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    427
    Location:
    San Diego, CA.
    Almost anyone could do it on a flat, clean surface. The stuff is forgiving, too. I screwed up doing compound curves on my mirrors more than once. Just peeled it off and tried again. Several times. I wrapped one with the cheapest No-Brand stuff eBay had to offer, and it was a bit harder to work with. The other I wrapped with the same gray carbon-fiber 3M that CaboFly has, and it's thicker and easier to work with. I wish they had this when I was doing installations. One boat I can think of had all that plastic wood-grain in several panels. I had to order replacement panels to match. With this, I could have made them all match
