Cutlass Bearing Removal

Discussion in 'Chris Craft Roamer Yacht' started by lacabina, Mar 22, 2010.

You need to be registered and signed in to view this content.
  1. lacabina

    lacabina Member

    Joined:
    Dec 3, 2004
    Messages:
    40
    Location:
    woodstock georgia
    Any one have a good way of removing the cutlass bearings from the struts. The ones in there now are in a brass casing. This was a mistake and needs to be corrected. My mechanic is thinking about taking a hacksaw to them. The pounding has only moved it a few milimeters and they are afraid of cracking the strut weld. Any good ideas? Thanks
  2. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,393
    Location:
    My Office
    Hi,

    Taking a hacksaw to them is probably the only way you are going to get them out at a reasonable cost.

    You will need to be really careful when cutting through the bearing sleeve that you do not cut to far into the strut. This is because the natural tendency with a hacksaw cutting the pipe lengthways which is what you are doing here is to rock it a bit and cut through at the ends first leaving a not inconsiderable amount of material in the middle.

    How big is it and is there anyone close by who could possibly line bore it out for you without charging an arm and a leg for the privilege?
  3. Kiwipushrod

    Kiwipushrod New Member

    Joined:
    Mar 17, 2010
    Messages:
    52
    Location:
    Trempeleau Wisconsin
    Cordless SawZall, no rocking. Done.

    Kiwi
  4. JustMag

    JustMag Member

    Joined:
    Feb 14, 2010
    Messages:
    94
    Location:
    Cincinnati
    Would a tool like this help at all??? I'm sure you could probably make this yourself. I'd be worried about using a hack saw

    Attached Files:

    • tool.jpg
      File size:
      16.6 KB
      Views:
      8,927
  5. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,193
    Location:
    Cold Spring Harbor, NY
    There are several good tools already available for removing a cutlass bearing easily, which most quality shops have on their bench. Hack saw blades, heat and sledge hammers will work, but are a little primative
  6. m2m

    m2m Senior Member

    Joined:
    Dec 8, 2006
    Messages:
    108
    Location:
    newport ri
    Hacksaw or Sawzall will work they are just time consuming. The best method is a hydraulic puller if your mechanic can get his hads on one, lots of boatyards have these today perhaps he has a friend that will lend him one.
  7. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,043
    Location:
    Fort Lauderdale
    I agree, also Cutlass bearings come with a brass outer shell usually. If the old ones take a lot to remove chances are the new ones will fit loosly, you want them tight. If the new ones slide in and out easily, you want to take them to a machine shop and have them knurled (outer shell) so they fit tight and coat them with red locktite.

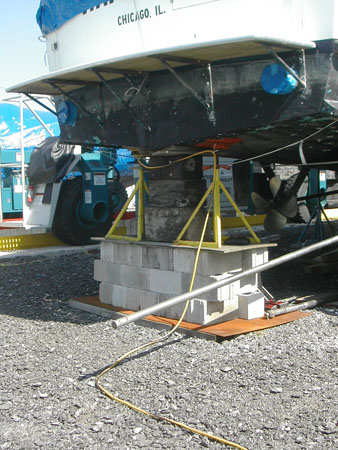

  8. Since this is the 90s, ya gotta update to new technology! The new bearings you need are phenolic resin shell units. I can almost gaurantee with little uncertantity that the new ones will need to be pressed back in s well. I'm on my third set in 35 years. I also just did my 65 foot Hatteras bearings last year. Thats 3 per shaft. Those struts are bronze and the bearings need to be pressed out as well. A hydraulic pusher can be made out of a GREENLEE knockout tool. Usr a quality Simplex stud, not the chocolate **** from the hardware store! ws

    Attached Files:

  9. Henning

    Henning Senior Member

    Joined:
    Sep 22, 2009
    Messages:
    942
    Location:
    Ft Lauderdale FL
    Sawzawl, cut it into 1/4s doing a doublr cut at one joint to make a "V" groove then chisel the bits out. That's the way I typically do it on struts.
  10. jdpeterson

    jdpeterson New Member

    Joined:
    Oct 25, 2005
    Messages:
    36
    Location:
    Fort Myers, Florida
    You might want to check-out the non-hydraulic tool at strutpro.com. Looks like a simple, straightforward press. I've had zero experience at either this tool or replacement, just spied the advert in Sail.
  11. Capt Fred

    Capt Fred Senior Member

    Joined:
    Jun 22, 2009
    Messages:
    264
    Location:
    Long Beach CA
    I have had good luck with a threaded puller. From my experience, most bearing are held in with set screws in addition to the press fit, they tend to get hard to see with years on paint and growth. These screws are a little hard to remove because a good practice is to deform the threads to make sure they stay in place.
  12. jflongwell

    jflongwell Member

    Joined:
    Aug 27, 2008
    Messages:
    57
    Location:
    Watkins Glen on Seneca Lake
    Audio Credits

    No audio credits?
    John
  13. lacabina

    lacabina Member

    Joined:
    Dec 3, 2004
    Messages:
    40
    Location:
    woodstock georgia
    thanks

    Thanks for all of the feedback. I was not present when the tech got them out but he did.
    yes I am replacing with non-metallic shell bearings. Marina just informed me they are on back order. Searching for a supplier with them in stock. Suggestions appreciated.
    happy boating
