Curves...

Discussion in 'Yacht Designers Discussion' started by JonS, Mar 18, 2005.

You need to be registered and signed in to view this content.
  1. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Hi people.

    As a young (ish) designer, i'm looking to get hold of a set of large french curves. I've tralled the net to no avail and wondered if any one out there knew of any sources i can get hold of some.

    Thanks!

    Jon
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Is it this kind of curves you are searching?

    http://www.reuels.com/reuels/product21019.html

    I made a search on Google for "French-curves" and found a lot of them. Always make sure to connect the words in a search and you get much closer to what you are looking for... ;)
  3. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Thanks yeah, trouble is, its the shipping cost the UK. I cant find any UK stores with them, maybe i'm not looking in the right places. I simply can't afford $50 for six curves! :(

    Attached Files:

    Last edited: Mar 19, 2005
  4. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
  5. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Thanks for your help AMG, Lars is it? I appreciate it.

    I already have a set of the normal french curves but they arent big enough. I used a large set, about 750mm long at my placement company last year, but they have no idea where they got them from.

    Would it really cost $30 to post them to the UK? or is this just a massive charge they've put on top?
  6. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    I think the real stuff you are looking for is called Copenhagen Ship Curves, they are bigger and normally only sold in sets of around 50, at a cost of more like USD 300!

    I have also heard of computer files where you can cut them from, but have not found one.

    When searching the net I found an old conversation on this subject where a guy replied to someone complaining over the price; Hey, you can use a dead snake to draw curves if you want to... :D ;)

    But are you really forced to use these kind of tools now when we use computers for everything from ideas to cutting?

    /Lars
  7. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Yeah, i know what you mean Lars, there is a lot of CAD design done these days, and i am a big fan of that, but i really do enjoy physically designing the whiole boat myself with a pencil and a really big piece of paper! :D

    Yikes!

    Yeah, it is the Copenhagen Ships Curves that i'm after!

    Clickie here to see the set....

    Click back to order form to see the price! :eek:

    Copenhagen Ships Curves

    That set costing 50 bucks look far more attractive now!

    lol
  8. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Yes Jon, I know the feeling when you have finished a drawing in A1 format, but I also know the feeling when you have to change something in it... :eek:

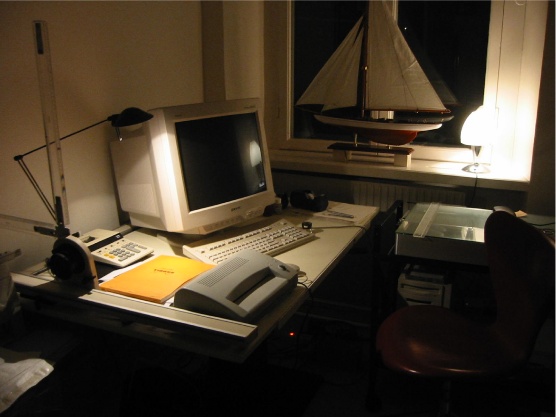

    I took a picture of my drawing table where a computer screen have blocked all attempts of hand drawing for years, but actually I have not used that computer for years either. I do everything on my little laptop since I have a nicer view from another room... :p

    Btw, I still look forward to see your designs!

    Attached Files:

  9. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    I recently got a TFT monitor, lovely 19" :eek: its HUGE! and takes up no space whatsoever, unlike my previous 17"crt!


    And you will :D

    Currently doing my final yr Boat Design project. A 37ft Med day boat, designed for maximum socialising and 'crusiing'. Still working on the design tho.

    When i get chance, and dig the CD out, i'll put up a couple of images of a previous project, but everything is backed up on CD's for security, having suffered hard-drive crashes!
  10. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    I have some curves I'll send you for free if you're interested.
    1) an 18 inch Acu-Arc ajustable curve
    2) a Dietzgen 2152-25
    3) a Dietzgen 2152-24
    4) a Dietzgen 2152-21
    5) a K&E 1864-48

    Just give me an address
  11. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Jeez, that is very generous of you Brian! i would be very interested in the adjustable curve for sure. Can you have describe the others, or take pictures of them, not really sure what they are.

    I would feel very bad about simply taking them off your hands, please if this is ok, let me give you something for them? I'm in the Uk, but my bro is in Buffalo so i could get him to send something in return?

    Thank you.

    Jon.
  12. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    Don't feel bad, I would like to help out a young designer. How about I send them to your brother in Buffalo and he can mail them over to you. That will save me a little postage and customs forms.

    There is one flexible curve, a big french curve about 17 inches long, one french type curve about 14 inches long, a ships curve about 14 inches long, and a ships curve about 17 inches long.

    Enjoy
  13. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Thank you!

    Well, i can't thank you enough Brian. I have emailed my brother to see if this is ok with him, and I'll get bck to in a PM when he replies.

    Thank you again!
    :)
  14. JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Thank you!

    Just like to take this opportunity to thank Brian Eiland for his help and generosity. I will use them with care and, if the time comes, when i have no more use for them, i will endevour to pass the on again.

    Thank you very much Brian.

    :)
  15. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    Your welcome, put them to good use. Good luck in your studies.
  16. coastalrb

    coastalrb New Member

    Joined:
    Aug 2, 2011
    Messages:
    4
    Location:
    in Westbrook ct had to sail back up the channel.
    Copenhagen curves

    Copenhagen curves is what you need
    Robert
  17. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,120
    Location:
    Miami, FL
    This has to be a record, resurrecting an 8 year old thread :)
  18. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,420
    Location:
    Satsuma, FL
    He's answered two prehistoric threads.
