Cummins 6CTA oil filter

Discussion in 'Engines' started by Pascal, Oct 1, 2020.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. Pascal, Oct 1, 2020
    #1
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL

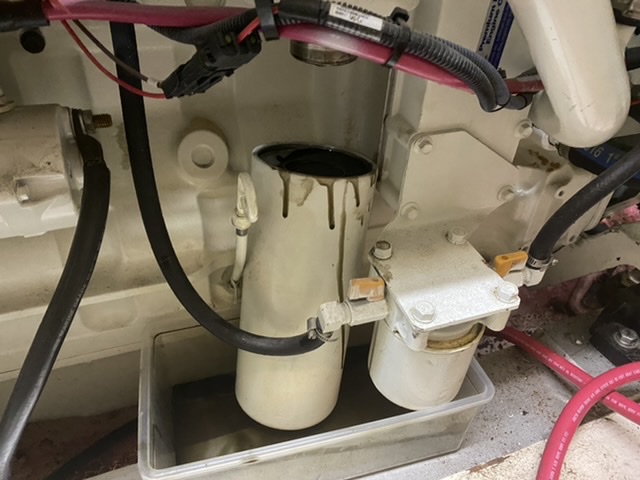

    Time for the first oil change on my C-series after repower. Figured it would be easy since I have a brand new oil change system, and pretty good access around the engines.

    well... that would have been the case if the geniuses over at Cummins had not decided to mount the coolant filter right in front of the oil filter making it impossible to pull It straight out. Can’t go out sideways because of the dipstick.

    So the only way to to remove the filter is to pull the bracket holding the coolant filter... luckily the hoses are long enough to push it out the way... no excuse for crap like that since there is enough room to mount it a couple inches to the side.

  2. Capt Ralph, Oct 1, 2020
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    I have never dealt with a coolant filter mounted down there on any come-a-part engine before. Must be a new and improved headache design (always improving on the PIA factor).

    Yep, get some longer bolts (metric) and shim that sucker out. Or a new angle strip and move forward a little.
    But that does suck...

    That is a press in oil dip tube, You may consider the longer locking dip and tube that would help a little also. Press in with a lil after tilt.
  3. Capt J, Oct 1, 2020
    #3
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,435
    Location:
    Fort Lauderdale
    On the cummins I deal with, they're on the front/top of the engine as well as fuel filters......what if you put spacers between the bracket and the block and space it 1" further away from the block, would that work?
  4. NYCAP123, Oct 2, 2020
    #4
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    I'd consider moving both. That dipstick tube also looks hard pressed against and I wonder how long it'll be before engine vibration brakes it. Terrible design. They're design team certainly went out of their way to make it a PITA.
  5. ranger58sb, Oct 2, 2020
    #5
    ranger58sb

    ranger58sb Senior member

    Joined:
    Aug 20, 2013
    Messages:
    824
    Location:
    Chesapeake Bay, USA

    Yeah... with ours, I decided it was also even slightly easier to change that coolant filter at the same time, too...

    Surprised this is your first oil change; thought you did that repower a few years ago now...

    -Chris
  6. Pascal, Oct 2, 2020
    #6
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL
    I m probably going to move the bracket over to the two bolts on the right. Just need longer hoses.

    I had to much stuff to finish on the boat after the repower before we could use it. Have only been using it in the last guest, and only 50 hours so far. Too many toys, not enough time :).
  7. Fishtigua, Oct 2, 2020
    #7
    Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,937
    Location:
    Guernsey/Antigua
    We invested in a pipe clencher so we can make any pipework we want. Would move the oil and coolant position soonest.
  8. dewald, Oct 3, 2020
    #8
    dewald

    dewald Member

    Joined:
    Jun 27, 2017
    Messages:
    104
    Location:
    Treasure Island, Florida
    Pascal, Just looking at your photo in post #1. Can you unbolt the coolant filter from the Bracket. Unbolt the bracket, Rotate to the right 180 degrees and bolt back on. The bracket / mounting plate for the coolant filter would be higher and to the right. It looks like it would give you the room to just remove the oil filter by lowering and it would come out under the coolant hose. No new hose needed.
  9. Pascal, Oct 3, 2020
    #9
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL
    Yeah that may work too
  10. Capt Ralph, Oct 3, 2020
    #10
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    Same install on both engines? Not any remote filters on the stb main?
    Lets fix all of this mess.

    I may be down your way soon. Hoses and most fittings already in inventory.

    This lock down Ship has me ready to jump out of the box for any activity..
  11. Pascal, Oct 3, 2020
    #11
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL
    Same on both engines. I have the remote oil filter kits but don’t want to use them because I have good access.

    Btw i anyone needs 6CTA remote kits, i d love to sell them.

    lmk if you come down this way anyway...
  12. Capt Ralph, Oct 3, 2020
    #12
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    My next trip is pending the sea trials on a 2000, 45 Cabo.
    M/V Cysto has come in sights of my friend / buyer.
    I shot him down on a few high strung, high hour 92 powered expresses and he found this tub in your hood.
    Do you know the boat? Can you comment?

    So, If I can swing a trip in your direction, First rounds on me....

    I'll bring my hammers to fix you or your issues...
    Tis the season..
  13. Pascal, Oct 3, 2020
    #13
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL
    Nope... don’t know the boat. In Miami ?
  14. Capt J, Oct 3, 2020
    #14
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,435
    Location:
    Fort Lauderdale
    Come down to Fort Lauderdale, Have I got THE Italian boat for you!!!! (to work on!) hehehehehee
  15. Capt Ralph, Oct 3, 2020
    #15
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    I'll leave the modern (hy-tech) wonders for you young and skinny kids.
    I hope I did not shoot that Mutt (friend of a Mutt) guy down to bad.

    Hope your not talking about this NFG;
    https://www.yachtforums.com/threads/buying-2014-azimut-54.33558/
    Note; Nobody has responded.
    Last edited: Oct 3, 2020
  16. Capt J, Oct 3, 2020
    #16
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,435
    Location:
    Fort Lauderdale
    Nope......an EVEN BIGGER Italian pos
  17. Capt Ralph, Oct 3, 2020
    #17
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    The first & next larger POS than a Mutt would be a Sanlorenzo.
    But that's me guessing About what your referring to.
    Last edited: Oct 3, 2020
  18. Capt Ralph, Oct 3, 2020
    #18
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,748
    Location:
    Satsuma, FL
    Boat is at Grove Isle, S Miami
  19. Pascal, Oct 4, 2020
    #19
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,166
    Location:
    Miami, FL
    That’s a mile from here.
  20. Capt J, Oct 7, 2020
    #20
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,435
    Location:
    Fort Lauderdale
    Lololol, I just ran a Cabo to and from the canal 100 yards West of Grove Isle.
