Discussion in 'Chris Craft Constellations & Catalinas' started by CaptOlin, Feb 13, 2013.

You need to be registered and signed in to view this content.
  1. CaptOlin

    CaptOlin New Member

    Joined:
    Aug 7, 2005
    Messages:
    19
    Location:
    Kent Island, MD
    The Cost of “Anchoring Out” Versus Staying at a Marina


    Introduction

    The main reason for buying an inverter is that it makes your Connie free from dependence on shore power. Saving money by avoiding marina slip charges is one motivation for wanting an inverter but another is that it also allows you to cruise in more remote areas (the boondocks) where shore power may not be available. The purpose of this paper is to estimate the costs for operating with and without an inverter i.e. in the boondocks vs. at the marina. It also describes several modes of operation.

    Battery Bank Size

    If costs were no consideration, we could make the inverter battery bank large enough to carry the electrical loads of your Connie for the whole day. But that would require 32 6 volt 225 ampere hour golf cart batteries at about $140 each or $4,480. The cost is prohibitive and it would be extremely difficult to even find a space to store the batteries.

    Therefore, the inverter battery bank we discuss here consists of only four 225 ampere hour golf cart batteries which are recharged on five hour intervals. This keeps the cost of the batteries down to about $560 and the cost of the whole system including the inverter and charger down to about $2,200.

    Operational Modes

    There are four modes of using your inverter which are described in the sections below:

    Mode 1: Anchoring Out with the Generator Running 24 Hours per Day

    A Connie has five air conditioners which produce 68,000 BTU per hour of cooling. In my experience on a sunny hot summer day in Maryland you need all five units going full blast to keep the boat cool. And even with all the air conditioners going the upper salon will probably be in the mid-80s. The total power draw is 52 amps at 120 volts or 6,240 watts.

    This is only 6,240/20,000 = 31% of the 20 KW Onan generator’s total capacity so the generator can probably easily handle the air conditioning loads in addition to all the other loads.

    Even with all the loads (air conditioning plus other) running on an anchored Connie, the generator is only at about ½ of full load and burns about 1.2 gph. At $4.00 per gallon (current in 2013) that’s a cost of $4.00 x 1.2 = $4.80 per hour or $115.20 per day.

    Mode 2: Anchoring Out with the Generator Running 8 Hours per Day and an Inverter Running 16 Hours per Day

    This mode assumes that you have an inverter and that the generator will be turned off from Midnight to 7:00 AM, from 9:00 AM to 12 Noon, from 2:00 PM to 5:00 PM from 7:00 PM to 10:00 PM. At all other times the generator will be on. It is also assumed that your inverter is capable of handling the loads during the generator-off periods.

    Air conditioning can be on at all times when the generator is on but not when it is off. Even with all the loads (air conditioning plus other) on the generator is only at about ½ of full load and burns about 1.2 gph. At $4.00 per gallon (current in 2013) that’s a cost of $4.00 x 1.2 = $4.80 per hour or only $38.40 per day for an eight hour day.

    Mode 3: Anchoring Out with the Generator Running 15 Hours per Day and an Inverter Running 7 Hours per Day

    It is assumed that the generator will be turned off only from Midnight to 7:00 AM. At all other times the generator will be on. Air conditioning can be on at all times when the generator is on but not when it is off. Even with all the loads (air conditioning plus other) on an anchored Connie the generator is only at about ½ of full load and burns about 1.2 gph. At $4.00 per gallon (current in 2013) that’s a cost of $4.00 x 1.2 = $4.80 per hour or $72.00 per day for a 15 hour day. The cost in this mode is $55.50 less than at the marina so it is still a considerable saving.

    Mode 4: Marina Costs

    I selected the Anchorage Marina in Baltimore to estimate costs. It is not the cheapest but is typical of the better marinas which offer swimming pools and other amenities. For daily transients their rate is $2.25 per foot which is $112.50. A 50 amp hookup is an additional $15. Total cost is $127.50.

    Discussion

    Mode 1 doesn’t require an inverter but is almost as expensive as staying at a marina and also requires that the generator be run unattended all night which is probably not safe. So I doubt it would ever be used. The bottom line is that if you don’t have an inverter you simply don’t anchor out. You go to a marina.

    Mode 2 is obviously the cheapest. It saves $89.10 per day over the marina cost. If you used this mode 10 times a year you would save almost half of the inverters cost. In two years it would have essentially paid for itself. In ten years you would have a profit of $6,810.

    Mode 3 is more expensive because the generator is on at all times except during the midnight to 7:00 AM sleep period. It represents the situation which would occur if it was so hot that the air conditioning had to be on all day and into the evening. The air conditioning and generator would be off only during the sleep period. This is basically an emergency only mode but is still much cheaper than staying at the marina.

    Mode 4 is the Marina Mode where we pay for a slip in a marina. It is the most expensive way to go. But anchoring out all the time gets boring so I expect most people will continue to use it about half the time even if they have a an inverter.

    Some readers may say that operating with an inverter is too regimented. You just don’t want to be constrained to turning the generator on and off every few hours. But the alternative is either doing without electric power most of the day or running the generator 24/7. You could buy 32 golf cart batteries for $4,480 and reduce your charging cycles to once per day but I doubt many of you would want to do that. And when you contemplate where you would store all those batteries that option will probably leave your mind entirely.

    This is my second attempt to make this post. In the first attempt I had a table and the Forum editor entirely scrambled the text. Without the table the post seems to have worked.

    CaptOlin, 3/17/2013
  2. Irishman1

    Irishman1 New Member

    Joined:
    Apr 12, 2013
    Messages:
    4
    Location:
    Anacortes,wash. For now
    I bought a 1965 tri-cabin I haven't found a official name for it. I have seen a few pics on the web that call it a 38 constellation salon model. Although none show a hard top extending from the helm back like mine. It has a large salon with a galley in the back by the stairs from the helm, the stateroom down in the stern. And a small head and v-birth down in the bow. It has flat front windows forward and large windows on each side of the salon with a small sliding door on the starboard side. Two gas 383s center. If I look up the Connie's, they all have the pointed front seat ahead of the salon on te bow deck and a separate galley/seating dinette. Please help with any info! Mike
  3. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,302
    Location:
    Easton, Md./Ft. Lauderdale
    If you can post a photo (check the guidelines for this site before posting) we can probably help you out with identification.
  4. Irishman1

    Irishman1 New Member

    Joined:
    Apr 12, 2013
    Messages:
    4
    Location:
    Anacortes,wash. For now
    my chris craft, what is it?

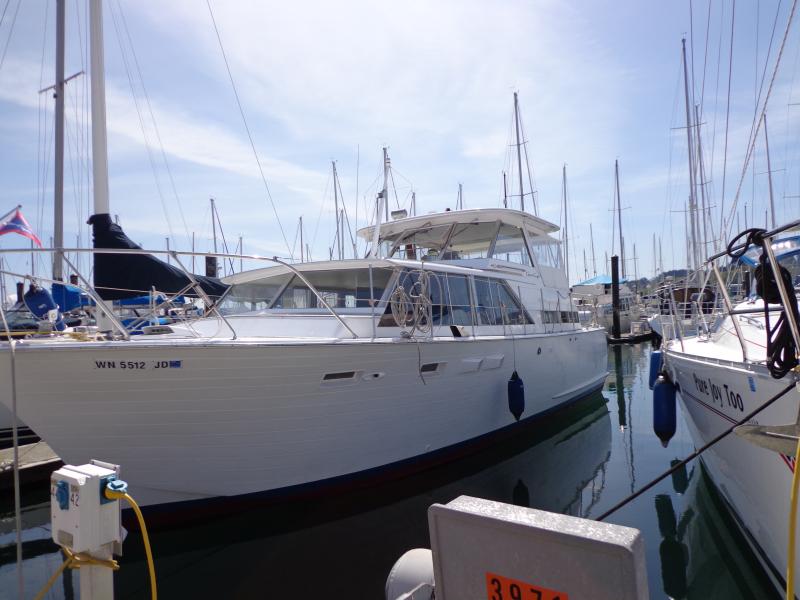

    well i hope this works, first trip on boat and wheels 018.jpg first trip on boat and wheels 018.jpg
  5. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,302
    Location:
    Easton, Md./Ft. Lauderdale
    She does indeed look like a model that was called a Salon. I'll look in my Chris Craft Essential Guide book tomorrow when I get to my office. In the meantime, look at a website: chriscraftclassic dot com. I think she is the same or similar model to your boat.
  6. Irishman1

    Irishman1 New Member

    Joined:
    Apr 12, 2013
    Messages:
    4
    Location:
    Anacortes,wash. For now
    It is somewhat like mine. However my Chris continues aft at the bridge to the rear bedroom wall,his has just a raised"doghouse" where mine is enclosed with a hardtop and is level. You step down from helm to a level rectangular salon that has the galley at the aft wall,level, a step down to the forward head and v-berth. Three steps down aft of salon to the stateroom and shower head. On no Chris craft web site have I seen one!. I'm the third owner. A Chris craft club mme mber here in anacortes,wa. Said it may have been a limited salon " one off" custom job made requested during the building of her. If you can go to Facebook under the name mike McDonough, I have a video of her inside and out. Thanks for all the help!!
  7. Irishman1

    Irishman1 New Member

    Joined:
    Apr 12, 2013
    Messages:
    4
    Location:
    Anacortes,wash. For now
    It does look like it is a "salon" model according to the original wiring diagram I found in the owners manual. The serial number is cbb 380008 or something close to that(bad memory!). I just haven't seen any with the hard top like mine.
  8. Skipperbob60

    Skipperbob60 New Member

    Joined:
    Sep 18, 2013
    Messages:
    1
    Location:
    Milwaukee, Wisconsin
    It may be a challenger

    Irishman, I just joined this forum and i have a 1964 38 foot CC Challenger that looks just like your boat. It doesn't have the same hardtop but fits the description. My hull is 38002 as stamped on all wood parts that i remove for rennovation. Is your boat in good shape?
  9. volboater

    volboater New Member

    Joined:
    Dec 22, 2014
    Messages:
    1
    Location:
    Tennessee
    I just purchased a 1988 Connie 501. Great boat, have not gotten to the maintenance yet. Just took possession.

    Terry
  10. Mark H

    Mark H New Member

    Joined:
    Jul 24, 2015
    Messages:
    1
    Location:
    Annapolis MD
    Capt do you have any contact information on owner of Resolute, very interested in the extensive work that was done to her interior.
  11. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,302
    Location:
    Easton, Md./Ft. Lauderdale
    I'm not sure I understand what extensive work to her interior that you're referring to? I think she's really quite original.
  12. riverboat_capt

    riverboat_capt New Member

    Joined:
    Oct 18, 2010
    Messages:
    2
    Location:
    Milwaukee, WI

    Terry,

    I purchased a 1988 501 last spring also, she was well maintained and cared for. What issues have you come across with your boat?

    The previous owner of our boat replaced all the sanitation lines, unfortunately, he used exhaust lines and not sanitation lines, that's our winter project
    Last edited: Jan 3, 2016
  13. Jimmy Olgers

    Jimmy Olgers New Member

    Joined:
    Mar 3, 2018
    Messages:
    1
    Location:
    Deltaville
    Hello all new Connie owner here looking forward to getting to know all on this board as I bring my girl back to life Fair wind Jimmy
  14. Mig

    Mig New Member

    Joined:
    Oct 19, 2019
    Messages:
    2
    Location:
    Texas
    Thank you Capt. This information was well put together.
  15. Mig

    Mig New Member

    Joined:
    Oct 19, 2019
    Messages:
    2
    Location:
    Texas
    Same here Jimmy. We just picked up a 1985 Connie 500 down in Texas. We plan on bringing her some love and attention and hopefully bring her back to her glory days. She is in good shape but is still a diamond in the ruff at the moment. Hello to all.

    Mig
