    Recently, I spent a little time with Mac McLaughlin from Broward Marine, as he took me on a bare-bones tour of the new Broward 120'. On a previous visit to the yard in June of 2005, the first 120' was merely a hull's shell, as the superstructure was yet to be added. As you'll see in the following pics... it is progressing along nicely.

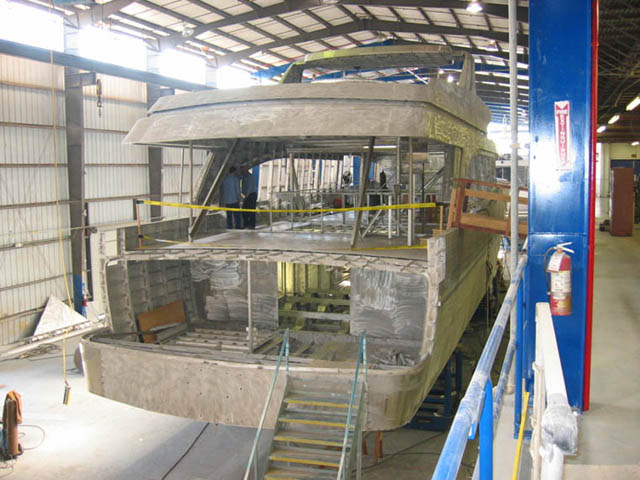

    Approaching the structure from the 3rd level of Broward's shed, the 120's boarding ladder isn't quite as fancy as those found transversing the docks at Bahia Mar... but it works equally as well.

    Attached Files:

  2. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

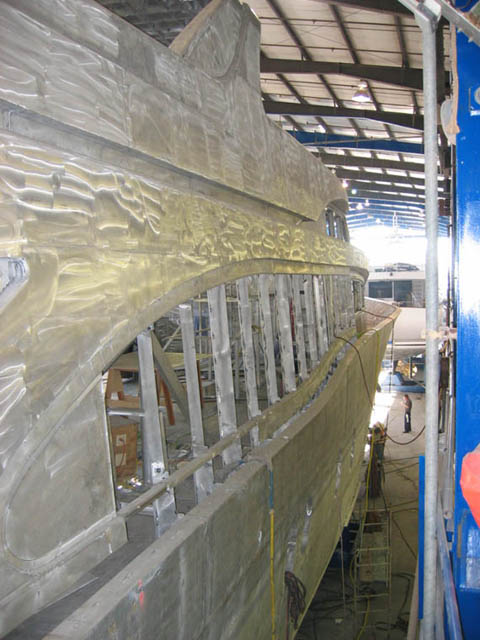

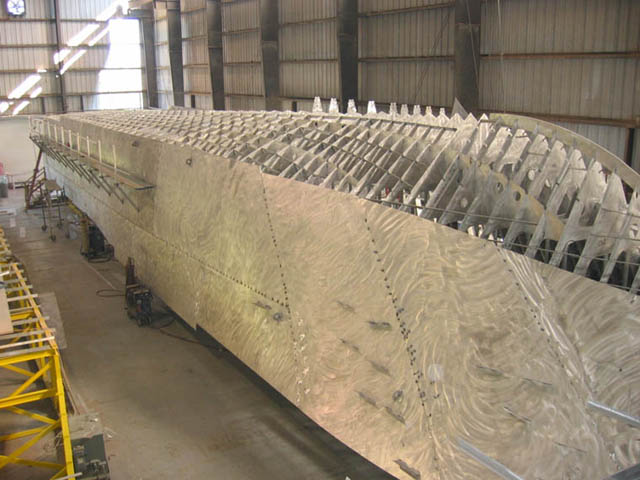

    As we walk closer to the structure, you begin to get a feel for the enormous amount of labor still ahead. These are the preliminary stages of welding, grinding and shaping... and repeat as needed.

    Attached Files:

  3. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

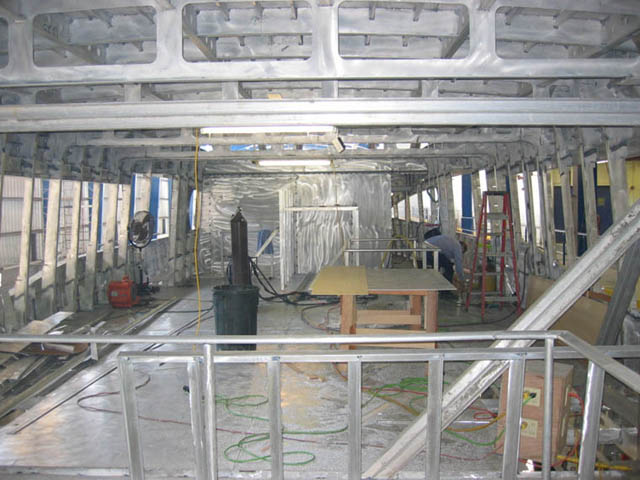

    Standing on the aft deck, looking forward into the salon. Notice the railings in the foreground? The next picture is the reason...

    Attached Files:

  4. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

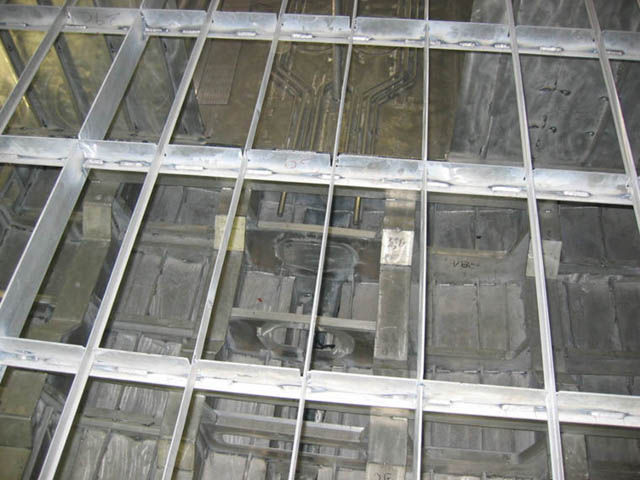

    Immediately beneath our feet and surrounded by the railing is a temporary grid to protect workers from falling into the engine room below. This cut-out is purposely left open to allow the engines to be dropped in after the basic structure is completed. If you study the picture closely, you can see the raised sections on the main stringers that will become the engine mounts.

    Attached Files:

  5. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

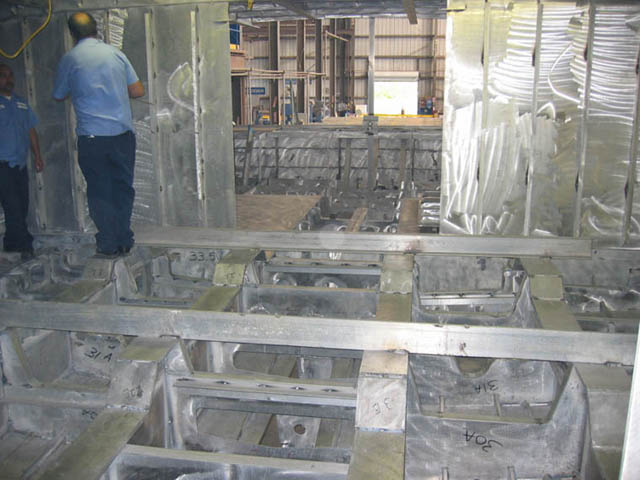

    Here's a better angle on the engine mounts, taken from within the engine room. The horizontal beams are only temporary, as are many pieces at this time.

    Attached Files:

  6. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

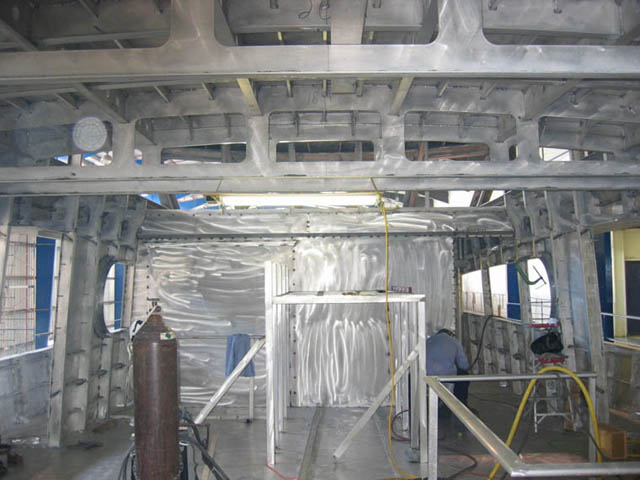

    Getting back to the main deck, this picture is looking forward at what will become the dining area, and just forward of this is the raised pilothouse.

    Attached Files:

  7. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

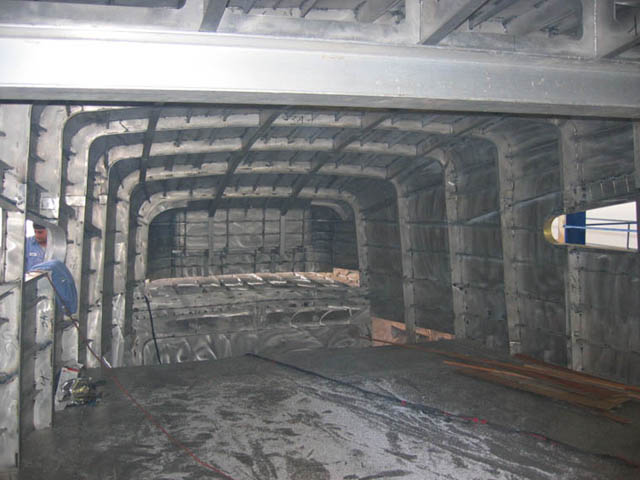

    In front of the pilothouse, we enter the on-deck, forward master stateroom. It's much larger than it looks in these pictures.

    Attached Files:

  8. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

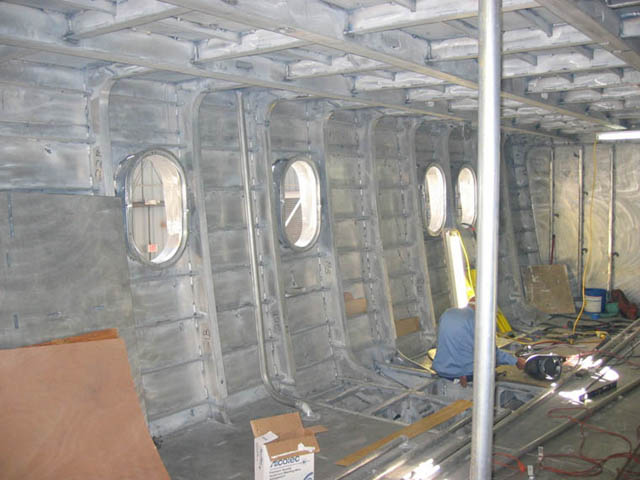

    Going below to the lower deck, these portholes will illuminate the guest suites...

    Attached Files:

  9. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

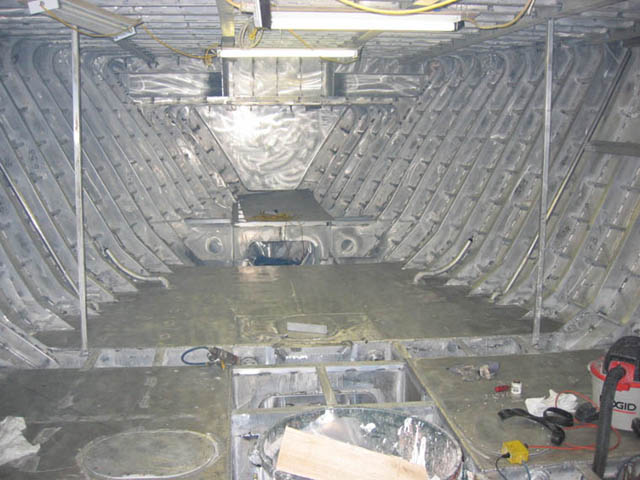

    Moving forward, the bow appears to be built well enough to break ice...

    Attached Files:

  10. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

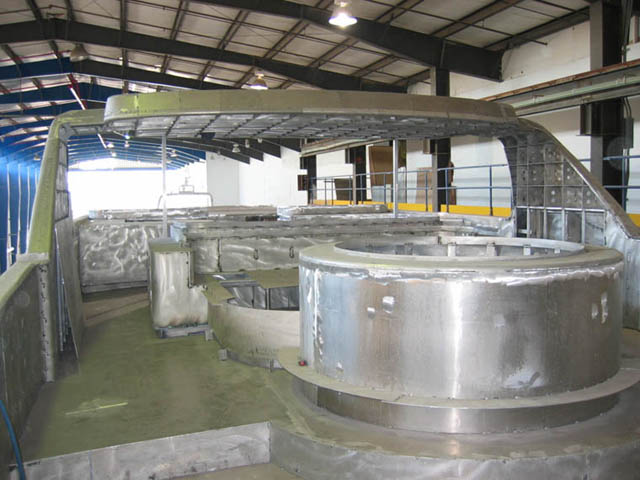

    Exiting the caverns of the lower deck and going three flights up, this picture is looking forward over the whirlpool that will no doubt be the center of attraction when a guests looses her inhibition.

    Attached Files:

  11. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

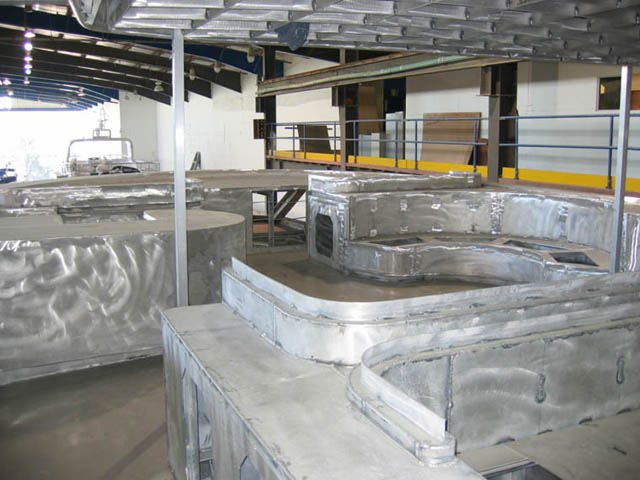

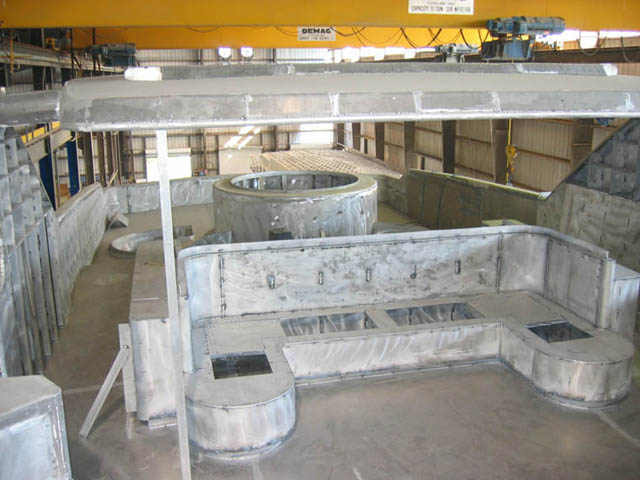

    A few steps forward of the whirlpool, the seating (which was previously finished) has been welded to the decks and the flybridge helm is beginning to take shape.

    Attached Files:

  12. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida
    This picture, taken from the radar arch, is looking aft...

    Attached Files:

  13. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida

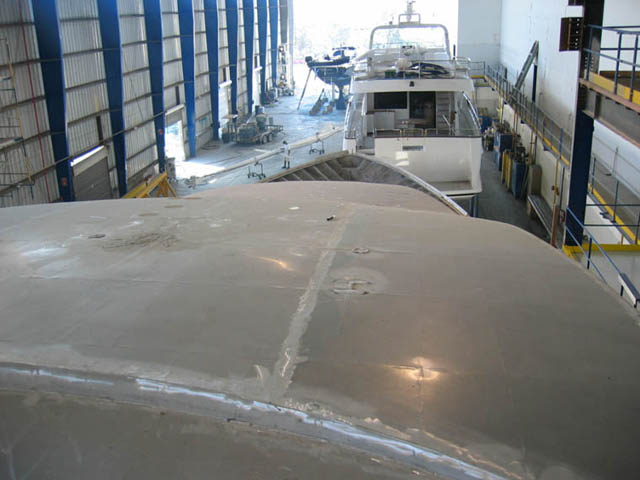

    And finally, looking out over... what will soon become... the captain's favorite vantage point.

    Attached Files:

    • Bow.JPG
      File size:
      47.7 KB
      Views:
      1,239
  14. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida
    But wait... there's more! Hull #2 is beginning to take shape directly behind hull #1. Henry Ford would have been proud. Thanks to everyone at Broward for allowing us to witness a lot of hard work, from behind our keyboards.

    Attached Files:

  15. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,599
    Location:
    South Florida
    More pics should follow in the months to come. Special thanks to fellow YachtForums member, Mac McLaughlin, for taking time out from his schedule to give us a tour.
