Azimut 68-S; Hull Laminate Problems...

Discussion in 'Azimut Yacht' started by YachtForums, Jul 24, 2009.

You need to be registered and signed in to view this content.
  1. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,552
    Location:
    South Florida
    Received this PDF from an anonymous source. This is not the first time I've heard of this, but it's the first time someone documented the issue with images and presented it for others to see. It appears Azimut's are a little thin skinned...

    http://www.yachtforums.com/forums/images/misc/My_2007_Azimut_62S.pdf

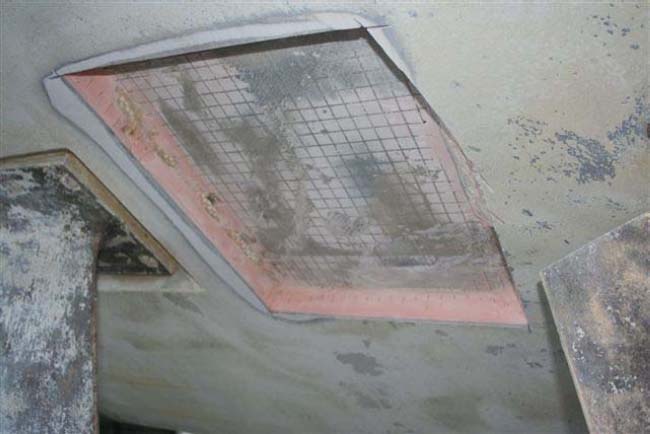

    One of the images from the PDF...

    Attached Files:

  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    The thickness is not a problem in itself, but perhaps the infusion has not been good enough. I would also expect solid GRP in the area of struts and rudders. But how running strakes can detach is a mystery?
  3. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,552
    Location:
    South Florida
    The area of the hull above and aft of the prop is exposed to a lot of turbulence. If the skin is thin, it is more likely to flex. This would would cause the foam behind it to deteriorate, further compounding the issue. The comment in the PDF about a strake detaching is unusual. Maybe the owner is referring to the strut?
  4. CaptTom

    CaptTom Senior Member

    Joined:
    Jan 26, 2006
    Messages:
    1,918
    Location:
    Palm Beach to Ft Lauderdale
    Looks like they got it backwards and put the foam in before the coring. Either way this can't be good.
  5. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    4,840
    Location:
    Miami, FL
    what do you mean? the foam is the coring! not sure what they use, i dont' think Divnicel comes in pink, does it?

    i'm not a fan of cored bottom, but the area aroudn the struts and rudders should be solid glass... this is really unbelievable.
  6. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    The foam is the core.
  7. CaptTom

    CaptTom Senior Member

    Joined:
    Jan 26, 2006
    Messages:
    1,918
    Location:
    Palm Beach to Ft Lauderdale
    I was looking at that checkerboard surface and thought that might have been the coring. Oops!
    I understand foam coring above the waterline, but not below and in high stress areas.
  8. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    The checkered pattern is from the grooves in the foam core, where the resin is spread through the infusion.
  9. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,552
    Location:
    South Florida
    That checkered pattern is essentially a weave of foam cubes held together by a membrane, allowing the foam to contour to compound curves, while providing areas for the resin to wick.
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
  11. CaptTom

    CaptTom Senior Member

    Joined:
    Jan 26, 2006
    Messages:
    1,918
    Location:
    Palm Beach to Ft Lauderdale
    I stand corrected, and learned something, too. Perhaps I'll stick to the photography and writing biz. lol
    AMG, thanks for the doc, interesting.
  12. T.K.

    T.K. Senior Member

    Joined:
    Jan 31, 2007
    Messages:
    984
    Location:
    Cairo - Egypt
    Not nice..................
  13. hat4349

    hat4349 Senior Member

    Joined:
    Mar 25, 2005
    Messages:
    165
    Location:
    Merritt Island, Florida
    Scares me, don't have that problem with my aluminum hull. Maybeif they want fiberglass they should buy a Hatteras from the early 70s like Pascal.
  14. VikHatBer

    VikHatBer New Member

    Joined:
    Oct 21, 2008
    Messages:
    121
    Location:
    Miami, FL and the Keys
    I saw an 80' Azimut aground on the beach right in front of Bimini Sands one time... I'm gonna say 2002. It also had a 1/8" fiberglass hull. The owner was deemed a Compleat idiot (insert Bimini pun) for months after the accident, because he tried to leave in a raging storm and struck rock bottom when the boat was apparently in the trough of a large wave. There were pictures of the wreck in every drinking hole on the island.

    What would have been a routine grounding w/ undergear damage for an overbuilt boat with the same 5' draft -Hatteras, Viking, Bertram -turned out to be a hull breach for an Azimut. Again, the Bahamians were astounded by the egg-shell nature of the Azimut hull.

    I am no cheerleader for any particular brand. The only thing I don't like are these faux Euro-style yachts that fold like a lawn chair when tested by the sea.
  15. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    The main idea with building cored boats is to get them light and strong. The hull is designed to go fast at a certain weight and burn much less fuel than more conventional built boats. Should you "overbuild" such a boat it wouldn´t perform at all. It is two different schools and with twice the cost for fuel in Europe compared to the US, it makes sense.

    But you need to build even cored boats with uncored areas around fittings and often it is no core along the keel and in the chines. The boats I have designed are built with divinycell and vinylester with vacuum infusion and so far no problems with the material...
  16. VikHatBer

    VikHatBer New Member

    Joined:
    Oct 21, 2008
    Messages:
    121
    Location:
    Miami, FL and the Keys
    People live and learn. If rich idiots want to buy sexy looking boats with eggshell hulls, that is their choice. I have no sympathy for them when their eggshells crack.

    I can't wait to see the delamination and longevity related problems that are going to develop with these chic looking Euro boats in the future.
  17. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    If you wait just a few years you will find that almost all GRP boats will be built this way. It is also finding it´s way into cars and planes...:)

    What I have seen lately though, is that the older Bertrams is starting to be soft and if you drill in the hull, it is more like powder than glass. So who knows what will last the longest...
  18. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    8,850
    Location:
    Long Island, NY
    Boats today are meant to stay relatively nice for about 2 years and convince you to sell by the 3rd. Losing 1/2 a million $ in that time seems to be OK with many, especially since it can be hidden for many years through rolling over loans into new boats 'your monthly payment will barely rise at all'. This is the same crowd that pays $800 a month to own nothing by leasing their cars and take 40 year mortgages on 110% of their homes value. It works too, until times like these fall on them. I call it 'stupid' money. If the public is willing to give it why shouldn't the boat builders and brokers take it? To quote P.T. Barnum "There's a fool born every 11 seconds".
  19. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,213
    Location:
    Sweden
    Do you mean that cored hulls are inferior or cheaper than solid hulls or that smart people like to burn 50 percent more fuel while making more wake?
  20. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    8,850
    Location:
    Long Island, NY
    I'm saying that people don't even know what quality is anymore much less care. Money is just too easy to get to bother. Used to be that a lucky, well off person might have a 45 footer (and a few millionaires had 100 footers). That boat would last a lifetime or at least that person's boating life. Now, everybody and their brother has a 45 footer, many an 80 footer and a lot have 150 footers and in 3 years they're trading them in. Glitz, speed and easy money have replaced quality. Personally I think it's stupid and wasteful for an 80' yacht to cruise at 30 kts., but it's not going to change so I'll just hold out my catcher's mit while stupid money is thrown.
