Attessa IV; the Helicopter falls over in storm

Discussion in 'General Yachting Discussion' started by K1W1, Jul 29, 2013.

  1. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,393
    Location:
    My Office
    Hi,

    Have been hearing reports of 60 to 80 kt winds in various locales on Med Coast this morning.

    Just got sent this by someone who was in zero viz and 50+ kts for a couple of hours.

    Attached Files:

  2. davidwb

    davidwb Senior Member

    Joined:
    May 17, 2006
    Messages:
    237
    Location:
    Holland.
    Why didn't the crew tie the chopper to the heli deck? Perhaps a flat clear deck without provisions to keep the heli in place? Looks very unprofessional...
  3. Felipe

    Felipe Senior Member

    Joined:
    Sep 7, 2009
    Messages:
    261
    Location:
    Ibiza
  4. weto

    weto Senior Member

    Joined:
    Jan 1, 2012
    Messages:
    163
    Location:
    NOR CAL
    Does not appear to be the same chopper. Probably still cost a couple bucks to repair not including the damage to the yacht.
  5. bigboatbill

    bigboatbill Senior Member

    Joined:
    Aug 25, 2008
    Messages:
    201
    Location:
    Decatur Alabama
    Attessa's usual heli has a dark belly. Perhaps this was a rental. Hope Mr. W bought the insurance.:)
  6. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,300
    Location:
    Europe

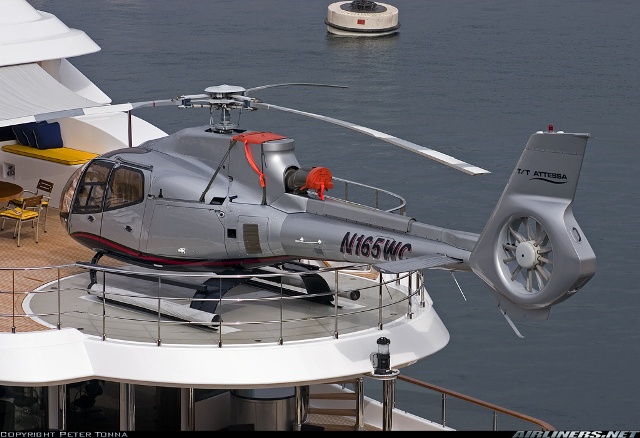

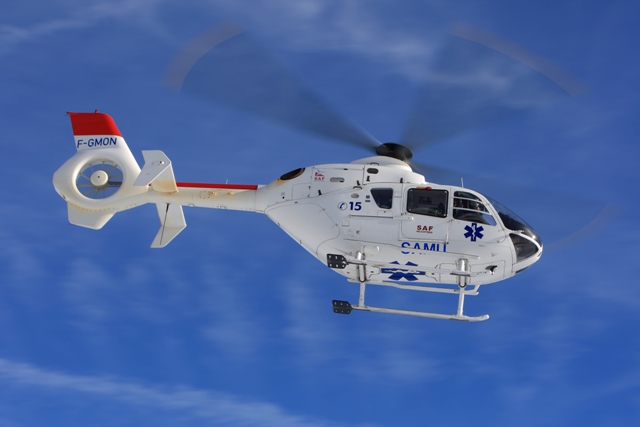

    The Helicopter landing on Atessa IV in Marina del Rey is undoubtedly a single engine Eurocopter EC 130 B 4 as shown on the first picture. The EC 135 is a twin engine Helicopter as can be seen in the second picture. The only thing they have in common is the Fenestron tail rotor.

    The remains of that stormy weather look like an EC 120 B, the smaller version of their standard helo. The damage on that Helo will most likely be a write off, if the rotor / engine assembly is affected. Rotor blades are expensive but can be replaced.

    Attached Files:

  7. Felipe

    Felipe Senior Member

    Joined:
    Sep 7, 2009
    Messages:
    261
    Location:
    Ibiza
    Thank you HTM09.
  8. Milow232

    Milow232 Senior Member

    Joined:
    Sep 13, 2011
    Messages:
    1,507
    Location:
    Germany
    Certainly proves the importance of big helipads as the heli would have perhaps crashed into the sea on smaller helipads like on the refited "Ilona" or the recently so often seen bowpads.

    I am glade that they had luck in this dangerous situation and nobody was injuried.
  9. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,456
    Location:
    Guernsey/Antigua

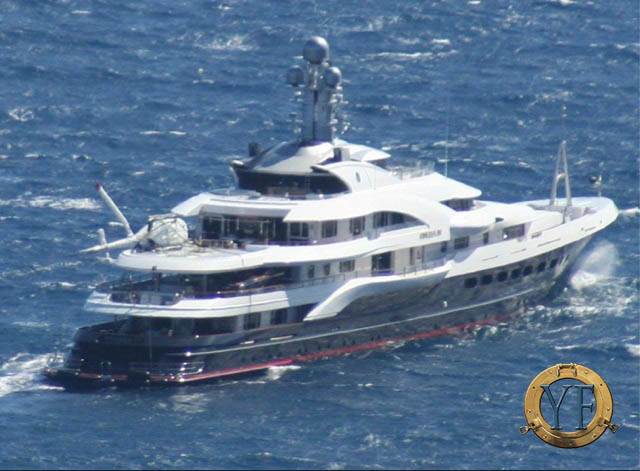

    Another shot.

    Attached Files:

  10. captainwjm

    captainwjm Senior member

    Joined:
    Aug 17, 2010
    Messages:
    228
    Location:
    Islamorada , FL Keys
    Question: Is it usual that a helo would remain onboard during severe weather? Wouldn't it be more prudent to fly to a secure facility ahead of the weather? just asking what SOP is.
  11. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,300
    Location:
    Europe

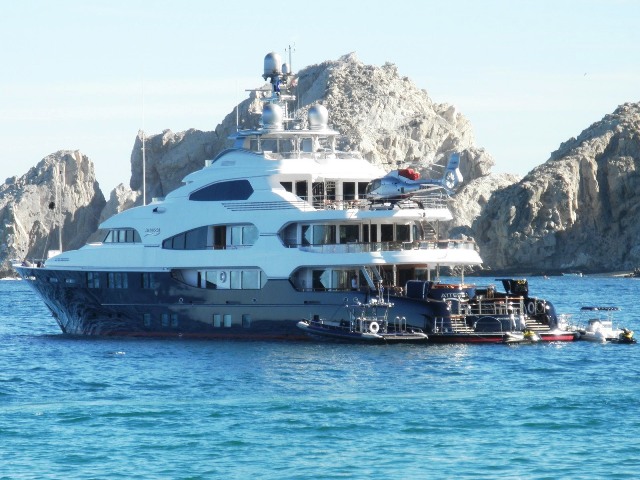

    The owners yachts with the name Atessa have grown with the years and the size of the helopad with it :). But the Helo is still the same. Same type and callsign (N165WC).

    The EC 120 B and the EC 130 B4 are simple and rugged design helicopters. But the 3 blade rotor system is a quite old design. Eurocopter is so much used to their governmental owners and large fleet operators, that private and small corporate owners with a single helicopter get ignored sometimes. Will say, service for those is not as good as it should and could be.

    That is why I always would and will buy Bell. From personal experience, I can say, that Bell Textron Helicopters has the best service for small and medium Helicopters worldwide. If you call for help, no matter where your Helo sits on the ground (except maybe on the north or south pole :)), the Bell technican will show up in shortest possible time and get that thing flying again. But not if it is ruined like in the first picture. This flying machine will leave the ship with external lift.

    Attached Files:

  12. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,300
    Location:
    Europe
    Sorry, did not see Fishes last picture. As the complete Helo is coconed with canvas, it might as well be their standard Helo, the EC 130. From that picture, the Helo might be worth repairing, if the rotorhead and engine mounting is fine.

    Each Helicopter has a specific tiedown procedure written in its operating and maintenance handbooks. The most vulnerable part of a Helo are the rotorblades. Some manufacturers ask for the complete removal of all blades during long term or bad weather storage on ships. Foldable rotor blades have to be supported by special struts to withstand harsch weather.

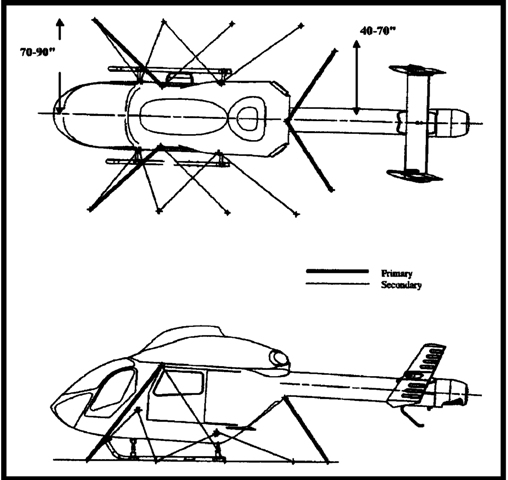

    Below an example of the tiedown procedure for the MD 902 Explorer. With this tiedown arrangement, you could tie this helo upside down to the roof of a hangar and the MD 902 would stay in place if the ship capsizes :D.

    The problem I can see, wheather it is a classed / cerfitied (LY2/LY3) Helo Deck or only the typical Touch and Go landing pad or even just an inofficial landing pad ???. The question is, does the insurance pay for the helo, if he is not supposed to be there in the first place ??? As I read the LY2, a certified helicopter landing pad on a yacht should have at least the diameter of the main rotor (On Atessa IV it is definately smaller). Reason is that during the touchdown, the complete rotor circle should be in equal ground effect (safety). On commercial yachts, this is as far as I know, mandatory.

    I am not a friend of Helicopters being permanently stationed on a yacht. Landing on the forecastle is no fun for the pilot at all (lack of references). And having this Kerosin stinking and oil dripping ugly piece of kit parking on the sun deck, ruins the pleasure of yachting. So its either below deck storage or leaving of the Helo after delivery of the pax / cargo with me.

    I think K1W1 is the specialist on this forum for this SOP / Certification type question. Lets wait for his comments.

    Attached Files:

  13. YachtFish

    YachtFish New Member

    Joined:
    Sep 14, 2011
    Messages:
    18
    Location:
    Mediterranean Sea
    I was in Monaco's port yesterday morning 29/7 around 7:30 AM when the violent squall hit the port and the yachts at anchor just outside it.

    There were some big black clouds suddenly covering the sky and in no time, we had very severe rain pouring and winds blowing increasing from 2 kts to well over 30/40kts. I have no idea on how strong they were outside the port given it came from N - NW and the buildings surrounding the port must have probably acted like a shield to the yachts moored inside the port. "Attessa IV" was anchored just outside the port along with 5 or 6 other superyachts. Visibility was close to ZERO when the rain came. Add the strong wind and I guess we were all taken by surprise...

    Weather forecast advised for possible thunderstorms during the night and up to early morning, but no one was expecting anything that violent. At 11AM summertime with clear blu sky and 30°C temp were back...

    A similar situation happened around the 20th of August last year in Monaco at night. Clear sky first and within 5 minutes thunderstorm, rain and wind at 40+ kts all at once. And it all lasted around 15-20 minutes. Just like yesterday morning....
  14. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,393
    Location:
    My Office
    Why waste tie down straps on one of those piles of junk.

    A trait well known to MD Helo's.

    I had the experience to travel around the planet with a MD 600 on a yacht.

    The Pilot was also an engineer so we did a lot of the maintenance on her ourselves.

    What a pile of junk to put it politely.

    We had the engine out a couple of times for oil leaks, the HMU failed as he was getting light on the gear in the middle of nowhere in Nthn Indonesia, we replaced the landing gear ourselves in Langkawai when a modified set came out. The whole instrument cluster and cyclics had to be replaced as per an Airworthiness Directive. The plugs on one did not match the pins on the other this was discovered after it was all installed. The base of the recently replaced cyclics started to need a 40 x magnification inspection every 8 flight hours and so it went on.

    Surprisingly I heard a couple of years ago it was still going now cleaning dust off powerlines and was the only one of the 3 the company had that was still operational.
  15. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,300
    Location:
    Europe
    :D Yep, that is the reputaton of MD helos in Europe. Rare as diamonds and so are their tech reps and spare parts.

    Thats why I prefere Bell Textron. But even those are helicopters. Our professor in university (mechanical engineering) had a favorite explanation for helicopters: "A conglomerate of spare parts which fight each other". And the other was: "Never trust an aircraft, where the wings are faster than the fuselage". He must have known, he was the "pope" of the helo technology at his time in Europe and had written most of our books we used in our studies (Prof. Dr. Ing. Kurt Knobling, University of the Armed Forces Germany, Munich).

    This is one of the reasons why I still have an ambivalent relation to helicopters. I like to fly them but I still dont like them very much.
  16. Felipe

    Felipe Senior Member

    Joined:
    Sep 7, 2009
    Messages:
    261
    Location:
    Ibiza
  17. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,300
    Location:
    Europe
    Hi Felipe,

    congratulations on your famous ancestor. Auto Gyros are getting very popular in Europe. But they should not be mistaken with helicopters. They can not hover and do vertical take offs and landings. They are perfect STOL aircraft and make a lot of fun to fly, if you obey their special limits.

    Thats the way they look like today. They are classed as Microlights or LSA aircraft. Cruising speed is about 100 Kts, range some 4 to 5 hours and they can take off and land on a tennis court. But they are perfect for use on a smaller expedition yacht, because they can be equipped with floats and with the rotor taken off, do not occupy more space than a dinghy.

    Attached Files:

  18. Felipe

    Felipe Senior Member

    Joined:
    Sep 7, 2009
    Messages:
    261
    Location:
    Ibiza
    Thank you so much, fascinating! I didn't even know they were being sold nowadays.
