Discussion in 'Yacht Renderings & Plans' started by YachtForums, Oct 5, 2004.

  1. jwash

    jwash New Member

    Joined:
    Oct 2, 2007
    Messages:
    27
    Location:
    London
    landing in port?

    Hi all, im fairly new to this so please correct me if im wrong, but...... isnt it illegal to land/takeoff a heli when the boat is in port?? :confused:
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Yes, in many but not in all ports.
  3. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

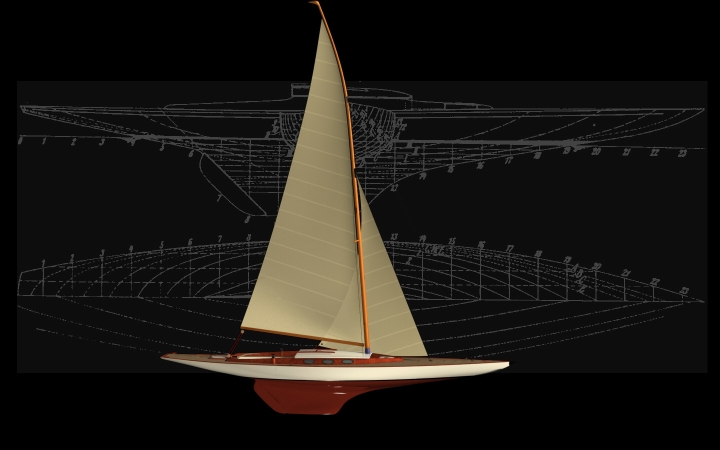

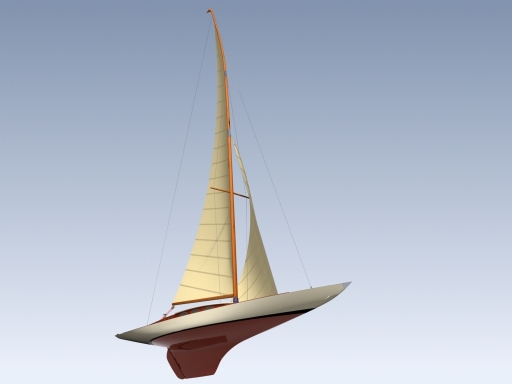

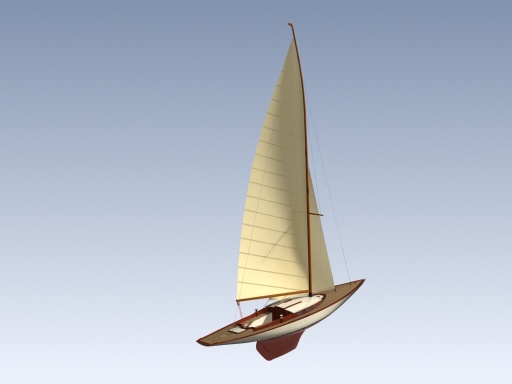

    Square Metre Yacht

    Square Metre Yacht

    Attached Files:

  4. i like your 85m yacht much. Actually i prefered than the 75m version. For me, i would change the hull color to cyan, but... In bigger version, seemed more elegant-volume than the shorter more traditional one. I didn't understand the problems the other members think exactly to have, because i am a designer and i see most the forms first if coerent or not. I would put the helicopter behind and not in this garage. But this is me. Instead of this helicopter garage, i would put a pool with 2 hot-tubes. Interesting i saw something newer in the 40m yacht version at least the upper volume only and bi-partial windshield of bridge, the only part i liked, the rest not. I personally would use this concept to make the structure of your 75m/85m versions. I think it would be more advanced than this traditional/classical ones. I like the owner room in whole top. Seemed to me for what the owner paid for beeing atop. I didin't liked any other proposals you showed, but i understood the classical sailings.. :)

    Well, let's say the combination i would do for a top 85m yacht among all your proposals:
    1. Hull of the 85m version, instead of red, cyan. But Hull-windows like in 75 was.
    2. Structure of decks of the 85m version replaced with the 75m one, it means all shorter.
    3. This is because you would have a even bigger main deck in front to put a mix of the front structure with windows of your 40m yacht included also in the 85m version together.
    4. Then a front the point 3, you could have a pool at front with 2 side hot-tubes behind it, instead of helicopter garage.
    5. Helicopter goes to aft stern 1st deck with platform roof of toys/boats increased.
    6. Take the sonar/electronic device and mast of your 140m yacht concept and bring also in this shared very interesting funnel, instead of having it empty atop. For some way/reason the 'Sphere' would divide the funnel. At 85m/75m versions, seems something missing, imo.
    7. For some way or reason, in middle of front structure (brought from 40m)=(3) to the 85m, it should have a shorter mast as well, because the windshield has a middle division. 2 radars go in the main higher one.
    Last edited by a moderator: Apr 15, 2010
  5. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

    Attached Files:
