Anti-Rolling Gyro or Stabilization Fins

Discussion in 'Stabs, Tabs & Gyros' started by Yachtguy, Jan 13, 2006.

You need to be registered and signed in to view this content.
  1. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC
    I am looking for information on the Mitsubishi or similar ANTI ROLLING GYRO or ARG. This is not an active fin stabalizer system.
    I understand it is under demo with Ferretti group yachts now.
  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Here's a press release on the ARG...

    http://www.yachtforums.com/forums/n...popular-science-award.html?highlight=arg+gyro

    It's not a new technology, but a new application of the same. It's a mechanical gyro that for all practical purposes, should produce better "static" results than traditional fin stabilizers, i.e. at anchor or docked.

    As for anti-roll properties underway, I'm sure it adds a level of stabilization, however I don't believe it would be as effective as active fin stabilization, especially as speed or wave height increases.

    The combination of both systems would produce the best results, however this would be expensive and would add additional weight. The added weight of the ARG is not be a bad thing, as this can improve stability at speed or at rest, given it's low CG placement within the hull.

    The real upside to the Mitsubishi ARG is simplicity, as this removes hydraulics, plumbing or servo motors from the equation. It also means nothing is protruding from the hull, which decreases drag and eliminates the possibility of damage due to protruding fins.
  3. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC
    I wonder if it is available on the market as I think Ferreti group had an exclusive on it. I under stand they use 4 on the ferretti custom line 94 and each one is about the size of compact washing machine.
  4. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC
    I wonder if 4 washing machines set on spin cycle would do the trick.? A lot cheaper. HaHa
  5. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    I think the best person to contact, with respect to answers and feedback, would be Tom Houliaries, vice president of Marine Max. Tom is one of my oldest friends and he was interviewed on the ARG in this Popular Science article...

    http://biz.yahoo.com/prnews/051110/cgth025.html?.v=34

    PM me for contact details. I don't like to post e-mail addresses or phone numbers on the forum because of webcrawlers.
  6. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    ARG matey
  7. lwrandall

    lwrandall senior member

    Joined:
    Mar 31, 2004
    Messages:
    292
    Location:
    Baltimore
    VIDEO OF ARG

    There is a great video on Ferretti's web site demonstrating ARG. They show you video of before and after. It is pretty amazing technology.

    www.ferretti-yachts.com

    go to MENU (bottom right corner) > NEWS AND EVENTS > VIDEO GALLERY
  8. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC
    Thanks for the link. I am not totally convinced. Take a look at the video why would they have the boat with the non active running more perpendicular to the passing boats wake. Very obvious that it would exagerate the roll effect. To boot they are over rotating the reference angle on the screen to exagerate the roll. I don't doubt that it has some improved effect but there is no doubt they are exagerating a bit. At least in this video. Maybe they didn't have to but they felt for marketing purposes they needed to "enhance" things a little. I am sure there is merit to this however I think it will take a bit more to convince me.
  9. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC
    The over exagerated screen reference is just before half way through the video. I would post a screen clip copy of it here but that may be a copywright issue they may not appreciate.
  10. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    In viewing that clip... I would have to concur, sir. ;)

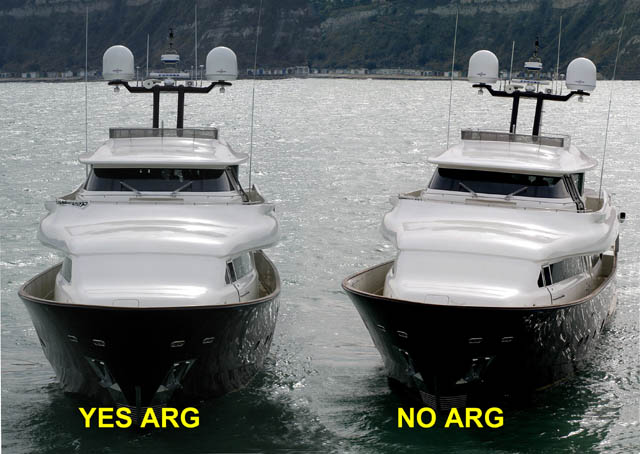

    Which prompted me to take a second look at the image supplied in the link above, seen here...

    [​IMG]

    It wouldn't be difficult to create this imbalance if the boat on the right was swinging around the transom of the boat on the left, pulled a fast stop, add a little port bow thruster, reverse a gear and... voila! One could also question "why" the boat on the right has been presented with an instability, when the surrounding conditions appears to be calm.

    Not insinuating this was done, by any means. Just speculating on how this could be staged. That being said, Mitsubishi is a reputable company and I'd be hard pressed to believe they would gear up for production if the unit didn't offer some benefit. To what degree... remains a question.

    Sorry to refer to these Custom Lines as boats. Just using them for reference.
  11. Yachtguy

    Yachtguy New Member

    Joined:
    Jan 6, 2006
    Messages:
    22
    Location:
    BC

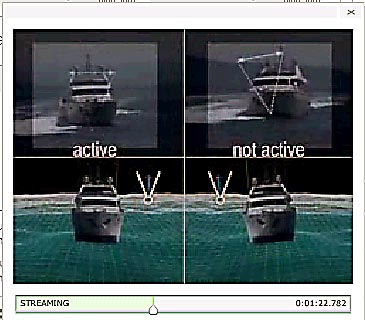

    OK I see we are allowed to use pictures from others. Attached is a snap shot from the Movie link refered to which really shows the exageration.!!!

    Attached Files:

  12. PequodII

    PequodII New Member

    Joined:
    Aug 12, 2010
    Messages:
    2
    Location:
    London
    Gyro vs. fin stabilizers

    Hi all,

    I'm doing a bit of research. I was wondering if you could tell me what the functional difference is between high-end, zero-speed fin and gyro stabilizers. If price was no object, which would you choose, and why? Is one better than the other in port or while underway? Is one hardier than the other - why exactly are zero-speed fin stabilizers so much more expensive than gyro systems like Seakeeper or ARG?

    Thanks a lot! (And I'm sorry if this discussion has already been had... I couldn't find it if so!)
  13. Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    The functional difference is one uses fins moving water for stabilization and the other has a very fast spinning gyro attached to the hull on the inside of the bottom for stabilization.

    I have not used the gyro system yet myself. But I really like the concept and have research them for a friends new build and perhaps to retro fit on the boat I'm currently on. After checking them out my friends boat owners are going to use them in their new boat.

    As to why there is such a large cost difference between the two, I'm not sure. But as I recall you could get two Seakeeper systems for the cost of a Zero Speed upgrade to an existing system alone.

    As I mentioned, I like the gyro concept. No fins sticking out to hit or catch on anything. Less drag. And no bearings or leaky seals to deal with or replace from time to time.
  14. MaxPower

    MaxPower Senior Member

    Joined:
    Oct 3, 2008
    Messages:
    427
    Location:
    At Sea ... Aahhh ...
    I had the Mitsubishi ARG's on my Ferretti 630 & have to say that they did make a difference when switched on. It took approx. 20 mins to spool up to full speed but worth the wait. The could be used at anchor or while underway.

    The other difference Capt. Bill11 has not mentioned is that (in my understanding) the fin type can only be fitted on large yachts due to the amount of hardware involved.
  15. PequodII

    PequodII New Member

    Joined:
    Aug 12, 2010
    Messages:
    2
    Location:
    London
    Thanks for the prompt answers, folks. Much appreciated!

    My research entails looking into Riva vs. Wally; any insights more generally? Which would you choose if you had to buy one or the other, and why?
  16. rixter55

    rixter55 Guest

    Mitsubishi ARG test ride

    I got the chance to ride on a bertram 70 the other day. it had the mitsubishi stabilizers installed. what a difference it made! When up on the fly bridge it was so steady we could have made breakfast if we had a grill! Down below where they were running they just sat there, no moving parts, safe as could be. This is going to become standard equipment someday!
  17. phildehazya

    phildehazya New Member

    Joined:
    Jan 6, 2010
    Messages:
    7
    Location:
    Seaford NY
    In a recent issue of Power and Motoryacht, there was an article about one of these gyros installed on a charterboat fishing out of NJ (I think). Quite interesting. Although one of the long-time captains was skeptical, he was quite surprised at it's effectivness.
  18. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Don't count on it. A mechanical gyro will never replace active fin stabilization. While a single axis spinner can offset roll momentum/acceleration, to a certain degree, it can only react to motion. It is not able to provide a continuous counter effect in the same way as subsurface fins with water passing over them.

    Because these gyro based systems are one dimensional in nature, they can only provide anti-roll assistance. They can do nothing to counter pitch, whereas stabilization fins, such as Quantum and others, can do both. That said, the latter has been geared toward larger applications and isn't always suitable for smaller apps.

    Another potential issue is longevity of gyro-based systems. We really don't have much long term data on reliability. And while you might call me skeptical, gyro reliability in other apps has been known to be spuratic.

    As for these units becoming standard equipment, not at their cost and weight penalty.
  19. tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    I guess these Gyro's have to be installed on the centre line midships, or could you install one off centre?
  20. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Where the gyro is mounted isn't as critical as keeping the center of gravity as low as possible, in effect using the weight of the gyro as ballast. They are typically mounted in the bilge, aft of the engines and between the drive shafts. Not a very friendly environment for a precision instrument. While the optimum mounting point should be closest to the center of rotation, in reality the best place to mount a heavy, mechanical gyro is closest to the greatest mass.
