Discussion in 'Yacht Renderings & Plans' started by Apache2k, Jun 3, 2009.

  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,257
    Location:
    Caribbean
    looking smooth.
  2. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

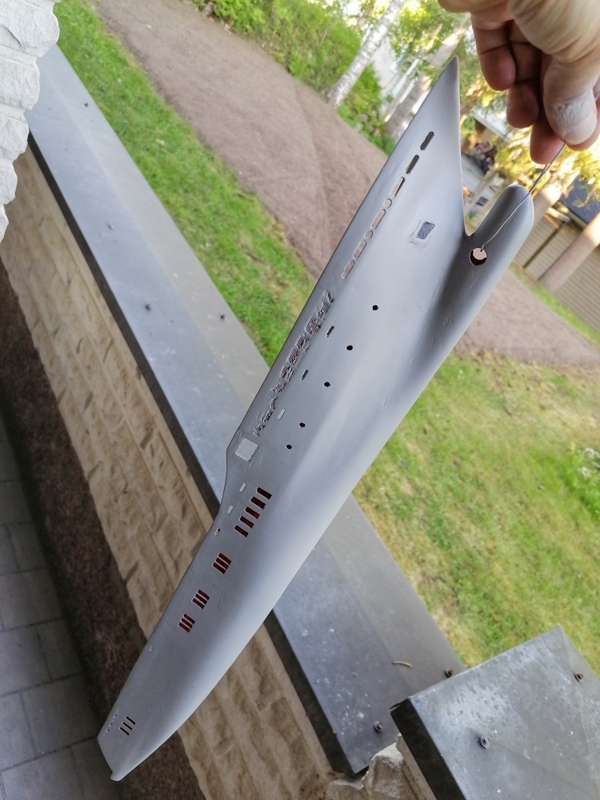

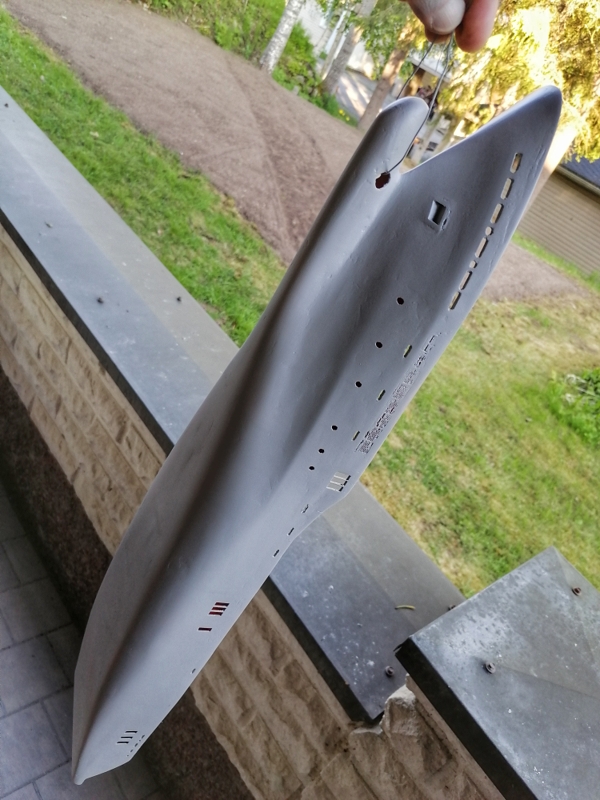

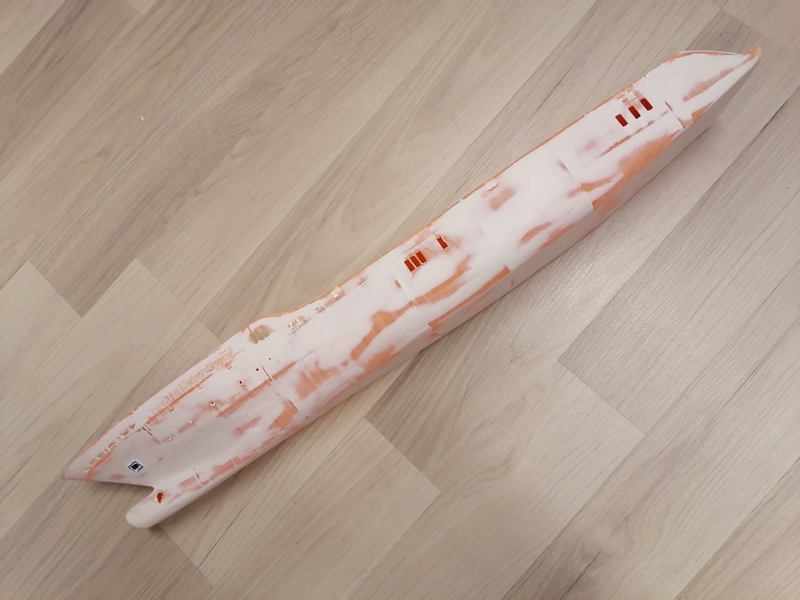

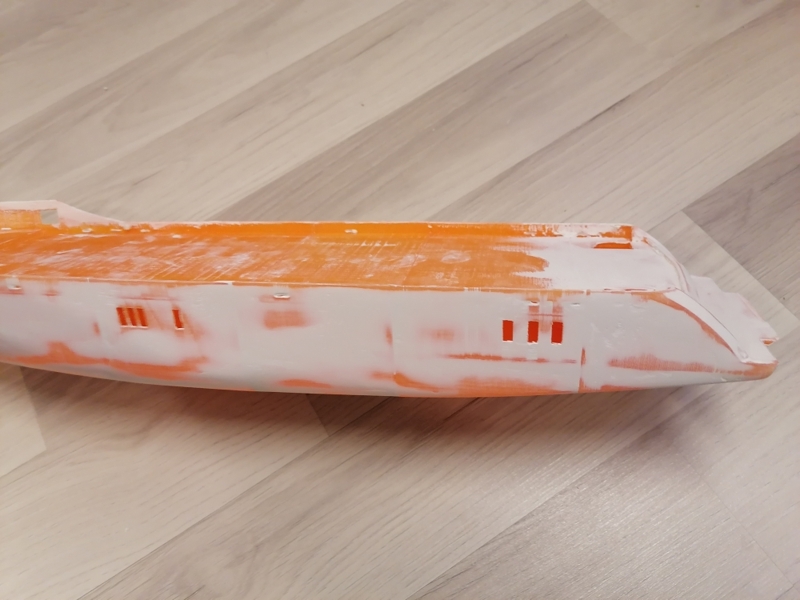

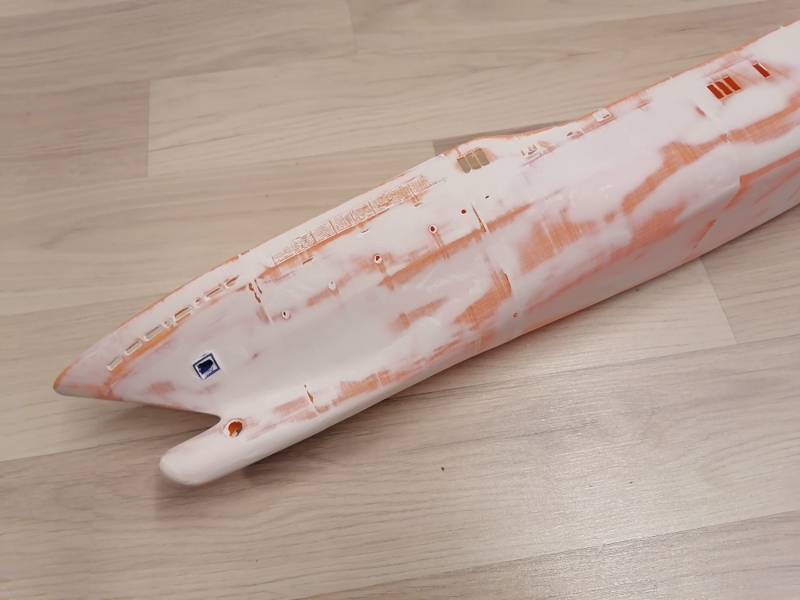

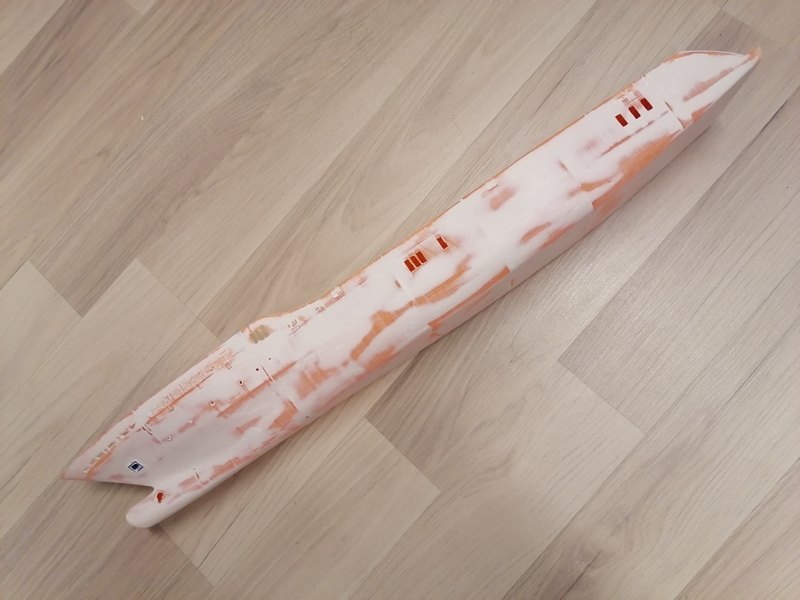

    Prime 1 done. Small details make some problems but I think ill drill them with a metal brush.
    One more sanding and then painting.
    IMG_20230610_211152-01.jpeg IMG_20230610_211142-01.jpeg IMG_20230610_215316-01.jpeg
    Yacht News likes this.
  3. German Yachting

    German Yachting Senior Member

    Joined:
    Jul 26, 2010
    Messages:
    1,938
    Location:
    West Coast
    Are you 3D printing the whole thing and then painting? Would love to see the files on the completed version.
  4. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    Hello
    Yes, every single part is printed in 3d. The files are a huge mess. Back when i did model this i was not thinking that one day i might print it out. So i had to cut and combine lots of parts and see how it turned out.
    When the priming and filling is done, ill paint it.
    My printers details are not so fine so i had to make also some changes to the smallest parts. Also the wood deck seems to be impossible to add. Thats why i'm planning to just paint it in white. Maybe later ill find a better way to do the deck,
  5. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

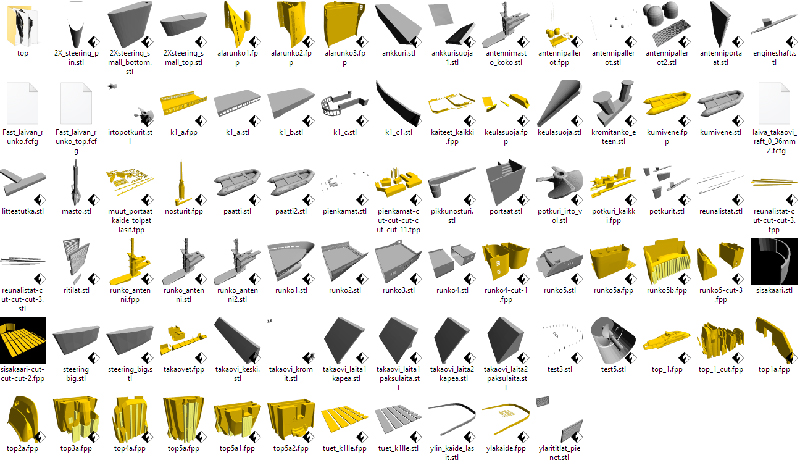

    Here you can see the work folder. Some did work and some not.
    The print are of my creator pro 2 is so tiny that i had to cut in many pieces. It is also very slow so didnt want it render over the night and limited it to max 14 hours.
  6. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

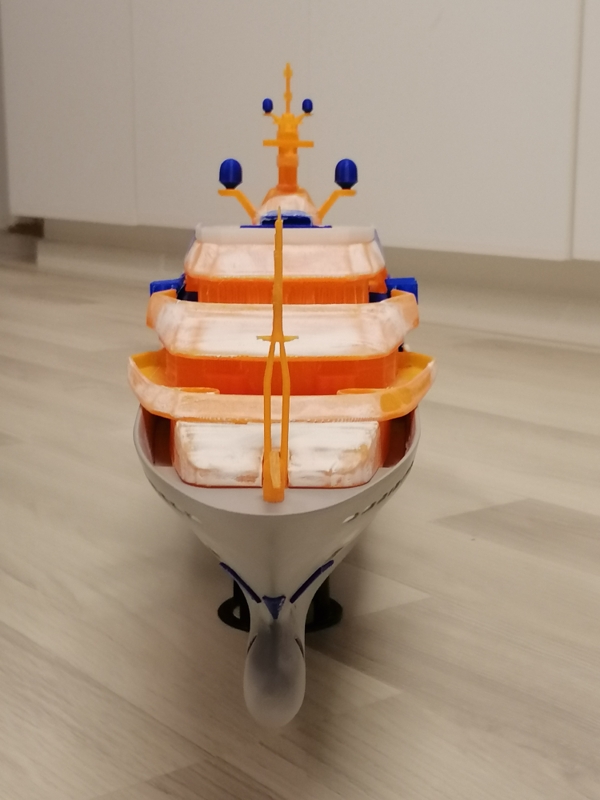

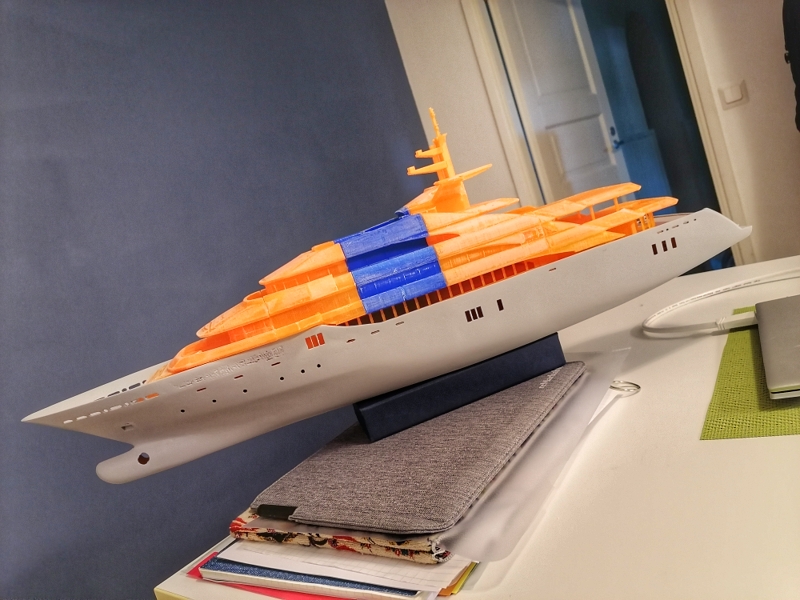

    IMG_20230614_013906-01.jpeg IMG_20230614_013856-01.jpeg IMG_20230614_013651-01.jpeg IMG_20230614_013742-01.jpeg IMG_20230614_013833-01.jpeg

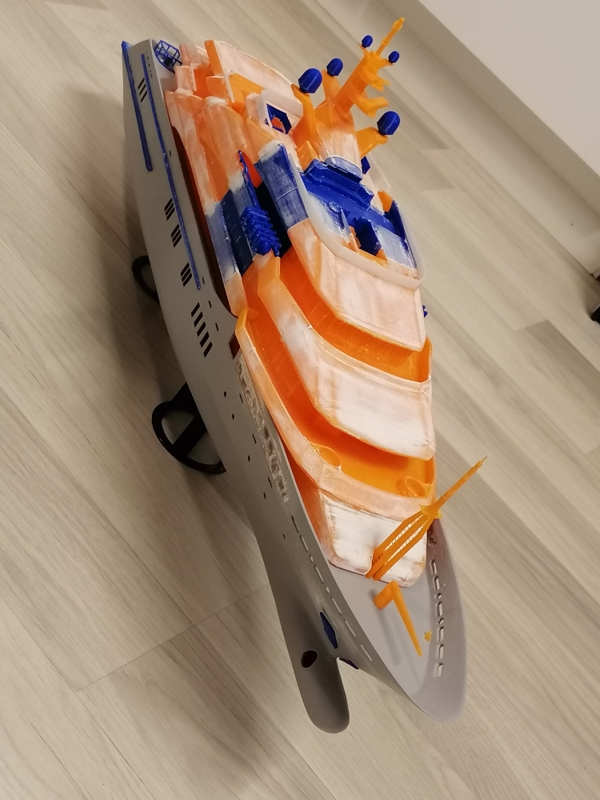

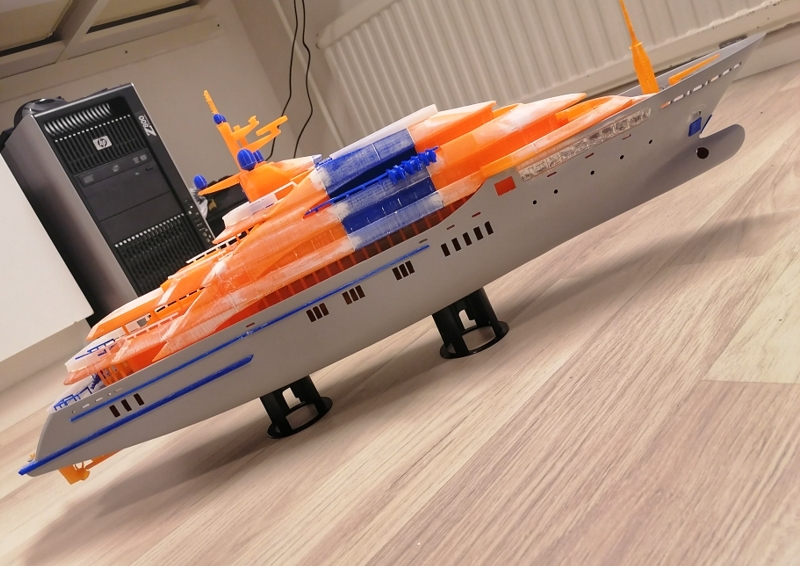

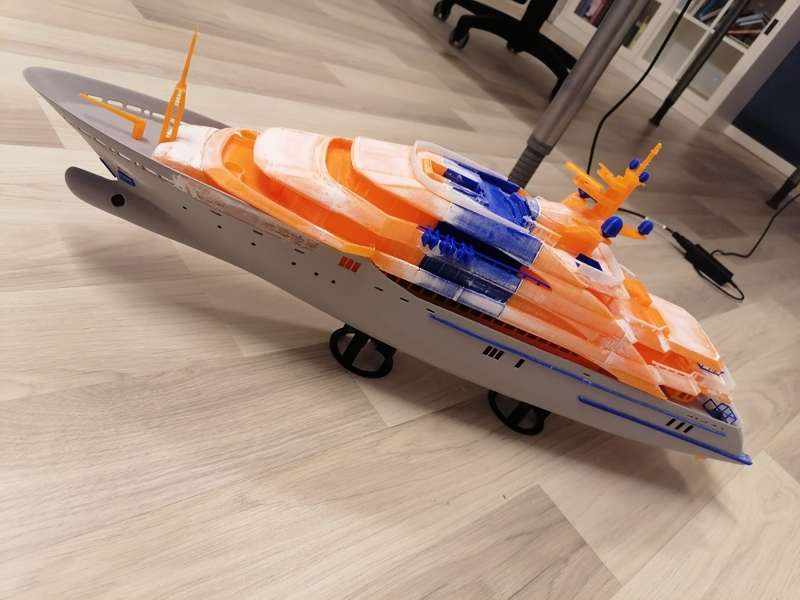

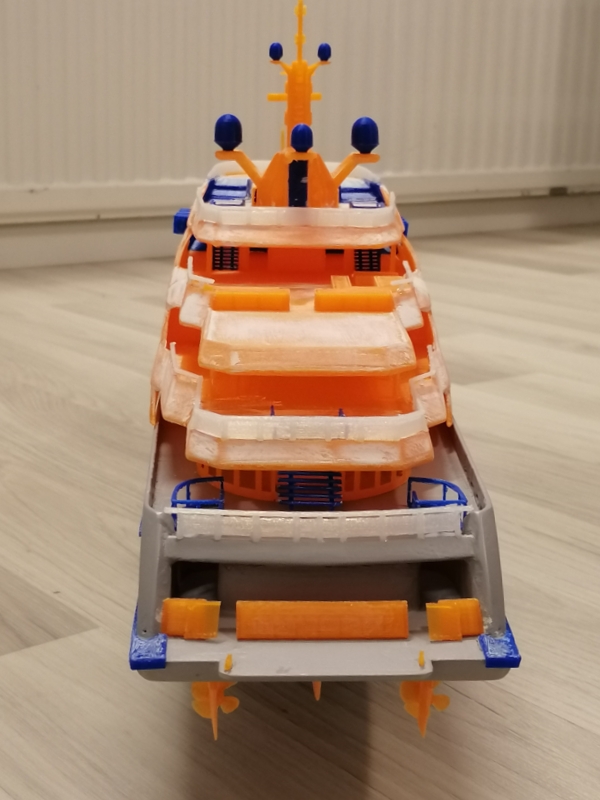

    The last images before makeup.
    Bottom part primed.
    Top part goes to prime and paint.
    Still not glued top and bottom. All the rest are in place and glued.

    Had to skip the clear parts. Was planning to do from clear plastic sheets but won't.

    The scale is too small for my skills and eyes.

    It will be a display model so I'll just pain them.

    Hope in the next post the beauty will come to life.
    Yacht News and Urbsey like this.
  7. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

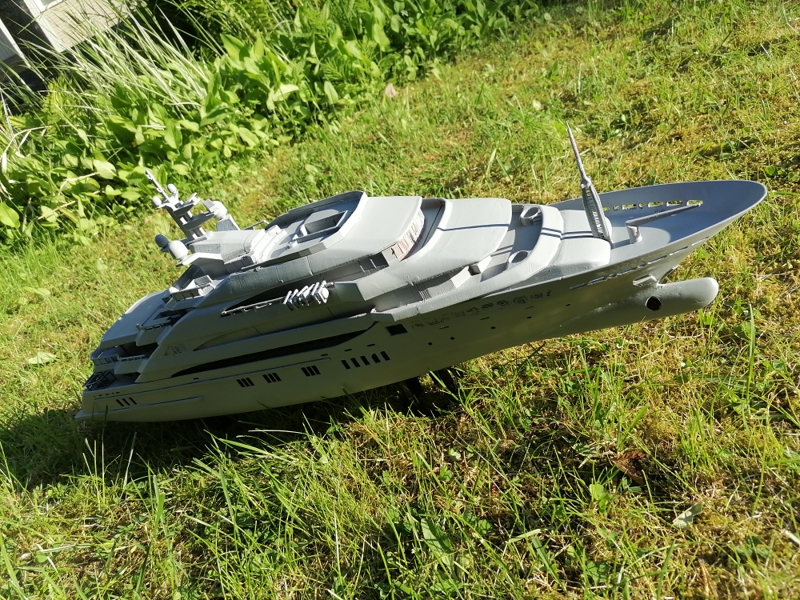

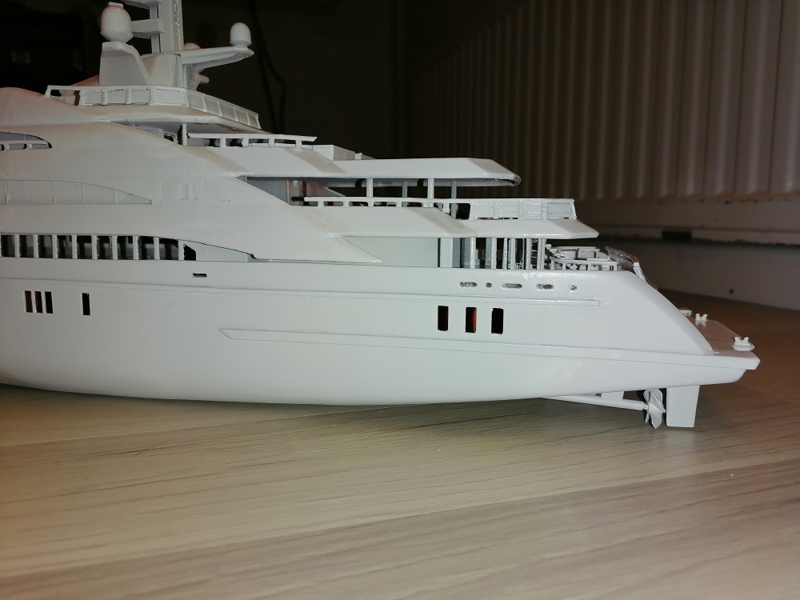

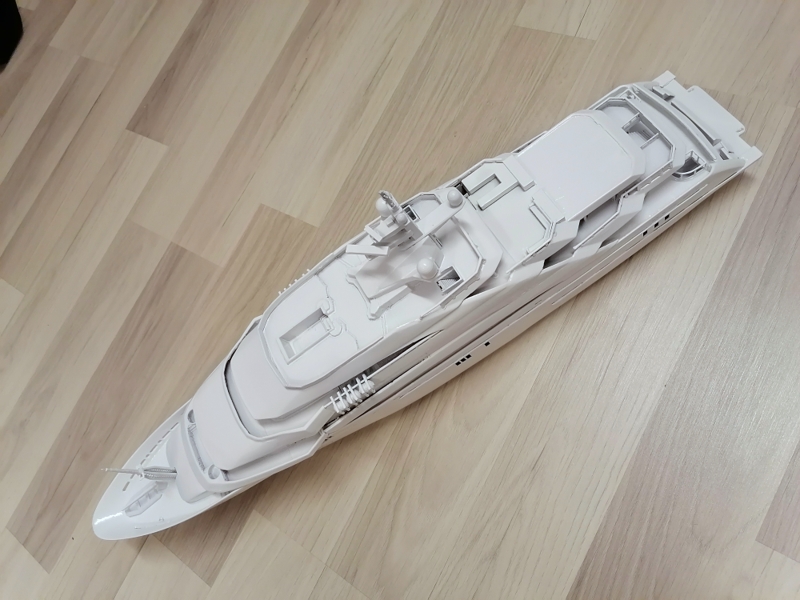

    IMG_20230614_195359-01.jpeg IMG_20230614_195339-01.jpeg IMG_20230614_195324-01.jpeg IMG_20230614_195313-01.jpeg

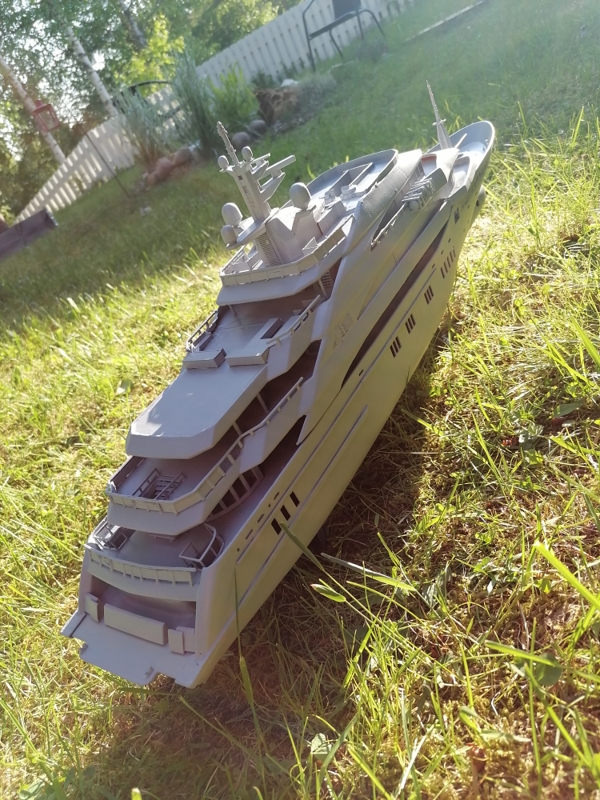

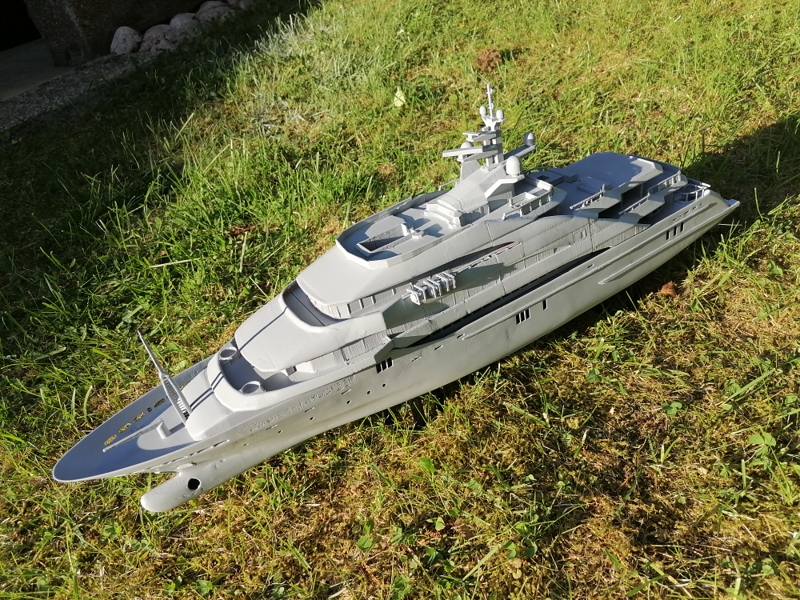

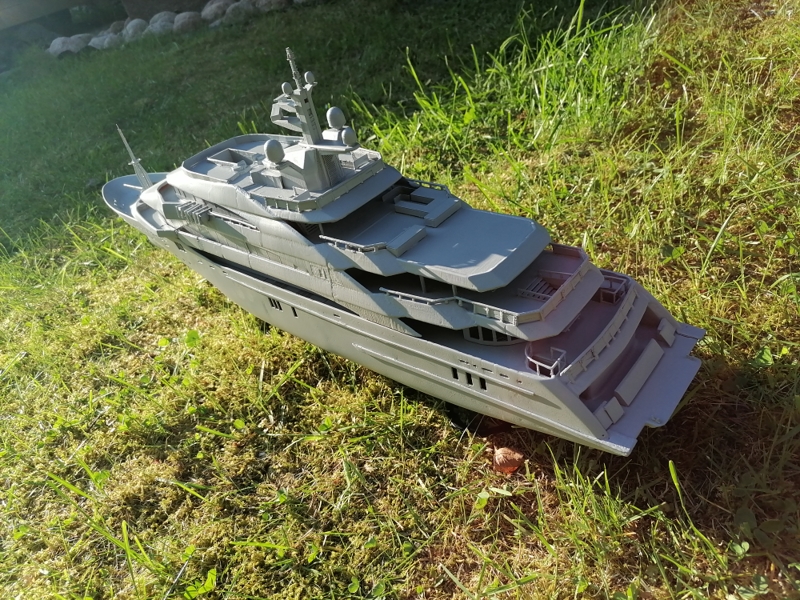

    Primed. Needs some more sanding.
    Made some primer droplets.

    Next white gloss paint on top and black gloss on hull.
    Yacht News and Urbsey like this.
  8. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

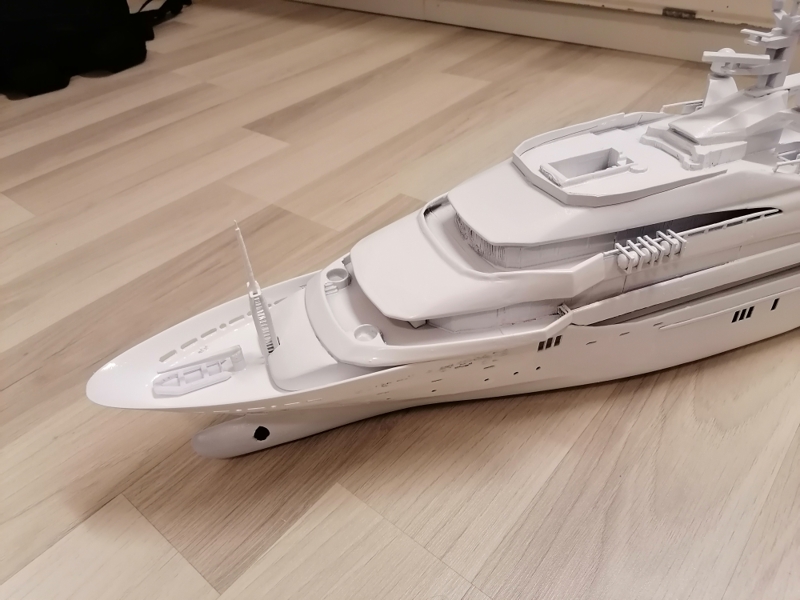

    IMG_20230625_003406-01.jpeg IMG_20230625_003353-01.jpeg IMG_20230625_003342-01.jpeg IMG_20230625_003420-01.jpeg IMG_20230625_003444-01.jpeg

    Hello friends.

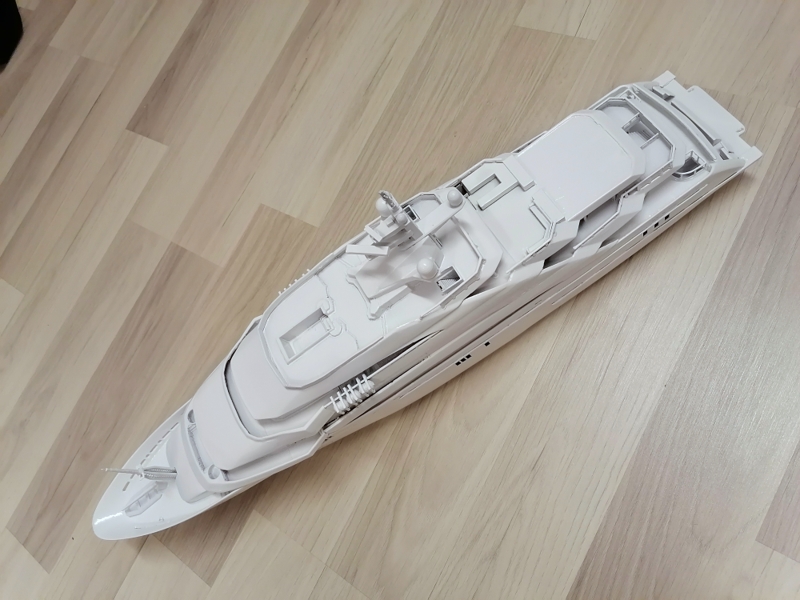

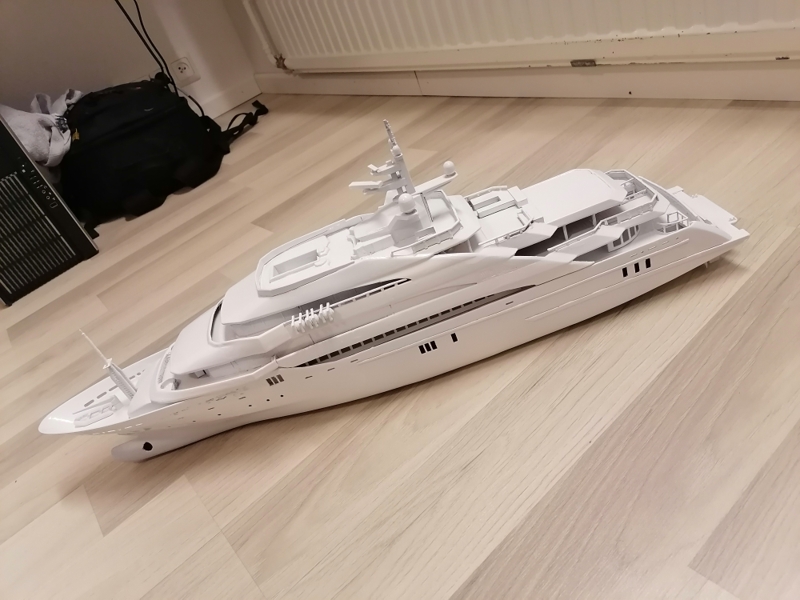

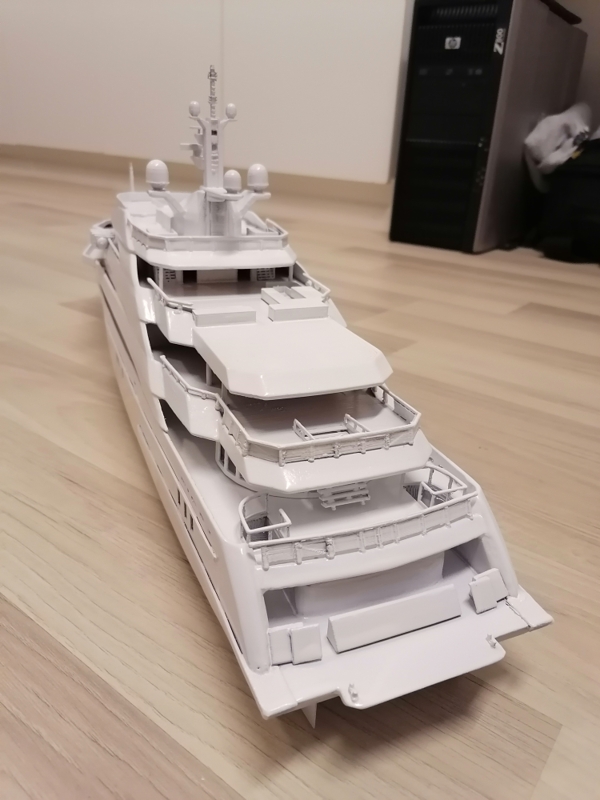

    There is the beauty. First coat white. Some sanding on the paint and one thin layer of paint. Bottom part will be black. Like the original painting.

    Only question is how to do the wood deck. I still think ill skip it.

    Suggestions?
    Yacht News and Littleboatdu like this.
  9. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

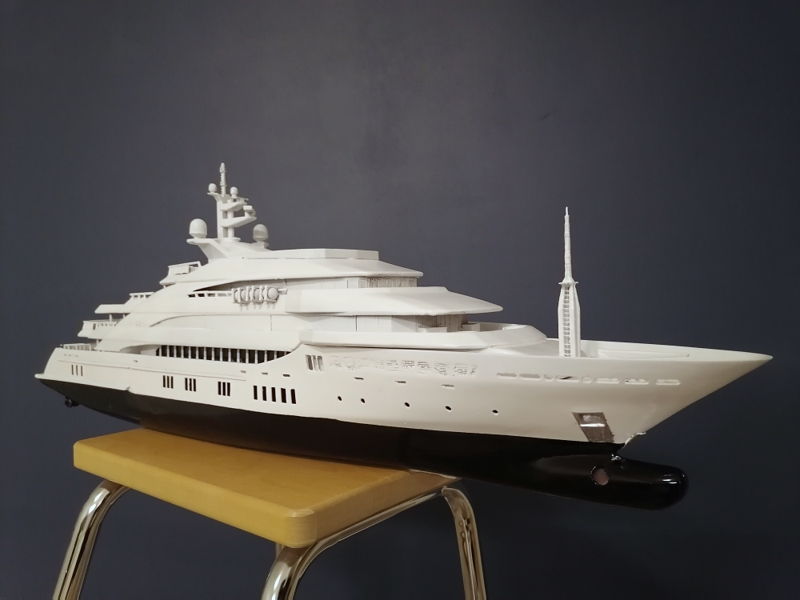

    IMG_20230702_011114-02.jpeg IMG_20230702_011136-01.jpeg IMG_20230702_011157-01.jpeg IMG_20230702_010926-01.jpeg IMG_20230702_011009-01.jpeg

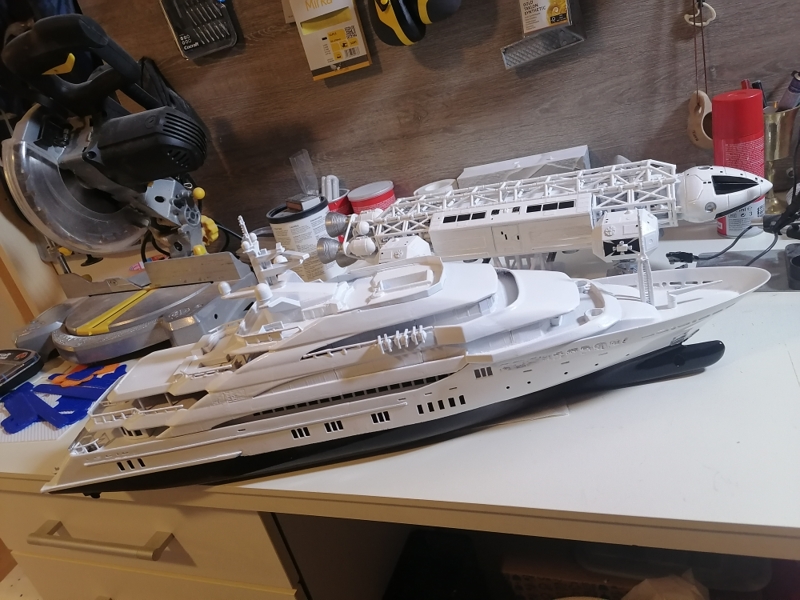

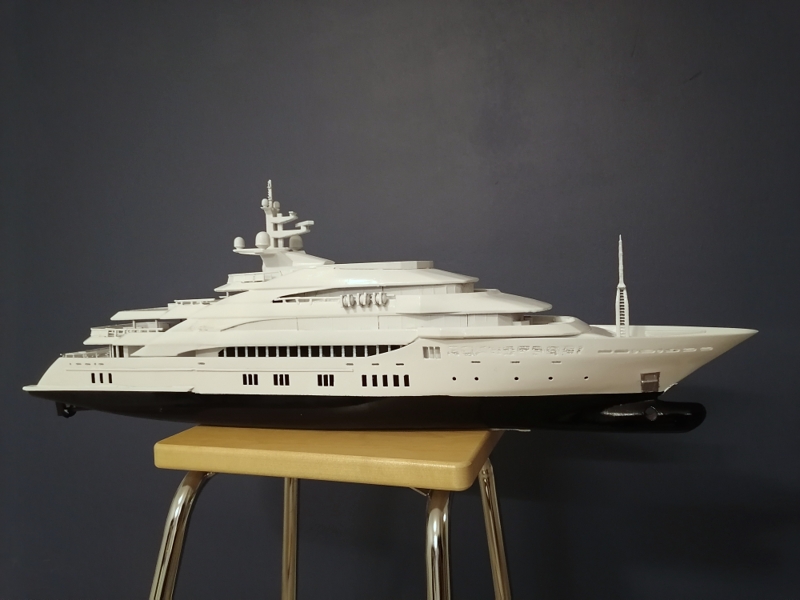

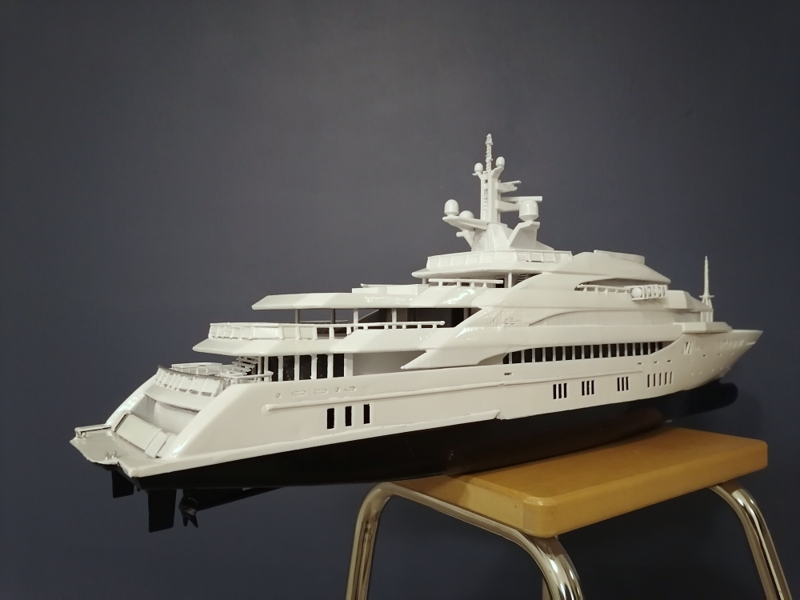

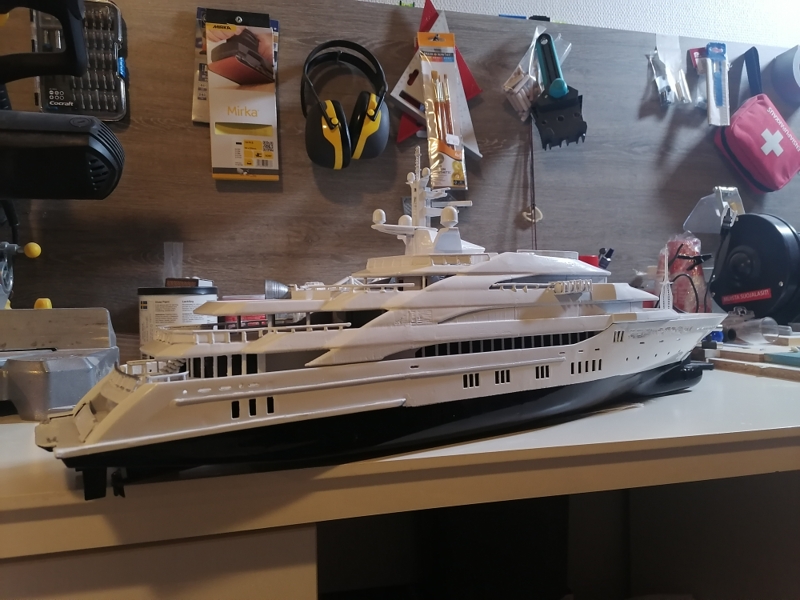

    Now she got her pants. Only the top floor black windows missing. Have to cut lots of black plastic sheets and glue.

    Decided not to glue top and bottom parts. Easer to maintanence.
    Urbsey, YachtForums and Yacht News like this.
  10. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,257
    Location:
    Caribbean
  11. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

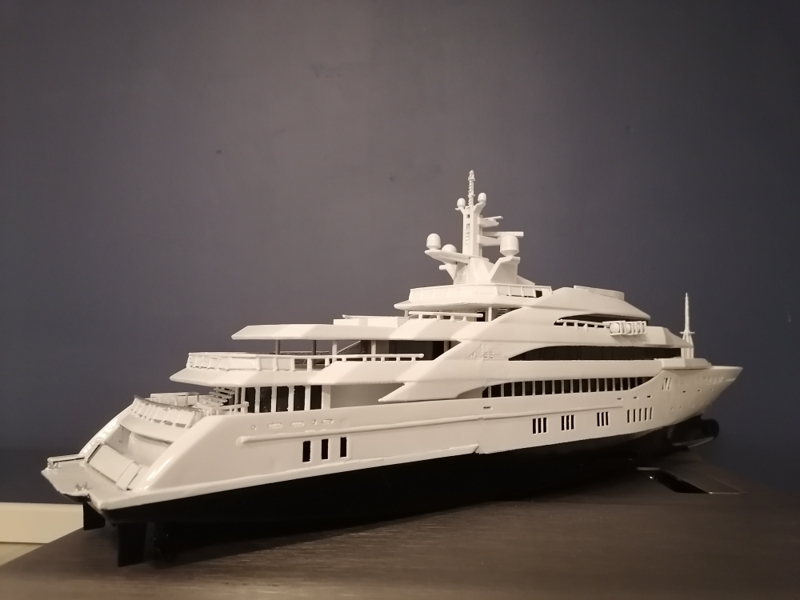

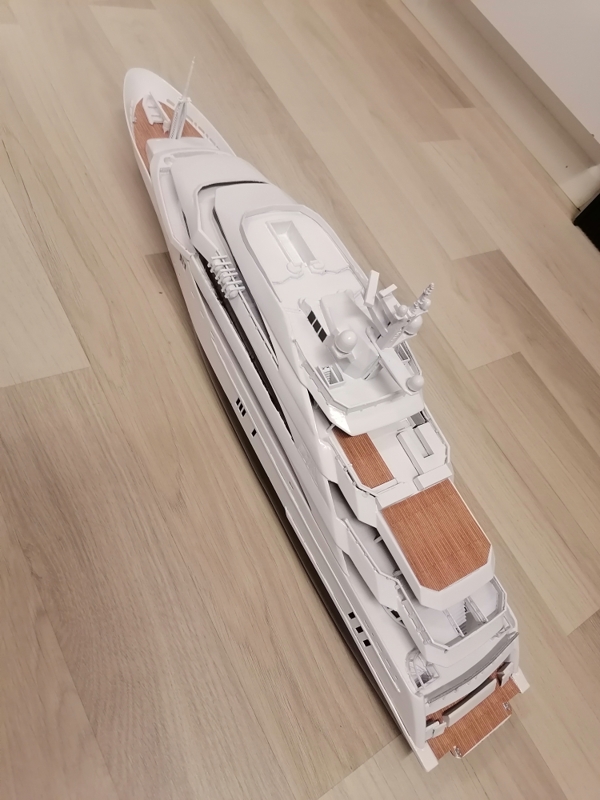

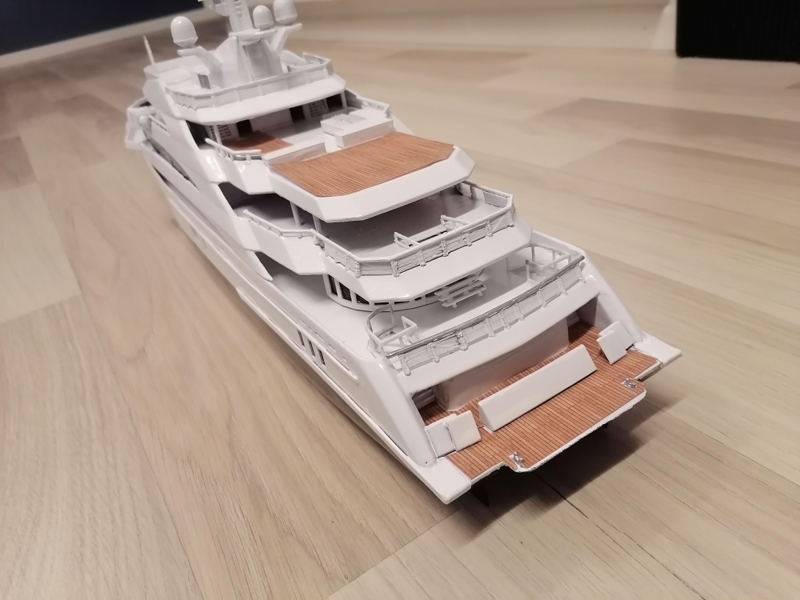

    IMG_20230710_004956-01.jpeg IMG_20230710_004931-01.jpeg IMG_20230710_005009-01.jpeg IMG_20230709_022151-01.jpeg IMG_20230709_023050-01.jpeg

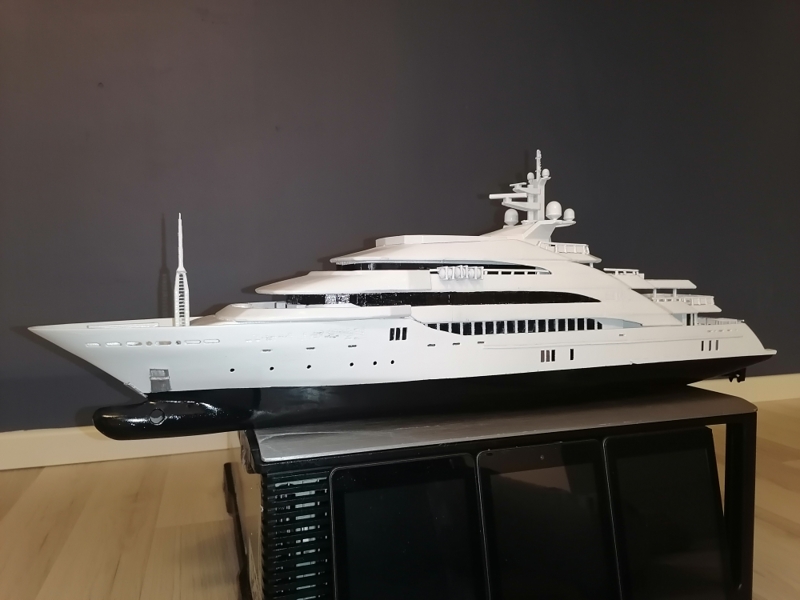

    Final, Mega Yacht.

    One line Windows painted others have glued black glossy plastic. Still my painting skills are horrible. Hands shaking and eyes in bad condition.

    Learned so much with this project.
    If I do it once again this time to 1:100 scale it will be 80cm long, then I sure will make many thinks different. Considering doing it one more, not joking.

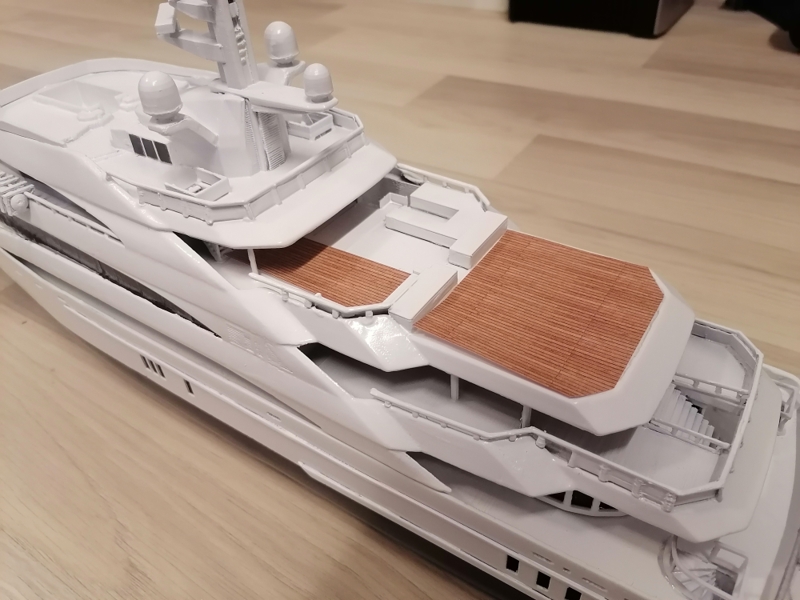

    I call her ready But just trying out printed paper decks. What do you folks think? Will it stick if I glue it over paint and lack spray it Or will I ruin the ship?

    One option is sure to keep her floors white.

    Opinions or any experience?
    Yacht News likes this.
  12. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,257
    Location:
    Caribbean
    continue to add the printed teak decks.
  13. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

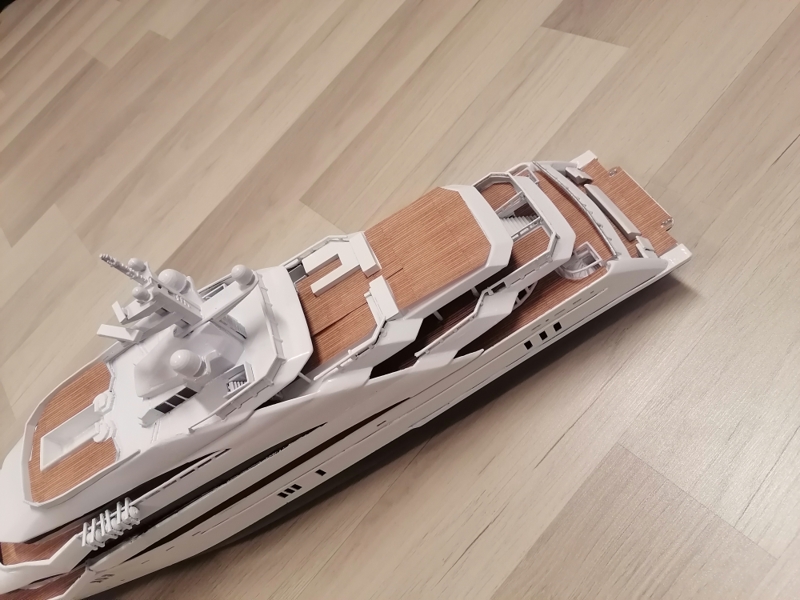

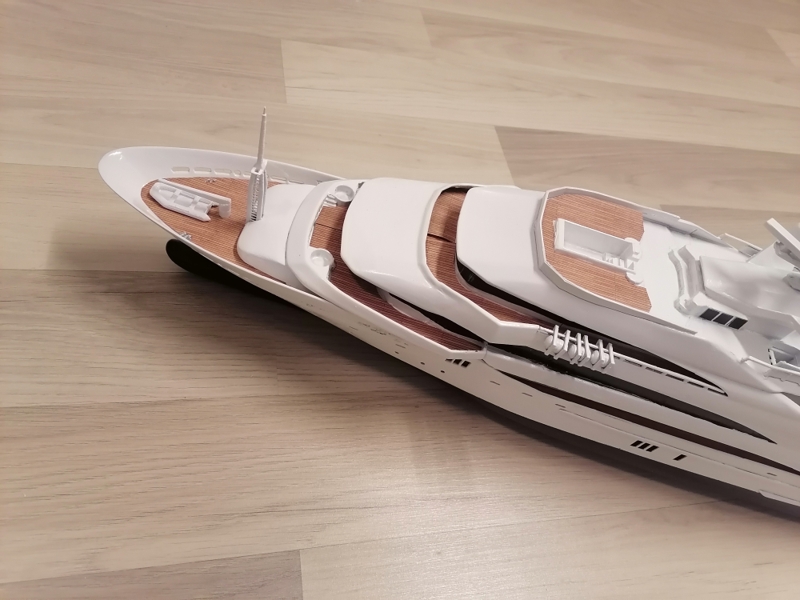

    IMG_20230723_010422-01.jpeg IMG_20230723_010434-01.jpeg IMG_20230723_010444-01.jpeg

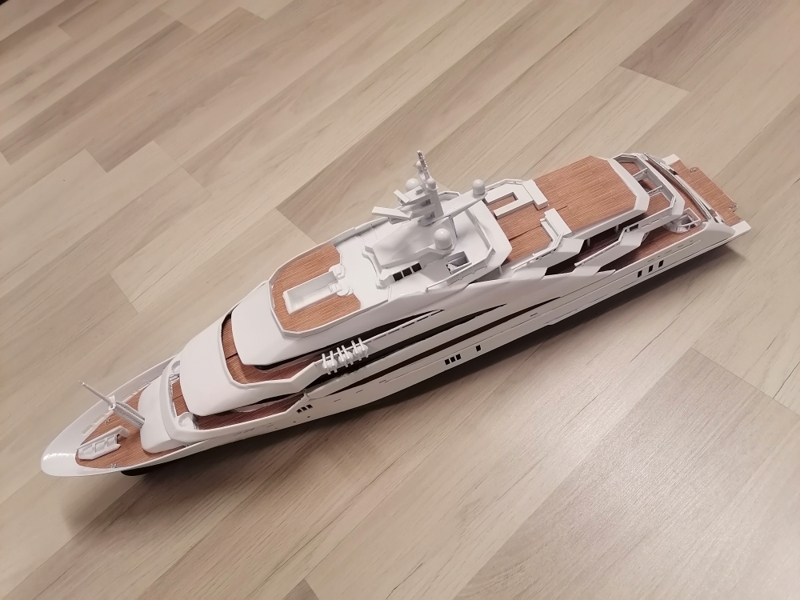

    Hi friends,

    Its been very busy here, not in the mini dry dock but at home.

    Its been also very difficult to cut the teak decks as the gaps are very tiny. However I think it's OK.

    I'll glue it and use varnish spray what people use for paper model.

    The I'll call this ready. Moving on to the next projects. Doing scale models is not even my hobby. Printing and 3d modeling is.

    Happy yachting people to those who have something to sail with.
    Kevin, Urbsey, leeky and 2 others like this.
  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,257
    Location:
    Caribbean
    Amazing outcome...Glad to have seen it from start to finish and all the processes in between.
