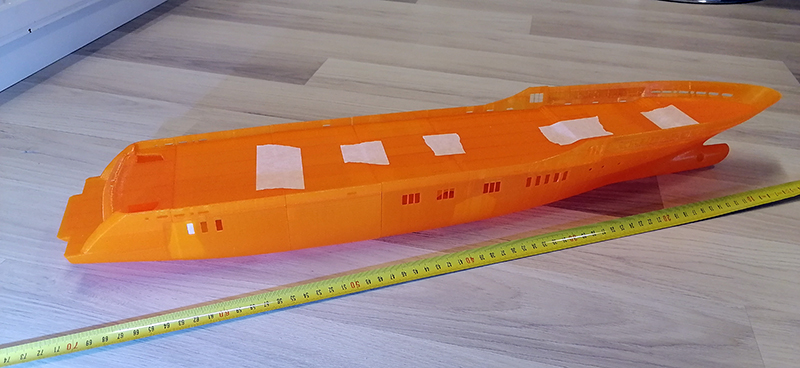

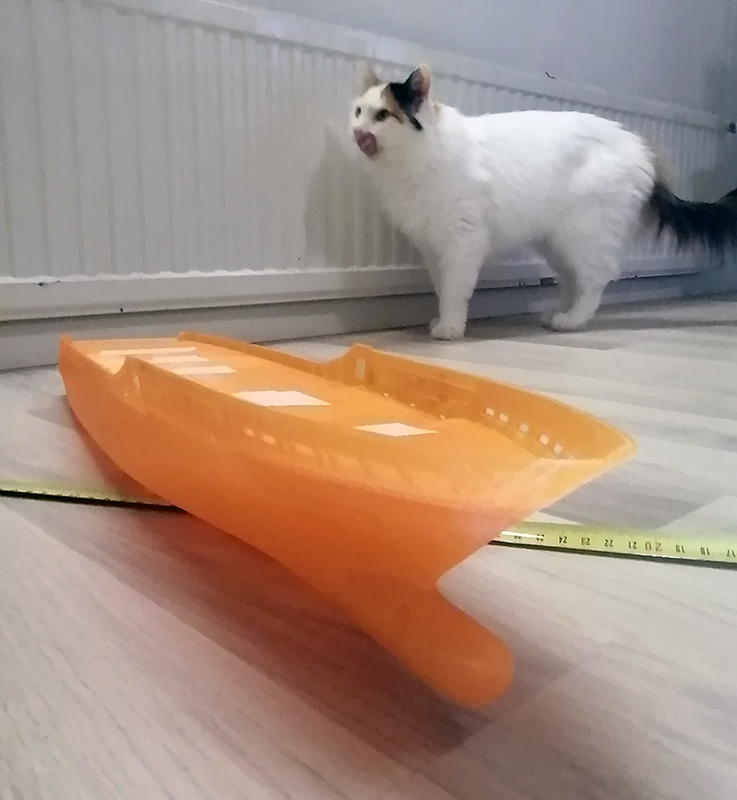

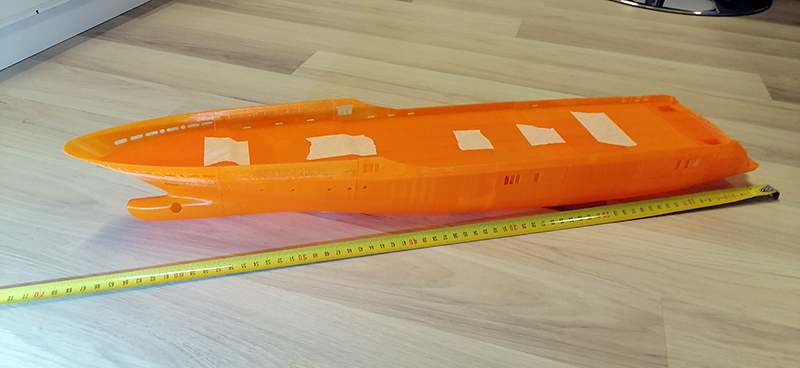

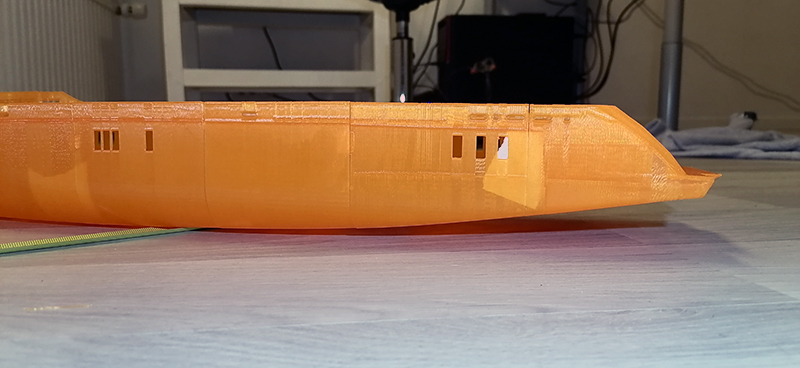

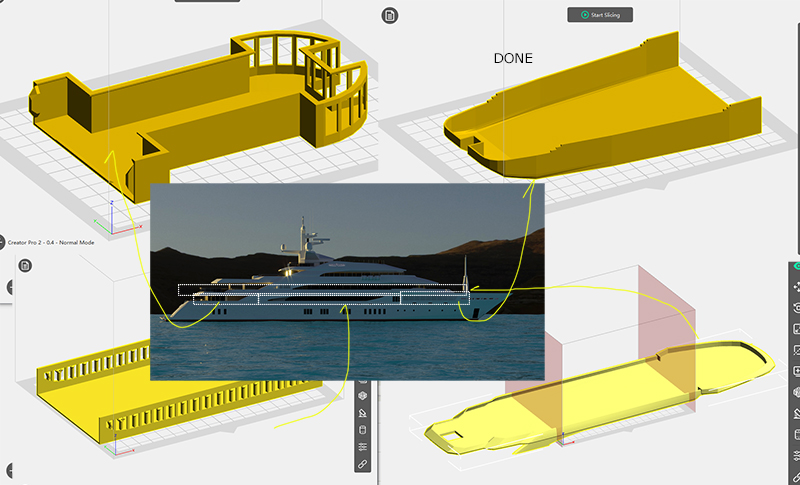

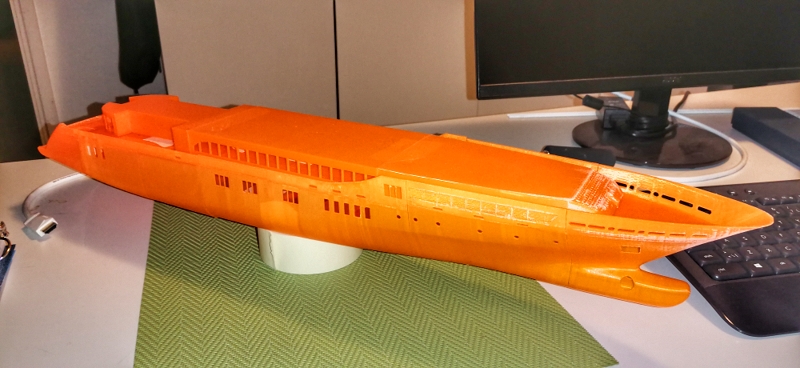

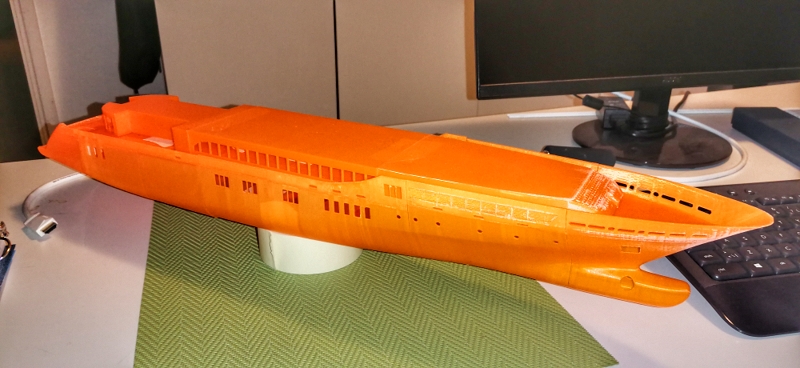

    Today got the hull section ready and taped. I next, i have to decide if ill add lights (some basic or not)
    Next will be the over the hull deck one. I'm sure its not really deck one but i call it so.



    IMG_20230321_212056.jpg IMG_20230321_212127.jpg IMG_20230321_212324.jpg IMG_20230321_212714.jpg Untitled-1.jpg
    Yacht News likes this.
  2. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

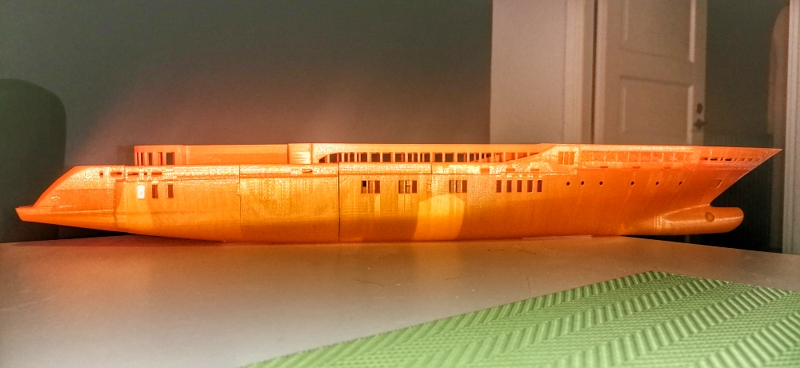

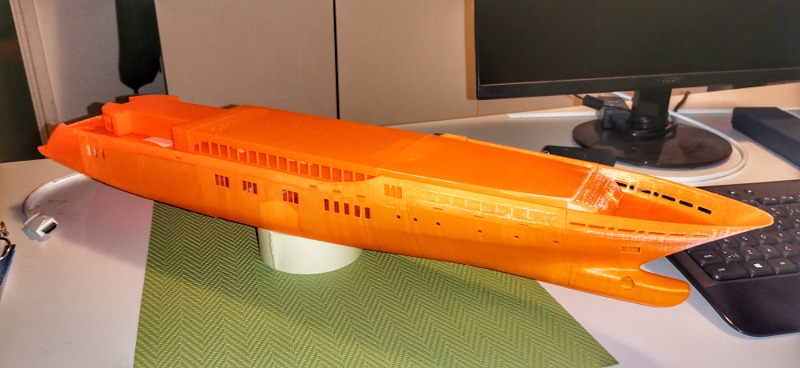

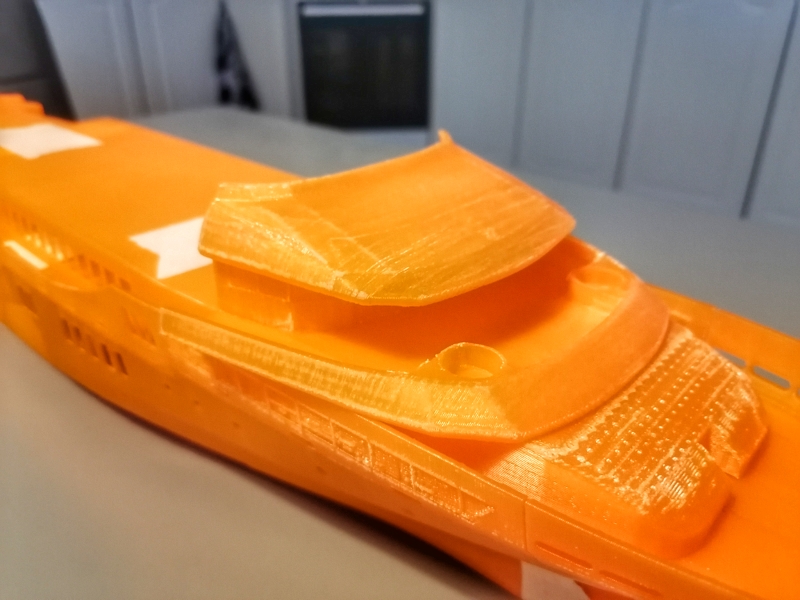

    New update:
    Working on the next floor. From this on I'll print 2 decks at once to give a bit more structural integrity.

    Might take a while for the next update as there is plenty of fixing with the 3d model first.
    Yacht News likes this.
  3. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,854
    Location:
    Caribbean
    Looking great!
  4. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    Thank you. I'm sure it will look better when ready. Resin printer would do a much better job but... Can't have it all.
    Yacht News likes this.
  5. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    And now for some smaller parts. The propellers are actually rotating. They are not fixed.
    Yacht News likes this.
  6. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

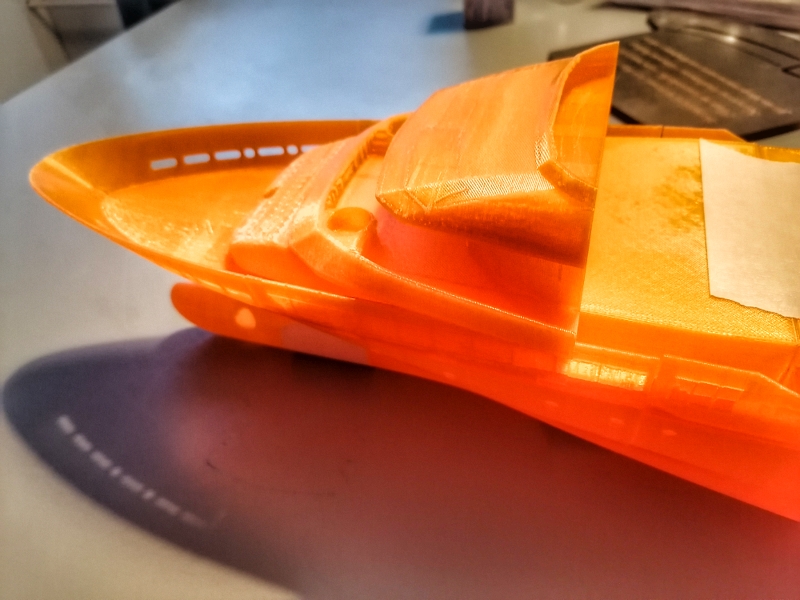

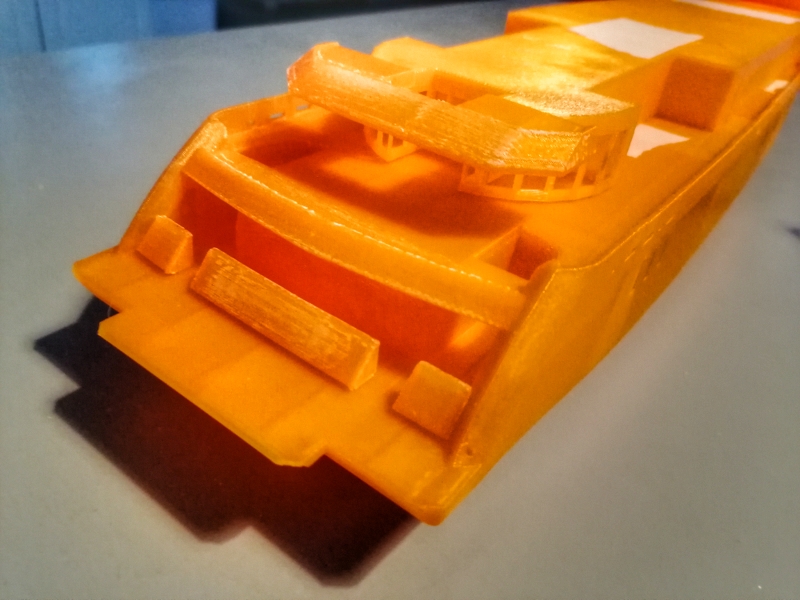

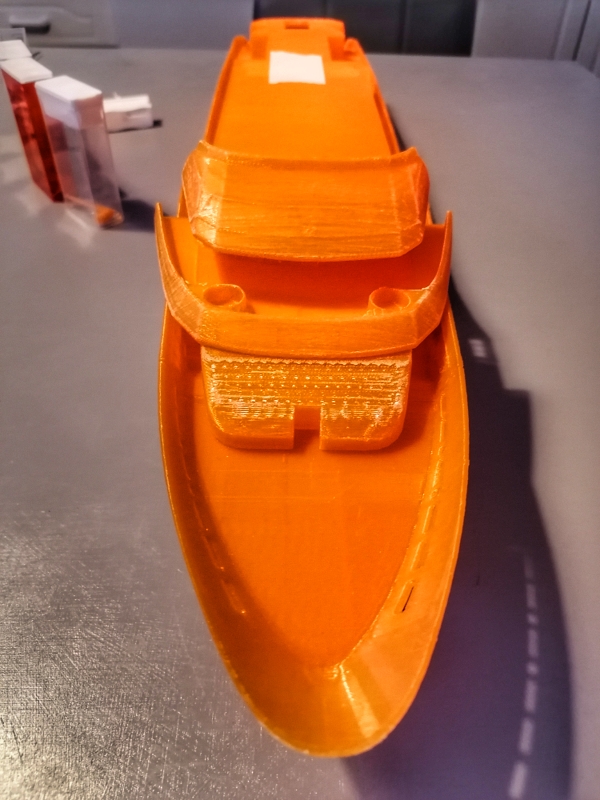

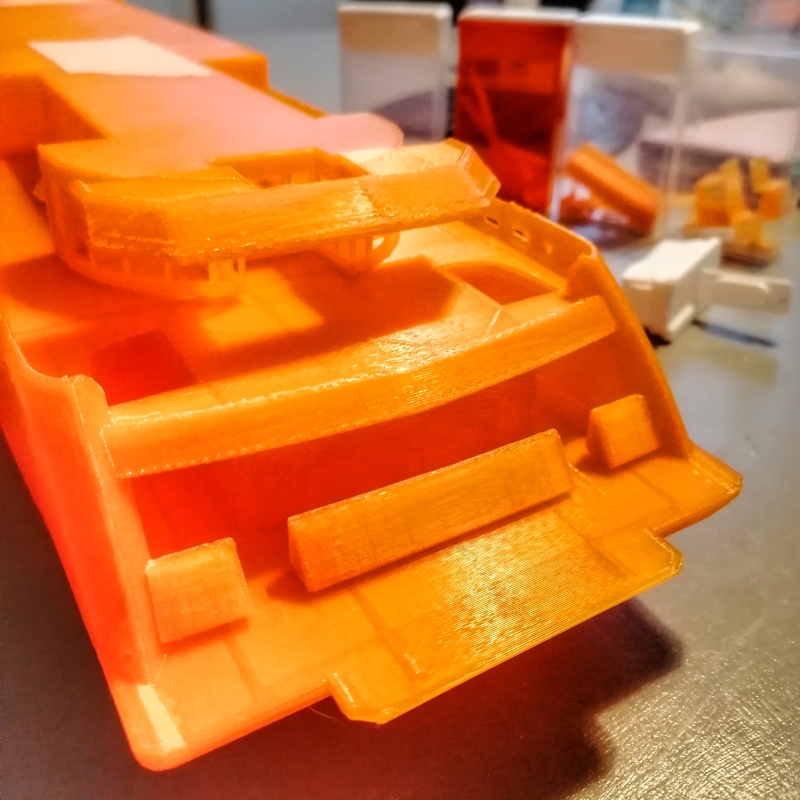

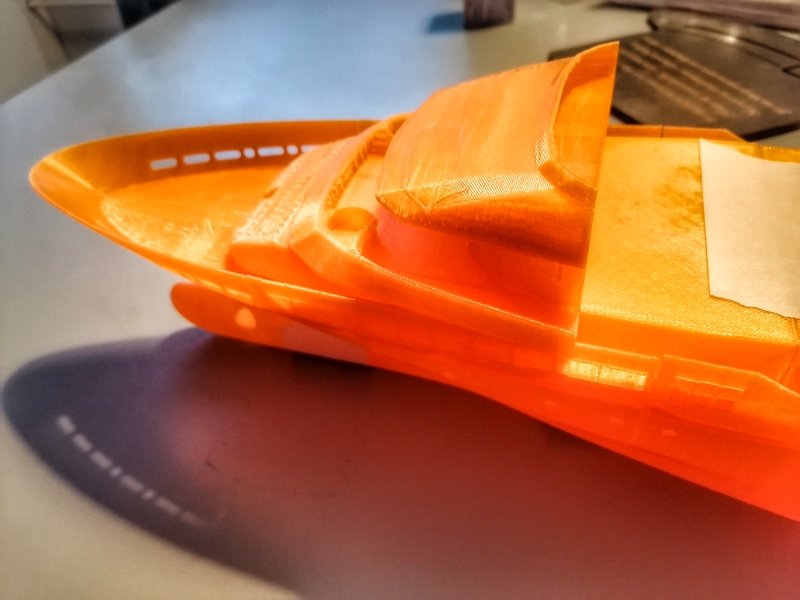

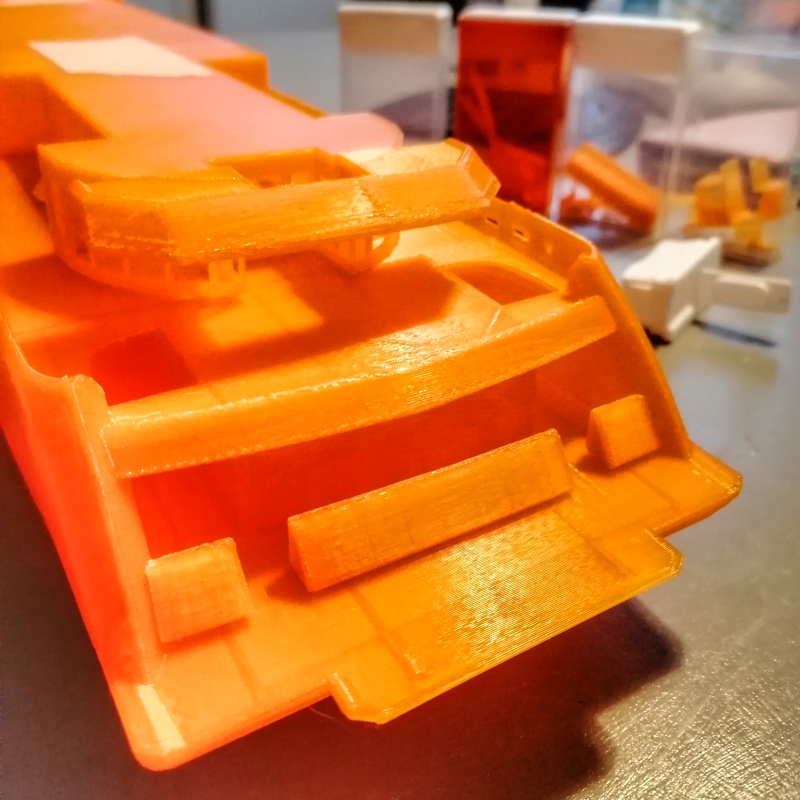

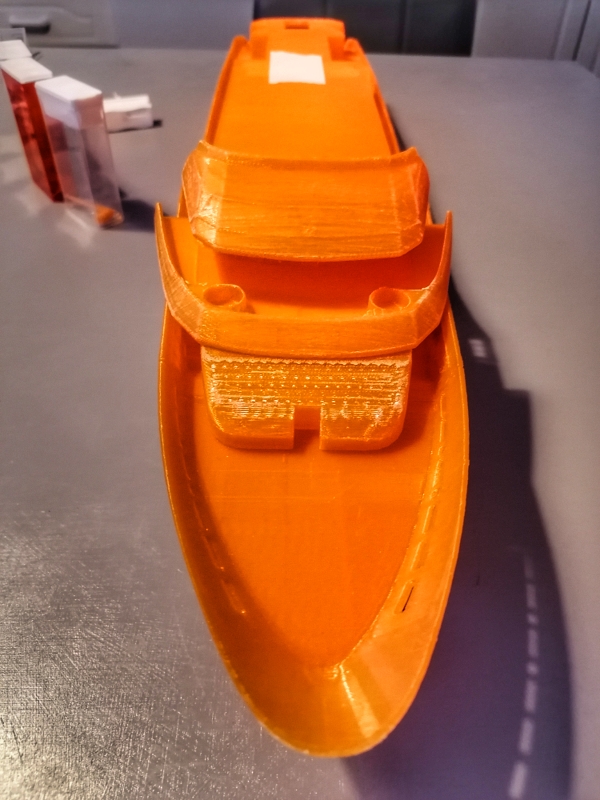

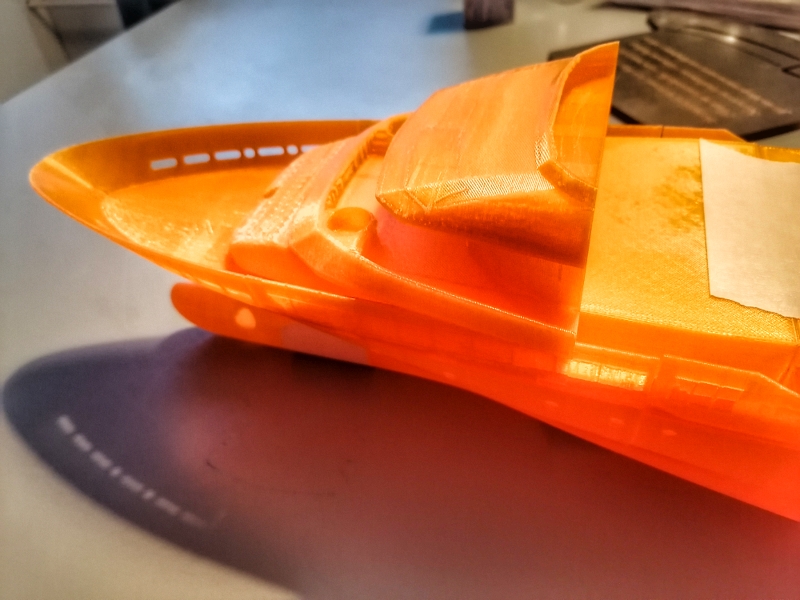

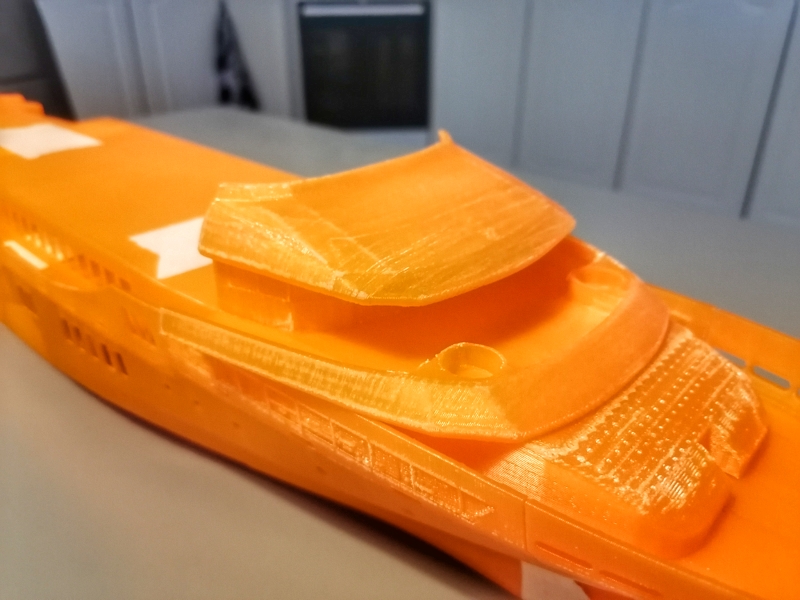

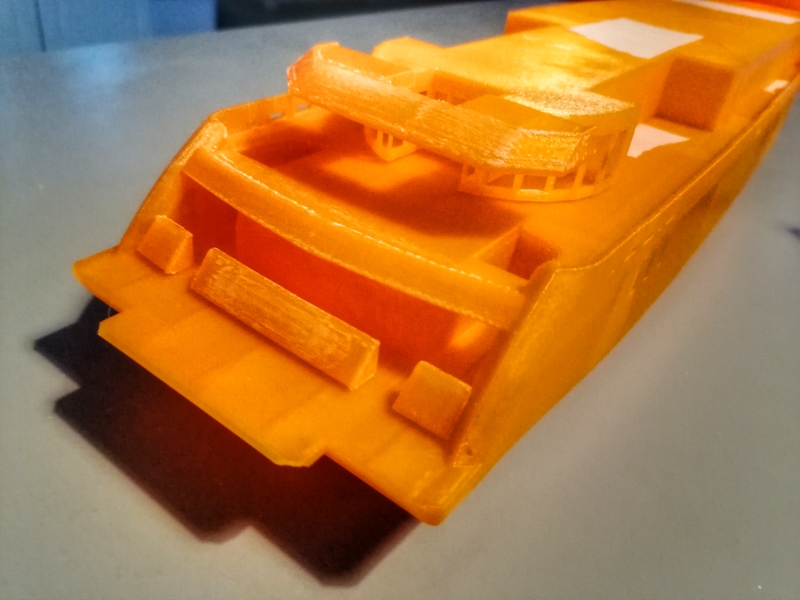

    Time for some new parts update. Still not glued just a bit sanding to see how it forms. Over hdri images as orange pla is not the best material for photos.
    IMG_20230331_195041-01.jpeg IMG_20230331_195210-01.jpeg IMG_20230331_195146-01.jpeg IMG_20230331_195128-01.jpeg IMG_20230331_195100-01.jpeg
    Urbsey and Yacht News like this.
  7. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,854
    Location:
    Caribbean
    Apache2k likes this.
  8. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    Yep, have fixed the model and now its in 5 pieces. Two of them printed and 3 to go. Takes 12 hours to print one section.
    After this is the most difficult part in printing. The small details. Looks like i have to print them in resin.
  9. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

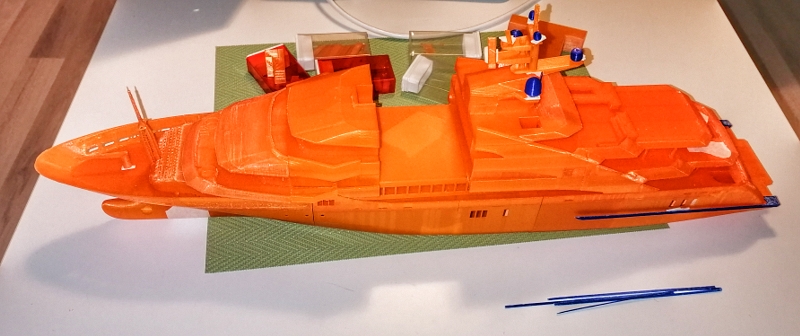

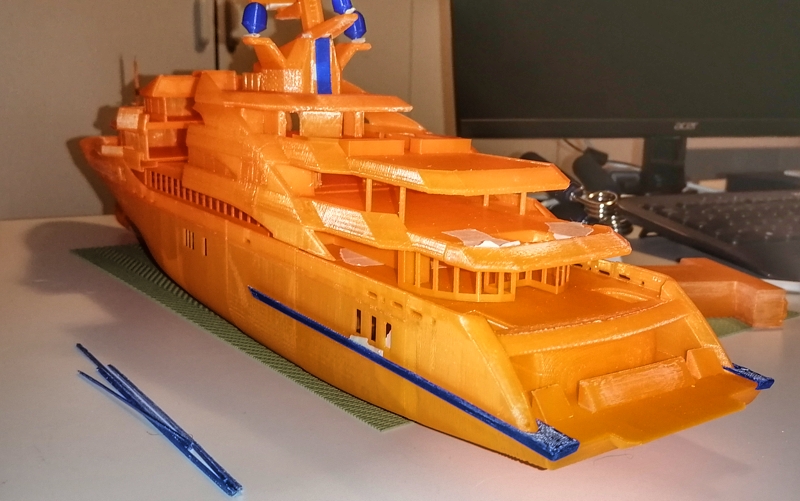

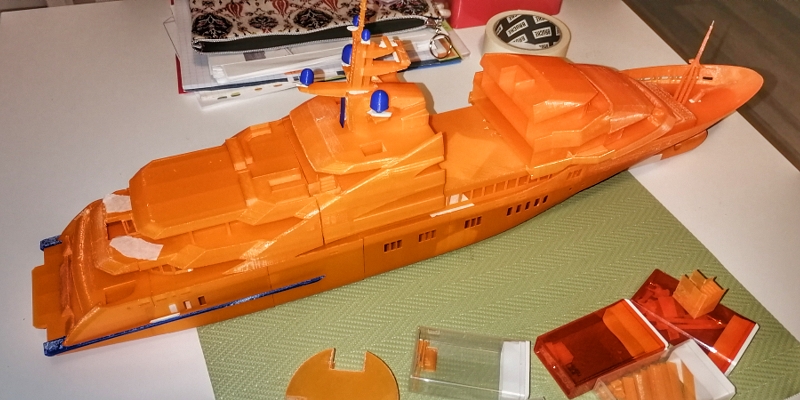

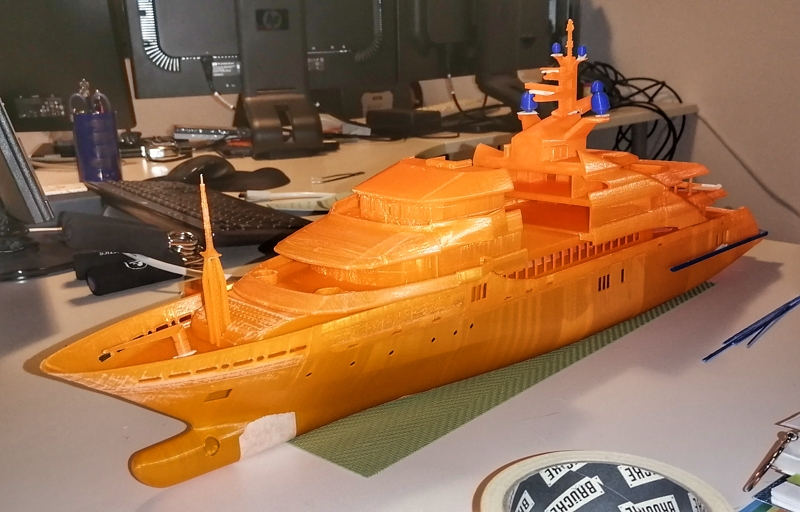

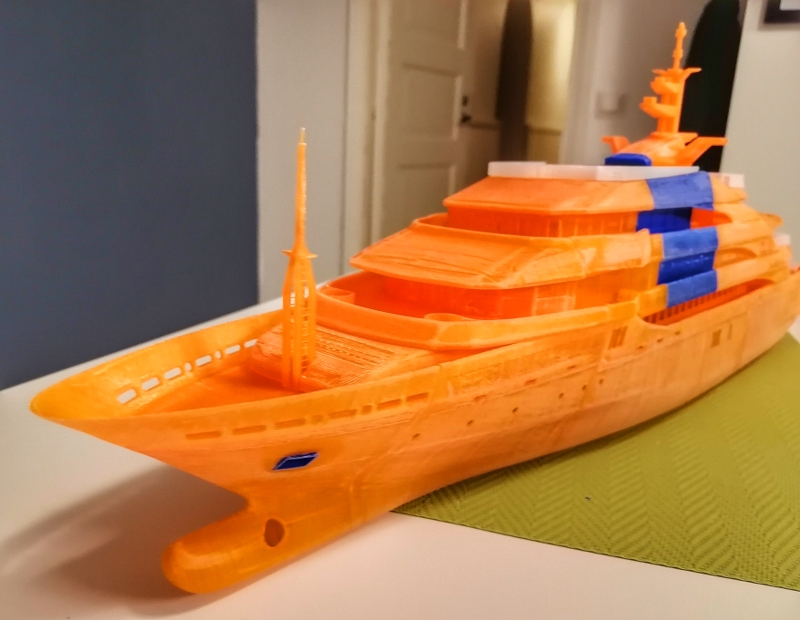

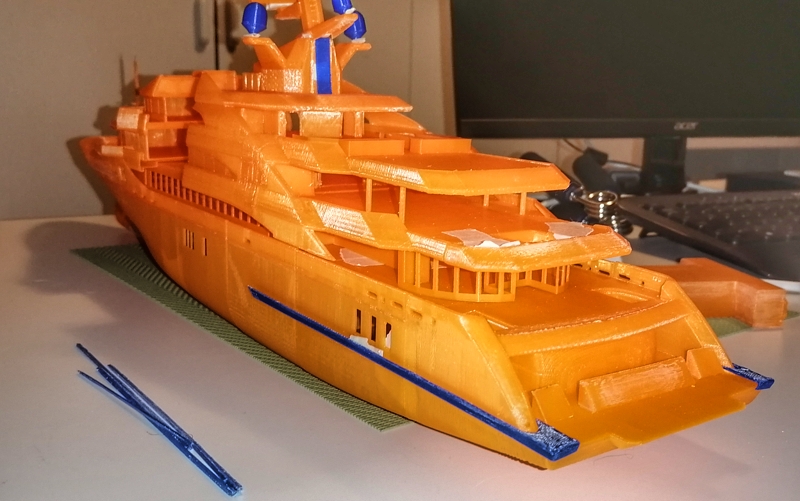

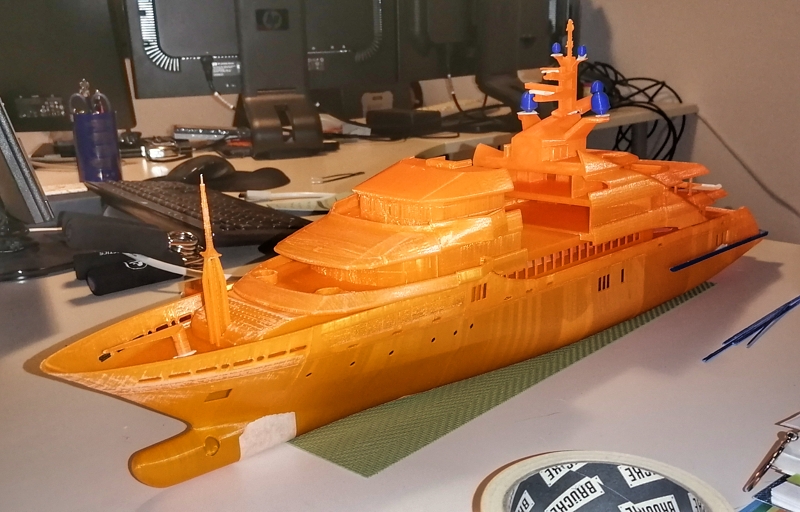

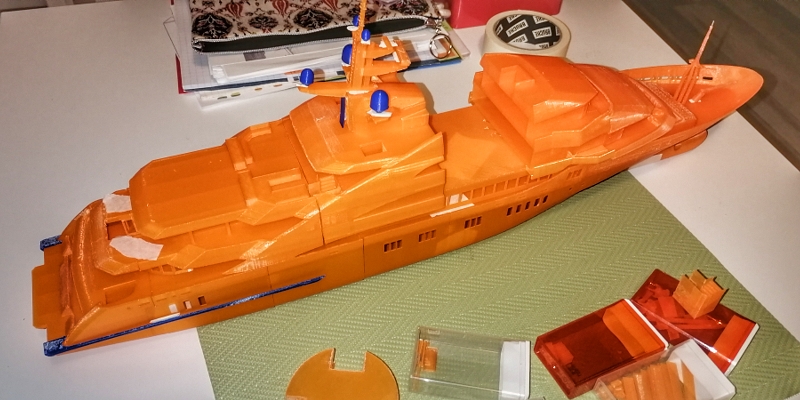

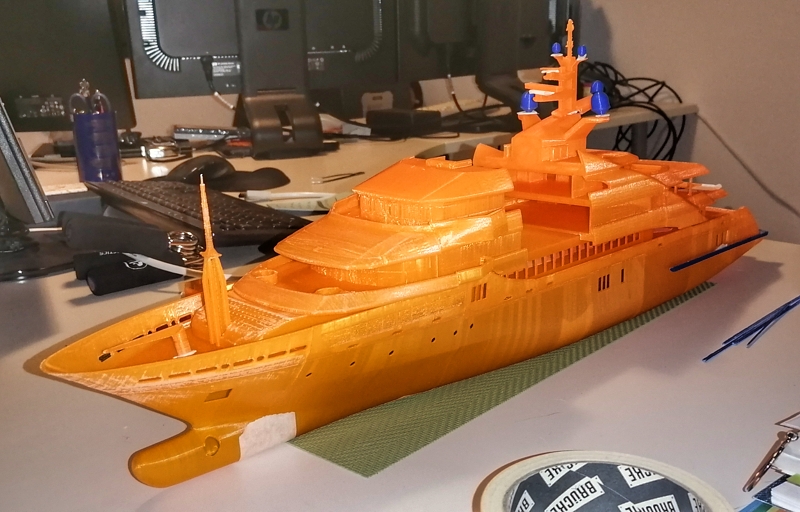

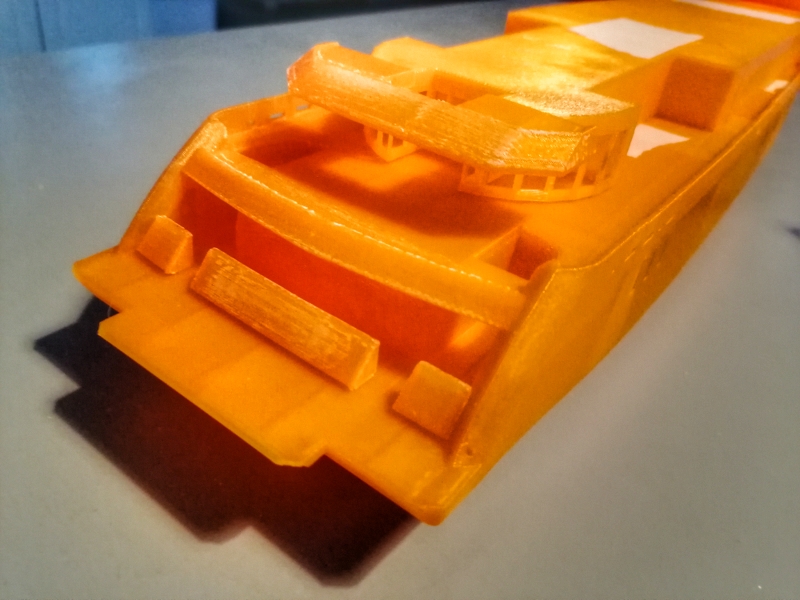

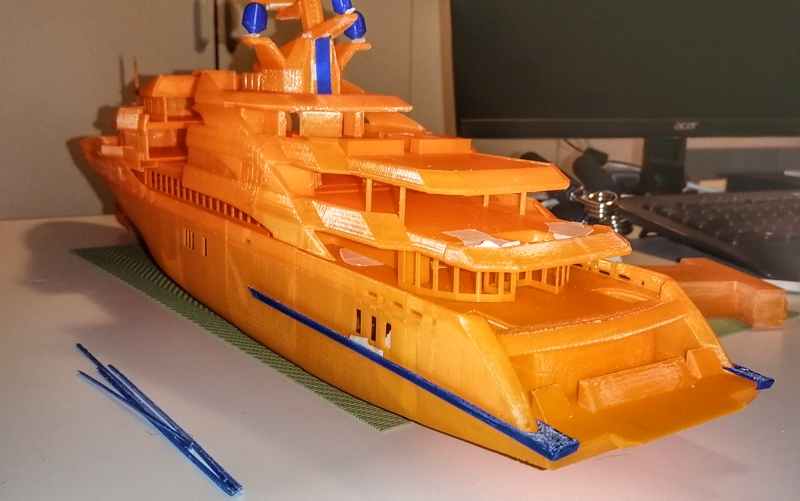

    New update. The final big part is missing. Then I have to decide if I'll print the smallest parts or not.
    You guys have to excuse me for just using tape to hold parts. Didn't want to glue them yet and don't know a better solution.

    The blue stripes on the table will go to the side of the hull. Not sure what are those in real life.

    I need to do much before the glue phase. This is just to see if the edges are flush.

    Priming will bring lots of details as this orange color seems to bee too transparent and the surface is doing some optical illusions.

    The last part will be blue filament. 1kg orange is gone.

    Hope you enjoy this as much as I do.

    IMG_20230412_000016-01.jpeg IMG_20230412_000032-01.jpeg IMG_20230412_000113-01.jpeg IMG_20230412_000057-01.jpeg
    Capt Ralph, leeky, Urbsey and 2 others like this.
  10. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,854
    Location:
    Caribbean
    This is really coming to life!
    Apache2k likes this.
  11. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    29
    Location:
    Fuzhou China
    Great and big job!
    Apache2k likes this.
  12. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

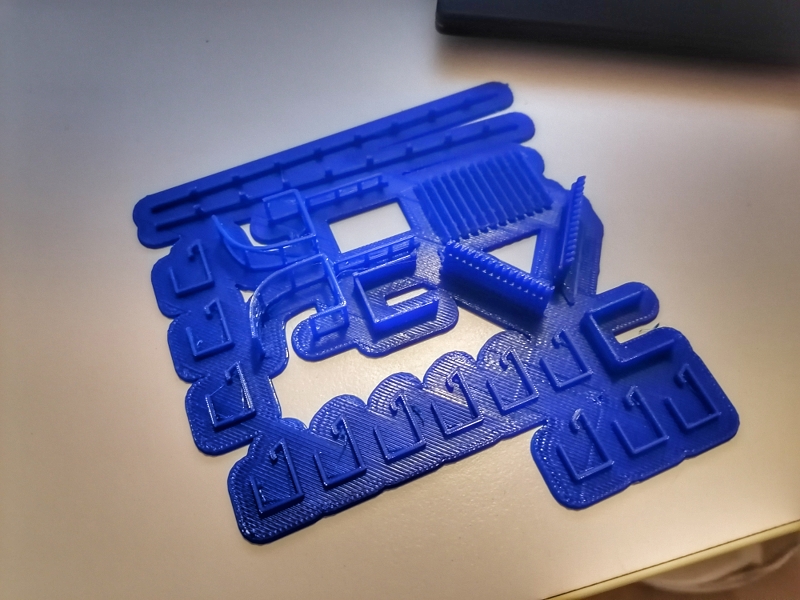

    Thank you. Today printed the final smallest parts. Only the anchor is missing. Will start sanding and glueing parts.

    Will take a long time.
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,967
    Location:
    Satsuma, FL
    Worth the wait.
    Apache2k likes this.
  14. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi

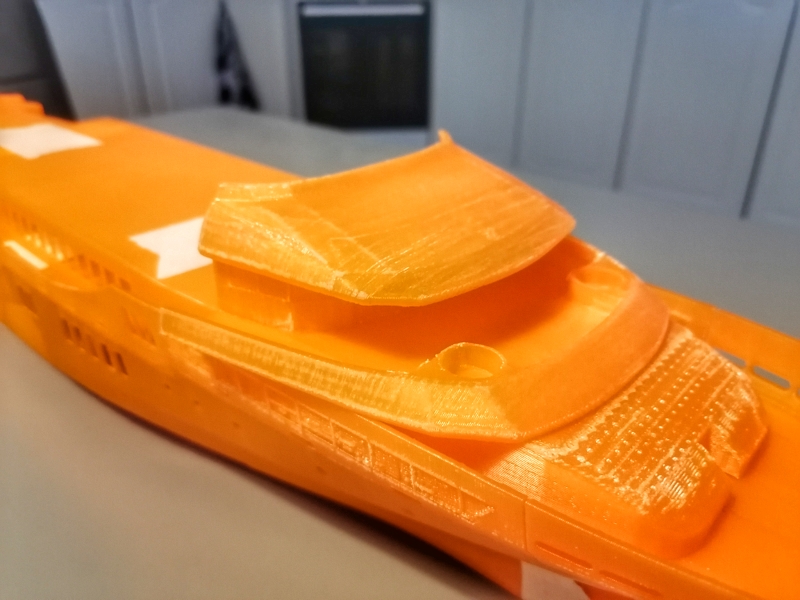

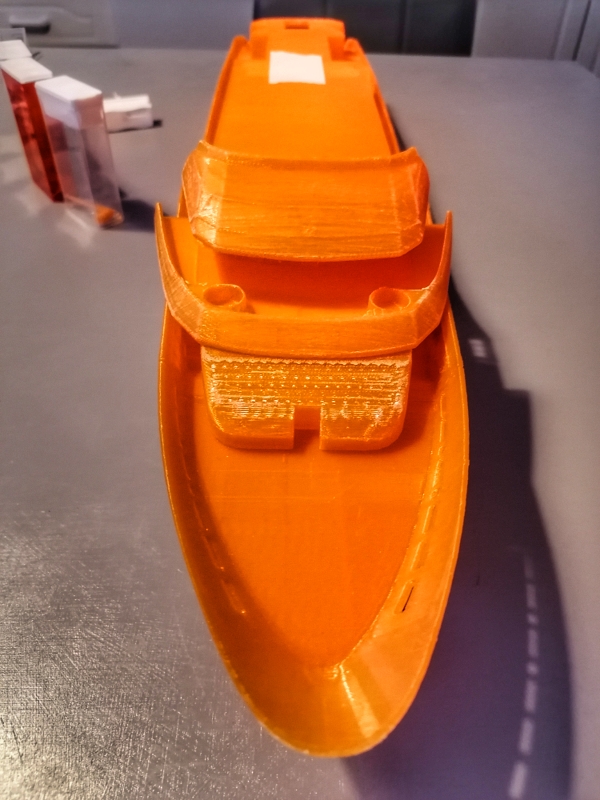

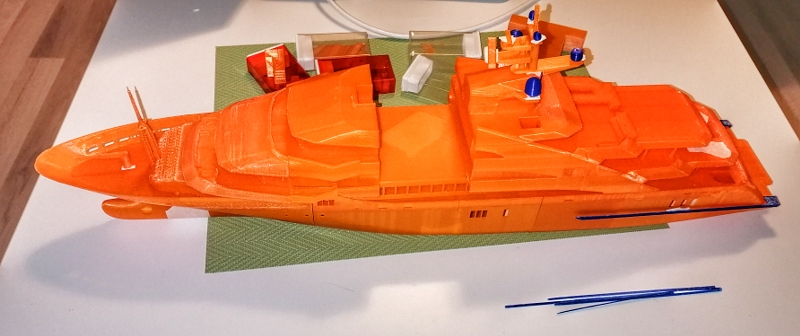

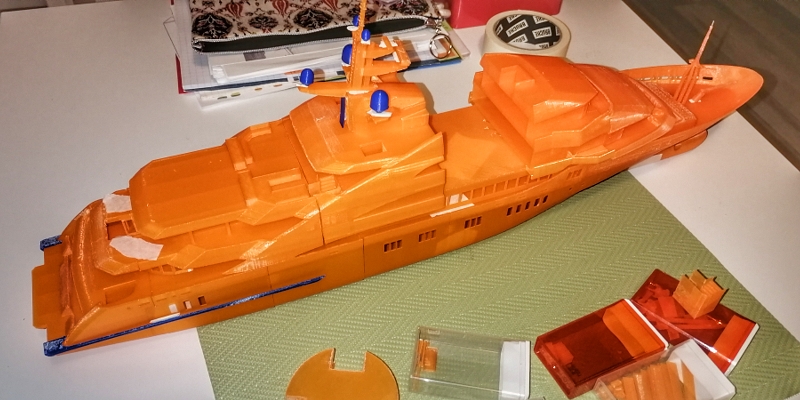

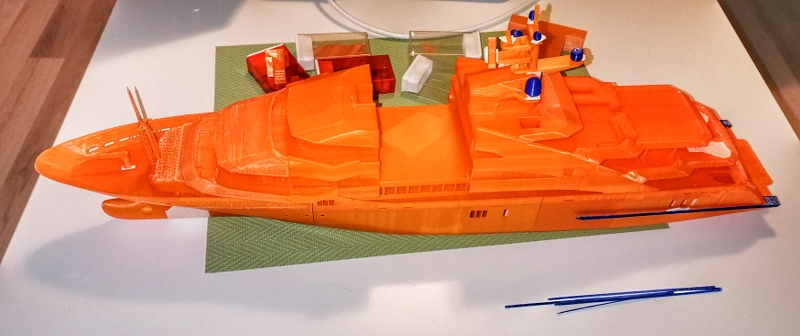

    Hello friends. It's update time.

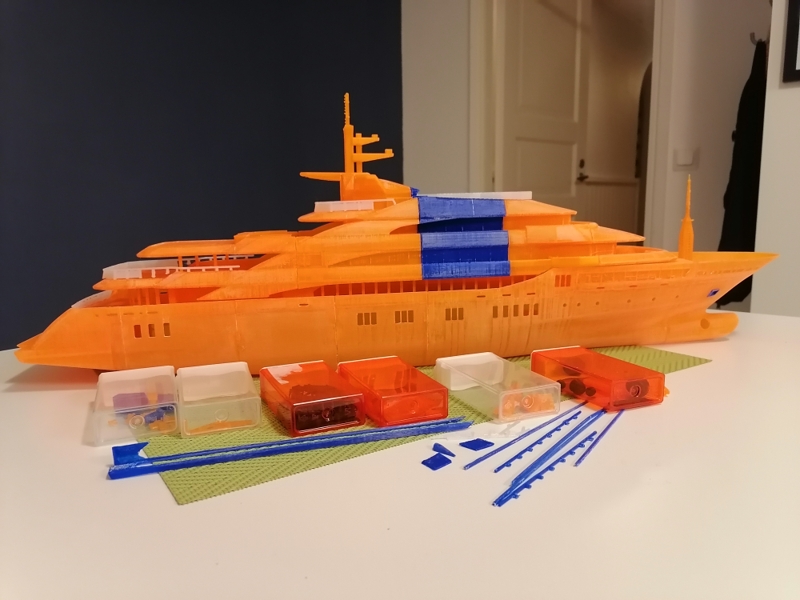

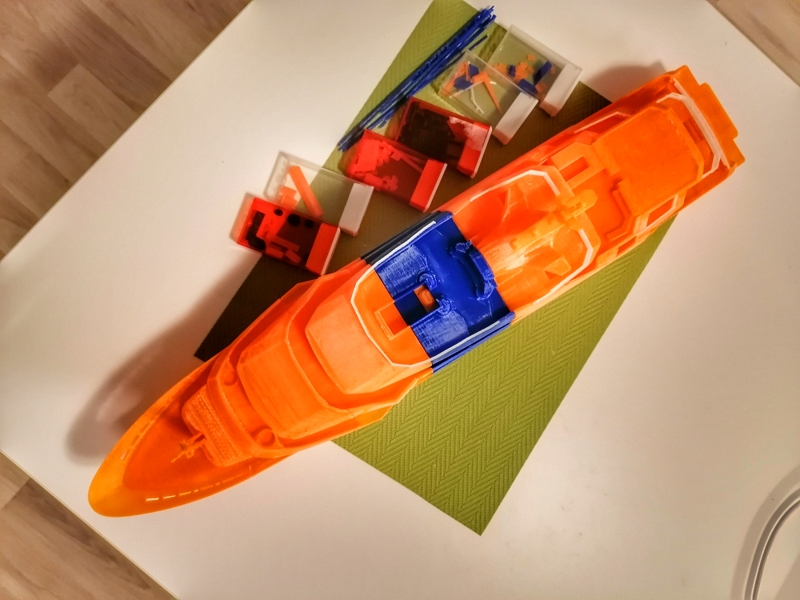

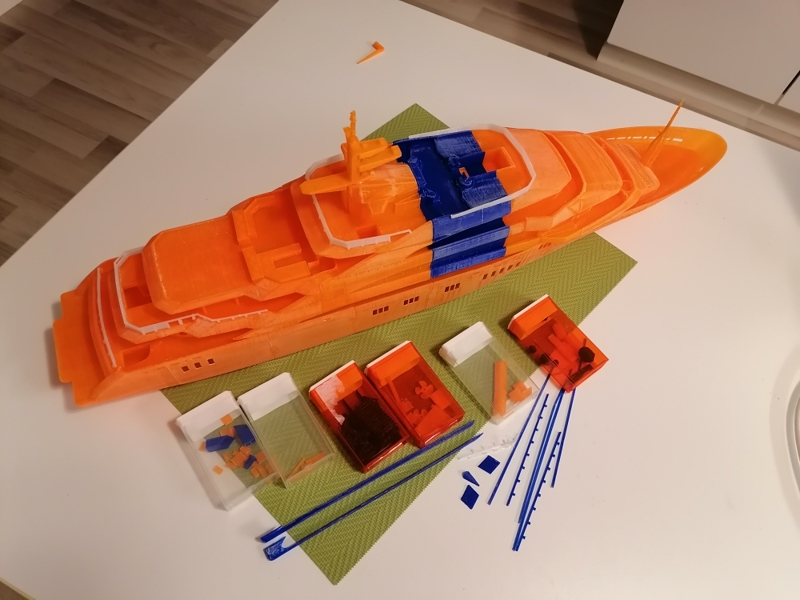

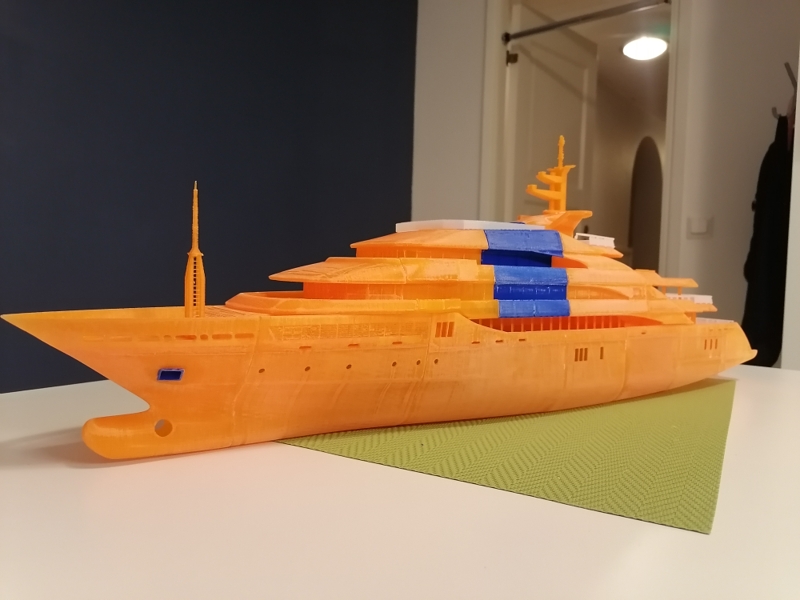

    The ship is now sanded and glued. It's in two sections top and hull. I might keep it that way if I decide to add lights later on.

    So far all good. Next is the filler and sanding. This phase I have to do well as there where some small gaps and holes.

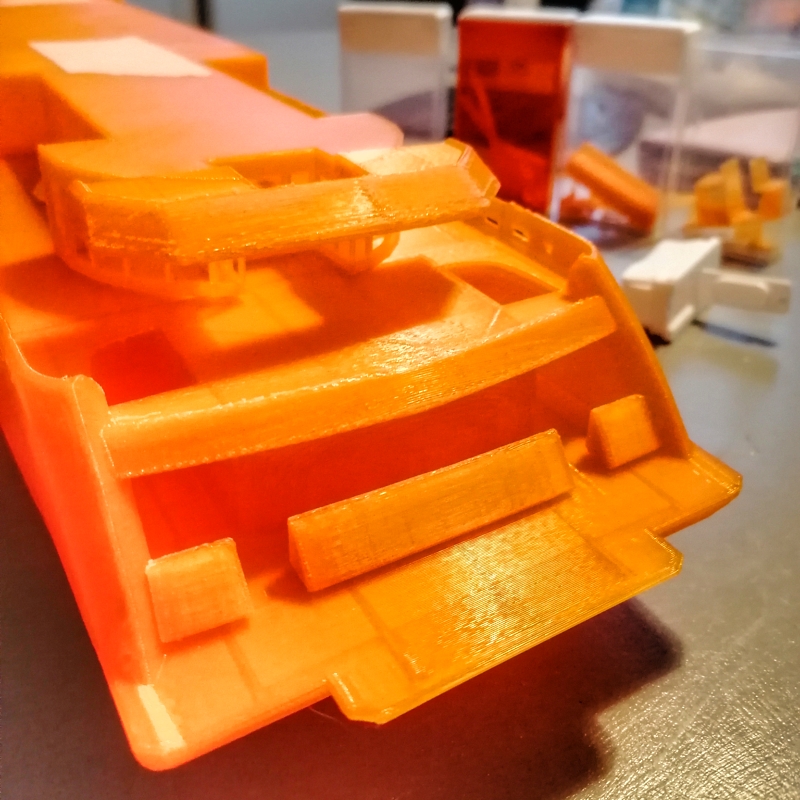

    By the way those small tiktak plastic holders are very good to keep small parts. Those small details will be glued when filling and sanding is done.

    I'm very satisfied. There are some ugly details but... Naah..

    Considering that I have never build a scale model, and this is my second big print. It's for myself and I'm happy.

    The first was the Eagle transporter from Space 1999 series. Some of you might know.
    Got it ready like a month ago. Still needs some small painting.

    Have a nice weekend.

    IMG_20230422_005512-01.jpeg IMG_20230422_005344-01.jpeg IMG_20230422_005128-01.jpeg IMG_20230422_005145-01.jpeg IMG_20230422_005321-01.jpeg
    leeky and Yacht News like this.
  15. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,854
    Location:
    Caribbean
    Progress is phenomenal.
    Apache2k likes this.
  16. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    Thank you.
  17. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    IMG_20230504_234236-01.jpeg IMG_20230504_234400-01.jpeg

    Hi friends.

    Just some minor update for the yacht 3d print project. I'm still building it. If you guys wonder why there are no updates.

    Just have to practice and find a good way to use putty. Did some experimenting and they did not work. (not with the real model, used some leftover prints) Have never used putty before.

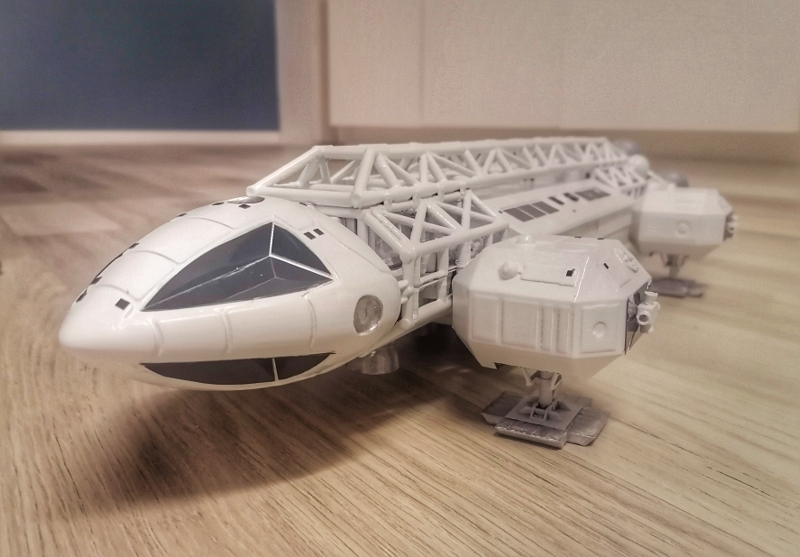

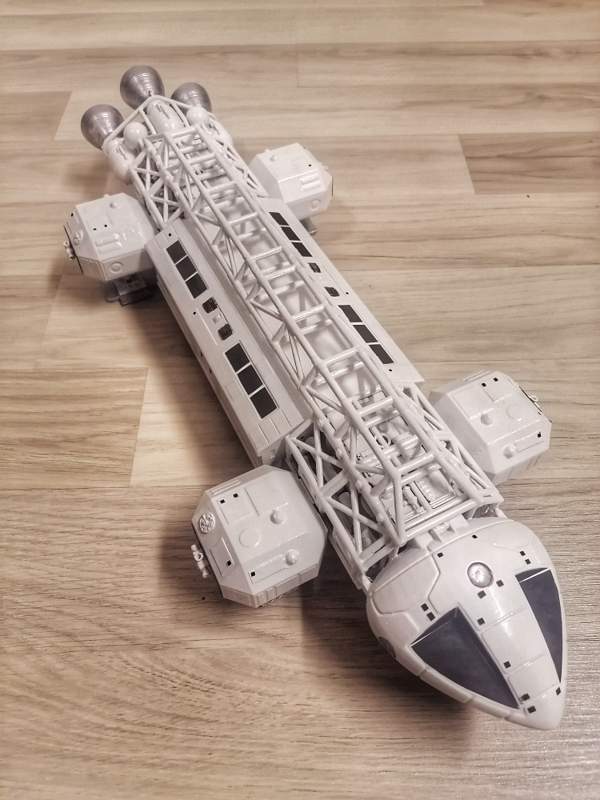

    Meanwhile decided to finish this puppy. It's my first big 3d print and actually my first ever build scale model. Yes I know my painting is very bad. :) shaky hands.

    Learned so much from this and can apply those to the yacht project.

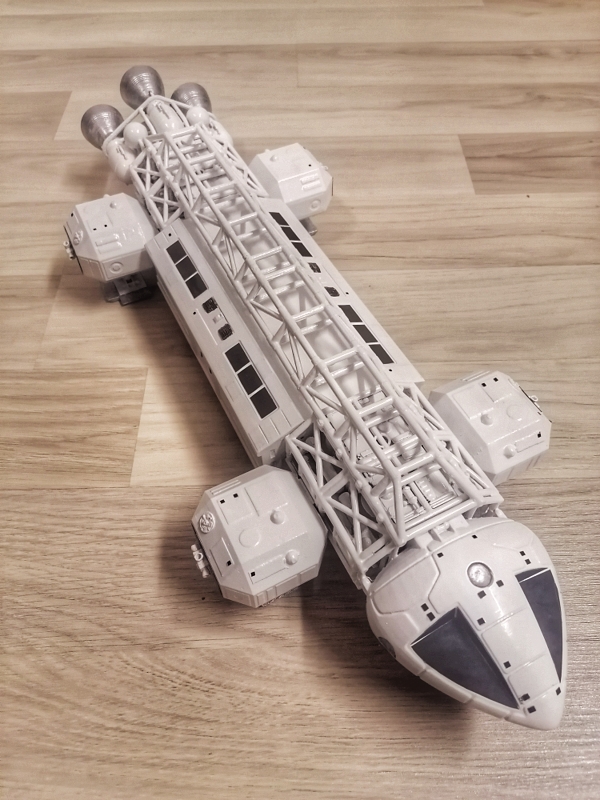

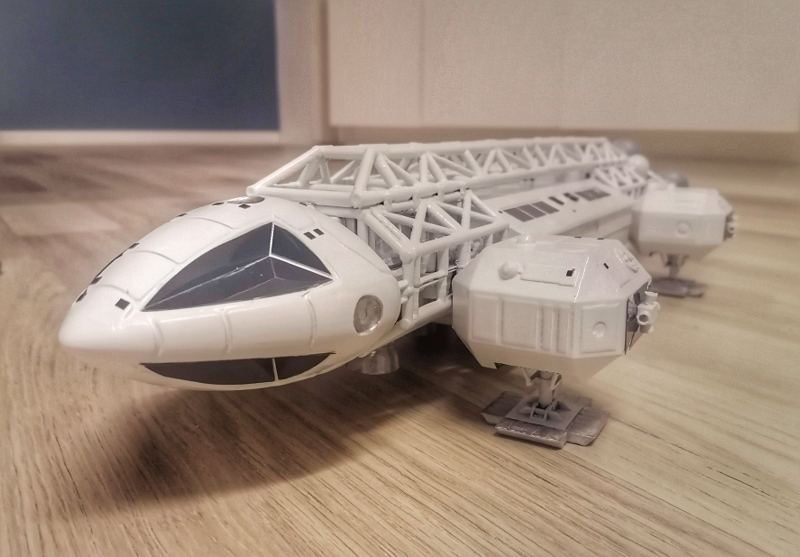

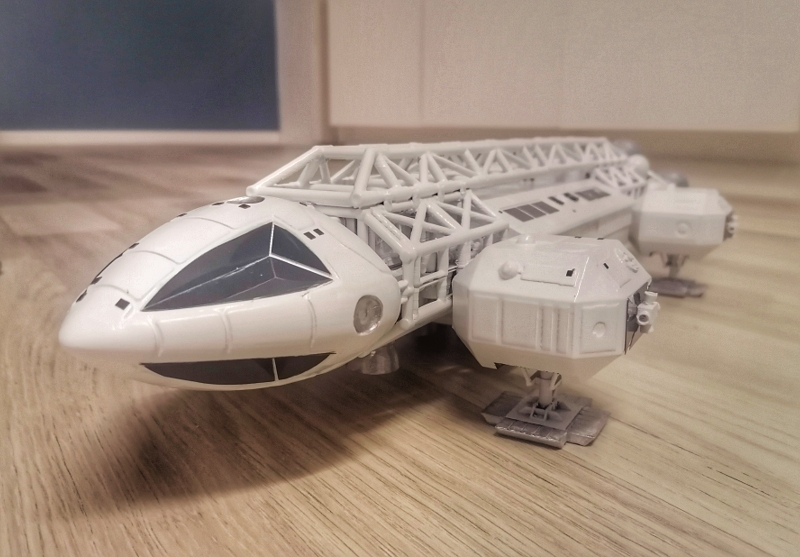

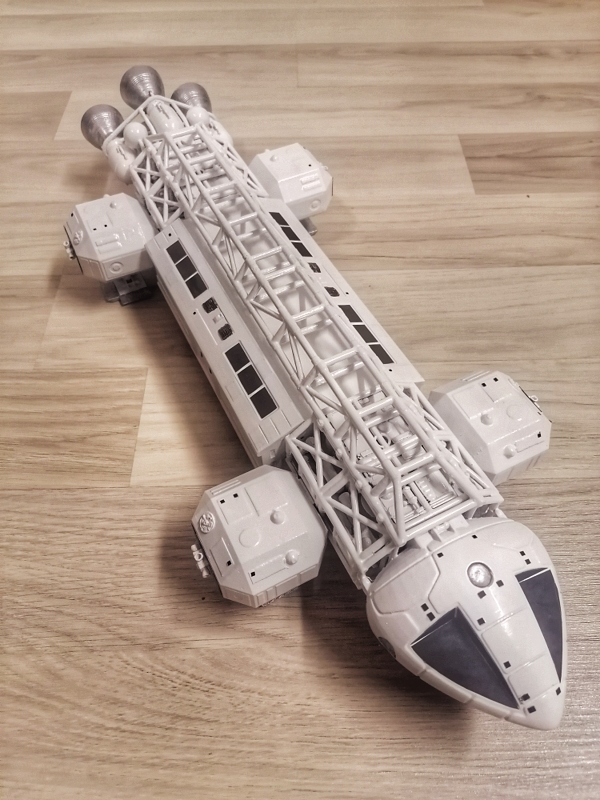

    Its theEagle 1 transporter from Space :1999. It's a British sci-fi series from 70's

    So shortly I will apply the putty to the yacht and prime it.

    Till then.
  18. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,854
    Location:
    Caribbean
    This looks good...not sure what you mean by shaky hands..looks good to me. P.S take your time, we are willing to wait.
  19. leeky

    leeky Senior Member

    Joined:
    Jan 2, 2011
    Messages:
    382
    Location:
    Florida
    +1
  20. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    59
    Location:
    Rovaniemi
    Hi folks,
    Some small progress is happening. Have been busy with my toddler.

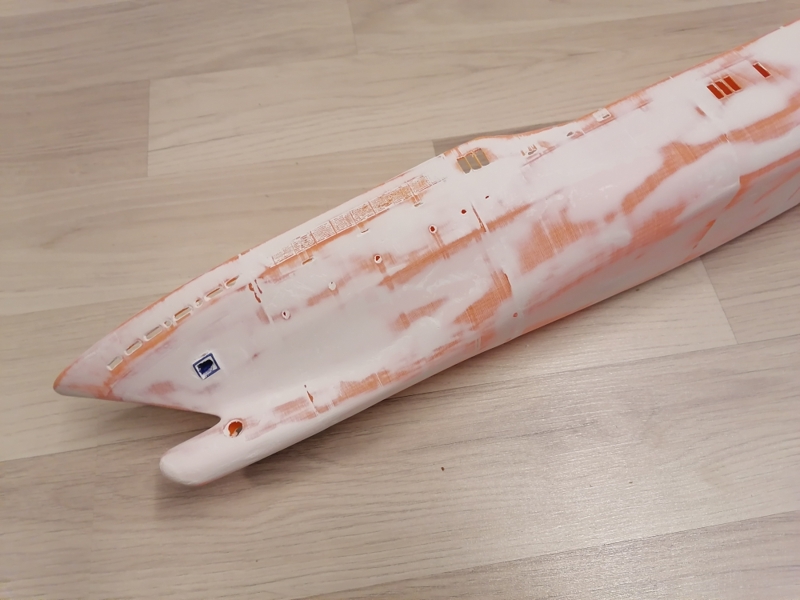

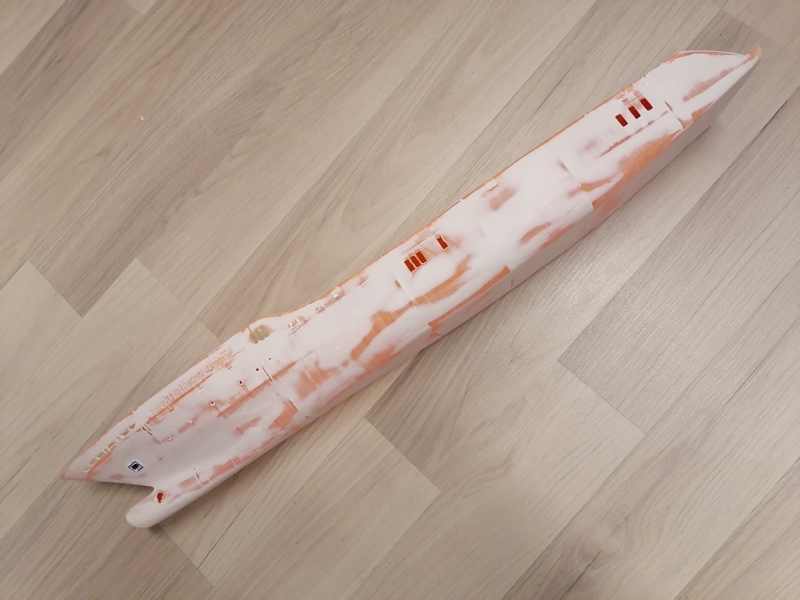

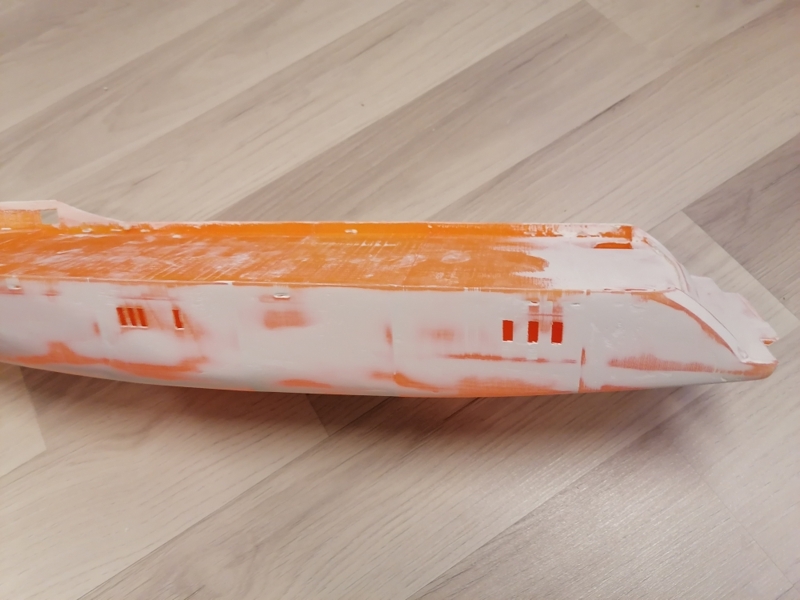

    Sanding and filling done. Maybe one more filling and sanding and then priming.

    I'll cut a hole on top after painting and add the windows from inside.

    IMG_20230609_225415-01.jpeg IMG_20230609_225404-01.jpeg IMG_20230609_225324-01.jpeg
