| Amels | 36.70M | "Blue Attraction" ex. "Lady Duvera"|1984 |

Discussion in 'Amels Yacht' started by archnav.de, Jan 30, 2004.

You need to be registered and signed in to view this content.
  1. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

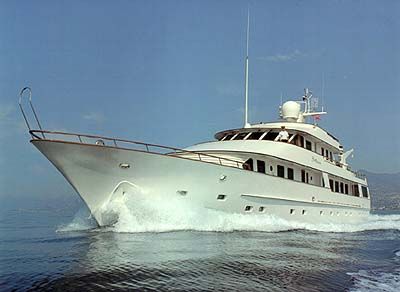

    Year built 1984
    Length overall 33.50m (109.90ft)
    Length waterline 29.25m(96.00ft)
    Beam 7.00m (23.00ft)
    Draft 2.44m (8.00ft)
    Fuel cap. 33,500 ltr
    Freshwater cap. 5,900 ltr
    Speed trials 12.6 knots
    Main engines 2 x Caterpillar 3412 D1-TA 317 bKw
    (at 1200rpm)
    Auxiliaries 2 x Volvo Penta D70CHC 56 Kw
    Harbourset 1 x ONAN 12.0 MDJF-518 12 Kw

    Picture and Information was taken from:

    Attached Files:

    Last edited: Jan 30, 2004
  2. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany
    Floorplans

    Attached Files:

  3. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany
    Saloon

    Attached Files:

  4. ivansalasj

    ivansalasj New Member

    Joined:
    Nov 10, 2004
    Messages:
    3
    Location:
    Glasgow
    Need the displacement

    Dear friend,

    Do you know the displacement of lady duvera 1 which is now called Blue Attraction. I am a Naval Architect student and currently using this yacht and some other in some research.

    Thanks for you help
    Ivan
  5. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,300
    Location:
    Sweden
    As you probably know, when Blue Attraction was sold to the second owner, who kept the name, the yacht was lengthened about ten feet. This design has since been used on a couple of yachts built in the Philippines at Ocean Pacifico. The displacement of those are 286 tonnes, 272 gross and 222 net. You can find a lot of info on these new yachts here; http://www.oceanpacifico.com/our_yachts.htm
  6. ivansalasj

    ivansalasj New Member

    Joined:
    Nov 10, 2004
    Messages:
    3
    Location:
    Glasgow
    Thank you very much for your quick reply, it has help a lot indeed.
  7. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany
    Lars,

    Thank you very much for the link.

    Here are the new Data.

    LENGTH OVERALL..................38.00 metres
    LENGTH WATER LINE.............33.75 metres
    MOULDER BEAM.......................7.00 metres
    DRAFT......................................2.75 metres
    HEIGHT ABOVE WATER..........15.50 metres
    GROSS TONNAGE.....................272 tonnes
    DISPLACEMENT........................286 tonnes
    LIGHT SHIP..............................222 tonnes
    BUILDER Ocean Pacifico Services, Inc, Subic Bay, Philippines
    DESIGN Diana Yacht Design BV, Holland
    INTERIOR STYLING Kate Cannon
    CLASS Lloyds 100 A1 LCM + MCA
    YEAR.........................................4 July 2002
    FLAG Bahamas (London Office)
    PORT REGISTRY Nassau
    OFFICIAL NO. ON 8000103
    CRUISING SPEED.....................10.7 Kn
    FUEL CAPACITY.......................58,000 litres
    WATER CAPACITY......................7,940 litres
    RANGE......................................4,400 miles


    It is very seldom that you find the Light Ship in data sheets. So only what we are missing now, is the centre of gravity.

    Bernd
    Last edited: Nov 11, 2004
  8. christo303

    christo303 Senior Member

    Joined:
    Nov 19, 2003
    Messages:
    255
    Location:
    Europe

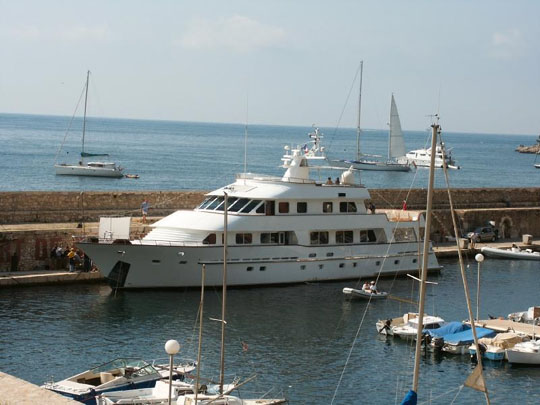

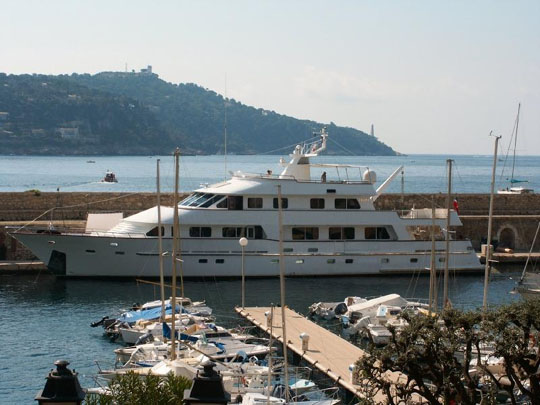

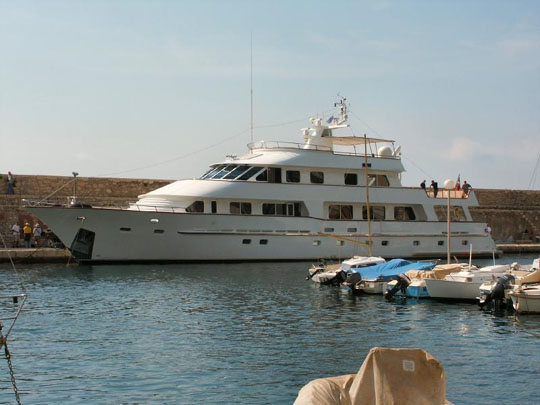

    The Ocean Pacifico LIGAYA

    LIGAYA was at the port de Villefranche sur Mer earlier this year in May where she was used as a background for a film that they were shooting on the quay.

    Here are some shots :

    Attached Files:

  9. christo303

    christo303 Senior Member

    Joined:
    Nov 19, 2003
    Messages:
    255
    Location:
    Europe
    Blue Attraction

    Some time ago, this Amels got a blue hull in accordance with her name "Blue Attraction".

    Attached Files:

    • blue.jpg
      File size:
      72 KB
      Views:
      2,935
  10. brandonw

    brandonw Senior Member

    Joined:
    Jan 15, 2006
    Messages:
    491
    Location:
    Tampa, FL
    Looks good with a blue hull
