56m Katamarino by Amels Yachts

Discussion in 'Amels Yacht' started by archnav.de, Jan 30, 2004.

You need to be registered and signed in to view this content.
  1. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

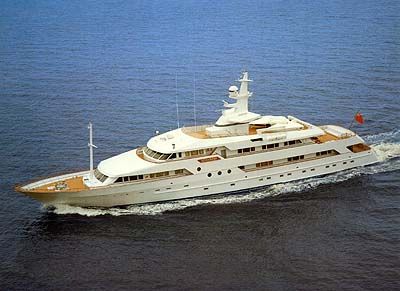

    Year built 1991
    Length overall 56.20m (184.40ft)
    Length on waterline 50.50m(165.70ft)
    Beam 10.30m (33.80ft)
    Draft 3.15m (10.30ft)
    Displacement 650 tons
    Fuel cap. 222,490 ltr
    Freshwater cap. 26,000 ltr
    Speed trials 16 knots
    Main engines 2 x Caterpillar 3512 DI-TA 1119 bKw
    (at 1800rpm)
    Auxiliaries 1 x Caterpillar 3306 D IT 144 Kw
    2 x Caterpillar 3306 D IT 160 Kw

    Information and picture was taken from:

    http://*********************/home.htm

    Attached Files:

  2. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

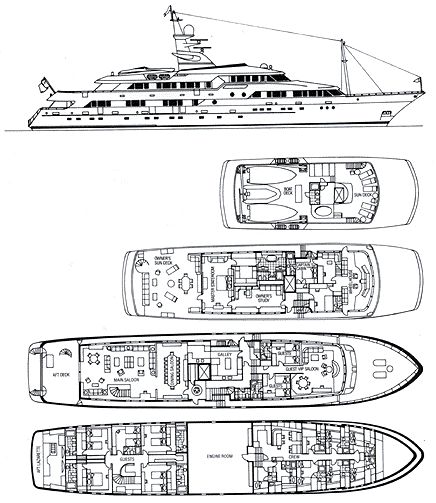

    Floorplans

    Attached Files:

  3. archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany

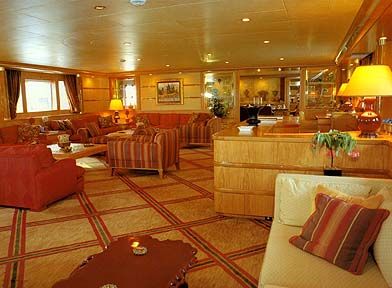

    Saloon

    Attached Files:

  4. christo303

    christo303 Senior Member

    Joined:
    Nov 19, 2003
    Messages:
    255
    Location:
    Europe

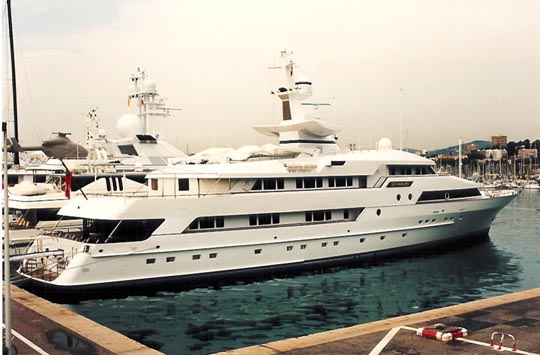

    Paris, ex-Katamarino

    Katamarino was a true beauty designee by Hargrave with an interior by Garzouzi. The Garzouzi interior betrays her origin : arabic. Her original owner was one time the principal agent for the owner of the Montkaj...

    Attached Files:

  5. christo303

    christo303 Senior Member

    Joined:
    Nov 19, 2003
    Messages:
    255
    Location:
    Europe
    Paris, ex-Katamarino

    A few years ago, her owner got into big troubles and sold Katamarino to a Greek. She has been renamed Paris since and can usually be found at Piraeus.

    Attached Files:

  6. christo303

    christo303 Senior Member

    Joined:
    Nov 19, 2003
    Messages:
    255
    Location:
    Europe

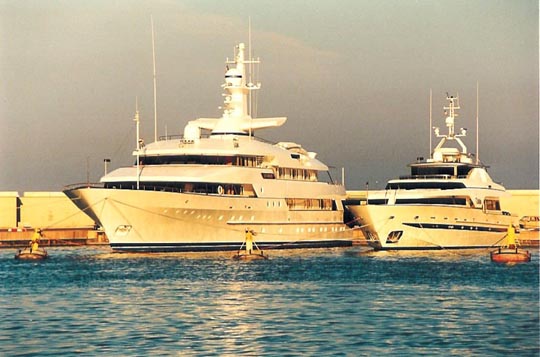

    Katamarino

    Another view at Katamarino.

    Attached Files:
