50M Avangard Yacht

Discussion in 'Unique, Custom or New Yachts' started by Yacht News, Apr 8, 2008.

  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    Freshly splashed at the Avangard yard in Pula, Croatia, this 50M luxury displacement motoryacht is striking. Her brilliantly reflective flag blue hull beckons attention as she sits in the water for outfitting. This new yacht was apparently launched on the 30th of March 2008.

    She is a Mulder Design in her naval architecture and has an interior design by Lazzarini and Pickering. The 50M yacht has been built at Avangard in Croatia, formerly known as HeliYachts. With an overall length of just under 50M she is a comfortable size for entertaining as the Mulder website states.

    The Avangard yacht has an overall width of 31.5 feet, which will offer spacious decks to the user (s). She weighs in at a hefty 650 tonnes despite having a lighter aluminum superstructure. The steel hull has been outfitted with 2 X CAT 3215B marine engines, cranking 1,650 HP each.

    These engines will push the 50M yacht to a maximum speed of 16 knots while a 14 knot cruising speed has been envisaged. A tremendous range of 8,000 NM at 12 knots can be achieved with nearly 26,500 GAL of fuel onboard. She has been classified to the following: Lloyd’s Register of Shipping
    +100A1-SSC Yacht MonoG6, LMC.

    Mulder Design gave a general brief description of the Avangard 50M motyacht and said, "This 50 mtr yacht a full displacement motoryacht, focused on outdoor entertainment. The yacht carries a 40 ft Sunseeker, a ski-boat, waterjets and wave runner. For transportation to the shore she carries a Eurocopter 130B4, which can be stored in a hangar on the wheelhouse deck."

    ***​

    LOA: 163.90
    LWL: 142.10 feet
    BOA: 31.50 feet
    Draught: 19.1 feet?
    Displacement: 650 tonnes
    Engines: 2 X CAT 3512B Marine Engines
    Speed: 16 knots (maximum) ; 14 knots (cruising)
    Range: 8,000 NM at 12 knots
    Fuel: 26,420 gal
    Water: 3,960 gal
    N/A: Mulder Design
    Interior: Lazzarini and Pickering
    Builder: Avangard (ex HeliYachts), Croatia
    Year: 2008 ; Launch: March 2008

    http://www.***************/paginas/begin.htm

    http://www.shipspotting.com/modules/myalbum/photo.php?lid=612975

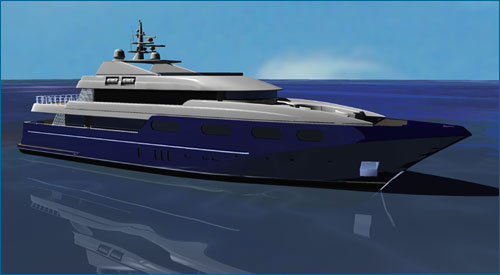

    A Mulder Design Picture​
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Interesting that Mulder is using the typical Oeino bow style...

    Even more interesting would be to see the heli garage...?
  3. cognac

    cognac Senior Member

    Joined:
    May 24, 2004
    Messages:
    40
    Location:
    Beaconsfield, Qc, Canada
    And the 40ft Sunseeker.
  4. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth
    yeah ... i'm not really sure if i can take this as a real 50m yacht ^^ helihangar, 40ft tender..

    either there's something wrong with other 50m yachts or this one is a double hull ^^
  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    Guys, I was wondering all those things to myself as well. I was also wondering how comes she is stated as having a draught of 19.1 feet? That seems quite deep for a 50M yacht.
  6. C4ENG

    C4ENG Senior Member

    Joined:
    May 19, 2006
    Messages:
    581
    Location:
    Ft Lauderdale
    What are CAT 3215B marine engines?
  7. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    You transposed the #'s.

    "Cat 3512B marine propulsion engine, rated 1300 hp @ 1200 rpm (Cat A rating)
    Ser # S2K00252, S2K00253, keel cooled, air start, EPA Tier I, electronic pilot house instrument panel." BUNKERWORLD
    I'm no designer, but I'm stuck on that 19.1 foot draught on a 165 ft. yacht.
  8. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    Hence the question mark next to it. I was unsure of it as well, but that is what the stats said.
  9. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    There is a misprint. I just checked the website. Max. Draught 11.65 Ft. Now that makes a whole lot more sense. They don't show the Min. Draught, but leave off the helicopter, 40' Sunseeker, etc. and I'll guess a normal 9 ft. or so.
