500 footer freeboard and deck heights

Discussion in 'Yacht Designers Discussion' started by ekiqa, Jul 11, 2011.

  1. ekiqa, Jul 11, 2011
    #1
    ekiqa

    ekiqa Member

    Joined:
    Dec 13, 2005
    Messages:
    37
    Location:
    Toronto/Halifax
    Does any one know what the free board is on these massive yachts? Dubai and Eclipse both look to be pushing 30 feet, with what look like 10 foot minimum deck heights. They seem to be approaching, if not surpassed the hulls of the Arleigh Burke destroyers.
  2. K1W1, Jul 12, 2011
    #2
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,396
    Location:
    My Office
    Hi,

    A standard dimension to use is around 2.2m between finished floor and finished ceiling panel.

    There will be some extra distance between the top of the finished floor and the deck underneath which is used for floor framing and insulation somewhere in range of 50/75mm depending on finished floor material.

    There will have to be space in the overhead above the finished ceiling for Air Conditioning and Ventilation ducts and pipework to run, Electrical cables, Fixed Firefighting and a number of other things that are needed for the Vessel to be complete and operate but are not seen by anyone using the space normally.

    You have to also remember that there will be Frames under the decks in most places with a 600mm spacing for the length of the vessel, these also require space in the overall height calculation.

    A 10ft or 3.3m minimum bare deck to bare deck height would be wonderful.
  3. AMG, Jul 12, 2011
    #3
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden

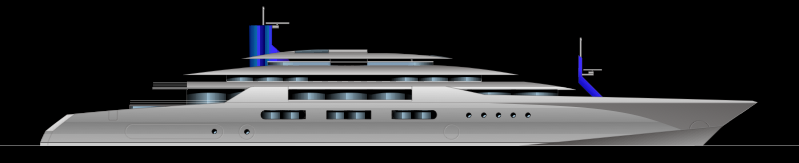

    This is what I have on all of my larger designs. The Triple Bling (450ft) also has a higher main deck, around 4m, to let light in as she is 20m wide. Hull sides are 9m, almost 30ft to main deck.

    Attached Files:

  4. ekiqa, Jul 12, 2011
    #4
    ekiqa

    ekiqa Member

    Joined:
    Dec 13, 2005
    Messages:
    37
    Location:
    Toronto/Halifax
    Thanks. It's hard to get a good judge of size on most of these massive yachts.

    Is the 8 - 10 m main deck height about the maximum yachts will become?
  5. AMG, Jul 12, 2011
    #5
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden

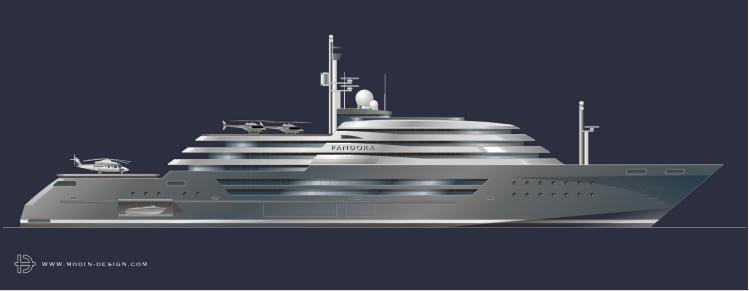

    I don´t think so, this 600 foot design is 16 m high in the bow...

    Attached Files:

  6. ekiqa, Jul 12, 2011
    #6
    ekiqa

    ekiqa Member

    Joined:
    Dec 13, 2005
    Messages:
    37
    Location:
    Toronto/Halifax
    Tall. So she's about 30 m to the top of the superstructure? Starting to approaching big cruise ship sizes.
