45' new yacht

Discussion in 'Yacht Renderings & Plans' started by tz3d, Feb 22, 2008.

You need to be registered and signed in to view this content.
  1. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    last year my works..look forward any comment. thanks

    Attached Files:

  2. dccd

    dccd New Member

    Joined:
    Jun 5, 2007
    Messages:
    10
    Location:
    US Gulf Coast
    Pilaster

    Nice render and I like it as a west coast type of design, IMHO I would only work a little more on the Pilasters. If the half rounds they sit on were eliminated and that corner returned to the lower cabin, it would make the pilasters seem shorter and I think a sleeker profile. I also would not leave those corner radius bends in the aft glass, too much for an otherwise classic feeling boat.
    Overall a stunning rendering
  3. nilo

    nilo Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    679
    Location:
    Istanbul
    I can only comment from a practicality perspective and I think the aft cockpit is too small.
  4. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    Hi dccd
    thank your comment.
    Do you mean that if the places of the galss wall curve too much would make the wall too short?
    I just find out that if the curve is too much , we will lose some usefull space..
  5. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    hi nilo
    yes,,i also think the aft cockpit is too small as your standpoint .Maybe make the cockpit space bigger will be better..But i have taken a longtime to change the plan drawings...However i also think the fore head of lower deck may be too small.

    I am attaching the plan rendering for discussion ... What do you think about the plan..Maybe just a little change the aft cockpit to biger will be better ?
    ----------------
  6. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China

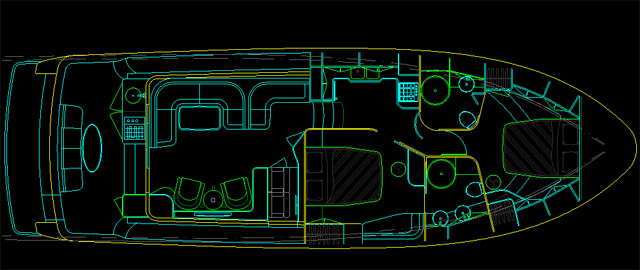

    plan rendering

    Attached Files:

  7. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China

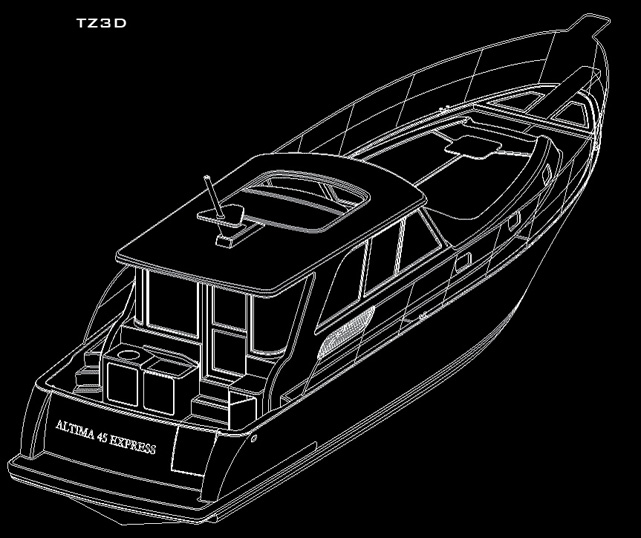

    cad views

    Attached Files:

    • 1.jpg
      File size:
      118.7 KB
      Views:
      1,316
  8. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    exterior rendering

    Attached Files:

  9. dccd

    dccd New Member

    Joined:
    Jun 5, 2007
    Messages:
    10
    Location:
    US Gulf Coast
    Pilaster

    TZ, since we don't speak the same language we can better communicate visually. I took the liberty of drawing my comments.

    Attached Files:

  10. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    OH yeah, I understand now, thank you for you maked the mark for comment...

    i am a chinese designer ,,and my english is poor..so very difficulty to learn comments for me..but i can see the idea from the drawings..so design language only one type for all people..
    as for your idea is very correct..before
    i also dont liked the profile of Pilasters and feel here have problem..but the boss cant give me more comment for this.so just pass..
    if need change i think i can from your idea to make it no problem..

    You are good discerning ..thanks
  11. nilo

    nilo Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    679
    Location:
    Istanbul
    I cannot judge dimensions without having measurements, but the plan seems to be a solid layout. You should extend the aft deck to enable accomodating an open dining area.
  12. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    403
    Location:
    Newport Beach, CA, USA
  13. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,249
    Location:
    Sweden
  14. dccd

    dccd New Member

    Joined:
    Jun 5, 2007
    Messages:
    10
    Location:
    US Gulf Coast
    Hunt

    This design type has that most elusive of design qualities, timelessness. It is the type of boat I would own if I could. TZ are they planning on building this in China?
  15. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    bccd,

    This yacht that I had designed for the USA yacht dealer.He gave me idea and some reference.And I help him to drawed a lot of 2D,3D drawings and animation last year.Then it will be builting in China.

    The builder is a Taiwanese who has built yacht for 30 years.He owns his factory both in Chian and Taiwan.

    I also have 53'yacht plan for this type yacht,i can not continue to complete this project..because the USA yacht dealer didnt contact me for a long time. Anyway,I would like to finish design by myself if I have time.

    i am attaching the 53'plan now.and I would like to get any comments from here..
  16. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    53' plan drawing

    Attached Files:

    • plan.jpg
      File size:
      84.5 KB
      Views:
      520
