42' sail cat

Discussion in 'Yacht Renderings & Plans' started by cgyacht, Aug 20, 2011.

  1. cgyacht, Aug 20, 2011
    #1
    cgyacht

    cgyacht New Member

    Joined:
    Aug 20, 2011
    Messages:
    4
    Location:
    Ft.Lauderdale

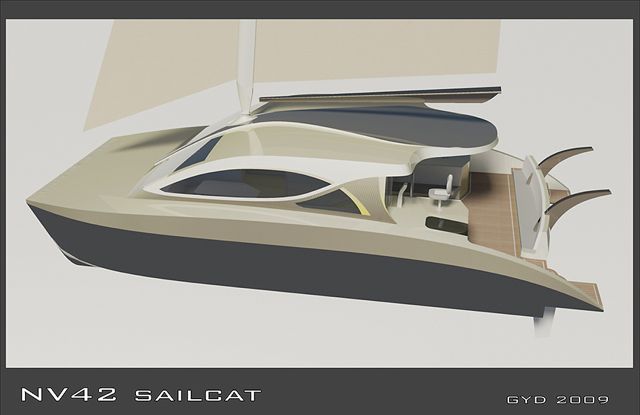

    Partially completed cat. Her hulls are vacuum bag construction using Nida core. Questions,comments appreciated for design.

    Attached Files:

  2. NYCAP123, Aug 20, 2011
    #2
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    Looks like forward and to one side visability from the helm may be seriously restricted.
  3. YachtForums, Aug 21, 2011
    #3
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    Maximum image size at YF is 640 pixels. Please read our rules before posting again.
  4. cgyacht, Aug 21, 2011
    #4
    cgyacht

    cgyacht New Member

    Joined:
    Aug 20, 2011
    Messages:
    4
    Location:
    Ft.Lauderdale
    no problem thanks for letting me know.
  5. tirekicker11, Aug 21, 2011
    #5
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    While working at the mast you're standing on a curved slope?
  6. 84far, Aug 21, 2011
    #6
    84far

    84far Senior Member

    Joined:
    Dec 15, 2008
    Messages:
    794
    Location:
    Brisbane, AUS
    Welcome,

    The superstructure seems pretty modern, but the hull is pretty standard, there's nothing wrong with it, but maybe needs a bit more something... like a reverse bow, it will give it a few more feet, more buoyancy up front, and look pretty mean...?

    NV44 SAILCAT...? :D

    Oh, there's a pretty good corner on the back platform that will hurt a few tenders.

    Far
  7. 84far, Aug 21, 2011
    #7
    84far

    84far Senior Member

    Joined:
    Dec 15, 2008
    Messages:
    794
    Location:
    Brisbane, AUS
    Non-Slip... Interdeck :D

    Far
  8. tirekicker11, Aug 21, 2011
    #8
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    With every new cat design I see I start to appreciate Wharram's more...
  9. cgyacht, Aug 22, 2011
    #9
    cgyacht

    cgyacht New Member

    Joined:
    Aug 20, 2011
    Messages:
    4
    Location:
    Ft.Lauderdale
    Thanks guys for the comments. I do welcome all the input.As for the reversed bow I can easy see that making both design and performance increases. I would have too make it and see how it would interact with interior head room for the fwd hull births. The idea for the aft platform is well noted and my latest model has a rounded interior corner to help from injury.
  10. cgyacht, Aug 22, 2011
    #10
    cgyacht

    cgyacht New Member

    Joined:
    Aug 20, 2011
    Messages:
    4
    Location:
    Ft.Lauderdale
    Current Rhino model

    ...Ideas on the interior cabin mast support ?
