38/40 Open electronics install

Discussion in 'Luhrs Yacht' started by Bucksh0t, Feb 11, 2020.

  1. Bucksh0t

    Bucksh0t Member

    Joined:
    Mar 18, 2018
    Messages:
    53
    Location:
    Morehead City NC
    This is a project that I finished 2 years ago on my personal boat. I think there are a few out there that want to install larger screens on your 38/40 pop up console.

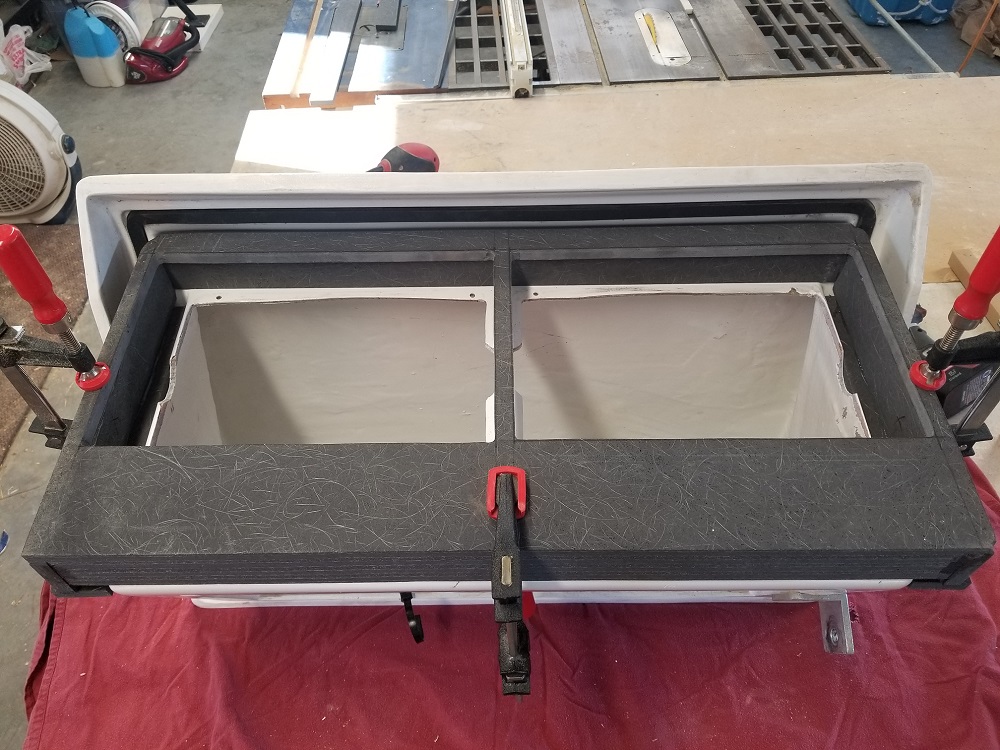

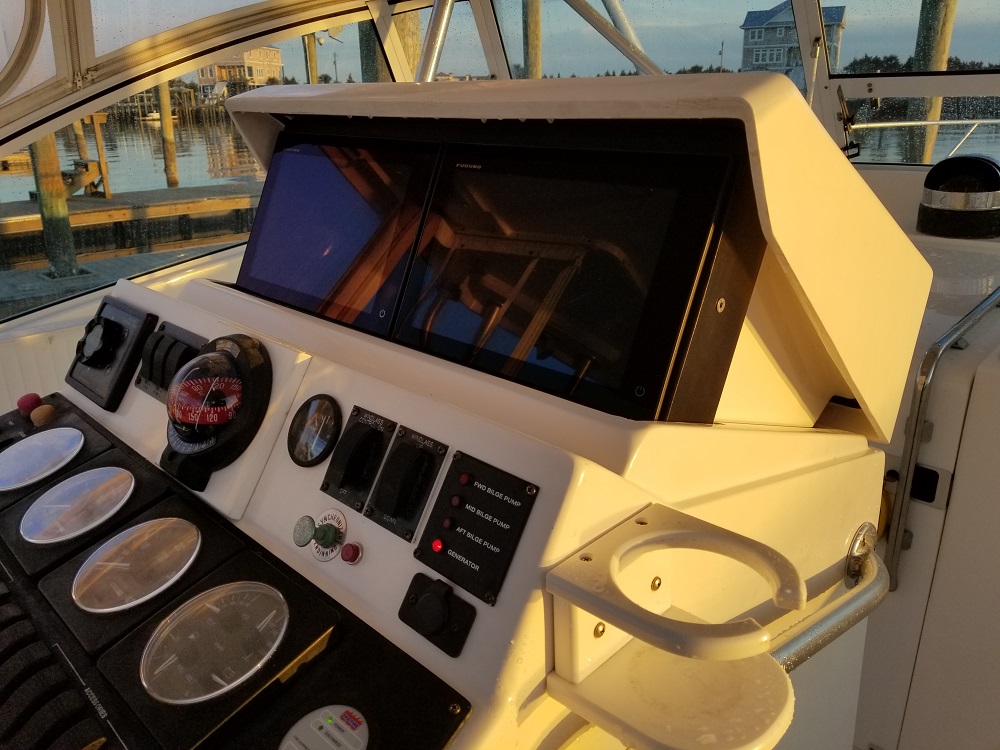

    I managed to fit 2 Furuno TZT2 side by side, these are the 12" screens. I cut the existing face all the way to the side walls. Then I made a "adapter plate" from coosa board to widen the available face area. I also had to cut some of the main console to allow the extra width to clear while opening and closing.
    20180106_141208 (1).jpg 20180121_170326 (1).jpg
  2. motoryachtlover

    motoryachtlover Senior Member

    Joined:
    Jan 29, 2007
    Messages:
    226
    Location:
    smithfield, VA
    **** that looks professional from here. How do you like the tzt2s? I have had mine for a year now and I like them.
  3. Bucksh0t

    Bucksh0t Member

    Joined:
    Mar 18, 2018
    Messages:
    53
    Location:
    Morehead City NC
    I like them, I have 3, 2 below and 1 on the tower.
  4. Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    12
    Location:
    Rochester, NY
    Great job!
