35 Primadonna

Discussion in 'Yacht Renderings & Plans' started by orion, Aug 9, 2007.

Page 1 of 2
  1. orion, Aug 9, 2007
    #1
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

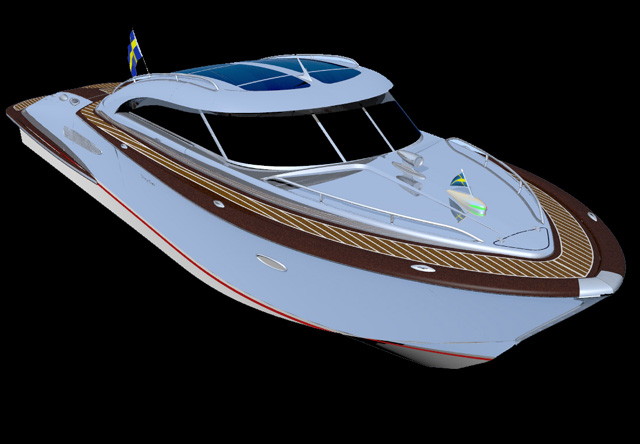

    New 35ft Convertible
    Automatic remote control retractable roof.
    What do you think about this?

    Attached Files:

  2. KCook, Aug 9, 2007
    #2
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Very retro styling theme! Is the retractable roof the only entry into the cockpit? If it's raining at time you go on board, will the cockpit be exposed to a lot of rain as you enter?

    too practical Kelly
  3. mr_sunseeker, Aug 9, 2007
    #3
    mr_sunseeker

    mr_sunseeker New Member

    Joined:
    Jan 17, 2006
    Messages:
    45
    Location:
    UK & Med
    Hi I would naturally compare this to an aquariva.

    The use of space is not as efficient, for example nowhere outside to sit, nowhere for sunbathing, the rear steps take a lot of space. A little more versatility in the aft design would attract me. Sorry to be critical but I hope it's of use to you. The design looks cool I like the roof.
  4. orion, Aug 10, 2007
    #4
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Aft section of roof also include a manually operated entry door.
    This edition is designed for Scandinavian climate with more or less very unstable weather conditions from sun to rain. Heating and defog systems but also AC for hot days. Sunbathing on snap on paddings at fore deck. Full headroom in cabin & cockpit.

    Attached Files:

  5. orion, Aug 10, 2007
    #5
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

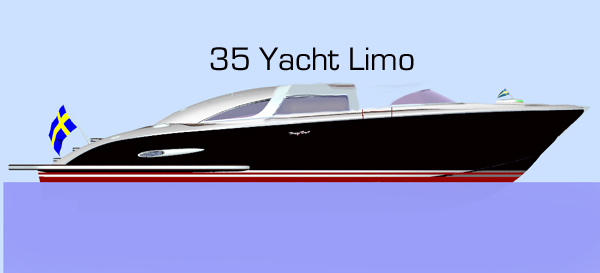

    Yacht Limo

    Limo edition, with same retractable roof system.
    2x Volvo D4 300Hp, Rolls Royce water jets, aft/bow thrusters,
    hi-tech composites.

    Attached Files:

  6. orion, Sep 16, 2007
    #6
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

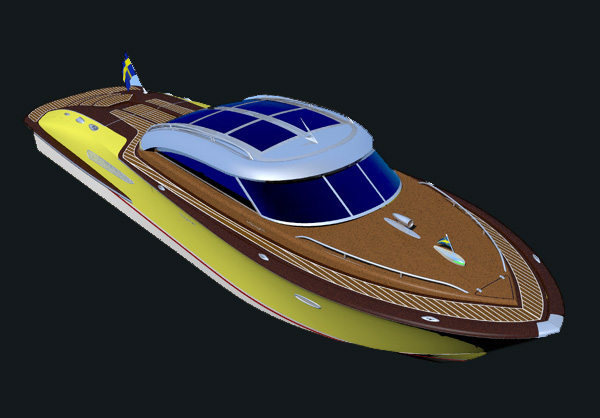

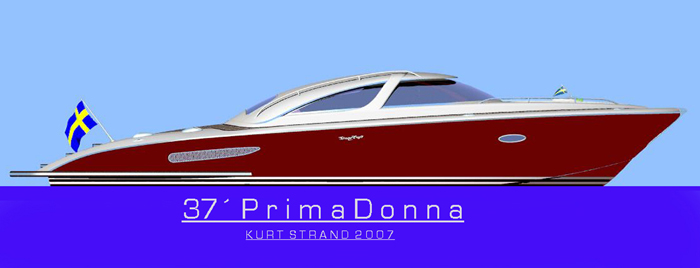

    Design extended to 37ft, IPS drives, building of first boat in progress!

    Attached Files:

  7. Renderholic, Oct 16, 2007
    #7
    Renderholic

    Renderholic New Member

    Joined:
    Jun 8, 2007
    Messages:
    19
    Location:
    UK
    I really like the limo, have you done a full 3d of this?

    Also think Kelly's point about getting in and out of the main cabin without wetting the interior is an important one. If you can solve that then this would be a fantastic super yacht tender.

    Maybe an idea to provide some rain cover for the helm too.

    Nice design though!
  8. orion, Oct 19, 2007
    #8
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Yes it is in full 3D and the first boat be at moment built in Sweden.
    3 parts electro/hydraulic retractable hardtop in carbonfibre/lexan.
    Aft part of roof panels also include a manually operated hatch for easy entry
    in rainy or snowy days as we often have here up north ;) .

    Attached Files:

  9. orion, Dec 27, 2007
    #9
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

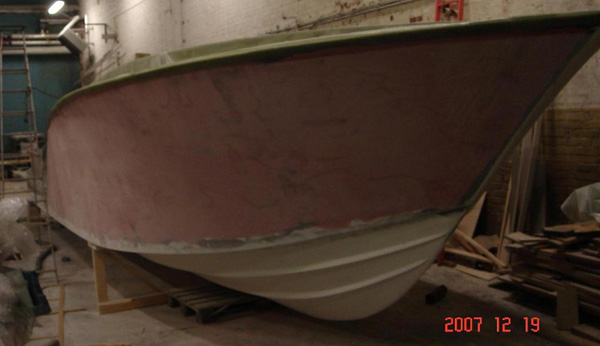

    The one off built hull ready for epoxy filling/ wood covering.

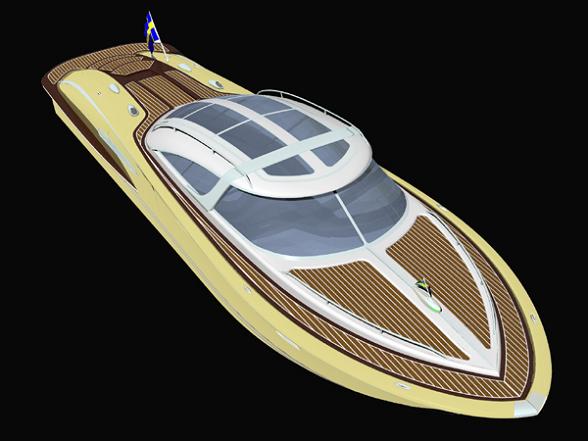

    Redesigned roof,more wood, full length(10ft) power assisted side windows,
    Volvo IPS 400/joystick waiting to to be installed. Can be be pretty cool as a megayacht tender? What do you think?

    Attached Files:

  10. orion, Jan 25, 2008
    #10
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

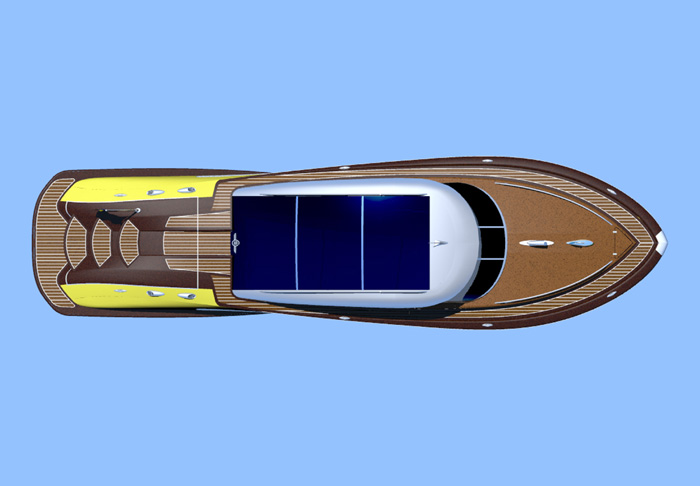

    This roof be with 3 panels, opening= 6ft x 13ft, all panels lays flush when closed and be parked under aft deck in down position. Track/drain system in polished stainless steel.

    Attached Files:

  11. grahampace, Jan 27, 2008
    #11
    grahampace

    grahampace New Member

    Joined:
    Mar 17, 2006
    Messages:
    2
    Location:
    malta
    well done. nice work :) good concept with a vast market
  12. orion, Feb 23, 2008
    #12
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Thanks , yes there are obviously a pretty nice market for megayacht coupé tenders.;)

    Attached Files:

  13. orion, Feb 24, 2008
    #13
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Ready for sea trials:)

    Attached Files:

  14. tz3d, Feb 24, 2008
    #14
    tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    29
    Location:
    Fuzhou China
    Your works is very nice,can you tell me which 3d softwares do you use ?
    do you also use HDIR pic for the rendering background?
  15. orion, Feb 24, 2008
    #15
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

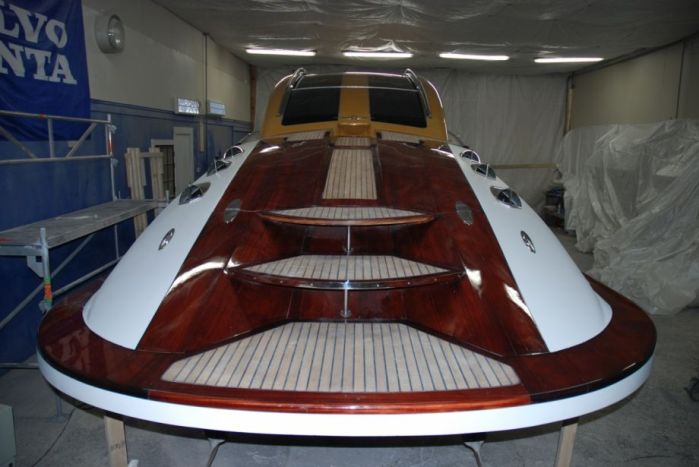

    aft view.
    We will also use same roof technic on the MS55:cool:

    Attached Files:

  16. orion, Aug 21, 2008
    #16
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

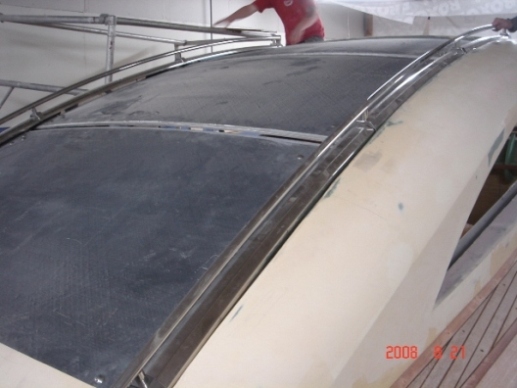

    Retractable top in place:)

    Attached Files:

  17. Fishtigua, Aug 21, 2008
    #17
    Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,940
    Location:
    Guernsey/Antigua
    I asked the question months ago on this forum, why nobody makes a hardtop fold-away like a Mercedes SLK et al.

    These renderings look very fine but why so much wasted space at the aft with huge steps, when most of the time entry will be from the side? Other than that it could make a pretty Superyacht tender.

    Cheers
    Dave
  18. orion, Aug 21, 2008
    #18
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Boat is pretty low profiled, roof panels in down position take som place and when boat is also powered with Volvo IPS system there be a long stern, but that be nice for sunbathing with snap-on sunpaddings. Steps is there to get a chance to get up from swimplatform to deck.

    Attached Files:

  19. orion, Dec 15, 2008
    #19
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

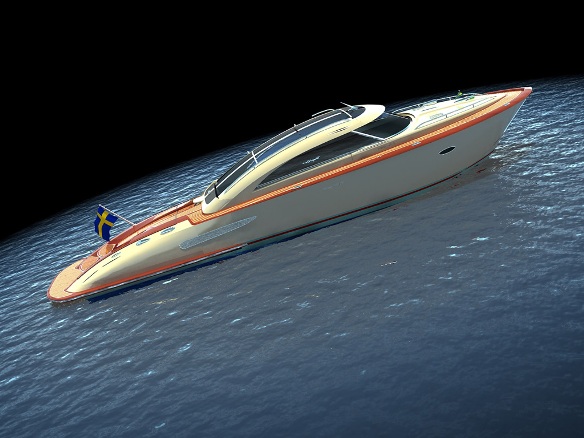

    40´ Open

    Here is a 40ft open version.
    Lot of space for passengers.

    Attached Files:

  20. orion, Dec 15, 2008
    #20
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    The Skyliner coupé tender concept soon ready for sea trials.

    Attached Files:
