3/4" gravity enough to flush/ winterize?

Discussion in 'Post Yacht' started by Stainless45, Oct 23, 2020.

You need to be registered and signed in to view this content.
  1. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    33
    Location:
    Long Island NY
    So I'm doing some plumbing enhancements on my 6v-92 mains. Adding fittings into the raw water intakes to allow me to fresh water flush after a run and eventually to winterize the cooling system. Question I have is will a 3/4" line with gravity feed from a drum or bucket be enough to feed the needs of the engines, at idle, to get antifreeze through the system?

    Thanks all
  2. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    10,257
    Location:
    Long Island, NY
    Wouldn't a pump be easier and more sure? I'm thinking if they suck more than the hose can handle it might form a vacuum you won't know about until it's too late.
  3. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    751
    Location:
    Sardinia
    If you check out this recent thread, starting from post #40 you can see what I did in my boat for the same purpose.
    And even if I don't think I mentioned it, the valve I fitted on the strainer lid is exactly 3/4" (with an adequate size hose).

    Now, two considerations:
    1) I'm not sure of how the water flow demand from your raw water pump compares to mine. But since in my engines it must deal with a 15 liters block with an 800hp output, I'd be surprised if your raw water pump should be more thirsty (so to speak) than mine.
    2) When I flush my engines with the system explained in the above thread, I use a hose connected to the dock fresh water supply, so it doesn't go down just by gravity, but it's also pressurized (at least around 30psi, if not more when there aren't other boats using fresh water along the same dock). So, the flow is bound to be somewhat higher compared to gravity alone.
    But again, considering also the difference in engine size and power, I would be confident that the flow is OK in your case, also taking the pressure out of the equation.

    Anyway, if you arrange a permanent fresh water connection (regardless of whether made like mine or not), you surely must fit a valve and some kind of hose connector, which allows you to use also a pressurized hose for the flushing, as I normally do. And after a good fresh water flush for say 10 minutes or whatever, the last bit of filling the blocks with gravity fed antifreeze will only take a couple of minutes, if that.
  4. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    10,257
    Location:
    Long Island, NY
    "Water Pressure: The New York State Department of Health standard indicates that normal water pressure in the distribution system should be approximately 60 to 80 psi and not less than 35 psi while maintaining a minimum pressure of 20 psi under all conditions of flow."
    So you should have no problem with your regular flush outs, but I'm not sure that gravity feed will be enough for the winterizing. That's why I suggested using a pump for that. Cheap insurance.
  5. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    33
    Location:
    Long Island NY
    Thanks I read that, and I certainly have enough dock water pressure for a flush. Wondering about the gravity flow of the anti-freeze if 3/4" is big enough.

    Seems to be the standard connection size for most winterizing applications
  6. jerryd

    jerryd Member

    Joined:
    Aug 30, 2010
    Messages:
    38
    Location:
    montrose, ny
    FWIF I winterize my 6-92's through the zinc anode plug in the heat exchanger. Pump antifreeze in till pink comes out exhaust pipe. Then open caps on sea water pumps catch whatever comes out in pan and done. Very simple 20 years no problems. You also get to check impellers yearly.
  7. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    3/4" in how long of a hose? From where to where?
    Are you going to use the engine pump to move the antifreeze into & thru the engine?
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    Great idea.
    I ad acid/cleaner thru my zinc plugs.
  9. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    33
    Location:
    Long Island NY

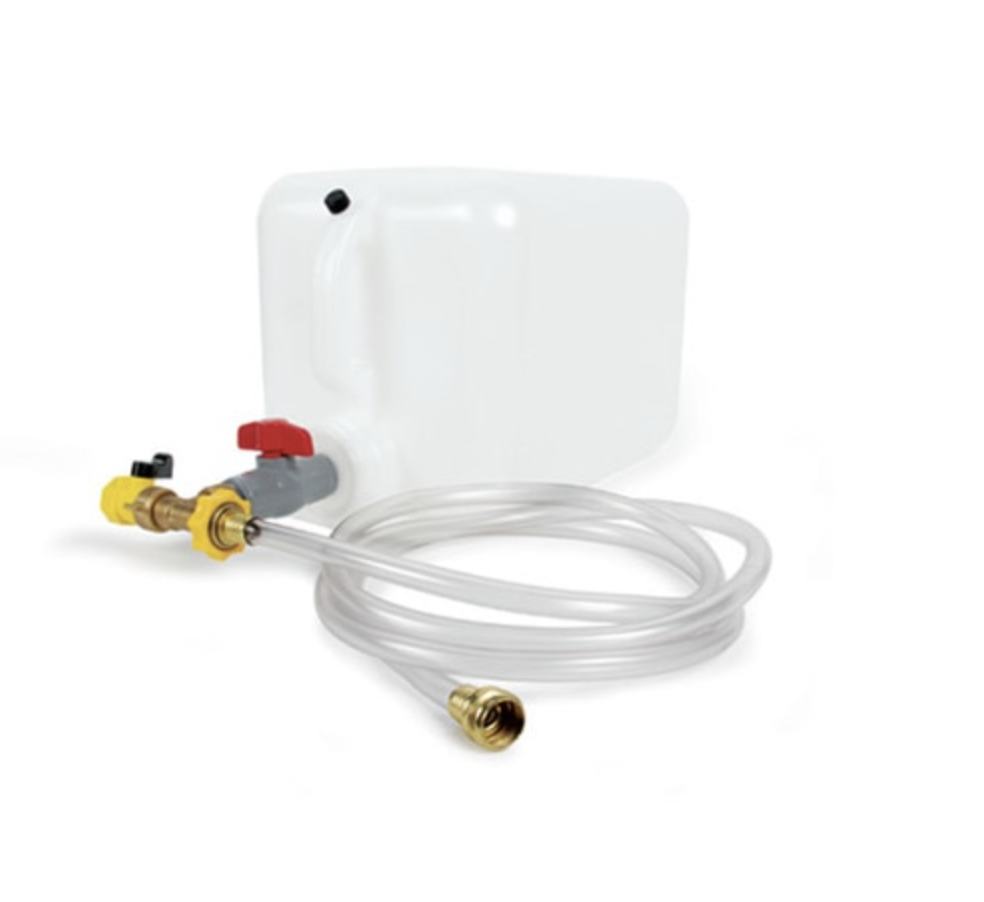

    Was planning to have a barrel of it in the salon and just connect to hose to the intake side of each engine

    Screen Shot 2020-10-23 at 3.34.16 PM.png
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    And do what?

    With what you provide so far, I'm I'm guessing at what your doing;
    You think a lighter liquid is going to push the heavier sea water out of your engine and get charged with the antifreeze from a few foot drop?

    I need to start drinking again.
  11. jerryd

    jerryd Member

    Joined:
    Aug 30, 2010
    Messages:
    38
    Location:
    montrose, ny
    I use an electric pump 1 hose in 5gal bucket antifreeze the other hose connected to 3/4 by 6 brass nipple with garden hose adaptor screwed into zinc plug hole. Hoses are washing machine supply hoses 4ft long. Bucket and pump on floor of engine room. Hope that helps.
  12. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    10,257
    Location:
    Long Island, NY
    +1 on the pump.
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,029
    Location:
    Fort Lauderdale
  14. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    33
    Location:
    Long Island NY
    So with the engines at idle speed the contraption I posted isn't enough to feed the cooling system on it's own to winterize?
  15. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    You did not mention with the engine at idle.
    With that, your going to need more solution than in that jug.

    In the other thread and what jerryd above suggested needs to be read over again.

    Other recent thread;
    https://www.yachtforums.com/threads/winterizing-40-open.33632/

    I am sure YF has more threads on this so please do some searches for more ideas.
  16. Oscarvan

    Oscarvan Senior Member

    Joined:
    Nov 10, 2015
    Messages:
    824
    Location:
    Chesapeake Bay
    I remove the impeller and close it back up. Then there's a hose barb plumbed into the strainer. Pump until pink comes out the rear end. Removing the impeller removes the obstruction in the system so you CAN pump through, and it gets to not sit in the same position and "set" for those months. And, you're combining maintenance and winterizing into a single operation. Haven't decided on a replacement interval there yet... probably every other year.

    To the OP.... can't answer the question with (a lot of) data and math, but to my gut a 3/4" feed sounds insufficient. I have seen the "lazy river" coming out of my exhausts at idle and sucking all that through a 3/4" hose sounds like it would not be easy. I decided not to do it this way. The general sentiment on this page seems to lean that way too. Beware of bias confirmation.
  17. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    536
    Location:
    On the water
    "til you see pink" is not a reliable indicator of how well you have protected your equipment. I recommend the use of an antifreeze refractometer to ensure you have flushed the system of fluid that will freeze.
    Antifreeze comes in differing grades based on temperature. We spent a little more money on the -100 as opposed to the -50 for added peace of mind.
    Be aware for New Englanders, that this year some bad antifreeze got manufactured and distributed:

  18. Oscarvan

    Oscarvan Senior Member

    Joined:
    Nov 10, 2015
    Messages:
    824
    Location:
    Chesapeake Bay
    I have a refractometer. If -50 is not enough we have bigger problems than the toys freezing.
  19. Stainless45

    Stainless45 Member

    Joined:
    Jul 19, 2019
    Messages:
    33
    Location:
    Long Island NY

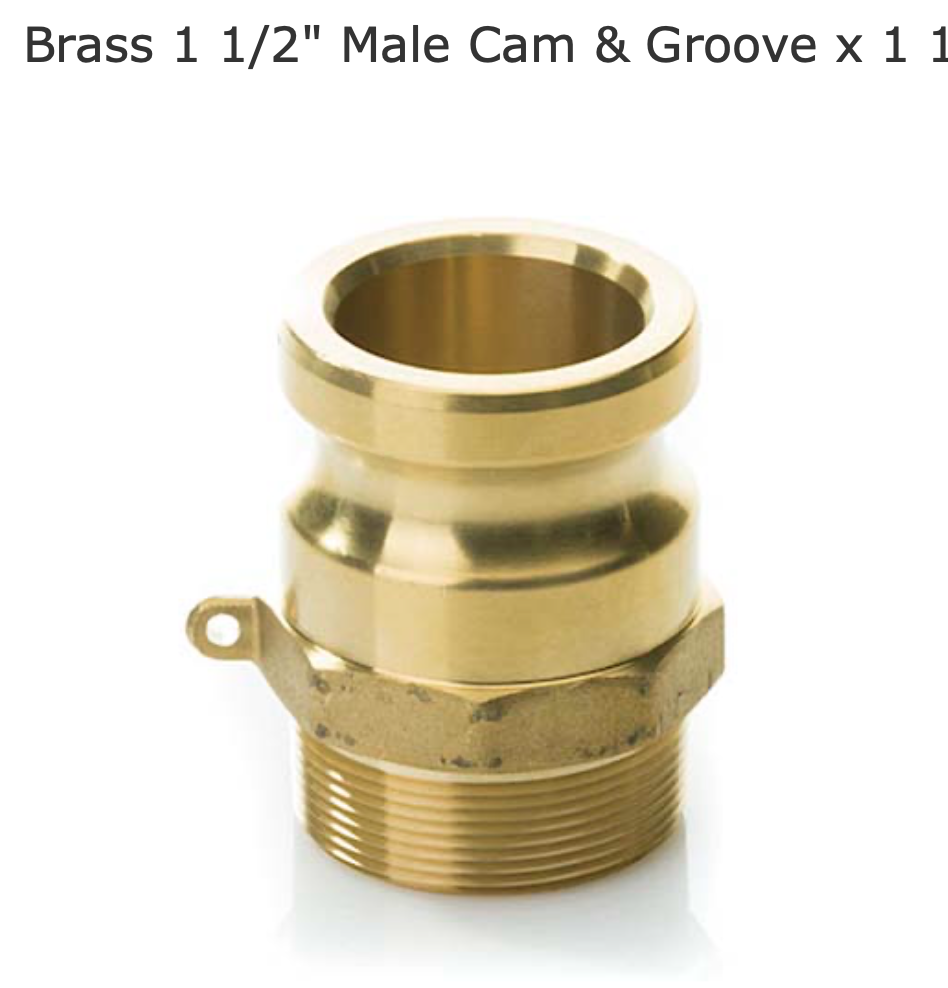

    Thanks for the feedback guys. At this point I'm looking at plumbing a 1-1/2" cam-lock fitting into the raw water line on each engine and using a 30-gal tub to flow the antifreeze in from above. I think this will be sufficient at idle to feed the engines and winterize. I want to avoid a pump since the seacocks will be closed and I don't want to force feed the system or impeller.
    Screen Shot 2020-10-25 at 4.08.42 PM.png
  20. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    536
    Location:
    On the water
    - 50 is probably fine for yall south of the mason dixon. With that being said, let' realize that it is a -50 solution in the jug. How do we account for the mixing that will inevitably take place in those spaces we are trying to protect?
