Review: Horizon 80' Catamaran Yacht "Billabong"

Discussion in 'Horizon Yacht' started by YachtForums, Jan 10, 2011.

You need to be registered and signed in to view this content.

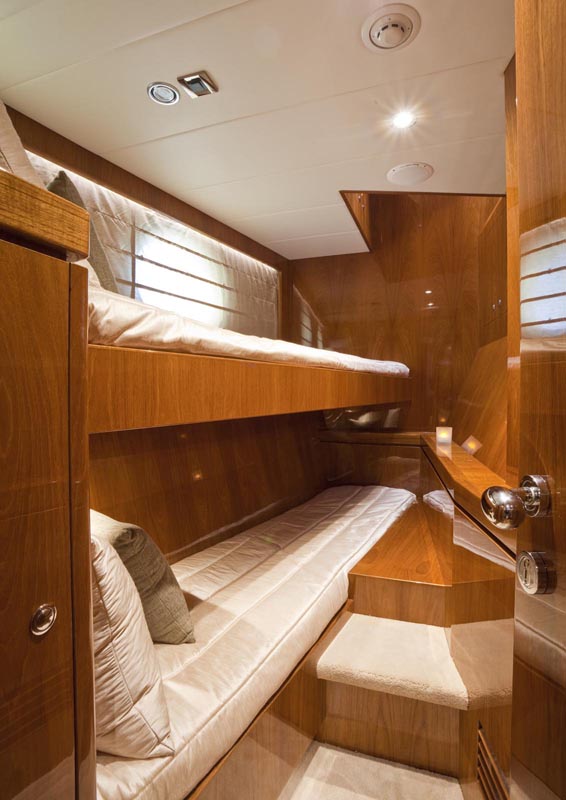

  1. Stacked berths in the forward staterooms easily occupy the H-80’s extra-wide sponsons. Well laid out and roomy; either over or under, the berths present highly finished maple wood for bed frames and storage closets. Top berths are easily mounted via built-in steps.

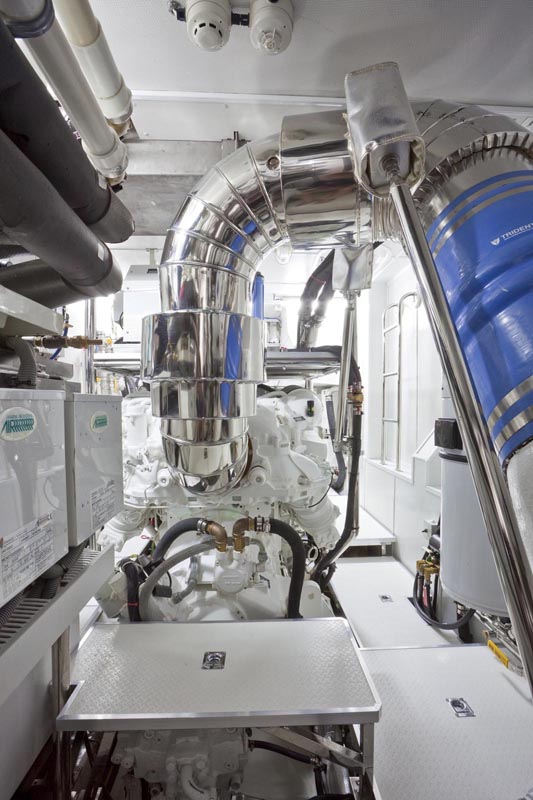

  2. Aqua Cat 80’s designers went the limit in engine arrangements, providing walk around space in opposite hulls for each of the hunky twin MTU8V M93s. These workhorses deliver 1200 hp @ 2450 rpm, with high performance 4 blade propellers on stainless steel shafts – Aquamet HS 22# plus Main bronze struts w/backing plates. The span of the H-80’s sponsons with twin engine configuration simplifies docking, although the beam does require a larger than usual width.

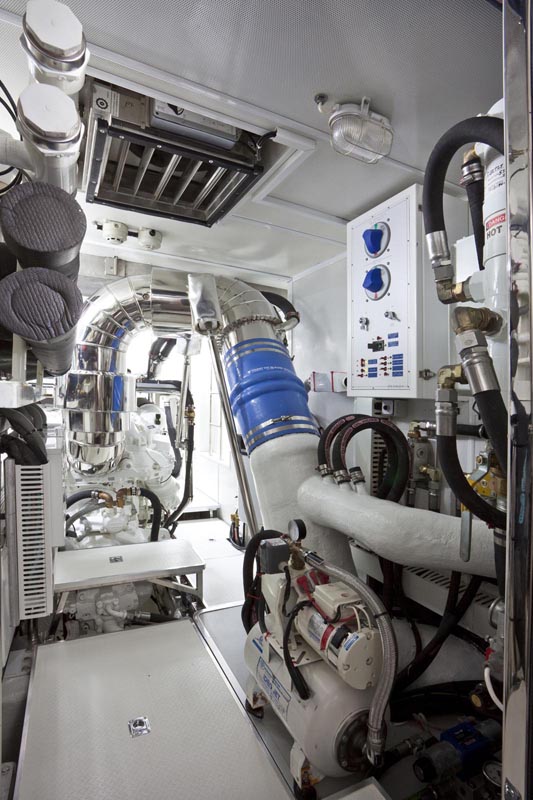

  3. AquaCat 80’s engine room also harbors 38hp hydraulic American Bow Thrusters; a 25 hp Stern Thruster, as well as a pair of 27 kw Onan Generators; and a 900 gal/per/day watermaker. And to offset hotel loads, a bank of solar panels are fixed to the skylounge roof.

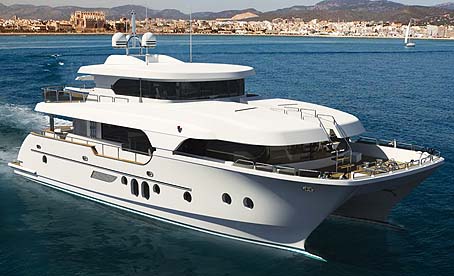

  4. This fine yacht will truly become a waterborne home, with a covered aft deck, salon, dining, galley and master, all on one deck, boasting full beam space bow to stern. She’s utilitarian, and for some, a fine looking yacht as well. While she’d never crave the Slinky, Suave, or Playboy Centerfold rating, she certainly vies for the roomiest, most comfortable in class; and possibly the most admired by a legion of cruising yachtsmen and women.

    <end>​


    Specifications:

    Length: 81’0”
    Beam: 27.3”
    Draft: 5’0”
    Freeboard: 5’9”
    Height: 22’5”
    Displ.: 169,400 lbs.
    Fuel: 4650 gallons
    Water: 950 gallons
    Engines: Twin MTU 8V2000 M93 1200HP Engines
    Generators: 2 x Onan 27kW
    Watermaker: (2) Sea Recovery 900 gal/day

    For more information contact:

    Horizon Yachts
    8 Kuang Yang Street
    Hsiao Kang, Kaosiung Taiwan
    www.horizonyacht.com

    ***

  5. DETAILS

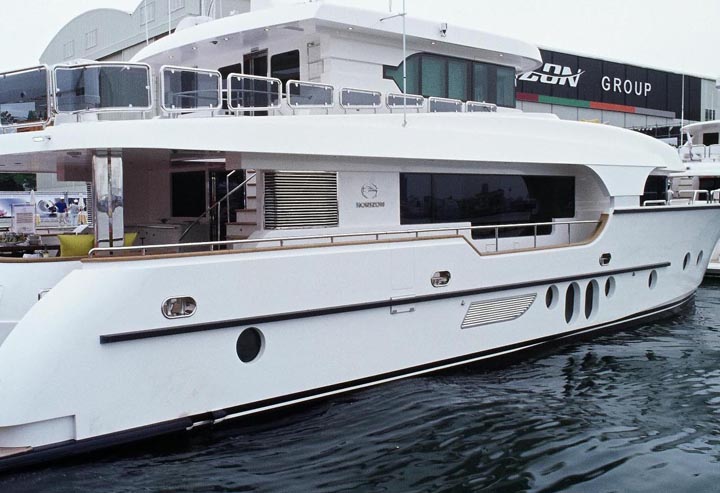

    While not every marina will have inside facilities to accommodate the 27’3” beam, many do; so the AC80 is protected by a solid rubber rub-rail on the upper hull sides from midship to the bow; plus a built-in rubber rub-rail mounted midway along the hull; so in many docking situations, fenders become optional. Anchoring also provides a safe and simple resolution, since dual anchors - one for each hull – reduce swinging and potential drag.
  6. Horizon’s flashy logo leaves no doubt the company is quite proud of this marvelous entry into the world of top-notch cruising designs. Matter of fact, they're so enamored with this feline's behavior, they're building a smaller sibling; the Horizon 58' Cat.

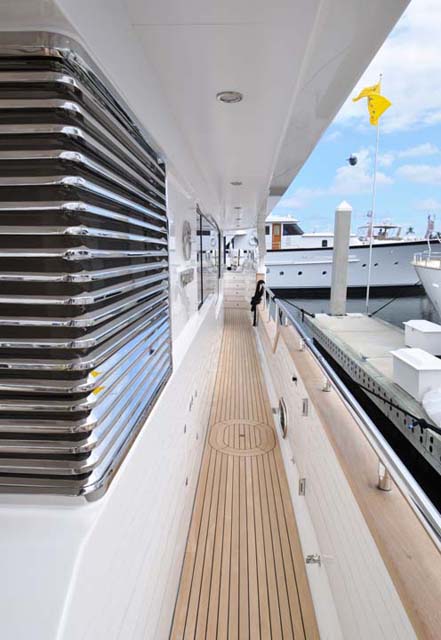

  7. Her extra-wide, non-skid outdoor teak decks also sport stainless steel handrails, as well as overhead shade rim overhangs, providing comfortable passage in any weather. Cut-away bulwarks along the salon provide floor to ceiling views of the horizon.

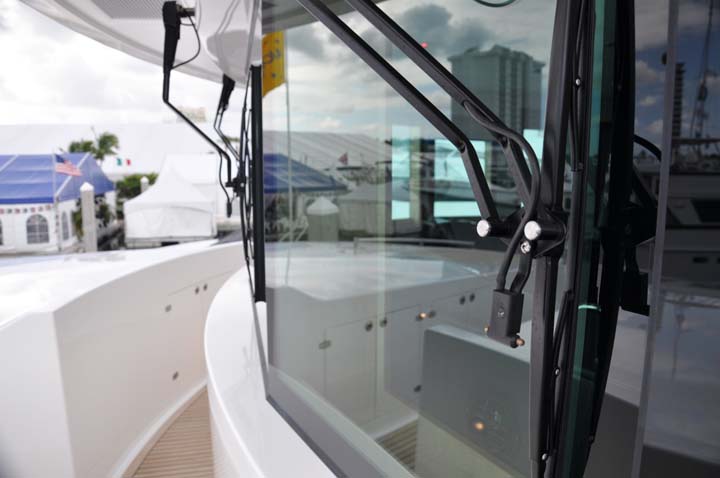

  8. Automated windshield wipers, top to bottom of the Bridge’s tinted, tempered glass windscreens, clean a thorough path across the broad ocean view.

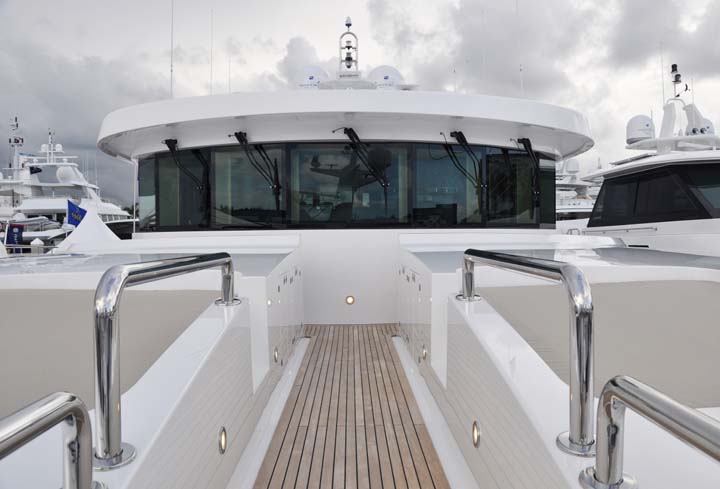

  9. This view from the Portuguese Bridge arrows a charming pathway forward, a very quick and easy passage to the bow, with comfy all-weather sun pads flanking the walkway.

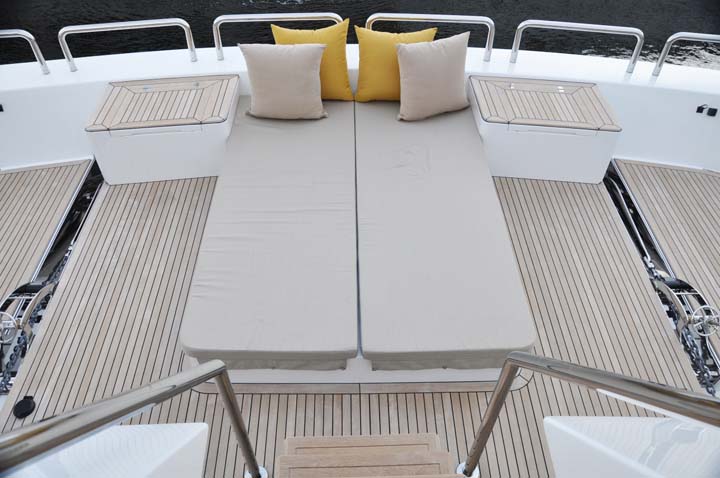

  10. At the forepeak of the bow ( ;) ), centered between the H-80's anchor guides and far beneath the captain's line of sight is this sunbed with accompanying drink pedestals. It is a private, yet convenient get-away for guests seeking solitude. Think of it as a 'balcony on the bow'.

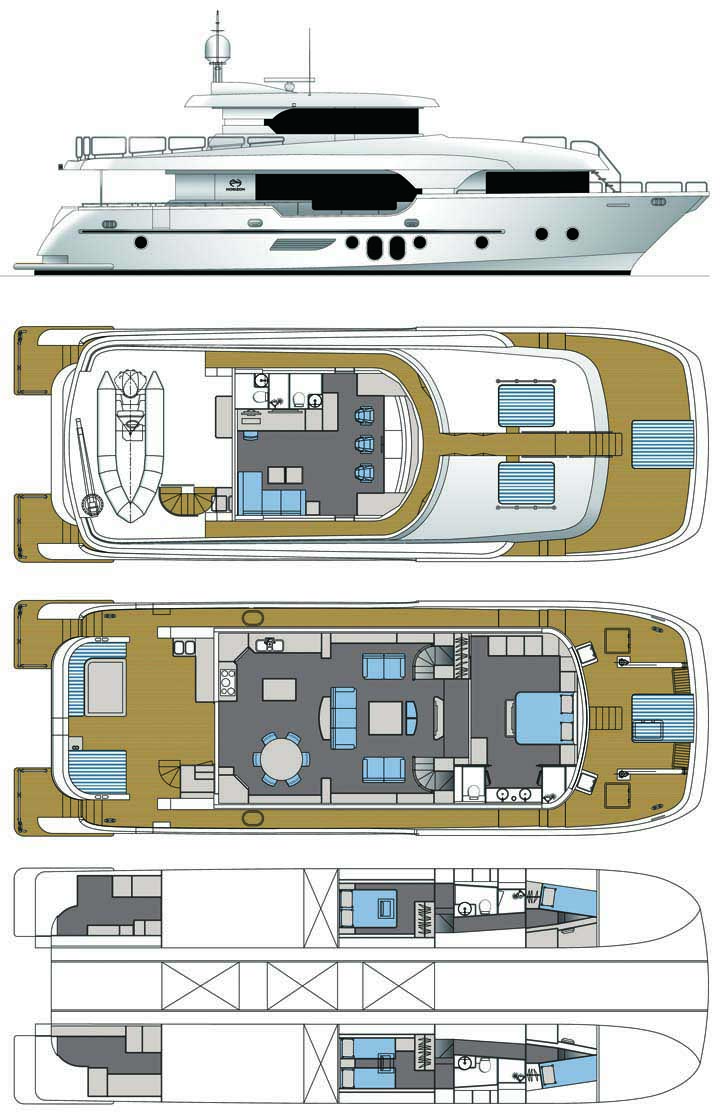

  11. Deck Plans; Top to Bottom -

    1. Skylounge Deck
    2. Main Deck
    3. Sponsons
