Engine Room Lights

Discussion in 'Post Yacht' started by Davidoc, Dec 15, 2016.

You need to be registered and signed in to view this content.
  1. Davidoc

    Davidoc Member

    Joined:
    Aug 29, 2005
    Messages:
    132
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    Have any of you guy's found some new LED compatible engine room lights? Now that I have spent about half of my boating time in the engine room, I thought it would be a good time to make it a lot brighter down there.
    My '91 46 has 4, 12V 7" X 15" mounts. Thanks in advance. Dave
    Last edited by a moderator: Dec 15, 2016
  2. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,375
    Location:
    Jax FL
    Do a search on Bamboo's Donzi work. He found some good ones and other members were involved with some extra thoughts.

    I ended up with a bunch of LED rope light. I have been thinking about running it around my ER.
  3. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    9,256
    Location:
    Fort Lauderdale
    I bought some LED strip light fixtures at Home Depot or Lowe's, they're REALLY bright and have no faltered a bit. I think I found them at HD. They were less than $50 each, I routed a few long zip ties under the base before I secured it to the ceiling and then snapped in the bulb section and zip tied it to the base, no issues, no maintenance, no worries.

    like these
    https://www.lowes.com/pd/Utilitech-...mmon-2-ft-Actual-3-23-in-x-24-01-in/999911227
  4. My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    49
    Location:
    Mystic, CT
    I bought light fixtures from Superbrightleds.com works very well, I installed the 30" outboard of the engines and two 18" one above the gen, the other over the batteries. I converted the existing fixtures with 12v bulbs to LED from the same web site.

    https://www.superbrightleds.com/cat/swivel-led/?view=standard
  5. Davidoc

    Davidoc Member

    Joined:
    Aug 29, 2005
    Messages:
    132
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    Thanks a lot guy's. These leads are very helpful.
  6. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    1,097
    Location:
    Cold Spring Harbor, NY
    Davidoc

    Do you have 110v incandescent down there now. If so can't you just change out the bulbs?
  7. Davidoc

    Davidoc Member

    Joined:
    Aug 29, 2005
    Messages:
    132
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    No they are 12V RV bulbs. I am going to try Bamboo's dome lights. My fixtures and lenses are original and need to be replaced. Those dome LED's look like they will mount nicely to the wood mounting plates that exist. If that is not enough light down there then I am going to add some of those tube lights that My Affair posted. Next I think the halogen salon lights have to be upgraded to led as well.......thanks
  8. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    9,256
    Location:
    Fort Lauderdale
    A traditional 60 watt household screw in base bulb (A19) puts out 800 lumens to give you an idea how to gauge light output.
  9. Davidoc

    Davidoc Member

    Joined:
    Aug 29, 2005
    Messages:
    132
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas

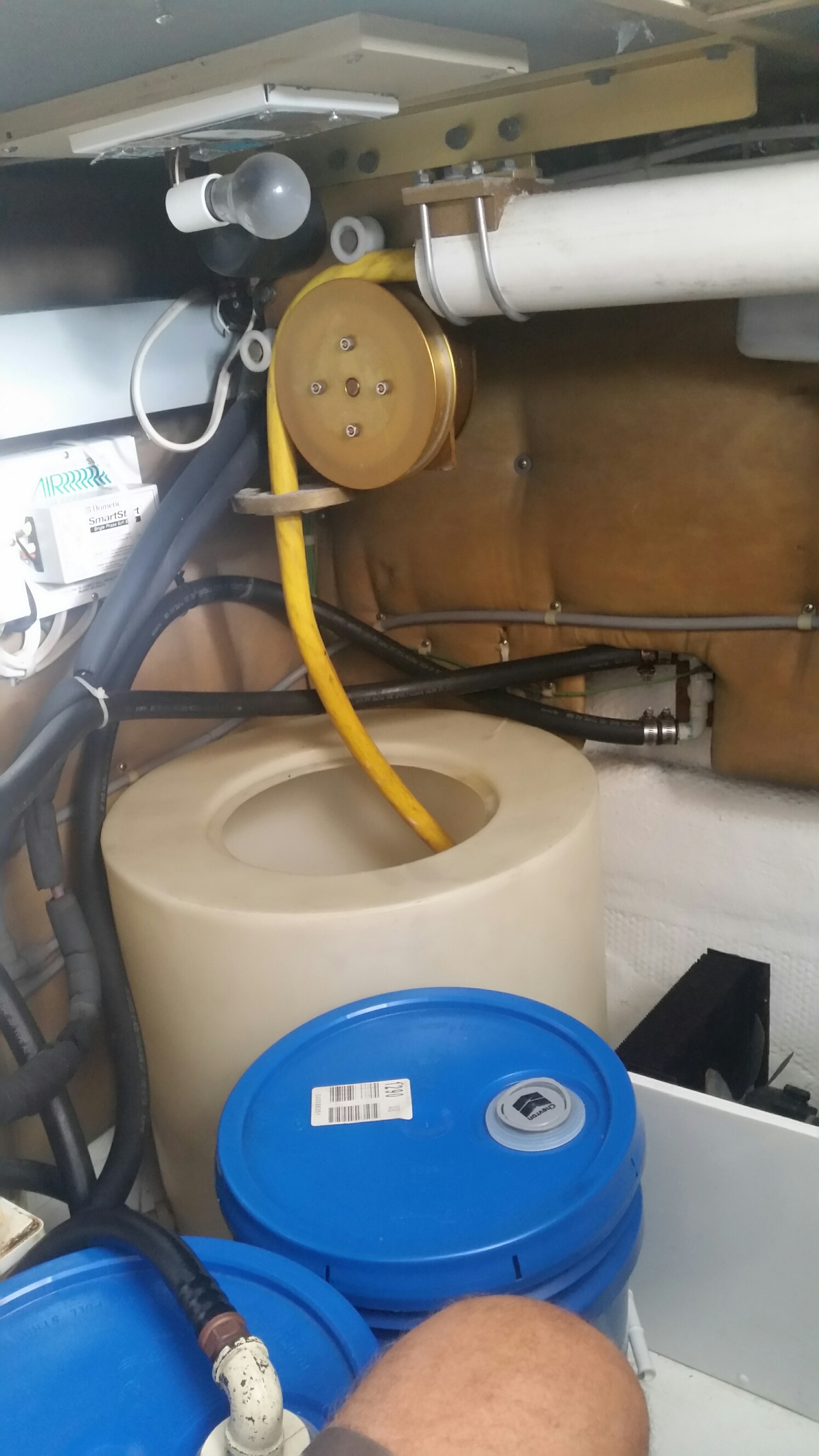

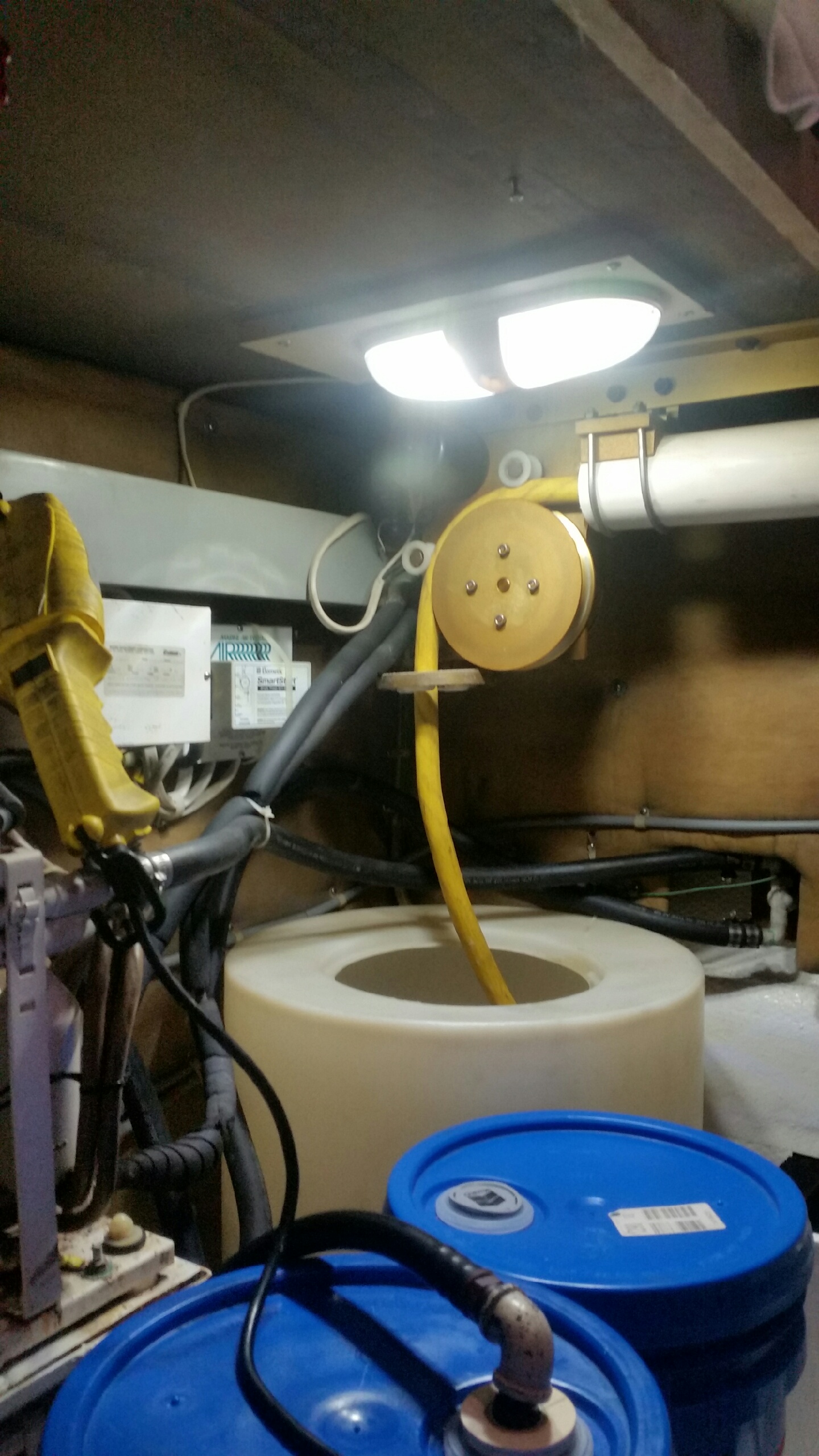

    From this to this: 20161214_113616_resized.jpg 20161221_162604.jpeg Lower power, cost and heat with brighter white light. Controlled with original engine room switch plus dual switches on the unit. Great addition with four total installed. Thanks Bamboo and the rest of you guy's

    Admin Edit: Oversize images removed.
    Last edited by a moderator: Jan 2, 2017
  10. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,375
    Location:
    Jax FL
    Egg-celent.
  11. ranger42c

    ranger42c Member

    Joined:
    Aug 20, 2013
    Messages:
    252
    Location:
    South River, Chesapeake Bay

    I strung a 5-meter LED "rope" around the front half of our engine room, and just tied it into the existing 12V circuit. It made such a difference, I still have "room" in that circuit for another 5-meter rope around the aft-end, so I'll be doing that next.

    The string of LEDs was a product from superbrightleds.com, and I just shopped for brightest light (lumens and color temperature) plus water resistance (more for protection from humidity than anything else).

    -Chris
  12. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    1,097
    Location:
    Cold Spring Harbor, NY
    Query: isn't that expression from the Egg Harbor forum??
  13. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    891
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    It is not egg-sculsive to that forum tho...........
  14. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,375
    Location:
    Jax FL
    Huum
    Seems like a great phrase for Egg owners and crew to use. Never thought about it.
    I think it was from some poor joke during a magic act, maybe from Johnny Carson (Carnac).
    Similar to Ed Zachary...
  15. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,375
    Location:
    Jax FL
    I like that
  16. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    1,097
    Location:
    Cold Spring Harbor, NY
    Back to lights - I didn't mean to hi-jack the thread with my egg -agesis!
  17. Tommy Rice

    Tommy Rice New Member

    Joined:
    Feb 8, 2015
    Messages:
    29
    Location:
    Panama City Florida
    Beau you might want to go on Amazon and check 12v LED bulbs. I bought 4 that are equal to a regular 100 watt incandescent bulb and they really light up the engine room. Home Depot had new fixtures which I had replaced right after bought the boat. The difference in the heat on the fixture is less than half what it was with the incandescent 100 watt bulb. They had been in use for about 8 months before I replaced a bulb.
  18. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    1,097
    Location:
    Cold Spring Harbor, NY
    Thx Tommy. Fortunately I have both a 110 and a 12 volt system in the ER. I haven't changed anything to LED, but next time I lose a bulb I may think about doing that.
  19. Matt46post

    Matt46post Member

    Joined:
    Apr 27, 2015
    Messages:
    50
    Location:
    El dorado hills california
    Hi
    I used a bunch( 10-14)of the aluminum 12v led strip lights thru-out the engine room from superbrightsled.com and actually put an 1" thick clear acrylic floor in between the hatches , it's looks really cool I have the fake teak and Holley flooring thru out the boat and a piece that lays on the acrylic when I don't want to see the engines,I framed the engine hatches and floor opening in polished stainless
    Matt
  20. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    260
    Location:
    Baltimore, Maryland
    Pictures !!!!
