Yacht Serena III sinks off Ft. Lauderdale

Discussion in 'General Yachting Discussion' started by Ken Bracewell, Jan 25, 2016.

  1. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave
    So does ABS. The rules for yachts follow the "standard" IACS wording that the stabilizer be fitted in a watertight compartment or if damaged cannot lead to flooding of auxiliaries or other necessary equipment or create progressive flooding.

    If they tore a hole in the side because a stabilizer failed to shear off then it was their boat to lose ... they should have been able to contain the flooding to the single compartment. That might have gained them time to receive salvage assistance.

    But ain't nobody talking ... as is usual in these affairs.
  2. Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,450
    Location:
    Sarasota/Ft. Lauderdale FL
    Yes but it does project out the side where you could clip something coming off the bottom or the side of a sloping channel.
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,816
    Location:
    Satsuma, FL
    One crew talked but still makes no sense. Thx for the insight above.
  4. Caltexflanc

    Caltexflanc Senior Member

    Joined:
    Sep 25, 2011
    Messages:
    244
    Location:
    North Carolina
    That doesn't look like a stabilizer fin to me to small, wrong angle; even yet from that angle does it doesn't look like it is beyond the hull side. I agree with Bill that finding one extending beyond the keel of an 11' draft boat is extremely unlikely. Think about how these things work; down low and close to the bottom (which means close to the centerline of the boat) makes them less effective. Now that certainly doesn't mean one can't hit something protruding in it's path, including an underwater ledge or channelside. I know this from personal scientific testing.. don't ask me how!
  5. dsharp

    dsharp Senior Member

    Joined:
    Aug 23, 2009
    Messages:
    240
    Location:
    lake jackson, tx
    How large would the shaft be for the stabilizer fin? You would think the crew would notice the handling getting "sluggish" Sad to see a relatively new boat go to the bottom.
  6. leeky

    leeky Senior Member

    Joined:
    Jan 2, 2011
    Messages:
    273
    Location:
    Florida
    Here's an example of a stabilizer fin extending beyond the hull side:
  7. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,384
    Location:
    My Office
    That one could be knocked pretty hard and easily in that position if you were to pass a coral bombie or rock too close.

    A Composite fin could be made to shatter but I have not seen any of those offered to my projects so far.

    Most folks who operate vessels with Stabs manage to do so without any major life threatening incidents so it might not be a popular item even if available.
  8. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave
    What should it look like? Considering those fins were designed and spec'd for satisfactory performance on that boat by people who "know big boats" it is a bit disingenuous to make the claim that they are too small and at the wrong angle.

    There is a relationship between fin size, vessel speed, rudder size and power and the interaction between all those factors. A rudder alone can be used for roll stabilization but it is not very effective and creates a whole new world of issues so it is not common to find the rudder as part of the roll control system.

    A fin sticking straight down would control roll but would also increase draft all out of proportion to the benefit. The angle fins are fitted is often related to the side clearance, some boats that use retractable fins place them parallel to the water surface, stick far out from the side, and work quite well, just as well as those at some angle intended keep them withing the box defined by draft and breadth.

    Back to the topic, Serena was built by a commercial yard in Brazil that builds steel commercial vessels and small (up to 10m) composite recreational boats. It is fairly safe to assume the boat was steel and if they used fin stabilizers from the usual suppliers and they were fitted in compliance with class rules and manufacturer's recommendations, it is extremely unlikely that grounding a fin hard enough to hole the boat would have gone unnoticed by the crew or passengers.

    I have seen a lot of fins damaged by grounding, groundings that were immediately and painfully obvious to all on board. Those fins were bent, broken, de-skinned, and/or shattered but none of them tore a hole in the hull or ripped the shaft from the actuator to leave a shaft sized hole open to the sea. It is very easy and fairly common to hit a fin and nothing else, docks, dredged channels, and coral heads are the usual suspects. Resting on a fin as the tide falls is another issue that may damage a fin (they are designed to fail - they are sacrificial to save the hull) but that doesn't sink the boat either.

    Regardless of what the mate said might have happened, there is a lot more to this story.
  9. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave

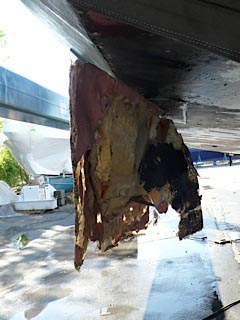

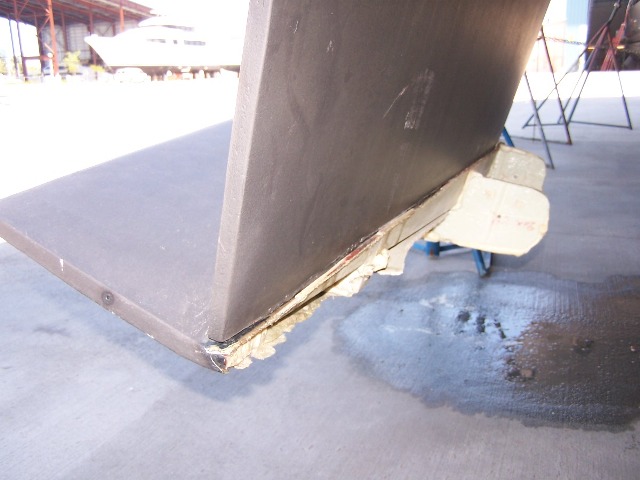

    This one broke off fairly cleanly. I need to dig through my pic files, there are a few showing fins that look like fish skeletons from the composites failing when the fin structure flexed during a grounding ... a grounding that everyone on board knew instantly but did not hole the boat.

    Broken Wing.jpg
  10. JWY

    JWY Senior Member

    Joined:
    Feb 22, 2004
    Messages:
    1,401
    Location:
    Ft. Lauderdale
    "...I have seen a lot of fins damaged by grounding, groundings that were immediately and painfully obvious to all on board. Those fins were bent, broken, de-skinned, and/or shattered but none of them tore a hole in the hull or ripped the shaft from the actuator to leave a shaft sized hole open to the sea..."

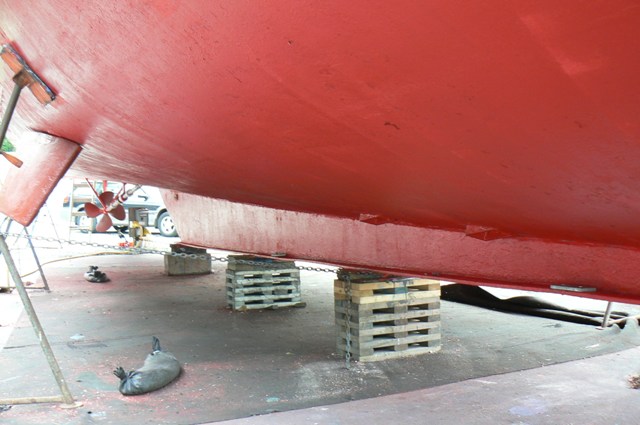

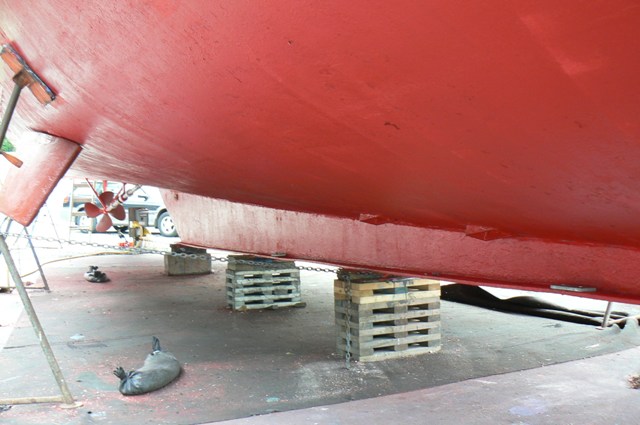

    The captain of this 61' steel trawler said he didn't know he hit something. He also didn't know how the razor blade marks got on the lucite cocktail table either. No water entry into the hull.
  11. sunchaserv

    sunchaserv Member

    Joined:
    Dec 16, 2011
    Messages:
    140
    Location:
    Carefree, AZ
    Is there any hint as to recent maintenance performed on vessel?
  12. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,563
    Location:
    Miami, FL
    Looking at a picture of the boat I wonder if the portholes are fixed. I sure hope they were because they were very close to the water line.

    If they could be open, even if part of pre departure check list, it s not hard to see how large volume of water could come in thru one of these

    Still don't understand the lack of bilge pump and high water indicators though
  13. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave
    Larger boats don't normally have little DC bilge pumps in each compartment, there is a bilge system that uses one or more high capacity pumps drawing suction through a bilge manifold with separate suction valves and lines to strum boxes in each compartment. The bilge pump system can normally be cross connected to make it a "fire and bilge" system with the pumps taking a suction from sea to discharge into the fire main.
  14. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave
    Surely you are not suggesting ...

    Of course another cause may have been the boat reached a speed that simply ripped the fin apart!
  15. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    This is true that they don't have automatic pumps, although many times there still is a high water alarm for each compartment on the larger boats. On larger yachts I've seen a few compartments which are a bear to visually inspect them, hidden under carpet/padding/hatch in a stateroom. I kind of don't know why they don't utilize a Rule 4700 in at least a few of these compartments with float switches.

    I've also seen on some yachts and commercial boats where these pumps and manifold have been located in the engine room, so in some cases of fire or flooding, you can't access them without compromising the rest of the boat.

    Ripping the stabilizer fin apart would not let water in. Now if the shaft for the fin got ripped out of the hull absolutely would sacrifice the vessel.

    Now I can't understand how the Captain didn't notice anything in the running attitude of the boat or feel of it during this episode. No high water alarms going off. I cannot understand with 7 crew on a boat of this size, how nobody could find the problem before it became a major one, and how they couldn't mitigate it. Although a 6-8" hole from a stabilizer fin might've been pretty hard to stuff stuff in and have it stay there.....

    I was on a seatrial on a larger Hatteras MY years ago with an extension and one of the rudders fell out and the surveyor sat on top of the rudder post stopping the flow of water as we went to the yard. LOLOLOL
  16. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,314
    Location:
    9114 S. Central Ave
    Where do you suggest this pump discharge?

    It is the rare boat that size that does not have the bilge pumps and manifold in the engine room. Larger boats might have an auxiliary machinery space with the pumps but even 60m boats typically have the fire and bilge pumps in the engine room.

    I don't think anyone suggested such a thing.

    The only place a bilge alarm is required is in the space with the bilge pump and fire pump. The bilge pump can be automatic with the high water alarm but it is not required.

    It is very easy to understand. It is not "nice" to say why but examples abound.

    If by some phenomenal impact or bizarre circumstance the fin shaft was pulled out, the hole it would leave on a boat that size is probably 3 or 3.5 inches and certainly not more than 4.
  17. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,563
    Location:
    Miami, FL
    Ok... So help me understand these parts of your post. I am a small boat guy... My personal boat is 53 (feet not meters) and I haven't run anything over 70/75' professionally

    Are you saying that on those "big boats" you have to go to the ER in order to activate bilge pumps and the manifolds controlling where the water is pumped from is also in the ER? I mean I undestand that these boats have a captain, first mate and an engineer but still... Whether in case of a fire or flooding, getting in the ER is going to be a problem...

    I don't care how big the boat is, typically you will have more compartments and all you have to do is add automatic bilge pumps whether DC or AC

    A three inch hole just a couple of feet under waterline in the case of a stabilizer shaft is a manageable emergency. I don't have the numbers in mind but the amount of water coming in is something any decent pump can handle or at least buy you time till you can plug the hole or get additional pumping capacity in line, incl crash pumps.

    As to the first comment about where woudl that be discharged, you're kidding, right? Could be thru sea chests or thru a large discharge pipe running the length of the boat...

    Heck on my lil' 53, I just installed 4 3700gph pumps with provisions for two more which will go in later this year .. All Automatic, with indicator lights and high water alarms switch in each compartment.
  18. Iknownothing

    Iknownothing Member

    Joined:
    Jan 25, 2016
    Messages:
    52
    Location:
    Lauderdale
    "Bigger" boats in the 80-130' range which this one falls into will typically have automatic pumps with a backup pump that has a central manifold, as well as a manual hand operated pump. The backup pump manifold is usually located in the engine room or a separate machinery space, typically it consists of 2 electric pumps that can also be used for fire fighting. The main engines will also normally be fitted with "crash pumps". Close the seacocks, turn a valve and then the main engine raw water intakes can be used to dewater the engine room bilge.

    Not sure if it's a RINA certification requirement , but most of these vessels also have a portable gasoline powered emergency pump.

    Take with a liberal grain of salt, going by what I've seen over the last 20 years.
  19. olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    6,809
    Location:
    Fort Lauderdale
    On our 130', we have 13 automatic bilge pumps, float switches and alarms. Minimum of two in every bulkhead section. Then we have two emergency pumps (plus one backup) with lines to each compartment. And then we have an emergency engine driven pump. I may not have it all exactly right, but something like that.

    In addition to meeting standards that wouldn't allow a stabilizer to compromise things you also have some form or forms of emergency repair kits, the biggest challenge being the pressure of water inflow.
    Last edited: Jan 28, 2016
  20. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    I would suggest that the electric bilge pumps, discharge overboard just like they do on smaller yachts, perhaps with a check valve and seacock at the thru-hull.

    The only bilge alarm required may very well be in the engine room, but it would be completely foolish not to have high water alarms in every compartment or at least in the lazarette compartment which would be most prone to flooding. A lot of the yachts 90-120' that I have run have both had high water alarms for most if not every compartment and also have had electric pumps added with a seacock and check valve at their thru-hull discharge. Larger than 120' that I've worked on....160-172' have also had an alarm system for every bilge compartment.

    I also worked on a 160' MY that when it was virtually new, the 4" a/c discharge pipe broke off and it destroyed everything in the engine room and a lot of the rest of the lower level of the boat.

    It's also foolish IMO to have your only bilge pumping capabilities in the engine room. There should be a secondary source of pumping bilges outside of the engine room. I like redundancy. If the engine room is flooding you might not be able to get into it without flooding the rest of the boat via the engine room door. If there's a fire in the engine room, and many other scenario's.

    Now I have run some yachts (made from commercial boats) and commercial boats 80-110', that had no automatic pumping. They had a large bilge pump, and a manifold of valves of where to suck from. They also had a fire pump that you could use on this manifold in place of the bilge pump, and they had a crash pump on one engine that could also be valved to pump out the various bilges, but it was all manually activated and valved, and all in the engine room.

    This was an expedition type yacht with 11' draft, I would imagine it had large stabilizers. A 4" hole will flow 700 GALLONS PER MINUTE or even a lot more. That would sink a yacht pretty quick if it can't be stopped.

    A crew of 7, someone should've been wandering around and noticed water, or the boat riding funny or handling funny. Something.
    Last edited: Jan 28, 2016
