Volvo Penta 550G IPS - low speed vibration?

Discussion in 'Engines' started by c-and-a, Aug 21, 2013.

You need to be registered and signed in to view this content.
  1. c-and-a

    c-and-a New Member

    Joined:
    Aug 21, 2013
    Messages:
    4
    Location:
    Warwick, RI
    Did a search and read many threads on IPS - but didn't find this specific topic

    I sea trialed a Cruisers 390 Sport Coupe with VP 550G IPS system - at idle/near idle speed - there was a very noticeable vibration - dealer suggested it was air bubbles from exhaust on the hull... seemed like they were some pretty big bubbles :)

    Just above idle - vibration was completely gone...

    I did find a thread that mentioned a fuel injector...?

    Any insight or feedback?

    THX!
    Curt
  2. captaintilt

    captaintilt Senior Member

    Joined:
    Jan 4, 2012
    Messages:
    219
    Location:
    Great Lakes / Florida
    Volvo IPS

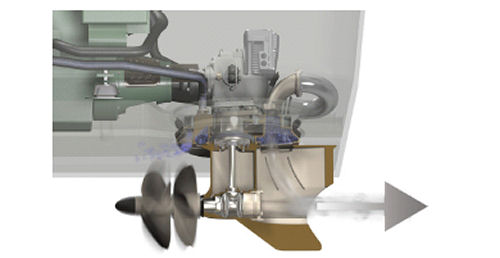

    The Volvo IPS systems vents the exhaust through the drive units themselves, much like a stern drive. Depending on the year of the boat / drives, this is perfectly normal for the IPS drives to be bubbling and causing some vibration on the hull while sitting at the dock / engines running.
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Was your mechanical surveyor there?
  4. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,937
    Location:
    Guernsey/Antigua
    Depending on how much is hanging over the stern, you will get a bit of bubbling from aft.

    Attached Files:

  5. c-and-a

    c-and-a New Member

    Joined:
    Aug 21, 2013
    Messages:
    4
    Location:
    Warwick, RI
    No mechanic or surveyor yet - was giving the Admiral a spin on her before I engaged to that level - but definitely will if we move forward...

    THX for replies!
  6. Maxwell

    Maxwell Senior Member

    Joined:
    Sep 16, 2010
    Messages:
    194
    Location:
    Door County, WI
    I assume this happens just when the boat is running in the slip as well? If thats the case, this is normal. Our IPS500 powered Tiara shudders (for lack of better term) while idling in the slip due to the exhaust exiting under the hull. If there is a lot of vibration or it changes while underway I may be a little concerned.

    Max
  7. c-and-a

    c-and-a New Member

    Joined:
    Aug 21, 2013
    Messages:
    4
    Location:
    Warwick, RI
    Thx Max!

    You are spot-on - at idle it "rumbles" or as you state "shudders"... as soon as you throttle up even slightly it disappears...

    I am feeling better that this is normal - and not my overly pessimistic side coming out :)
  8. Maxwell

    Maxwell Senior Member

    Joined:
    Sep 16, 2010
    Messages:
    194
    Location:
    Door County, WI
    Good Luck.

    Feel free to PM me if you have any questions. I have 3 seasons on ours and have taken the time to learn a lot about them (maintenance etc).

    Max
  9. captaintilt

    captaintilt Senior Member

    Joined:
    Jan 4, 2012
    Messages:
    219
    Location:
    Great Lakes / Florida
    Ips

    c-and-a,

    Maxwell hit it spot on the head, I had heard that Volvo was going to install a "dump valve" on the exhaust system, much like Cummins Zeus drives have (they divert exhaust over the side, above the waterline at idle, and then at about 1200RPM is goes through the hub and out through the wakeline.

    Feel free to PM me as well, as I have lots of time on IPS and Zeus powered boats of all sizes and builds.
  10. c-and-a

    c-and-a New Member

    Joined:
    Aug 21, 2013
    Messages:
    4
    Location:
    Warwick, RI
    Much appreciated guys - I am crossing fingers I get the deal sorted out and can get into the new boat - yes, that was my subtle request for additional prayers :)

    If it happens - you may wish you didn't offer - LOL

    Thx Again to All for feedback!
    Curt
