Steering oil reservoir location?

Discussion in 'Carver Yacht' started by Bill Shaw, Aug 9, 2017.

You need to be registered and signed in to view this content.
  1. Bill Shaw, Aug 9, 2017
    #1
    Bill Shaw

    Bill Shaw New Member

    Joined:
    Apr 15, 2015
    Messages:
    1
    Location:
    Bay City, MI
    Does anyone know where the steering oil reservoir is located on a Carver 506?
  2. 30West, Aug 10, 2017
    #2
    30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    246
    Location:
    Holland, Michigan
    Most are just below the steering wheel, look for a cap.
  3. Pascal, Aug 10, 2017
    #3
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,149
    Location:
    Miami, FL
    All properly set up hynautic steering systems I ve seen have a reservoir in the ER with pressure gauge, sight gauge and Schroeder valve
  4. 30West, Aug 10, 2017
    #4
    30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    246
    Location:
    Holland, Michigan
    I'm guessing the boat he mentioned is set up like my boat.
    Last edited: Aug 10, 2017
  5. gbarger, Aug 11, 2017
    #5
    gbarger

    gbarger New Member

    Joined:
    May 16, 2012
    Messages:
    30
    Location:
    arkansas

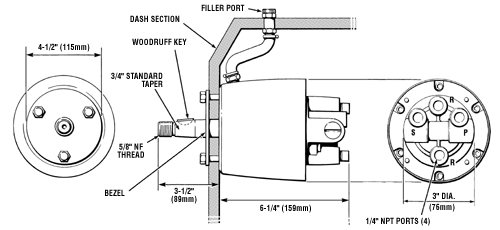

    The steering is a SeaStar(teleflex) flexible helm. The Pump is located behind the steering wheel. This is behind the dash. There is no specific reservoir, it is just the pump itself. There is a cap on top of it, most of the time there is a remote fill tube, if you have a remote fill tube the cap is about 3/4 inch black plastic cap on top of the dash above the steering wheel. See the attached gif. 1-Rm_Helm_Dim.gif
