Service a Northern Lights Gen in Stuart Fl

Discussion in 'Generators' started by Ron Ferguson, Jan 13, 2026 at 12:06 PM.

You need to be registered and signed in to view this content.
  1. Ron Ferguson, Jan 13, 2026 at 12:06 PM
    #1
    Ron Ferguson

    Ron Ferguson New Member

    Joined:
    Mar 13, 2017
    Messages:
    23
    Location:
    Virginia
    I am looking for a tech who can service a Northern Lights 20kw Gen in the Stuart Fl area.
    Any recommendations would be greatly appreciated.

    Thanks!
  2. rtrafford, Jan 13, 2026 at 12:14 PM
    #2
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,967
    Location:
    Vero Beach
    Shearwater Marine & Industrial
    4519 SE Commerce Avenue
    Stuart, Fl. 34997
    Office 772-781-5553
  3. rtrafford, Jan 13, 2026 at 12:15 PM
    #3
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,967
    Location:
    Vero Beach
    I purchased my units through their office.
  4. Capt Ralph, Jan 13, 2026 at 1:51 PM
    #4
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    14,150
    Location:
    Satsuma, FL
    Just service or to fix a problem?
  5. Ron Ferguson, Jan 13, 2026 at 1:55 PM
    #5
    Ron Ferguson

    Ron Ferguson New Member

    Joined:
    Mar 13, 2017
    Messages:
    23
    Location:
    Virginia
    I need to find an oil leak. I think it might be coming from a front seal but I can't see it due to the PTO runs off the front and blocks my view of the front.
  6. Capt Ralph, Jan 13, 2026 at 2:34 PM
    #6
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    14,150
    Location:
    Satsuma, FL
    Oil leak in the front. With crank driven PTO.

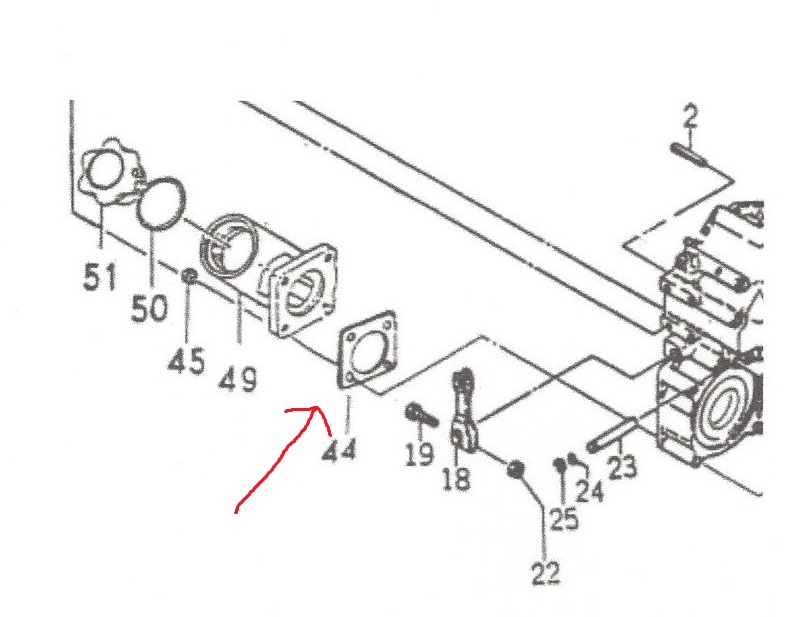

    As many times I thought is was a front seal leaking it was always the raw water pump shaft seal, raw water pump mount O ring or the oil fill assembly behind the raw water pump drive gear.

    Mostly the gasket to the oil fill assembly behind the raw pump drive gear.
    When the raw pump is removed, this gasket gets abused and never replaced.
    P844-3 oil fill.jpg
    Last edited: Jan 13, 2026 at 2:43 PM
  7. Ron Ferguson, Jan 13, 2026 at 3:20 PM
    #7
    Ron Ferguson

    Ron Ferguson New Member

    Joined:
    Mar 13, 2017
    Messages:
    23
    Location:
    Virginia
    Ok. Thanks so much for your response. I don't think I need to remove the PTO to get to this pump but I am not on the boat to take a look. Thank you!
  8. Capt Ralph, Jan 13, 2026 at 4:57 PM
    #8
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    14,150
    Location:
    Satsuma, FL
    Typically PTO pumps go straight off the crankshaft aweigh from the engine. This gasket is on the side of the engine, under the injector pump.

    If you are a Do It Yourselfer (DIY), this should be an easy check wiping your finger under the gasket's bottom edge.
    Post some pictures and we may be able to help more.
  9. Ron Ferguson, Jan 13, 2026 at 6:07 PM
    #9
    Ron Ferguson

    Ron Ferguson New Member

    Joined:
    Mar 13, 2017
    Messages:
    23
    Location:
    Virginia
    I will be on the boat next week and will take a look. Thanks again. Really appreciate your help.

    Ron
