Pool type anchors

Discussion in 'General Yachting Discussion' started by Pascal, Sep 28, 2021.

  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,954
    Location:
    Miami, FL
    New to Pool anchors and so far I m not impressed. From the little information I found on line it looks like we have a pair of Pool type N anchors, 90kgs / 198lbs

    So far I ve had to use a lot more scope than I m used to with the Bruce/claw I had in the previous boat. It was a 176 pounder on an 84 skylounge. This thing would hold like Velcro in sand and mud at 6:1. You could feel the bow snap into the breeze when it would set

    with the Pool I ve had to use 10:1 in the same spot/bottom in only 15kts of breeze. 7:1 would result in a slow drag.

    I can’t find any anchor size selection charts on line for these anchors. 198lbs feels a little light for a 110 footer but because of the pocket size I doubt I can upsize

    Am I missing something or do these anchors just require more scope?

    I haven’t anchored in sand yet, just mud. Do they work better in sand ? The Bruce woudl work great in both bottoms

  2. Ken Bracewell

    Ken Bracewell Senior Member

    Joined:
    Feb 9, 2006
    Messages:
    1,590
    Location:
    Somewhere Sunny
    Must be undersized. I've had the same type anchors on every boat I've run for the past 20 years, and rarely ever drag. In shallow water (Bahamas) I use about 8:1-10:1.
    But in deeper water (50+) I generally use about 4:1
  3. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,054
    Location:
    Fort Lauderdale
    You should have closer to 500 lb anchors for your size. Based on a windage situation......Sounds like Lazzara sized them based on weight and not length.
  4. BRyachts

    BRyachts Member

    Joined:
    Mar 31, 2006
    Messages:
    108
    Location:
    Ft Lauderdale
    Yeah, I'd say a bit undersized too.
    For years I worked a 120' Tri-deck with those same anchors, but we were 450 lbs, 5/8" chain.
    The pic you posted looks like it could have been taken from that boat, exact same setup.
  5. Gotwex

    Gotwex New Member

    Joined:
    Jun 26, 2015
    Messages:
    15
    Location:
    northeast
    If you decide to upsize, let me know. I'll buy yours.
  6. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,954
    Location:
    Miami, FL
    Thabks for the feed back guys. I d love to upsize one of them but I doubt anything bigger will fit in the pockets.

    i d like to find a selection chart for these anchors but haven’t so far.

    we were out this week end and spent two nights at a spot with poor holding (thin layer of sand over limestone). We held fine in 15kts+ but with 12:1 scope relying on chain weight. We ll see how it works out in the Bahamas, I guess they ll do better in sand


    Another question related to this set up. How do you attach a bridle besides using the tender ? Any trick? Dangling a flat chain hook with a line on each side of the bow to catch the chain?
  7. gcsi

    gcsi Member

    Joined:
    Mar 18, 2011
    Messages:
    81
    Location:
    tampa

    Sam’s has a stainless 400lb they’ve been trying to sell for at least the last 7 years….
  8. Gotwex

    Gotwex New Member

    Joined:
    Jun 26, 2015
    Messages:
    15
    Location:
    northeast
    After setting our anchor, we attach our snubber/bridle hook to the chain from the deck and run it down through the hawsehole letting out more chain. If we are using the bridle, we attach one leg to the bollard and then pass the other leg through the hawsehole and retrieve it with the boat hook and attach it to the oposite side bollard. Then we adjust everything accordingly. This is all dependent that you have enough room in your hawsehole to run the lines/hook through.
  9. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,954
    Location:
    Miami, FL
    Thanks. I ll have to check the dimensions
  10. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,954
    Location:
    Miami, FL
    Unfortunately that s the problem. The hawspipes run from the deck to the pockets and aren’t big enough accommodate a chain hook.

    on the 84 I ve used this which has worked really well:

    https://www.mantusmarine.com/snubber-pendant/

    I ll have to try and see if it and a line can make it thru the hawsepipe. I doubt it
  11. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,566
    Location:
    Sardinia
    With the chain hook that I posted a few months ago in this thread, you can grab the chain by hanging it overboard with the lines in your hand. It takes a little bit of practice, but by now I usually grab it upon the first attempt (second at worst), in less than half a minute anyway.
    You argued about the ring and carabiner in that thread, but you can also use it with a shackle if you prefer.
    I'm just unsure it if's available for chain sizes above 12mm, in case yours are larger.
  12. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,954
    Location:
    Miami, FL

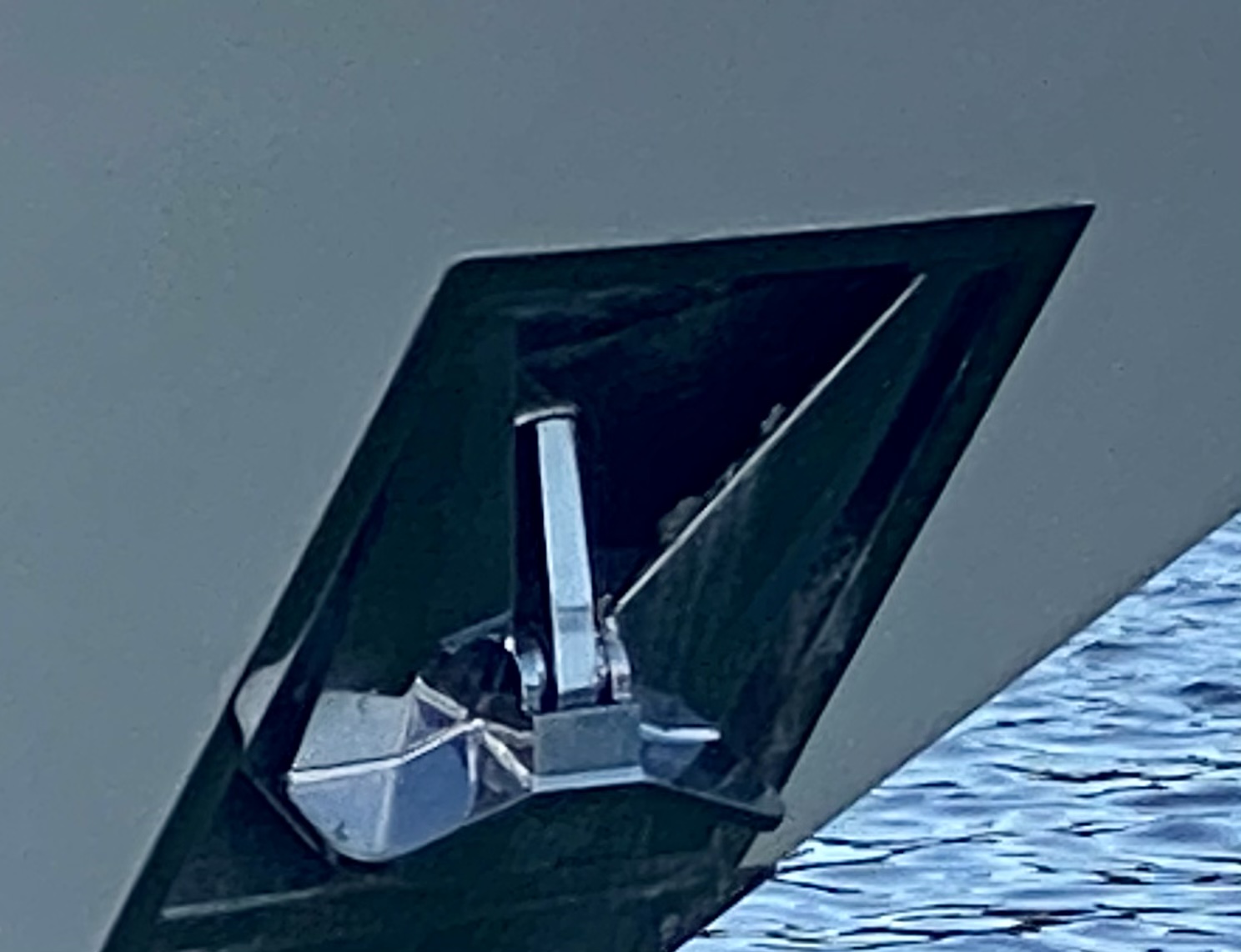

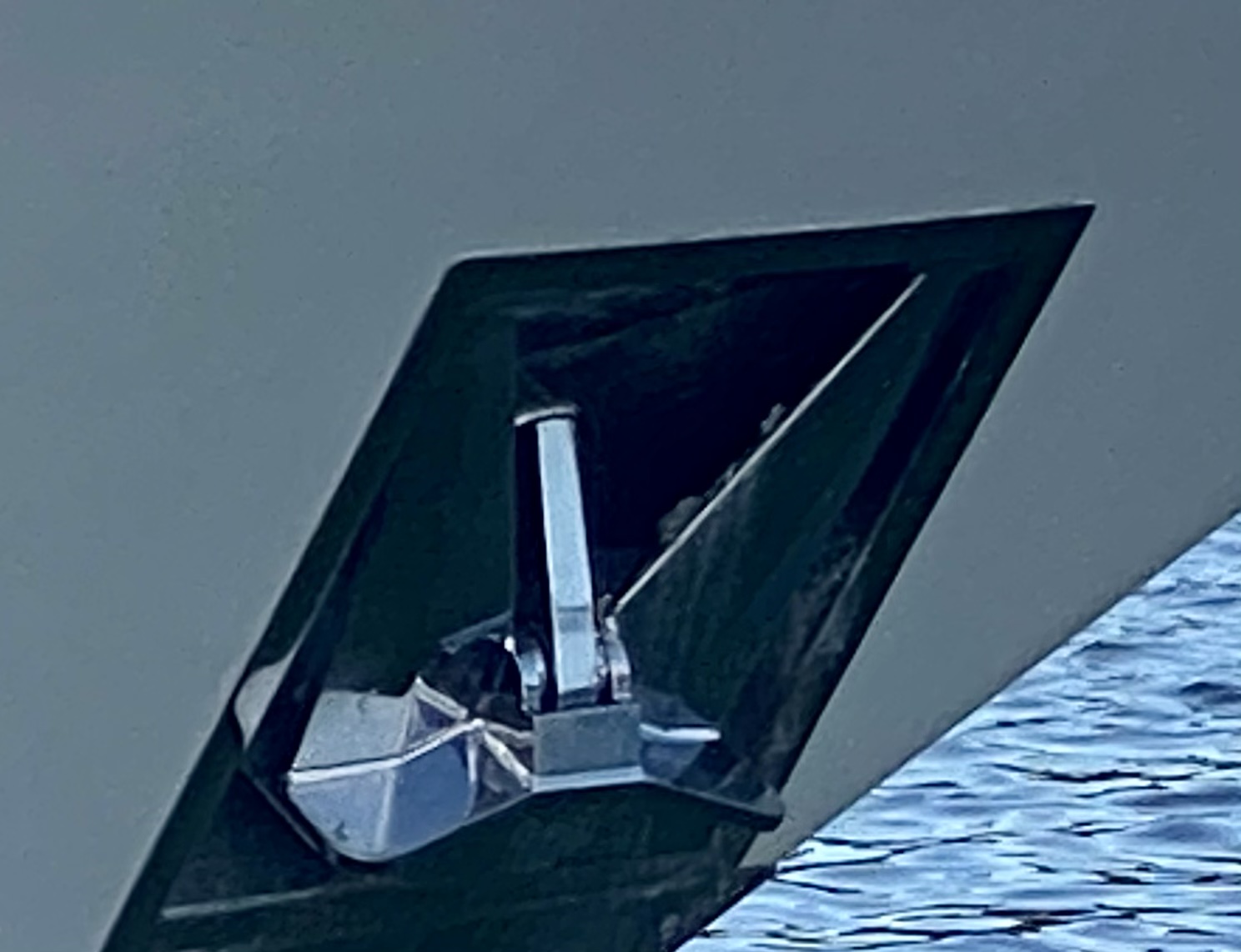

    67CDD9BD-7056-40DC-A6E2-A0E2D111303F.jpeg I thought I had started a thread before but can’t find it.

    not happy with the 200 lbs Poole anchors that are on the 110’ Lazzara i ve been for the last 6 months. We didnt anchor much in Miami but now in the Exumas we anchor 90% of the times. The 200 pounders just don’t cut it as they require twice the scope I used to need with the Bruce’s I ve used in the past in the same locations. No big deal empty anchorages but a problem in more busy spots. Right now off Mc Duffs at Normans, I have 150’ in 12’ of water and we ve slid about 50’ overnight in just 12/14 kts winds

    I m reluctant to use both because of the risk of getting them tangled up on a wind or current shift.

    the pockets the anchors rest in do not allow for any significantly large anchors so ink trying to come up with an alternative.

    one would be to weld a chunk of stainless steel on the base of the anchor to increase the weight although that will not increase the flukes holding power

    second option would be to attach a stainless steel plate around the existing anchor pocket, like a reverse U for the larger flukes to rest against. Pretty simple but my concern is that waves will pound against the forward facing side of the anchor. Or am I over thinking this possibility ?

    finally using a kellet when more scope isn’t an alternative. Problem with that, besides the extra work, is that it would have to be attached and removed to/from the chain with the tender since we can’t reach the chain from deck.

    any suggestion welcome...
  13. Ward

    Ward Senior Member

    Joined:
    Jan 18, 2010
    Messages:
    250
    Location:
    Vancouver BC
  14. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,953
    Location:
    South Florida
    Merged. :)
  15. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,566
    Location:
    Sardinia
    I definitely preferred the pocket anchors arrangement that I used to have in my previous boat to the bow roller that I have in the current one.
    BUT, pockets do restrict your anchor choices a bit...

    That said, I never had a problem with my old stockless anchors - 100 lbs each, on a 35 tons 53 footer.
    Oh, and galvanized, of course. I wouldn't want a polished steel anchor if they were given away FoC.
    On any sandy bottom, 14 kts of wind would have never dragged the anchor by one inch even with an 8:1 ratio, let alone with the 12+ that you mention.

    You could try to see what's the largest galvanized stockless anchor that fits your pockets.
    More than likely, you would also be left with some cash after selling those Pool hooks on eBay.

    Then again, it also depends on whether your boss rates forms over function.
    If there's a contest that galvanized stockless anchors will never win, it's a beauty one!
  16. Slimshady

    Slimshady Senior Member

    Joined:
    Aug 17, 2018
    Messages:
    226
    Location:
    Lighthouse pt

    Few things
    Have you swam down and eyed it in person. How deep is it digging in or is it skipping.
    Anchor holds by digging in the flukes, they need more surface area. Add material on shank side of flukes.
    The bottom of anchor has that perpendicular foot. That's a problem in my eyes, it's preventing proper embedment. When anchor is trying to set its perpendicular to the direction of pull and forces it to skip instead of dig. Navy anchors are very similar minus the flat foot. Cutting torch would fix it.
  17. Slimshady

    Slimshady Senior Member

    Joined:
    Aug 17, 2018
    Messages:
    226
    Location:
    Lighthouse pt

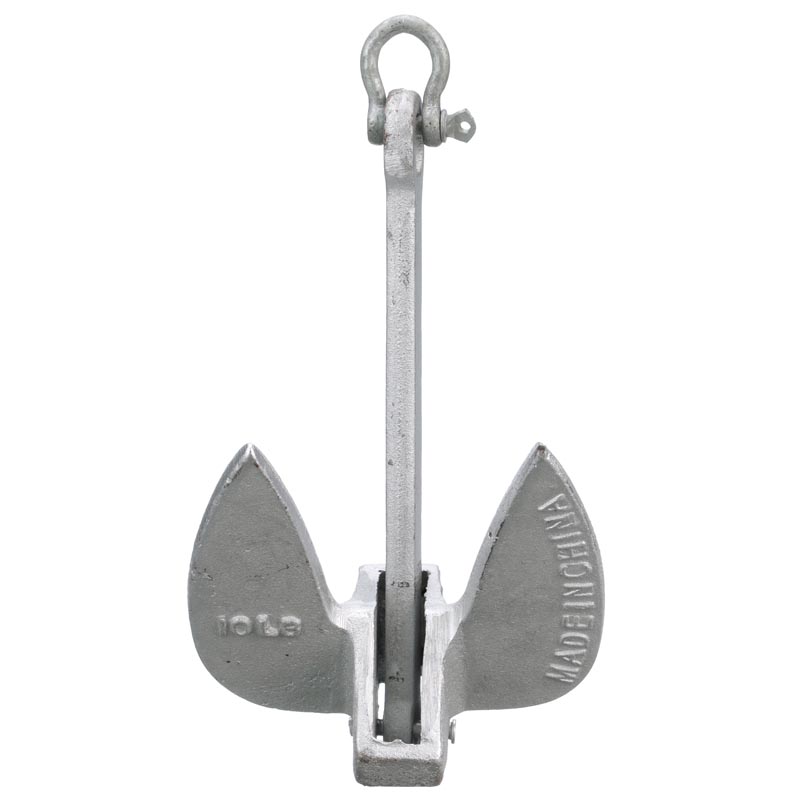

    This was my thought.
  18. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,662
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    I am going out on a limb here to say that Pascal would not use that particular anchor if you gave it to him..........
  19. Slimshady

    Slimshady Senior Member

    Joined:
    Aug 17, 2018
    Messages:
    226
    Location:
    Lighthouse pt
    Oh come on it's perfect and only 10 lbs! Made in china!!
    I was using it as an example. No flat foot on the anchor vs his with a foot.
    Obviously will take guts to bring a welder or torch near his beautiful anchor but......
  20. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,662
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    LOL, the Made in China stamp killed it !!
