New Project 79 Chris Craft 22' CC Dory

Discussion in 'Chris Craft Connies, Commanders & Catalinas' started by Trapshot, Apr 30, 2013.

You need to be registered and signed in to view this content.
  1. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    Chirp from cricket

    Have been busy contemplating old boat mysteries as finishing tear down and foraging for miscellaneous parts.

    I still am looking for some good pictures of what the "OEM" woodwork looked like on the console and forward locker doors. Was it mahogany as was used in most Chris Crafts of the era as I've been told?

    Today my order is going in for new "OEM" rub rail from Wefco - after much agonizing I have decided on OEM gray over black or white, thinking it will give the best balance in appearance v. maintenance.

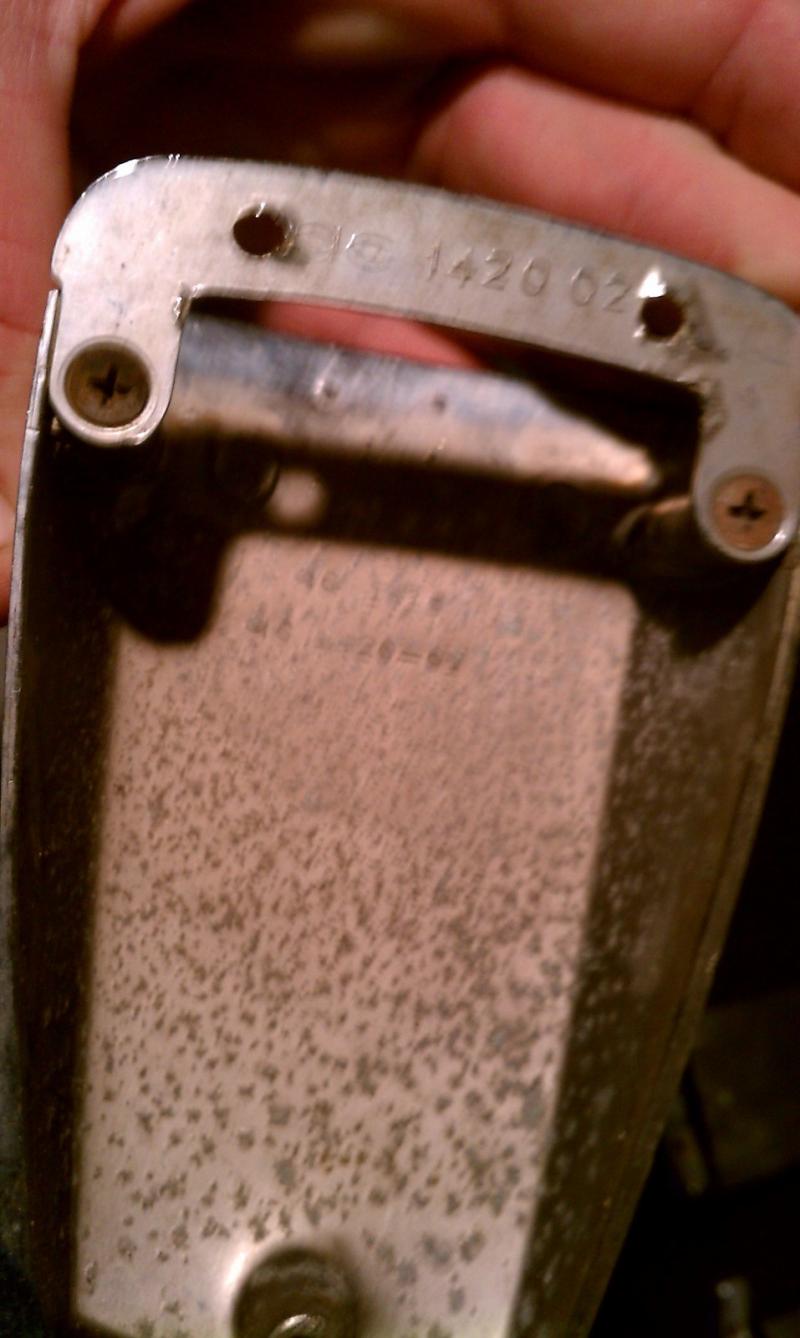

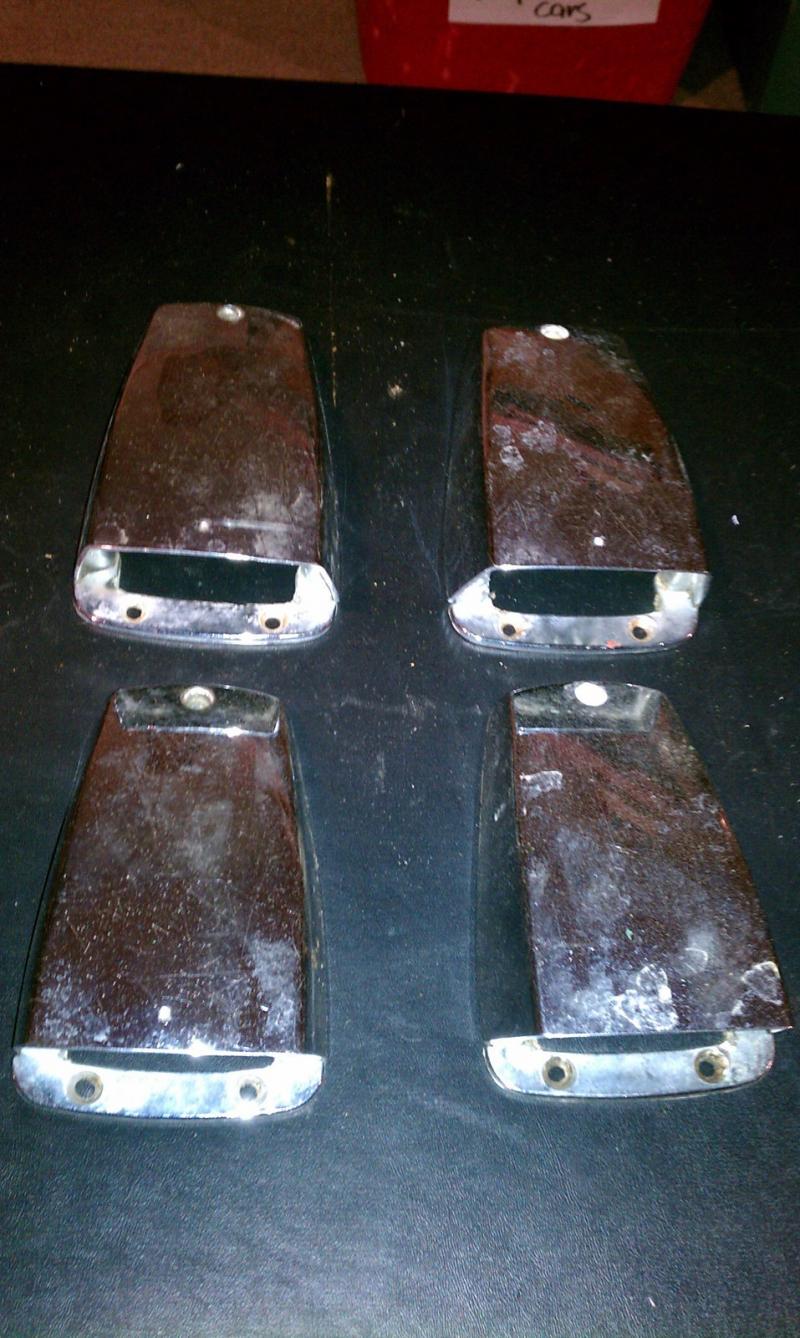

    Recent victory pictures below - expected to arrive today so I can chase replating...

    Michael

    Attached Files:

  2. ddw1668

    ddw1668 Senior Member

    Joined:
    Jan 18, 2007
    Messages:
    133
    Location:
    Murrells Inlet, SC
    G10 backers for strut and rudder post

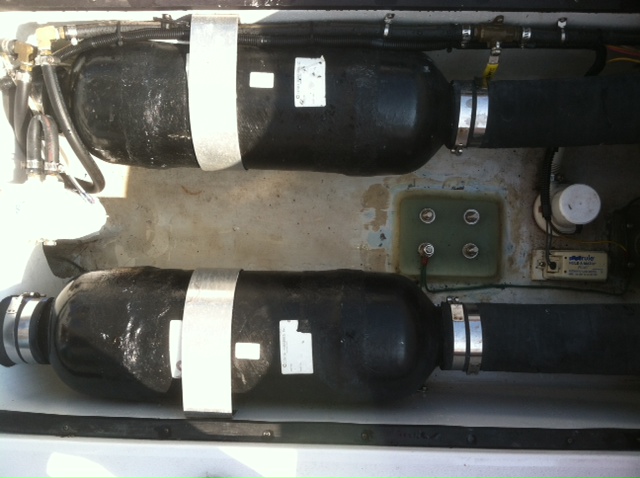

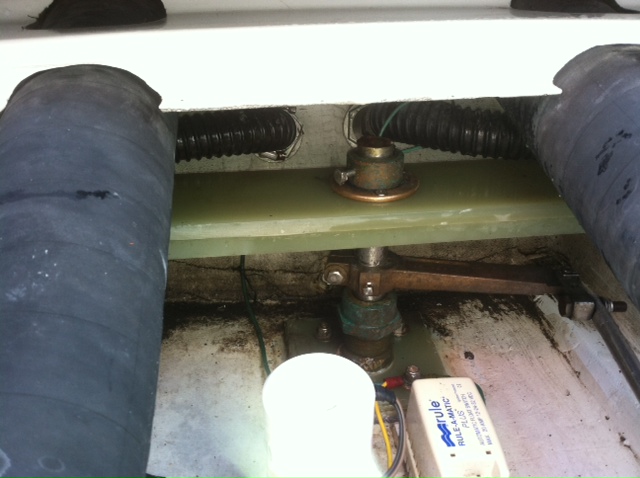

    Here are pictures of G10 used to back up the strut and the rudder post. We epoxied two pieces of 1/2 inch board and tied it into the struts to support the upper end of the rudder post. I think this is a much better solution than the starboard used by the PO, who used no upper support on the RP BTW.

    Attached Files:

  3. Alanglois

    Alanglois Member

    Joined:
    Dec 1, 2004
    Messages:
    60
    Location:
    Mentor Harbor Yachting Club
    I love that setup! Can't believe I didn't do that. At least up until now! We will be making that mod immediately. I am looking into the platform specs and will get back to you on that. Send me a PM as to what you are looking to get for it.

    Great job.

    Al
  4. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    That does look far better/stronger than what's in mine (which is basically nothing but the rudder shaft extending about 4" above the bell crank)... I believe I'll install this mod, too, as soon as we have the stripping out of stuff done to clear the space. I second the good job kudos.

    I'm still foraging/begging for any pictures of old "OEM" cabinet work to at least get a style idea from...

    Lastly, my console as received was hinged to fold forward - but it appears there are screw holes all around the console base to permanently fix it in position. What's worked out the best in these boats?

    Happy Thursday, y'all
    M
  5. ddw1668

    ddw1668 Senior Member

    Joined:
    Jan 18, 2007
    Messages:
    133
    Location:
    Murrells Inlet, SC
    Trim Tabs

    These boats are very heavy in the aft with a high bow to try to see over. Mine came with 12" by 9" Lenco tabs which don't get the job done. I have been working with Bennett on the issue and they recommend 24" by 9" or 24" by 12". Having the benefit of 20 or so hours of use, I am going to switch to 24" by 12".

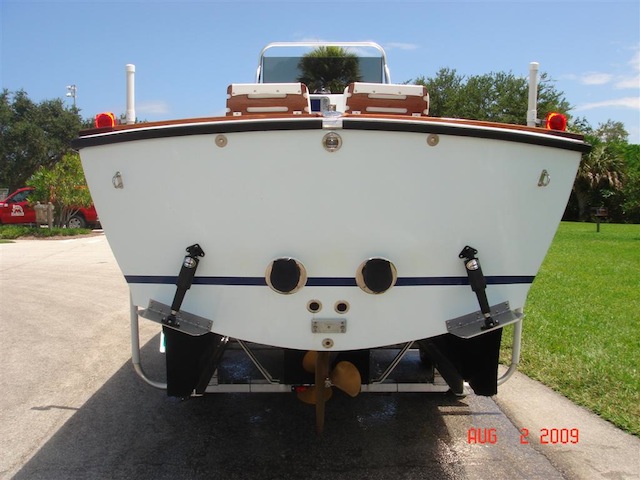

    The picture is with the Lenco 12 by 9s showing how much area is available for much larger tabs.

    BTW, I have enough G10 board left from the original 2' by 3' by 1/2" to mod another boat's strut and rudder post. $100.00 plus shipping from NE GA. Less than half price if you can use it.
  6. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Couple of thoughts here....

    Rudder: Agree with Al, great innovation on the rudder stabilization. Like Mike, I just have to shaft sticking up out of the stuffing box. Is that a sensor on the top there that indicates rudder angle to the console?

    Trim tabs: I could see the desire for theses..... I find the trim issue to be particularly challenging with a full tank of gas and a load of passengers. In the end I did not install these as I thought effectively attaching them was going to be difficult.

    Console: My main console is screwed to the deck around the perimeter and that front cowling is hinged at the front by two hinges. I would not change this, but I would make sure you leave enough slack in the wires/steering/throttle cables so that it can be slid forward to work on the engine (like when I had to change the starter motor a few weeks back)

    CM
  7. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Where's ed?????????????
  8. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,369
    Location:
    My Office
    Hi,

    Last seen here: 07-22-2013 12:22 PM
  9. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Where's Trapshot/Ed?
  10. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,369
    Location:
    My Office
    Hi,

    IRONMAN, The time stamp I posted is what it says under his profile name as the last time he visited the forum.

    Hopefully he is busy enjoying his or someone else's boat and will return to posting when he can.
  11. ddw1668

    ddw1668 Senior Member

    Joined:
    Jan 18, 2007
    Messages:
    133
    Location:
    Murrells Inlet, SC
    That green wire is a ground. I had to buy a new bushing and collar for the RP mod.

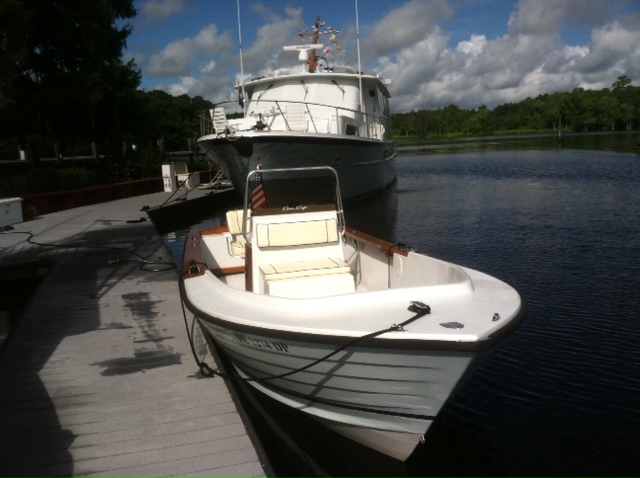

    Cleaning day on A Dock. I am going to refinish the decks with light tan Interdeck soon. Hate that Awlgrip and sand finish. Got my new upholstery recently and I think the light tan decks will look good with the seats.

    Attached Files:

  12. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    Trapshot is still alive LOL

    Hey guys, I have been very busy playing Florence Nightingale. Wife had surgery on her knee and it's been back and forth to doctor and therapy. Have had little time to work on the boat these past weeks. Little up-date, finished all the glass work on deck, started making new hatch covers and hopefully the next week or so to apply 3 barrier coats of interlux 2000 to bottom.

    Also, planning to attend the powerboat show in Annapolis in Oct. if anyone is going let me know, maybe we can hook up and meet. Need a new power plant so figured good place to start.

    Thanks for asking where I've been.

    regards
    Ed
  13. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    DDW.... nice job on the rudder strut. I have been toying around with a little different idea. Thinking about having gas tank altered and install a tiller straight up off shaft. Years back I owned a 26' Dowie had a tiller and loved it!!

    Ed
  14. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    Hatch Gasket/Seal "L"

    Howdy all...

    As working through all my pieces-parts scrounging, a close examination of the original hatch seals on my boat revealed they were nominally 3/4 x 3/4 OD (close to 7/8?) with a 1/2 x 1/2 inside to the "L"... and oddly had a radius transition from the OD to ID profile. Wefco has a straight-cut 3/4 x 3/4 with a 1/4 thickness - but for $100 will make a tool to extrude an exact duplicate of the original. Anybody have experience with what works and what doesn't in this area? Anybody want some "OEM" profile made (even though it looks kinds screwy to me!) ?
  15. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
  16. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    I actually got my rub rail from Barbour - spoke with a guy named Mark there who was really helpful. I can give you the model number if you're interested in that.

    For those hatch gaskets, mine were mostly just dirty. After removal, I submerged them in a solution of bleach and mildew remover (from Home Depot), and after some light brushing, came out looking like new.

    Ed - hope the wife is feeling better.

    CM
  17. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    Hello Ironman....

    Thanks for asking about the wife, she's hangin in there!

    I would appreciate the model # for the rub rail from them, when you get a chance.

    How's the boat running? Must be really enjoying all your efforts

    Best
    Ed
  18. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    Hello again, Ed & CM...

    I second the well wishes for your wife, Ed.

    I checked the Barbour profiles in the catalog and unless I missed something couldn't find one I would call a match for the hatches on my rig. I almost suspect CC used something they had laying around the shop since the purpose of having radius corners on the gasket profile eludes me. Maybe they make it softer/more flexible at the edge???

    I've already ordered my new rubrail from Wefco, opting to go with "OEM" gray vinyl @ $7/ft. (though a rigid profile with stainless insert would have looked pretty slick). For the hatch gasket they want $3.50 a foot whether stock or custom, so I think I'll go ahead and have them duplicate the OEM with the radius corners. While I am sure my old original one would clean up pretty nice, it seems exceedingly hard from age and I doubt it would seal much of anything nor quiet hatch rattle over the ICW speed bumps.

    The hull fittings are pretty well stripped out now end-to-end, and we're patching the years of everybody's "better idea" screw holes. With any luck we'll have paint prep done in another week... perhaps a progress photo when it doesn't look like a war zone.

    Michael
  19. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    hi CC....

    Thank you for the well wishes and my wife thanks you.

    I made a new rear hatch cover today with 1/2 balsa, wow cant believe the amount of resin. The way I did the new hatches ,I omitted the rubber L gaskets. Use 1" oak ribs they came out real well and super strong. I also will take some pics as soon as my war zone is cleaned up.

    Is the gray color more money, They gave me a price of 5.00Ft in black.
    How the temp down in fla. got to be pretty hot for working on the boat, thank god it cool off up here, been in the low 70s.

    Keep the progress reports coming in, have a great day
    Ed
  20. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,055
    Location:
    Fort Lauderdale
    Divinycell or coring would be a much better choice for hatches than Balsa. Balsa soaks up water like a sponge and if you get any and I mean any water instrusion due to screws for hinges and such not being properly bedded, it will get soft very quickly and lose it's structural rigidity.
